Summary of Contents for Amazfit T-Rex Pro A2013
- Page 1 Product Manual Amazfit T-Rex Pro A2013...
- Page 2 01 Package Contents Smartwatch with Charging base × 1 Instruction Manual × 1 band × 1...
-
Page 3: About The Watch

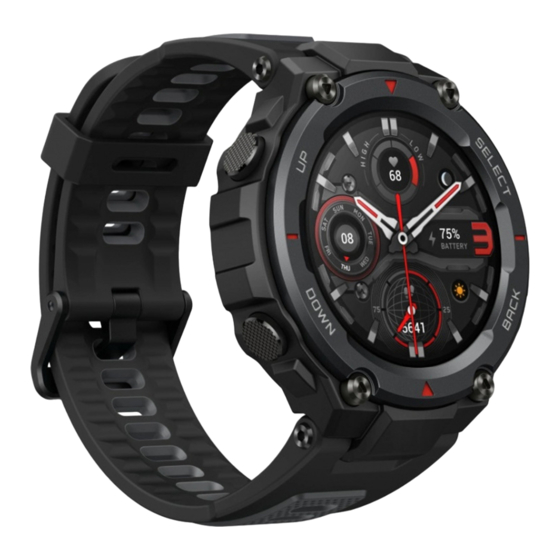

02 About the Watch Upper Power/Select button Heart rate button sensor Touch screen Charging Back button Lower plates button Note: Press and hold the power button to turn on the watch. If the watch cannot be turned on, please charge it and then try again. -
Page 4: Pairing The Watch
03 Pairing the Watch Scan the QR code on the Instruction Manual with your mobile phone to download the app to your mobile phone. You can also download the latest version of app from the Google Play Store or Apple App Store. - Page 5 Note: For a better user experience, please use the most recent version of the app. The operating system needs to be Android 5.0, iOS 10.0, or above. Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the steps in the app to pair your watch correctly.
-
Page 6: Charging The Watch
04 Charging the Watch Connect the watch's charging cable to a power adapter or a computer's USB port. Put the watch into the charging base. Pay attention to the direction and position of the watch, and make sure that the metal contacts on the back of the watch fit closely with the charging base. When charging starts, the watch screen displays the charging progress. ... - Page 7 05 Disassembly and Assembly of the Watch Strap If you need to install or remove the strap, hold the screw on one side with a screwdriver, and rotate the nut on the other side, as shown in the figure below. Note: Once the strap is assembled, pull the strap properly to ensure it is installed successfully.
- Page 8 06 Wearing the Watch Wear the watch strap not too tightly or too loosely, and leave enough space for the skin to breathe. This makes you feel comfortable and allows the sensor to function. When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately tight) fitting between the watch and the skin of your wrist, and keep your arm still throughout the measurement process.
-
Page 9: Basic Parameters
07 Basic Parameters Product model: A2013 Operating temperature: 0°C to 45°C Input: 5V d.c. 500mA MAX Water resistance rating: 10 ATM Bluetooth version: BLE V5.0 Bluetooth frequency: 2400–2483.5 MHz BLE output power: <5 dBm View product certification information on the watch's Settings > System > Regulation page. Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions The Bluetooth®... -
Page 10: Regulatory Notice
08 Regulatory Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 11 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 12 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement.
- Page 13 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 14 Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
-
Page 15: Disposal And Recycling Information
09 Disposal and Recycling Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. - Page 16 10 Certifications and Safety Approvals Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A2013 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://sup- port.amazfit.com/en For more regulatory information and product certification/compliance logos related to Amazfit T-Rex Pro, please go to Regulatory on your Amazfit T-Rex Pro.
- Page 17 11 Battery Safety This device is equipped with a built-in battery that cannot be removed or replaced. Do not disassemble or modify the battery by yourself. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion.
- Page 18 12 Safety Notice Do not allow children or pets to bite or swallow the product or its accessories, as this may cause injury. Do not place this product under excessively high or low temperatures, which may cause the product to catch fire or explode. Do not place this product near heat sources or open flame, such as ovens and electric heaters.
- Page 19 Do not use unauthorized or incompatible power adapters, chargers, or data cables, which may damage the watch and accessories, or cause fire, explosion, or other hazards. The radio waves generated by this product may affect the normal operation of implanted medical devices or personal medical devices, such as pacemakers and hearing aids.
- Page 20 13 Repair and Maintenance Avoid using detergents such as soap, hand sanitizer, bath foam, or lotion for cleaning to prevent chemical residues from irritating the skin, corroding the device, or degrading the water resistance of the device. After wearing the device while bathing (for devices that support bathing), swimming (for devices that support swimming), or sweating, please promptly clean and dry the device. ...
-
Page 21: Troubleshooting
6. Handle with care during transportation. Keep the device dry and away from humidity. 14 Troubleshooting Please check the FAQ on the website: https://support.amazfit.com/en. - Page 22 15 Warranty and Return Policy The Amazfit Limited Warranty covers Amazfit products against manufacturing defects beginning on the original purchase date. The warranty period is 12 months or another specified period as the applicable consumer laws in the consumer’s country of purchase require. Our warranty is in addition to rights provided by applicable consumer laws.
