Operating Instructions

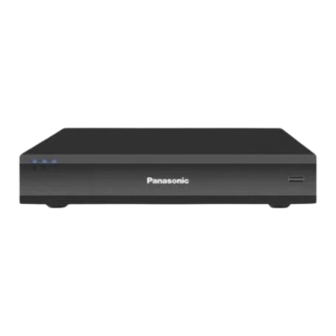

8 Channel NVR
Information on hazardous constituents as specified in rule 16(1) in electrical
and electronic equipment.
Declaration of Conformity with the requirements of the E-waste (Manage-
ment) Amendment Rules 2022 with the rule 16(1) limits with respect to lead,
mercury, cadmium, hexavalent chromium, polybrominated,
biphenyls, polybrominated biphenyls, polybrominated diphenyl
ethers.
The content of hazardous substance with the exemption of the
applications listed in SCHEDULE II of the E-Waste (management)
Amendment Rules 2023.
1. Lead(Pb)- not over 0.1% by weight;
2. Cadmium(Cd)- not over 0.01% by weight;
3. Mercury(Hg)- not over 0.1% by weight;
4. Hexavalent chromium(Cr6+)- not over 0.1% by weight;
5. Polybrominated biphenyls(PBBs) - not over 0.1% by weight;
6. Polybrominated diphenyl ethers(PBDEs)- not over 0.1% by weight;
For the purpose of recycling to facilitate effective utilization of
Resources, please return this product to a nearby authorised
collection center, registered dismantler or recycler, or
Panasonic service center when disposing of this product.
Please see the Panasonic website for further information on collection
centers, etc. or call the customer care toll free number.
Website: https://www.panasonic.com/in/corporate/e-
waste-management.html
English
Customer Care Number (Toll Free): 18004190373
E-mail: helpline@in.panasonic.com
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this
product and retain them for future reference.
The images shown in this manual are for illustrative purposes
only.
Model No.:
PI-HRA081A

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic PI-HRA081A

  • Page 1 Panasonic service center when disposing of this product. product and retain them for future reference. Please see the Panasonic website for further information on collection The images shown in this manual are for illustrative purposes centers, etc. or call the customer care toll free number.
  • Page 2 Important Safeguards and Warnings Electrical Safety Installation and operation should confirm to your local electrical safety codes. We assume no liability or responsibility for any fires or electrical shock caused by improper handling or installation. Transportation Security Heavy stress, vibration or water splash should be avoided during transportation, storage, and installation.
  • Page 3 Use of this product and the manual and the subsequent result shall be entirely the  user's own responsibility. In no event shall Panasonic be liable for any special, consequential, incidental or indirect damages including, among others, damages for loss of business profits, business interruption, loss of data or documentation, product malfunction and information leakage caused by cyber-attack, hacking or virus in connection with the use of his product.
  • Page 4 The contents of this manual are subject to change without prior notice. Regular  updates can be added to the new version of this manual. Due to uncertainties such as physical environment, discrepancy may exist  between the actual values and reference values provided i n this manual. The ultimate right to interpretation resides in our company.
  • Page 5: Table Of Contents

    Preface ...................... 1 Part I Product Introduction ................. 1 Product Overview ..................1 Product Function..................1 Accessories ....................2 Installation Guide..................3 Host Operation .................... 3 Part II Local Network Access ................ 5 1 Before User Login ..................5 User Login ....................5 2 How to use Mouse with the NVR ..............
  • Page 6 Cloud ......................18 Wi-Fi ......................19 3G/4G ......................20 Net Service ....................21 7 Camera ....................23 Camera Manage ..................23 Channel Status ................... 24 Channel Type ..................... 25 8 Alarm ....................25 Motion Detect.................... 25 Video Blind ....................26 Video Loss ....................
  • Page 7 Backup..................... 42 AI Play ..................... 43 Logout ..................... 44 Information ..................45 Alarm ......................45 HDD ......................46 BPS......................47 LOG ......................48 Version ...................... 49 Online User ....................50 Do’s & Don’ts ................... 51 Troubleshooting Points ..............52 TECHNICAL SPECIFICATIONS ..............54...
  • Page 8: Preface

    Preface This manual describes how to use NVR on Local Network or using the Web Browser interface. In this manual, the terms IP camera and IPC refer to the same thing: network camera, which requires a connection to the network. And the IP device mentioned in this manual refers to an IP camera or network camera.
  • Page 9: Accessories

    Accessories Power Adapter Mouse HDD Screw(x4) Warranty Card Quick Installation Guide Earthing Wire...
  • Page 10: Installation Guide

    Installation Guide Check When user receives product, please check all items according to list. Hard Disk Installation Installation Preparation Need to prepare a cross screwdriver. This series of NVR can be installed in the case and the largest capacity of hard disk could be up-to 10TB. Installation Steps Disconnect the power from the NVR before installing a hard disk drive (HDD).
  • Page 11 working mode, the video recorder will automatically save recording before powering off and automatically restore to the working state before powering on to continue working. Note: It is recommended to use UPS backup to ensure a stable power source for the equipment.
  • Page 12: Part Ii Local Network Access

    Part II Local Network Access For configuration an NVR can be accessed using two different methods: local Network access and web-based access. For local access, the user connects a monitor and a mouse to the NVR and uses the mouse to operate.
  • Page 13 Table 1–1 Mouse Operations Name Action Description Select or confirm an item.  Click Select to edit digits, symbols, upper-case or  lower-case letters in a field. Left Double-click Enter or exit full screen mode in live view Button Draw or move a rectangle on the screen, for Drag example, a motion detection area/digital zoom.
  • Page 14: Initial Configuration

    Initial Configuration Preparation Make sure that at least one Display / monitor is correctly connected  to the VGA or HDMI interface on the rear panel of the NVR. Verify that the hard disk(s) are correctly installed. For detailed steps ...
  • Page 15 1. User will get Quick Set-up wizard. This setup wizard will help in initial basic configuration. 2. Click next, QR codes will be available to download mobile applications for iOS & Android. QR code for remote access configuration on the app will also be available.
  • Page 16 4. Click Next, Network configuration option will be displayed. 5. Click Next, Option to configure default password for IP cameras will be displayed. Configure the default passwords for auto registration of IP cameras to the NVR.
  • Page 17 Click Next, Option to discover IP cameras automatically will appear. Select the devices from the discovered IP cam list and add them to complete configuration. Note: In case IPC PnP & Auto Search options are enabled then cameras will be added automatically by the NVR. Click Next and press Okay to complete the configuration &...
  • Page 18: Live View

    Live View Live View Status The following icons are used to indicate alarms, recording status and audio status in a live view window. Table 3–1 Live View Window Icons Icon Description Click to record video manually. Click to play recorded video. Available for PTZ cameras.
  • Page 19: Shortcut Menu

    Shortcut Menu When you right-click in a window, a shortcut menu appears as shown below. Menu Description View 1 Click to view single selected camera. View 4 Click to view camera no 1-4 or 4-8. View 8 Click to view camera no 1-8. View 9 Click to view camera no 1-8 &...
  • Page 20: Record Settings

    Record Settings HDD Manage Display information related to hard disk. Provides option to format & recover hard disk.
  • Page 21: Record

    Record Provides option to select manual or schedule recording for each camera/channel. Recording criteria can be selected as standard or motion based.
  • Page 22: Network

    Network Provides options to configure network parameters like IP Address & necessary IP ports. We can configure NVR in DHCP or Static IP mode depending on network requirements. Note: Network ports not to be changed unless until required for specific application.
  • Page 23: Ddns

    DDNS You can register with an DDNS server to obtain a domain name for your NVR and then access your NVR by visiting the domain name instead of an IP address (http://DDNS server address/NVR's domain name) using a web browser.
  • Page 24: Upnp

    UPnP To use UPnP in your NVR, UPnP must be enabled in the connected router. With UPnP enabled for Network Address Translation (NAT), the ports on the NVR can be mapped automatically to the router, and computers can access NVR from WAN. Email Once email is configured and NVR checked for connection to SMTP server for the valid email account user has configured (Gmail, Yahoo etc.), user...
  • Page 25: Cloud

    Cloud Provide option to enable/disable cloud connectivity for remote access using mobile applications or desktop.
  • Page 26: Wi-Fi

    Wi-Fi To connect NVR on Wi-Fi router/network, user can connect external Wi-Fi dongle to the NVR and enable/configure settings related to Wi-Fi network.
  • Page 27 3G/4G To connect NVR on 3G/4G network, user can connect external 3G/4G dongle to the NVR and enable/configure settings related to 3G/4G network.
  • Page 28: Net Service

    Net Service Provides option to use following services. 1. PPPoE PPPoE can be used on an NVR (Network Video Recorder) to establish an Internet connection and enable remote access to the NVR's features and functionalities depending upon connectivity from ISP. 2.
  • Page 29 3. FTP FTP is File Transfer Protocol which can be used to push event image/video file to the FTP server from the NVR. Cloud Storage Cloud Storage provides an option to push any event image / video on Dropbox/Google drive account. Note: Cloud storage services can be enabled for any one channel at a time.
  • Page 30: Camera

    5. IP Filter Provide option to secure connectivity and provide access to authorized users using blacklist and whitelist IP address table. Camera Camera Manage This provides an option to add and manage IP camera in the NVR, make sure IP cameras are connected to the NVR using network switch. Adding an IP Camera: Step 1.
  • Page 31: Channel Status

    Note: If NVR display username or password error please change the username & password as per the camera settings. Channel Status Displays maximum resolution, current resolution & camera connectivity status.
  • Page 32: Channel Type

    Channel Type Provide options to configure 8CH(4K) and 16CH(5M) NVR options. Alarm Provide option to trigger notification/recording based on motion, human, video loss, video blind, abnormality & intelligent analytics. Motion Detect Once enabled a motion detection alarm occurs when an object inside the detection area moves.
  • Page 33: Video Blind

    Video Blind Once enabled a video blind alarm occurs when the camera view is blocked more than 60% by an object. An alarm icon appears on the display. Various notifications like show message, email, buzzer, ftp upload, tour and recording can be configured for each CH/Camera.
  • Page 34: Video Loss

    Video Loss Once enabled a video loss alarm occurs when the camera is disconnected from the network due to power failure or network error. An alarm icon appears on the display. Various notifications like show message, email, buzzer, ftp upload, tour and recording can be configured for each CH/Camera.
  • Page 35: Abnormality

    Abnormality Once enabled an abnormality alarm occurs in the event of No Disk, Disk Error, Disk Full, Network Loss, IP Conflict detection. An alarm icon appears on the display. Various notifications like show message & buzzer can be configured.
  • Page 36: Intelligent Analysis

    Intelligent Analysis. Once enabled an alarm occurs when the camera detects Area Intrusion, Line Crossing event in the defined region. An alarm icon appears on the display. Various notifications like show message, email, buzzer, ftp upload, tour and recording can be configured for each CH/Camera.
  • Page 37: Smd

    Once enabled an alarm occurs when the camera detects any human movement in the defined region. An alarm icon appears on the display. Various notifications like show message, email, buzzer, ftp upload, tour and recording can be configured for each CH/Camera.
  • Page 38: Video

    Video This option is related to the quality of video, compression type, resolution, GUI Display & Output Adjust etc. Encode Encode settings are video image quality settings that are set for each camera. This includes compression, resolution, FPS, bitrate, I-Frame interval etc. Setting these correctly based on the network can save network bandwidth, HDD space, fix network lags etc.
  • Page 39: Gui Display

    GUI Display Graphical User Interface are information displayed with video images, for example Channel title/Camera name, Alarm status, Date & Time etc. It also gives you an option to configure privacy masking for each camera/channel.
  • Page 40: Output Adjust

    Output Adjust Provide options to adjust video display on the screen by configuring display settings, brightness, contrast, saturation, hue & screen display size.
  • Page 41: System

    System Provide options and basic settings related to the NVR/Camera. General An Option to configure date, time, language, machine name etc. (Ref. pic below)
  • Page 42: Tour

    Tour The tour operation user to configure the view type, link cameras and the tour interval. Then the tour can be linked with alarm notifications also.
  • Page 43: Rs232

    RS232 Note: Reserved for future application. Account This option is used to create additional login accounts for additional users and define accessible functions and features. This option is also used to change the default password for the admin account.
  • Page 44: Auto Maintenance

    Auto Maintenance Option to reboot the system automatically at desired interval & time. We can also select to auto delete od files (Logs).
  • Page 45: Import/Export

    Import/Export Provides option to export logs files, configuration, abnormal operation (device malfunction) to the connected USB drive with NVR. This utility also provides an option to import configuration files (backup).
  • Page 46: Restore

    Restore This function provides an option to restore or factory default settings. NVR will restart automatically to complete this operation depending upon the restore option selected. Note: Operation logs & recordings will not be deleted.
  • Page 47: Upgrade

    Upgrade This option provides utility to upgrade the device locally using a USB storage device or OTA.
  • Page 48: Playback

    Playback This option provides utility to playback recorded videos using video query and advance search option, we can also playback by selecting standard, alarm, manual, intelligent or all recording options. Note: Green color for standard recording, Red for alarm recordings, Yellow for manual recording, purple for intelligent recording.
  • Page 49: Backup

    Backup This option provides utility to backup recorded files by selecting start time and time, backup format (H.26X & AVI) in the USB storage device.
  • Page 50: Ai Play

    AI Play Option to search recorded video based on human detection using start time and end time.
  • Page 51: Logout

    Logout Once logout option is selected, three options can be viewed: Reboot – To reboot the device. Shutdown – To shut down the device. Logout – To log out from the current user account.
  • Page 52: Information

    Information This provides details related to NVR like alarm, HDD, BPS, Logs, Version & Online user (Web access) details etc. Alarm This option displays real time alarm notification based on parameters like motion detection, video blind, video loss, intelligent analysis, human detection.
  • Page 53: Hdd

    This option displays information related to video recordings on the hard disk. It also displays hard disk status & capacity/utilization.
  • Page 54: Bps

    This option displays the network bandwidth consumption for each channel/camera.
  • Page 55: Log

    This option displays the logs related to system, configuration, storage, alarm event, account & playback.
  • Page 56: Version

    Version This option displays details like serial number, software build date, P2P status, model number & MAC address.
  • Page 57: Online User

    Online User This displays details related to online users logged in to the NVR on the local network.
  • Page 58: Do's & Don'ts

    Always dispose of products that have Do not donate old electronic items to reached end of life at Panasonic Life anybody. Solutions India Authorized Service Do not dispose of your product in Centre.
  • Page 59: Troubleshooting Points

    Troubleshooting Points When troubleshooting network video recorders (NVRs), there are several points you can consider identifying and resolve issues. Here are some troubleshooting steps you can follow: Check power and connections:  Ensure that the NVR is receiving power and turned on. ...
  • Page 60  Restore the NVR to a previously known working configuration if a backup is available. If you've gone through these troubleshooting steps and are still experiencing issues, it may be helpful to consult Panasonic technical support.
  • Page 61: Technical Specifications

    TECHNICAL SPECIFICATIONS Network Video Input 8-CH (Expandable upto 16-CH*) Operating System Embedded Linux Network Access Bandwid 80Mbps Video Compression H.265+/H.265/H.264 Video Output 1 CH VGA output (1920×1080, 1280×1024@50/60Hz) 1 CH HDMI output (3840x2160, 1920×1080, 1280×1024, 1440x990, 1024x768 @50/60Hz) Video Preview Mode 8-CH &...
  • Page 62 Design and specification are subjected to change without notice. Weight and dimensions shown herein are approximate. The Graphics in this manual are only for reference. Your NVR may be slightly different from that shown in this manual. Panasonic Life Solutions India Pvt. Ltd. http://www.panasonic.com...
