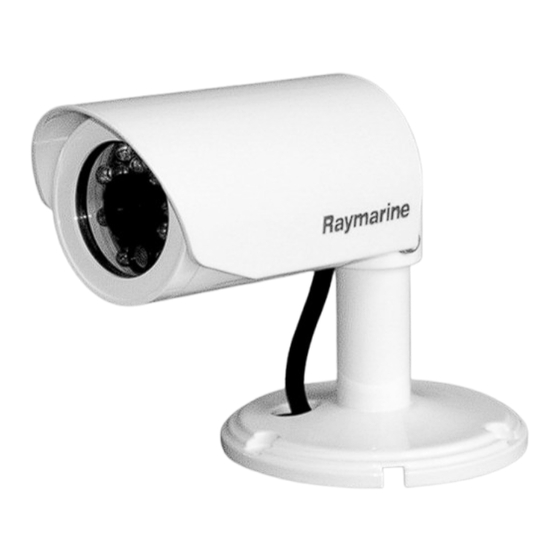

Raymarine CAM 100 User Manual

Installation
The adapter cable should be used to connect the display and the power supply to
the camera. The adapter cable connections are shown below
D8537_1
If you do not have a breaker in the power circuit, an in-line 0.5 A quick blow fuse
should be fitted to the positive (red) lead of the cable.
Maintenance and Troubleshooting
Your Raymarine CAM 100 does not contain user-serviceable parts.
They should be serviced only by authorized Raymarine service
technicians at a Raymarine factory facility.
Routine Maintenance
Routine maintenance should be carried out on a regular basis:
• Examine all cables for signs of damage such as chafing, cuts or nicks.
• Check that all cables are securely connected.
• Spray the camera and lens with fresh water and wipe with a soft lint-free
cloth to remove debris or salt deposits.
Troubleshooting
Problem Solution
Camera does not function 1. Make sure that the cable is sound and
that all connections are tight and free
from corrosion.
2. Check system fuses.
3. Check that the display is set up
correctly to receive the images.
Refer to the relevant display
handbook for full details.
EMC conformance
All Raymarine equipment and accessories are designed to the best industry
standards for use in the recreational marine environment. The design and
manufacture of Raymarine equipment and accessories conforms to the
appropriate Electromagnetic Compatibility (EMC) standards, but correct
installation is required to ensure that performance is not compromis

Technical specification

.
Format
Video connector
Imager
Horizontal resolution
Scanning system
Red +12 V
Video output
Black - 0 V
Infra red
LED spectrum
Minimum illumination
Waterproof
Power connection
Video connections
Operating temperatures
Power consumption
Technical support
Complete product information and interactive help is available at:
North and South America
Raymarine Technical Support
1-800-539-5539
or, +1 603-881-5200
Product Repair and Service
Raymarine Product Repair Center
21 Manchester Street,
Merrimack, NH
03054-4801
USA
Help us to help you
To allow us to respond to your needs faster, please quote the Equipment
type, Model number and Serial number when requesting service
ed.
Technical Support
PAL 752 x 582 pixels
NTSC 768 x 494 pixels
1/3 Sony Super HAD CCD (Super Hi resolution)
550 TVL
PAL 625 lines
NTSC 525 lines 2:1 interlaced
Composite 75 Ohms
14 IR LEDs
30 degrees for 15m
0.1 Lux at F2 - no IR, 0 Lux - with IR
IPX6 and CFR46
12 V tinned leads
Male BNC
o o o o
-10 C to +55 C (-14 F to 130 F)
130 mA - day, 280 mA - night, IR on @12 V DC
www.raymarine.com
Europe, Middle East, Africa
and Australasia
Raymarine Technical Support
+44 (0) 23 9271 4713
Product Repair and Service
Raymarine plc
Anchorage Park
Portsmouth
PO3 5TD
England
CAM 100

User Guide

D8538 1
D8531_1
