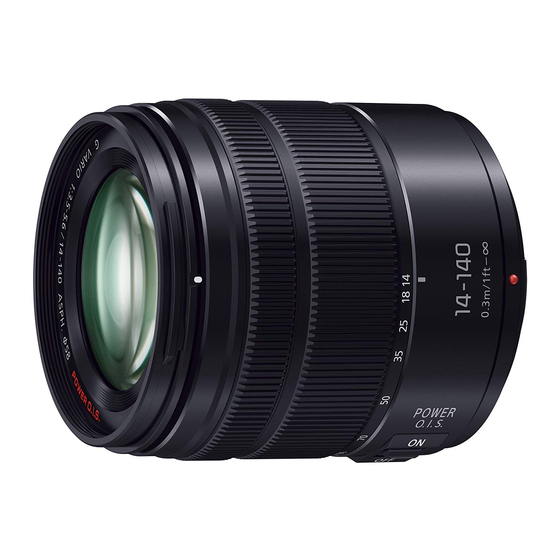

H-FS14140
Component Repair
Service Training Manual
Ver.1.2
- S
- K
- KA
ⓒ Panasonic Corporation 2015 Unauthorized copying and distribution is a violation of law.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Lumix H-FS14140

Summary of Contents for Panasonic Lumix H-FS14140

  • Page 1 H-FS14140 Component Repair Service Training Manual Ver.1.2 - KA ⓒ Panasonic Corporation 2015 Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE 1 Service Navigation ・　・ ・　・　・　・　・　・　・　・ ・　・ ・　・　・　・　・　・　・　・ 1.1. Introduction ・　・ ・　・　・　・　・　・　・　・ 1.2. Important Notice ・　・ ・　・　・　・　・　・　・　・ 1.2.1. Distinction Method of Mode [-K] and Mode [-KA] ・ ・　・　・　・　・　・　・　・　・ 1.2.2. Distinction Method of Production Area 2 Exploded View ・　・...

  • Page 3: Service Navigation

    1 Service Navigation 1.1. Introduction This manual contains technical information, which allow service personnel's to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. 1.2. Important Notice This manual is written for Micro Four Thirds Lens H-FS14140. As you may know, lens hates dust, soil, sand, fingerprint.

  • Page 4: Distinction Method Of Production Area

    1.2.2. Distinction Method of Production Area Made in Japan Made in China "Made in Japan" with printing "Made in Japan" No printing Made in Japan Made in China Model No. Supplier Name Model No. Supplier Name → H-FS14140E-S AP-INBD H-FS14140E9S PAVCX H-FS14140E-K AP-INBD...

  • Page 5: Exploded View

    2 Exploded View 2.1. LENS UNIT CAM BARREL...

  • Page 6: Cam Barrel

    2.2. CAM BARREL...

  • Page 7: Replacement Parts List

    3 Replacement Parts List Definition of Parts Supplier ・All parts are supplied from PAVCX. Ref.No. Part No. Part Name & Description Remarks VDW2635 FILTER RING DVOR1092Z SHADING FRAME VEJ2336-A LENS MOUNT CONTACT UNIT 204 - 207 VMG1855 FLOATING RUBBER DVYE1106Z REAR FRAME UNIT 1 (-S) DVYE1105Z...

  • Page 8: Service Fixture & Tools

    4 Service Fixture & Tools 4.1. Fixture and Tools The following Fixture and Tools are used for checking and servicing this unit. Lens Cleaning Kit Torque Driver Screw Driver Blower VFK1900BK RFKZ0542 VFK1390 ＊Use bit (for adjustment)： ＊Only supplied 10 set/box. T4 Torx type Collimeter Reference Camera / Lens...

  • Page 9: Maintenance

    5 Maintenance 5.1. Dust / Dirt on the outer casing part(s) 1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush. 2. Wipe up the outer casing part with the dry fuzz-free cloth. 5.2.

  • Page 10: Disassembly And Assembly Instructions

    6 Disassembly and Assembly Instructions 6.1. Disassembly Instructions 6.1.1 Disassembly Flow Chart Lens Unit 3 Shading Frame 4 L Mount Unit Rear Frame Unit OIS Switch Lens Mount Contact Unit Lens P.C.B. Unit Floating Rubber Zoom Drive Pin Ring Mount Base Unit 8 Wave Washer Attention If you do the disassemble procedure after this,...

  • Page 11: Disassembly Procedure

    6.1.2. Disassembly Procedure 6.1.2.3. Removal of the Shading Frame Important： 1. Remove 2 screws (B) and the Shading Frame. It must be performed inside of satisfied clean level. (Satisfied clean level: Less than class 10,000 (Federal Standard 209D)) 6.1.2.1. Removal of the Decoration Ring 1.
  • Page 12 6.1.2.5. Removal of the Rear Frame Unit and 6.1.2.6. Removal of the Lens P.C.B. Unit and the OIS Switch the Lens Mount Contact Unit 1. Remove 3 screws (E) and disconnect 1 connector. 1. Disconnect 4 connectors. 2. Remove the Rear Frame Unit. 2.
  • Page 13 6.1.2.10. Removal of the Direct Frame 2. Remove 3 screws (F) and Ring Mount Base Unit. Shading Sheet 1. Direct Frame Shading Sheet is sticked on the Cam Barrel. 2. Put the sheet so that the lens glass is fullty covered. 3.
  • Page 14 6.1.2.12. Removal of the 3rd Lens Frame3 Unit 1. Remove the 3rd Lens Frame3 Unit. 3rd lens frame3 unit 6.1.2.13. Removal of the 5th Lens Frame2 Unit 1. Remove the 5th Lens Frame2 Unit. 5th lens frame2 unit Cam Barrel Unit...

  • Page 15: Assembly Instructions

    6.2. Assembly Instructions 6.2.1 Assembly Flow Chart 5th Lens Frame2 Unit Come Barrel 2 3rd Lens Frame3 Unit 3 2nd Lens Frame2 Unit Direct Frame Shading Sheet 5 1st Lens Holder 6 Wave Washer Zoom Drive Pin Ring Mount Base Unit Lens Mount Contact Unit Lens P.C.B.

  • Page 16: Assembly Procedure

    6.2.2. Assembly Procedure 6.2.2.3. Removal of the 2nd Lens Frame Unit Important： 1. Install the 2nd Lens Frame Unit after aligning When tightening the screw, use a torque driver phase mark (Δ). (RFKZ0542) by ordering the screwing order with 2nd Lens Frame Unit specified torque described in each step.
  • Page 17 6.2.2.5. Installation of the 1st Lens Holder and 3. Install the Zoom Drive Pin. the Cam Barrel 4. Tighten 2 screws (G) in numerical order 1. Align phase mark (Δ) and rotate the Cam Barrel Unit by using the torque driver with specified torque. clockwise when you watch it from back.
  • Page 18 6.2.2.9. Removal of the OIS Switch and 6.2.2.10. Installation of the L Mount Unit the Rear Frame Unit 1. Install the L Mount Unit. 1. Hook the upperside hook. 2. Tighten 1 screw (C) and 3 screws (D) in numerical Then, push the underside hook into.
  • Page 19 6.2.2.11. Installation of the Shading Frame 6.2.2.13. Installation of the Decoration Ring 1. Install the Shading Frame. 1. Please insert the dent of the Decoration Ring to 2. Tighten 2 screws (B) in numerical order convex of the Filter Ring. ・Use new one, do not use the one which is removed.

  • Page 20: Adjustment

    7 Adjustment 7.1. Matrix Chart for Replaced Part and Necessary Adjustment The relation between Replaced part and Necessary Adjustment is shown in the following table. When concerned part is replaced, be sure to achieve the necessary adjustment(s). Necessary Adjustment Replaced Part Electrical 1st Lens Frame Adjustment...

  • Page 21: Flow Chart For Adjustment

    7.3. Flow Chart for Adjustment 1st Lens Frame Adjustment < Initial > < Second time > Electrical Adjustment Electrical Adjustment *1 Note (All item) (Back Focus only) Confirm RP *2 Note Glue 1st Lens Frame Adjustment Pin Confirm RP Finish *1 NOTE: Repeat adjustment from 1st Lens Frame Adjustment.

  • Page 22: Procedure For Adjustment

    7.4. Procedure for Adjustment 7.4.1. Service Fixture & Tools Following service fixtures and tools are required for lens repair. ● Lens Projector (SUKZ000030) ● Lens Adaptor (SUKZ000031) ● Projector Chart (SUKZ000032) ● Torque Driver (RFKZ0542) with appropriate driver bit ● Glue for screw Lock Tight : Distributor : ThreeBond Co. No. 1401C (Purchased locally) ●...

  • Page 23: Pre-Setting

    7.4.2. Pre-setting Prior to 1st Lens Frame Adjustment, setup service equipment as follows. 1. Install Projector Chart (SUKZ000032) on Lens Projector (SUKZ000030) in the next steps. - Remove Chart Holder from Lens Projector and then loosen screw (located in the back) on the Chart Holder. - Install Projector Chart on the Chart Holder and then tighten screw.

  • Page 24: 1St Lens Frame Adjustment

    7.4.4. 1st Lens Frame Adjustment 1. Rotate Zoom Ring (Repair Lens) until fully TELE side. 2. Set General-Purpose Camera as next and Focus Subject in centre using MF Ring. - Mode Dial Aperture : AE priority - Focus : MF - ISO : 200 - OIS : OFF - Aperture : Full Open (Set aperture to F5.6 in TELE side)

  • Page 25: Electrical Adjustment

    7.4.5. Electrical Adjustment Make Electrical Adjustment using PC with Adjustment Software. As for Adjustment conditions/procedure, consult the "Adjustment Manual" which is available in Adjustment Software. Note: - The first time to implement all item - The second time to implement the only BF Adjustment 7.4.6.
  • Page 26 RP Chart L-Size 600x800mm (SUKZ000034) RP Chart M-Size 300x400mm (SUKZ000035)

  • Page 27: Gluing

    7.4.7. Gluing 1. After all work completed, glue 2 Adjustment Pins, and assembling the Dust Proof Ring and Filter Ring, Decoration Ring. 7.4.8. Procedure for Visual Checking (RP Chart) RP Chart 1. Mount repaired Lens on master camera sample. (valid pixels : 16M pixels image sensor) 2.

  • Page 28: Revision History

    8 Revision History Ver. Date History ・First Issue 2015.10.01 ・Additional Adjustment 2016.03.16 ・Change of Production Area 2018.10.05 1.Change of Supplier AP-INBD → PAVCX 2.Change of the parts No. due to changing the production area The following parts are UPPER COMPATIBLE. Ref.
