The following items are included with
the 4720FR Fountain
ITEM NO. PART NO.
20 100147140560
21 100322740560
22 101570540560
23 15013C
24 15014C
25 110544942550
26 110868642550
27 160270508640
28 170705042830
29 28091C
30 40045C
31 45851C
32 40250C
33 45403C
34 45476C
35 45830C
36 45842C
37 45663C
38 55913C
39 56121C
40 600985451640
41 66346C
42 70683C
43 75534C
44 75588C
45 75589C
NS 75520C
NS 75565C
NS 75596C
NS 56092C
NS 56123C
NS 75539C
Troubleshooting
Insuffi cient Bubbler Flow:
Check that the shut-off valve is wide open. Verify minimum
20 PSI supply pressure. Clean inlet strainer screen located in the valve body. Clean rubber
orifi ce in fl ow control located below frost line in bushing between barb fi tting and valve.
No Flow:
Check for leaks in the air tubing going from the push button to the valve. Make
sure the air tubing compression nut is hand tight. Disconnect air tube from push button.
Place fi nger over air outlet. Push button to test diaphragm. Tighten diaphragm cap screws.
Replace diaphragm if necessary.
Continued Insuffi cient or Varied Height of Bubbler Flow:
•
Replace fl ow control.
•
Check for kinks in the tubing.
•
Remove the cleanout plug from the PVC column. Remove the valve assembly from the
PVC column by carefully pulling up on the strap and connecting tubing at the same time.
Pressure test the valve assembly for leaks. Check stream height from the bubbler. Stream
height is factory set at 35 PSI. If supply pressure varies greatly from this, adjust the screw
on the regulator (Item 13, Fig. 5, Page 10). Clockwise adjustment will raise stream and
counter-clockwise adjustment will lower stream. For best adjustment stream height should
be approx. 1-1/2" (38mm) above the bubbler guard. Replace the valve into the PVC column.
Make sure the supply hose coils into the bottom of the PVC column without any kinks and
double check that the valve is positioned fully at the bottom of the PVC column. Cap the
PVC column.
Continuous Bubbler Flow:
Insure that push button is not obstructed and springs back
to normal position. Remove four screws which secure plastic diaphragm block to valve body.
Pull plastic and rubber diaphragm assembly out of valve body. Locate tiny hole in rubber
diaphragm just under lip of plastic part. Clean debris from this hole. Inspect valve seat for
grooves. If valve seat was OK and diaphragm hole was free from debris, inspect rubber
button located at center of fl oating steel disc in valve diaphragm block assembly. If button
is worn, turn disc over or replace it. If diaphragm and seats are in good condition, stretch
spring slightly. Spring is located behind fl oating stainless steel plate. Insure that air bleed
port on valve plastic block assembly is not plugged.
2222 CAMDEN COURT
OAK BROOK, IL 60523
630.574.3500
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR WEBSITE WWW.HALSEYTAYLOR.COM
97709C (Rev. G - 1/17)
PARTS LIST
DESCRIPTION
Drain Gasket
Gasket
Drain Gasket
Bubbler Tube Assy.
Retaining Nut
Set Screw #8-32 x .125
Socket Head Screw #10-24 x .75
Strainer Plate
Basin
Nameplate Insert
Hex Nut 1-5/16"
Bubbler
Tailpipe 1-1/4" x 5-3/8"
Push Button Actuator
Drain Tube
Fountain Body
Access Panel
Push Button Sleeve
Drain Adapter
Drain Elbow 1-1/4"
Drain Plug Assy.
Drain Tube
Union 1/4
Pinned Torx Screw #10-24
Slip Joint Nut 1-1/4"
Gasket
Bit - Pinned Torx T-25
Fitting - Double Male Connector
Paint Touch-up (Pen)
Poly Tubing - 1/4"
(Cut To Length) - To Bubbler
Poly Tubing - 1/8"
(Cut To Length) - To Actuator
Allen Wrench
4720FR-FTN
25, 31
21
27
40
28
33
21
37
29
24
33
30
39
45
44
20
PAGE 12
26
40
26
22
20
22
23
42
33
41
34

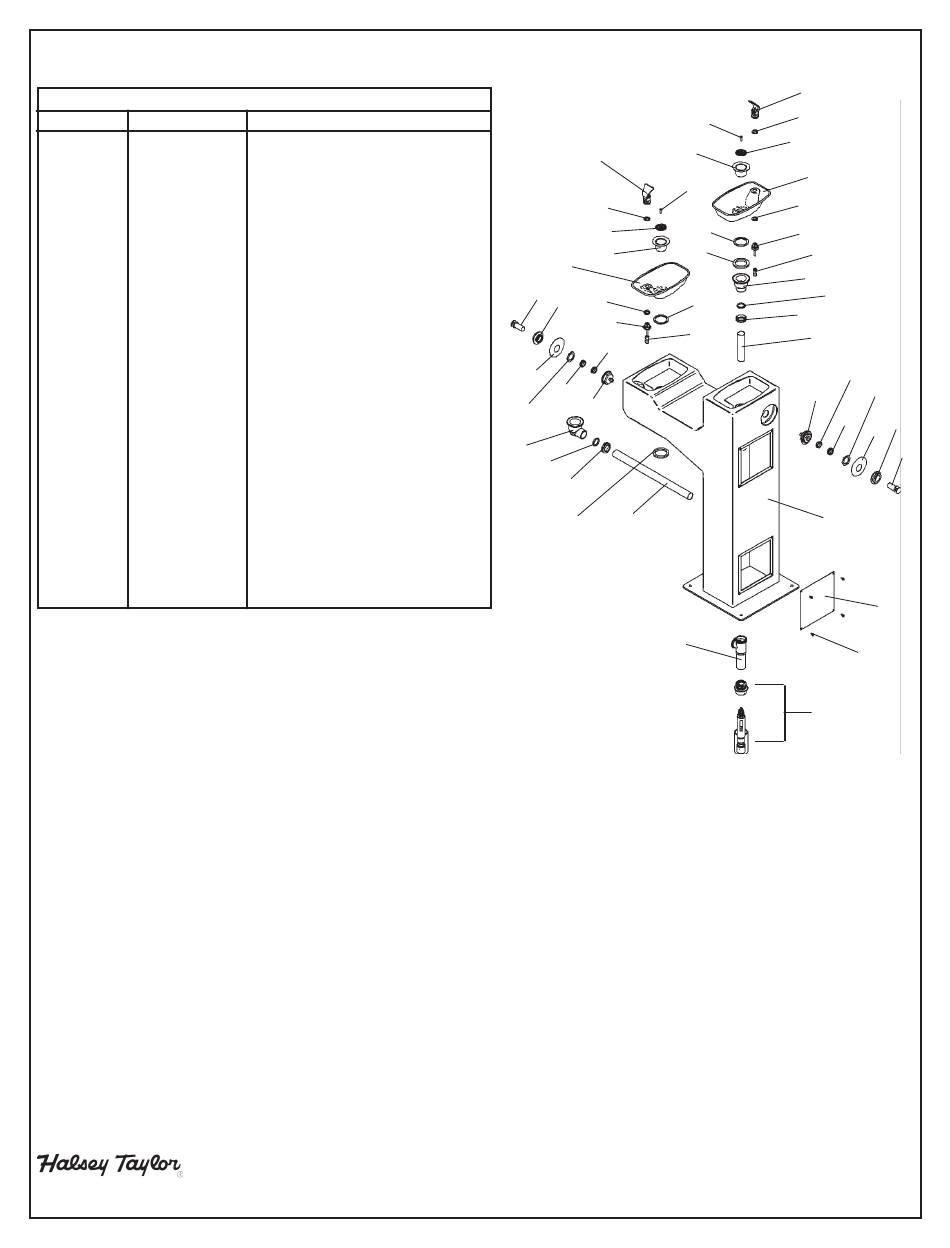

FIG. 10
25, 31
21
27
28
21
23
42
38
45
44
32
33
30
33
24
29 37
33
35
36
43
Included with
Sanitary FR2
Valve
