Recording On The Camcorder - RCA CC436 User Manual

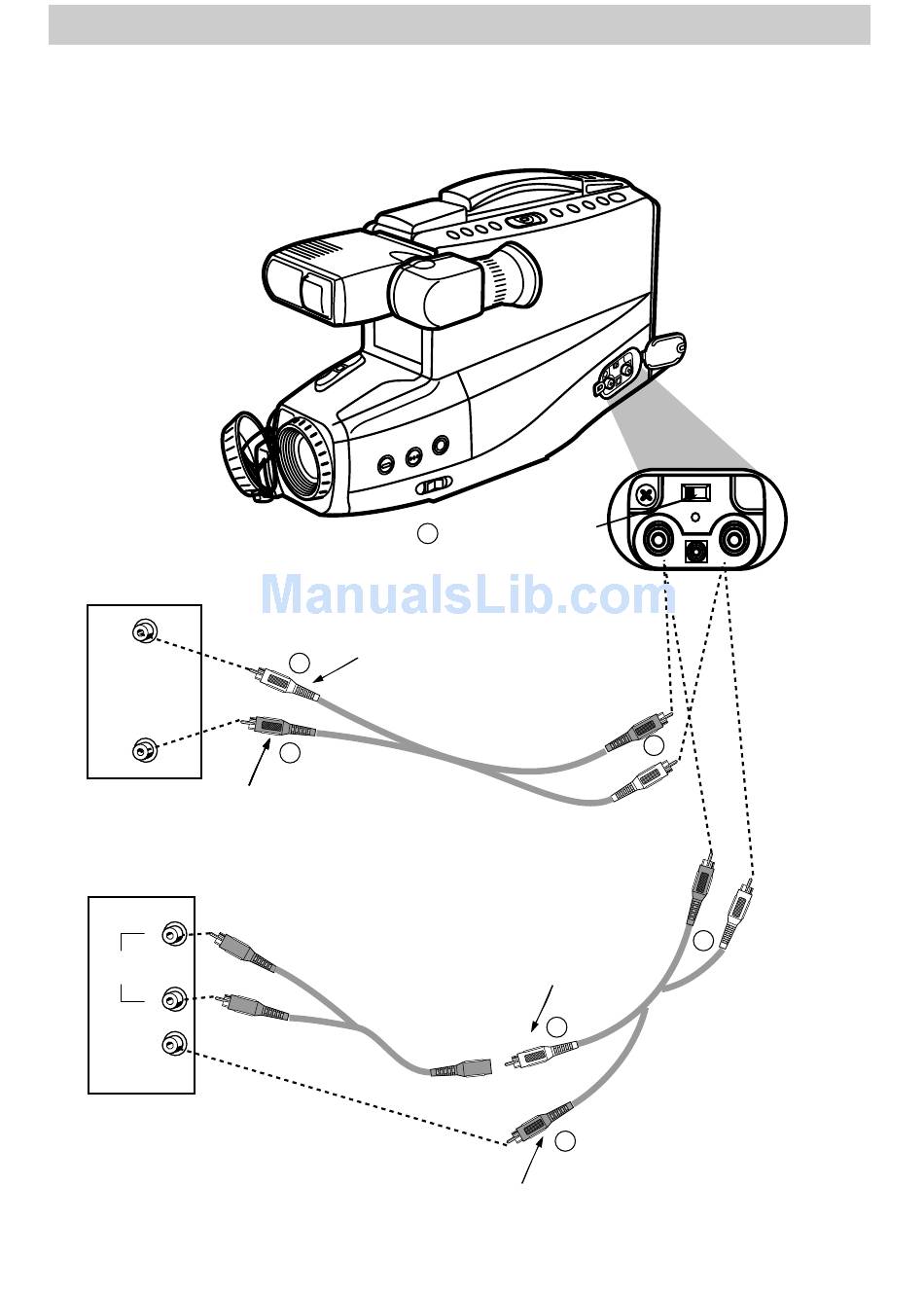

Recording on the Camcorder from a VCR or TV Monitor
To record on a tape in your camcorder from a VCR or TV monitor with AUDIO OUT
and VIDEO OUT jacks, you will need an optional audio/video cable, such as VH83
shown on page 56.
AUDIO
OUT
VIDEO
OUT
Back of
VCR or
TV Monitor
L
AUDIO
OUT
R
VIDEO
OUT
Back of
Stereo
VCR or
TV Monitor
42
White Audio Plug
1
Audio/Video Cable
(such as VH83)
2
Yellow Video Plug
–OR–
Y-Adapter
(such as AH25)
AV OUT/IN Switch
4
Yellow
Video Plug
White Audio Plug
1
2
Yellow Video Plug
Yellow White
Jack Jack
3
White
Audio Plug
Yellow
Video Plug
White
3
Audio
Plug
Audio/Video Cable
(such as VH83)
