ANGLE
GRINDER
230mm (9") 2200W
INSTRUCTION MANUAL
SPECIFICATIONS
Rated Voltage:
230-240V ~50Hz
Motor:
2200W
Rated Speed:
6,000/min
Cutting Diameter:
230mm
Spindle:
M14
Bore:
22mm
Grinding Disc Thickness: 6mm
Weight:
5.87kg
ozito.com.au
WHAT'S IN THE BOX

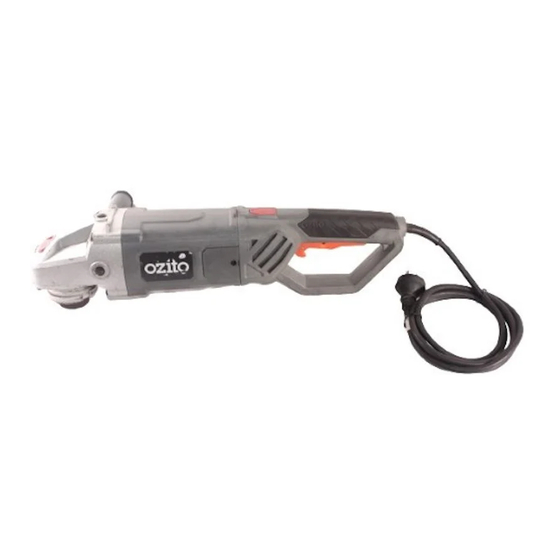

Angle Grinder
Inner & Outer Flange
Tool-free Guard x 2
Paper Washer x 10
Pin Spanner
AGL-9100
Advertisement
Table of Contents
Related Manuals for Ozito AGL-9100
Summary of Contents for Ozito AGL-9100
- Page 1 Inner & Outer Flange 230mm (9”) 2200W INSTRUCTION MANUAL SPECIFICATIONS Tool-free Guard x 2 Rated Voltage: 230-240V ~50Hz Motor: 2200W Rated Speed: 6,000/min Cutting Diameter: 230mm Spindle: Bore: 22mm Grinding Disc Thickness: 6mm Weight: 5.87kg ozito.com.au Paper Washer x 10 Pin Spanner AGL-9100...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION ANGLE GRINDER 1. HANDLES 1 Spindle Lock 5 Grinding Guard 2 Grinding Disc 6 Handle Rotation Button Side Handle The side handle can be fitted on both sides and the top of your 3 Guard Locking Lever 7. -
Page 3: Operation
OPERATION 2. SAFETY GUARDS 3. CHANGING DISCS Inspect the grinding disc before fitment to ensure it is not Safety Guard cracked or deformed. The grinding disc is suitable for grinding A safety guard should be used at all times whilst operating the angle tasks only. - Page 4 10-15° 3b. For cutting The optimum angle is 90° to the workpiece. Do not apply excessive pressure. Allow the tool to do the work. CAUTION: REGULARLY CHECK THAT THE OUTER FLANGE HAS NOT BECOME LOOSE DURING OPERATION. AGL-9100...
-
Page 5: Maintenance
Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused SPARE PARTS by the repair of the angle grinder by an unauthorised person or by mishandling of the angle grinder. - Page 6 Tool: SPARE PARTS Model No. The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. Carbon Brushes SPAGL9100-35 Switch SPAGL9100-55 Inner Flange 40mm...
-
Page 7: Electrical Safety
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. Using an Extension Lead This tool is double insulated in accordance with AS/NZS 60745-1;... -
Page 8: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0414...
