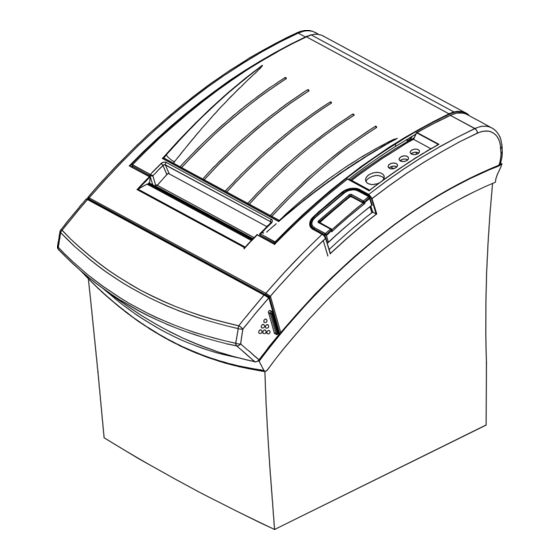

- Page 1 User’s Manual SRP-350plusF (Fiscal) Thermal Printer Rev. 1.02 http://www.samsungminiprinters.com...
- Page 2 SRP-350plusF ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. You must use only the supplied adapter.
- Page 3 SRP-350plusF CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following measures. • If not, they may eat it. •...
- Page 4 SRP-350plusF ■ Warning - U.S.A This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 SRP-350plusF ■ Introduction The SRP-350plusF Roll Printer are designed for use with electronic instruments such as system ECR, POS, banking equipment, computer peripheral equipment, etc. The main features of the printer are as follows: 1. High speed printing : 47(1/6” Feed) lines per second. 2.
-
Page 6: Table Of Contents
SRP-350plusF ■ Table of Contents 1. Setting Up the Printer ....................7 1-1 Unpacking........................7 1-2 Connecting the Cables ....................8 1-2-1 DC Power Connector (Main Board to FISCAL Board) ........8 1-2-2 RS-232 Connector (Interface Board to Fiscal Board) ........9 1-2-3 Cash Drawer Connector (Main Board to Fiscal Board)........ -
Page 7: Setting Up The Printer
SRP-350plusF 1. Setting Up the Printer 1-1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. SRP-350plusF Roll Paper Manual AC Adapter Power Cord - 7 - Rev. 1.02... -
Page 8: Connecting The Cables
SRP-350plusF 1-2 Connecting the Cables Cash drawer Serial cable Power cable ※ NOTE Before connecting any of the cables, make sure that both the printer and the host are turned off. 1-2-1 DC Power Connector (Main Board to FISCAL Board) Housing Pin Assign Housing Pin Assign 5264-02... -
Page 9: Rs-232 Connector (Interface Board To Fiscal Board)
SRP-350plusF 1-2-2 RS-232 Connector (Interface Board to Fiscal Board) [10-Pin Box header] [10-Pin Box header] 9 PIN 10 PIN 9 PIN 10 PIN 1 PIN 2 PIN 1 PIN 2 PIN [BOTTOM VIEW] [BOTTOM VIEW] Wire Arrangement Side of Printer Board Side of Fiscal Board DIR. -
Page 10: Setting The Dip Switches
SRP-350plusF 1-3 Setting the Dip Switches 1-3-1 Fiscal RS-232 interface board • DIP Switch 1 Function Default Auto Line Feed Enable Disable Handshaking XON/XOFF DTR/DSR Data Length 7bits 8bits Parity Check Parity Selection EVEN Baud Rate Selection Refer to the following table 1 (bps) •... -
Page 11: Auto Cutter Enable / Disable Selection
SRP-350plusF 1-3-2 Auto Cutter Enable / Disable selection Dip Switch Set 2 Auto Cutter Disabled SW 2-3 Auto Cutter Enabled Application Ignores Auto Cutter error for continuous printing. 1-3-3 Dip Switch - 11 - Rev. 1.02... -
Page 12: Setting The Memory Switches
SRP-350plusF 1-4 Setting the Memory Switches This printer has “Memory Switch” set which is software switches. Memory Switch set has “MSW1”, “MSW2”, “MSW8”, “MSW9” “Customize value”, “Serial communication condition”. “Memory Switch setting utility” can change the Memory Switch set to ON or OFF as shown in the table below. - Page 13 SRP-350plusF MSW2-8 MSW2-7 MSW2-6 MSW2-5 MSW2-4 MSW2-3 Character Table Page 0 437 (USA, Standard Europe) Page 1 Katakana Page 2 850 (Multilingual) Page 3 860 (Portuguese) Page 4 863 (Canadian-French) Page 5 865 (Nordic) Page 16 1252 (Latin I) Page 17 866 (Cyrillic #2) Page 18 852 (Latin 2) Page 19 858 (Euro) Page 21 862 (Hebrew DOS code)
-
Page 14: Installing Or Replacing The Paper Roll
SRP-350plusF 1-5 Installing or Replacing the Paper Roll ※ NOTE Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. 1-5-1 Make sure that the printer is not receiving data;... - Page 15 SRP-350plusF 1-5-5 Be sure to note the correct direction that the paper comes off the roll. 1-5-6 Pull out a small amount of paper, as shown. Then close the cover. ※ NOTE When closing the cover, press the center of printer cover firmly to prevent paper miss-loading.
-
Page 16: Adjustments And Settings
SRP-350plusF 1-6 Adjustments and Settings The SRP-350plusF is set up at the factory to be appropriate for almost all users. It does, however, offer some settings for users with special requirements. It has DIP switches that allow you to change communication settings, such as handshaking and parity check, as well as print density. -
Page 17: Self Test
SRP-350plusF 2. Self test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test checks the following; 2-1 Make sure paper roll has been installed properly. 2-2 Turn on the power while holding down the FEED button. The self-test begins. 2-3 The self-test prints the current printer status, which provides the control ROM version and the DIP switch setting. -
Page 18: Hexadecimal Dumping
SRP-350plusF 3. Hexadecimal Dumping This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands. -
Page 19: Specification
SRP-350plusF 4. Specification Item Details Printing Method Thermal Line Printing Dot Density 180 X 180 dpi (7dots/mm) Printing Width 72.192±0.2mm Characters per line 42 (Font A) (Default) 56 (Font B) 47 lines/sec (1/6” Feed) Printing Speed *1) 200 mm/sec Receive Buffer Size 64K Bytes SMPS Input Voltage 100/240 VAC... -
Page 20: Appendix
SRP-350plusF 5. Appendix 5-1 Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows. 5-1-1 Open the printer cover and remove the paper if exists. 5-1-2 Clean the print head with a cotton swab moistened with alcohol solvent. 5-1-3 Clean the platen roller and paper end sensor with cotton swab moistened with water.
