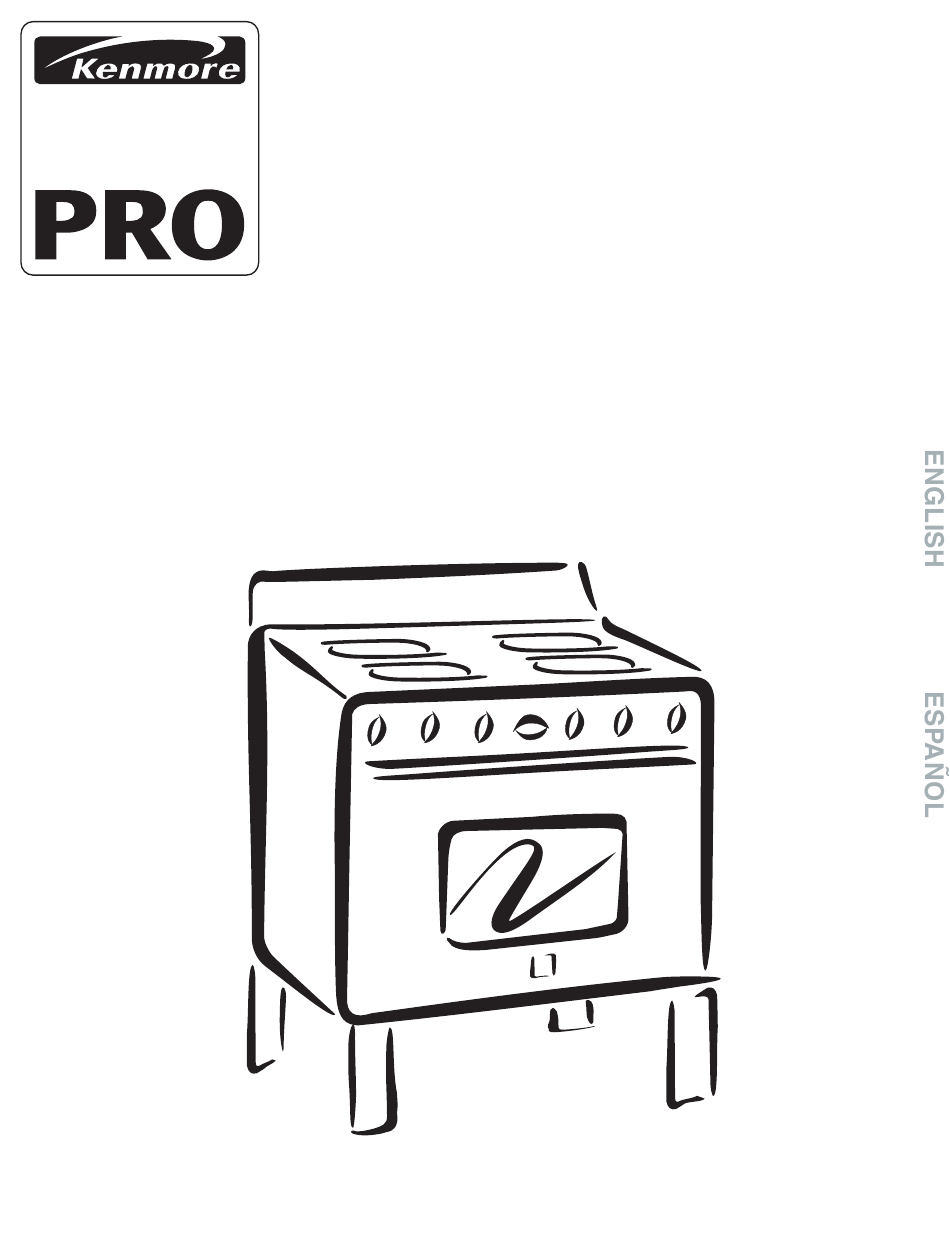

- Page 1 DuAl Fuel RANge Use & Care Guide eSTuFA De Fuel DuAl Manual del Usuario Model, modelo 790.79523 Sears Brands Management Corporation, Hoffman estates, Il 60179 u.S.A. www.sears.com P/N 318203968 Rev. A (1106)
-
Page 2: Table Of Contents
Common sense and caution must be practiced when installing, operating and maintaining any appliance. Kenmore Pro Appliance Warranty One Year limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOMe®... -
Page 3: Important Safety Instructions
Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains many important safety messages. Always read and obey all safety messages. The safety symbol calls your attention to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product. - Page 4 Important Safety Instructions DRAWeR (if equipped). Both surface burners and oven • Use proper pan size. This appliance is equipped with heating elements may be hot even though they are dark one or more surface burners of different sizes. Select in color.
-
Page 5: Product Record
A L. P. Conversion Kit is supplied with plate. this range and is located on the main back of the range. The kit contains 790.79523 Model No._______________________ installation instructions which must be read before and followed carefully when installing the kit. -
Page 6: Protection Agreements
Master Protection Agreements Acuerdos maestros de protección Enhorabuena por haber hecho una compra inteligente. Su nuevo Congratulations on making a smart purchase. Your new Kenmore ® producto Kenmore está diseñado y fabricado para brindarle años de ® product is designed and manufactured for years of dependable funcionamiento fiable. -
Page 7: Range Features
Range Features Electronic Oven Controls with Oven Function Your Clock and Kitchen Timer Oven Temperature Control Knob Dual Fuel Left Rear & Control Knob Dishwasher Safe Bridge Burner Range Burner Grates Knob Features Right Rear Burner Knob At a glance Left Front Burner Knob Right Front... -
Page 8: Before Setting Surface Controls
Before Setting Surface Controls locations of the gas Surface Burners The SIMMeR burner is best used for simmering delicate sauces, etc. This burner is located at the right rear burner position on the cooktop. The STANDARD sized burner are used for most surface cooking needs. -
Page 9: Setting Surface Controls
Setting Surface Controls Operating the gas Surface Controls: Do not place plastic 1. Place cooking utensil on surface burner. items such as salt and pepper shakers, 2. Push the surface control knob down and turn counterclockwise out spoon holders or plastic wrappings of the OFF position (See Figure 1). - Page 10 Setting Surface Controls (cont’d) Setting the Bridge Burner The Bridge Burner should be used with rectangular shaped cookware. Cookware like the cast- iron Griddle that is supplied with your cooktop is designed specifically for best results with the Bridge Burner. The Bridge Burner feature may be used to combine the cooking power of 2 or if needed 3 gas surface Burners located along the left-hand side of the glass cooktop.
-
Page 11: Surface Cooking
Surface Cooking CORReCT INCORReCT • Curved and warped pan use Proper Cookware bottoms. Cookware should have flat bottoms that make good contact • Flat bottom and straight with the entire surface sides. • Pan overhangs burner grate heating element. by more than 2.5 cm (1”). •... -
Page 12: Before Setting Oven Controls
Surface Cooking Care & Seasoning of the griddle Before first use: • Wash Griddle in hot soapy water. Rinse and then dry completely. • Apply a thin coat of vegetable oil to the entire surface (front and back of griddle). •... -
Page 13: Air Circulation In The Oven
Before Setting Oven Controls (cont’d) Arranging Oven Racks ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use oven mitts when the oven is hot. 1 Oven Rack Always use pot holders or oven mitts when adjusting the oven racks. -
Page 14: Control Button Features
Control Button Features ReAD THe INSTRuCTIONS CAReFullY BeFORe uSINg THe OveN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this use & Care guide. OveN TeMPeRATuRe CONTROl KNOB—... -
Page 15: Setting Oven Controls
Setting the Clock (cont’d) Setting Continuous Bake or 12 Hour energy Saving The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking. - Page 16 Setting Oven Controls (cont’d) Oven Baking For best cooking results, pre-heat the oven before baking cookies, breads, cakes, pies or pastries, etc. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. If you feel your oven is too hot or too cold, you can adjust its temperature.
- Page 17 Setting Oven Controls (cont’d) Setting Convection Bake Use the Convection Bake feature when fast cooking is desired. The oven can be programmed for Convection baking at any temperature between 170°F and 550°F. Convection baking uses a fan to circulate the oven’s heat circulation during evenly and continuously within the oven (See Figure 1).
- Page 18 Setting Oven Controls (cont’d) using the Temperature Probe Feature For many foods, especially roasts and poultry, testing the internal temperature is the best method to insure properly cooked food. The Temperature Probe gets the exact temperature you desire without having to guess. IMPORTANT: 1.
- Page 19 Setting Oven Controls (cont’d) Setting the Warm & Hold™ Feature The Warm & Hold feature will maintain an oven temperature of 170°F, and will keep oven baked foods warm for serving for 3 hours after cooking has finished. The Warm & Hold feature may be used without any other cooking operations or can be used after cooking has finished.
-
Page 20: Self-Cleaning
Self-Cleaning Self-Cleaning Oven During the self-cleaning cycle, A Self-Cleaning oven cleans itself with high temperatures (well above the outside of the wall oven can become cooking temperatures) which eliminate soils completely or reduces them very hot to the touch. DO NOT leave small to a fine powdered ash you can wipe away with a damp cloth. -
Page 21: Adjusting Oven Temperature
Self-Cleaning (cont’d) Self-Clean Cycle Time length To avoid possible burns use care when If you are planning to use the oven directly after a self-clean cycle remember to opening the oven door after the allow time for the oven to cool down and the oven door to unlock. This normally takes Self-Cleaning cycle. -
Page 22: General Care & Cleaning
general Care & Cleaning Cleaning various Parts of Your Oven Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND DIFFICULTY OF MAjOR CLEANING LATER. - Page 23 general Care & Cleaning (cont’d) Care and Cleaning of Stainless Steel This model is equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless parts. Please refer to the table provided at the beginning of the general Care & Cleaning Hinge lever section in this Use &...
- Page 24 general Care & Cleaning (cont’d) Cleaning the grates The burner grates are dishwasher safe and may be cleaned in the dishwasher. Remove any excessive soils before placing in the dishwasher. IMPORTANT ● For proper gas flow and ignition of the burners — DO NOT allow spills, food, cleaning agents or any other material to enter the gas orifice opening.
- Page 25 general Care & Cleaning (cont’d) Ceramic glass Cooktop Cleaning and Maintenance Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079).
- Page 26 general Care & Cleaning (cont’d) Do not use the following on the ceramic glass cooktop • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. •...
-
Page 27: Before You Call
Before You Call Solutions To Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCuRReNCe POSSIBle CAuSe/SOluTION Oven Control Beeps and Displays... - Page 28 Before You Call Solutions To Common Problems OCCuRReNCe POSSIBle CAuSe/SOluTION Poor baking results. Many factors affect baking results. See Baking for hints, causes and corrections. See Adjusting Oven Temperature. Self-cleaning cycle does not work. Make sure the oven door is closed. Controls not set properly.
- Page 29 Before You Call Solutions To Common Problems OCCuRReNCe POSSIBle CAuSe/SOluTION Metalmarks (Ceramic-glass Sliding or scraping of metal utensils on cooktop surface. Do not slide metal Cooktop). utensils on cooktop surface. Use ceramic-glass cooktop cleaning cream to remove the marks. See «Ceramic Glass Cooktop Cleaning & Maintenance» section under General Care &...
-
Page 30: Sears Service
Get it fixed, at your home or ours! Your Home For troubleshooting, product manuals and expert advice: www.managemylife.com For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner’s manuals that you need to do-it-yourself.
