Summary of Contents for Menards Master-force MFX3I2700
- Page 1 Electric Pressure Washer MFX3I2700 261-1673 OPERATOR’S MANUAL CAUTION: To Reduce The Risk Of Injury, User Must Read And Understand Operator's Manual. Save These Instructions For Future Reference. 96052_IM_MFX3I2700.indd 1 96052_IM_MFX3I2700.indd 1 2020/11/26 下午12:21 2020/11/26 下午12:21...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Product Specifications ........................1 Package Contents ........................2 Hardware Contents ........................2 Safety Information ........................3 Assembly Instructions ........................6 Operating Instructions .........................10 Care and Maintenance ....................... 12 Troubleshooting .......................... 15 Replacement Parts List ......................16 Limited Warranty ......................... -
Page 3: Package Contents
PACKAGE CONTENTS PW95824 15° – Yellow 25° – Green PART DESCRIPTION PART DESCRIPTION QUANTITY QUANTITY Hose Hook Spray Gun Handle Spray Gun Trigger Lock Rotary Nozzle Spray Gun Holster O-Ring Replacement Kit High Pressure Hose Quick Connect Nozzles High Pressure Foam Cannon Pressure Washer Unit Shims... -
Page 4: Safety Information
SAFETY INSTRUCTIONS Please read and understand this entire to quickly bleed off the pressure from all manual before attempting to assemble and parts of your pressure washer and how to operate the product. turn off the pressure washer. 8 This pressure washer conforms to CSA This manual contains information that relates and other safety and consumer standards. - Page 5 SAFETY INSTRUCTIONS 27. Never use hot water with your pressure 20. When you turn the power switch off, water pressure may remain in the system. To washer. It will overheat and damage the discharge the pressure, point the spray high pressure pump. 28.
- Page 6 SAFETY INSTRUCTIONS Ground Fault Circuit Interrupter Protection (For US unit only) This pressure washer is provided with a DANGER – Improper connection of the ground-fault circuit-interrupter (GFCI) built equipment-grounding conductor can result in into the plug of the power-supply cord. This a risk of electrocution.
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Frame Assembly Install rotary nozzle holder (G) and one side of hose hook (A) to pressure washer unit (F). Secure with screw (DD). Install shims (AA) and wheels (J) to pressure washer unit (F). Secure with cotter pins (BB). Hardware Used: Hardware Used: Screws... - Page 8 ASSEMBLY INSTRUCTIONS Fix the bottom of hose hook (A) on the pressure Twist collar then pull back to release the the washer unit (F). Secure with screws (CC). high pressure hose (N) connection from the gun (K). Hardware Used: FIG.7 Screws Cotter Pins Screws...
- Page 9 ASSEMBLY INSTRUCTIONS Extension Lance Installation To remove nozzle (E) and rotary nozzle (C), pull back on collar of lance (I) and pull out nozzle. While spray gun (K) is in the locked position, insert lance (I) into the end of spray gun by FIG.11 inserting and turning clockwise until fully in place.
- Page 10 ASSEMBLY INSTRUCTIONS Attach Foam Cannon (O) into end of lance (I) Pull back on collar at the other end of high by pressing cannon into place. It will make a pressure hose (N). Push firmly to connect “click” sound when firmly in place. hose to pressure washer unit.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS • Make sure the power switch is off (light will pressure washing. be off). • Begin pressure washer by squeezing the • Unwind the power cord completely and plug trigger on the spray gun all the way into the into a grounded 120 volt outlet. - Page 12 OPERATING INSTRUCTIONS How to Avoid Damaging Surfaces • The pressure washer will pull a ratio of water to detergent of 10:1 or 10 parts water to 1 part detergent. The detergent concentration • Damage to surfaces being cleaned occurs can be adjusted by turning the detergent because the impact force of the water knob on the top of the machine.
-
Page 13: Care And Maintenance
CARE AND MAINTENANCE Detergents Cleaning Nozzles • Use detergents designed for pressure • A clogged or par tially clogged nozzle washers. Hardware stores or home centers can cause significant reduction of water also have pressure washer detergents for pressure coming out of the nozzle and/or different cleaning projects. - Page 14 CARE AND MAINTENANCE Storage • When your pressure washer session has been completed, turn off the power switch. Unplug the power cord from the outlet. Turn off the water supply. Pull the trigger on the spray gun 2-3 seconds to drain out the excess water and to release any remaining water pressure.
- Page 15 5) Turn power off when pump saver exits from internal corrosion. You can visit your the machine’s water outlet. local Menards store or order online at www. Note: Instructions on Pump Saver Bottle are menards.com generic and not model specific.
-
Page 16: Troubleshooting
TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-866-235-5112 PROBLEM CORRECTIVE ACTION Unit will not turn 1. Make sure the pressure washer is OFF. Plug in the electrical cord to a grounded 120 volt outlet (no electrical extension cord should be used). If the electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should not be used. -
Page 17: Replacement Parts List

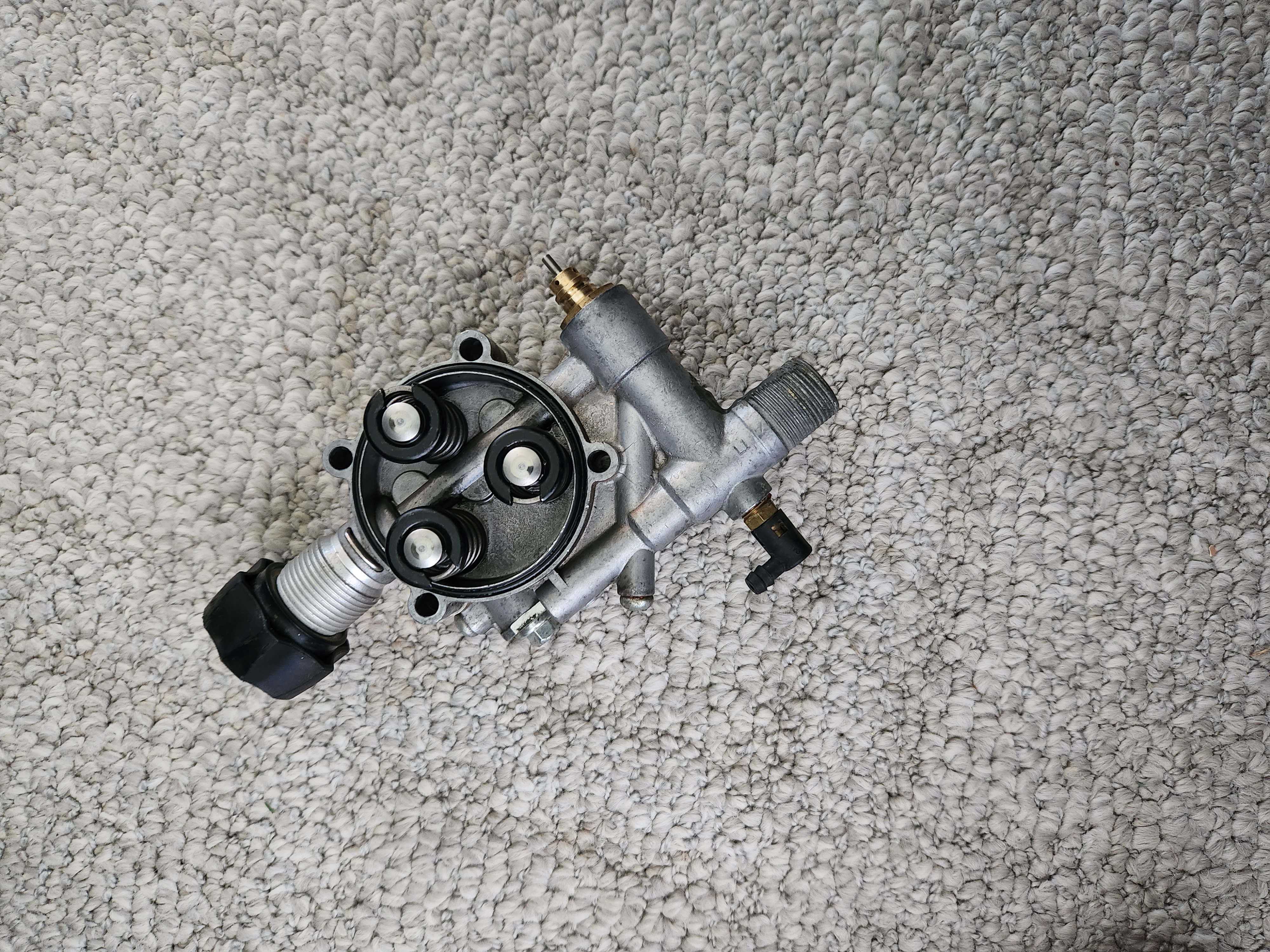

REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday or order online at www.arblueclean.com PW95824 15° – Yellow 25° – Green PART DESCRIPTION PART # PART DESCRIPTION PART # Rotary Nozzle PW4222800... -
Page 18: Limited Warranty
The Warranty of this product is coverd by A.R.North America. This product has a 3 (three) years limited warranty. Please read the following carefully to understand what each warranty entails: This product is under warranty to the original retail consumer against defects in material and workmanship for a period of 1(one) year.This warranty includs the spray gun,the high pressure hose and all accessories from the date of purchase. - Page 19 96052_IM_MFX3I2700.indd 18 96052_IM_MFX3I2700.indd 18 2020/11/26 下午12:21 2020/11/26 下午12:21...
- Page 20 © 2021 Menard, Inc., Eau Claire, WI 54703 11/2020 96052_IM_MFX3I2700.indd 19 96052_IM_MFX3I2700.indd 19 2020/11/26 下午12:21 2020/11/26 下午12:21...
