Harman AMX NMX-ENC-N2312 Instruction Manual page 7

1) USB Standard-A Ports
2) Device Reset Button
3) IR Emitter Input Connection

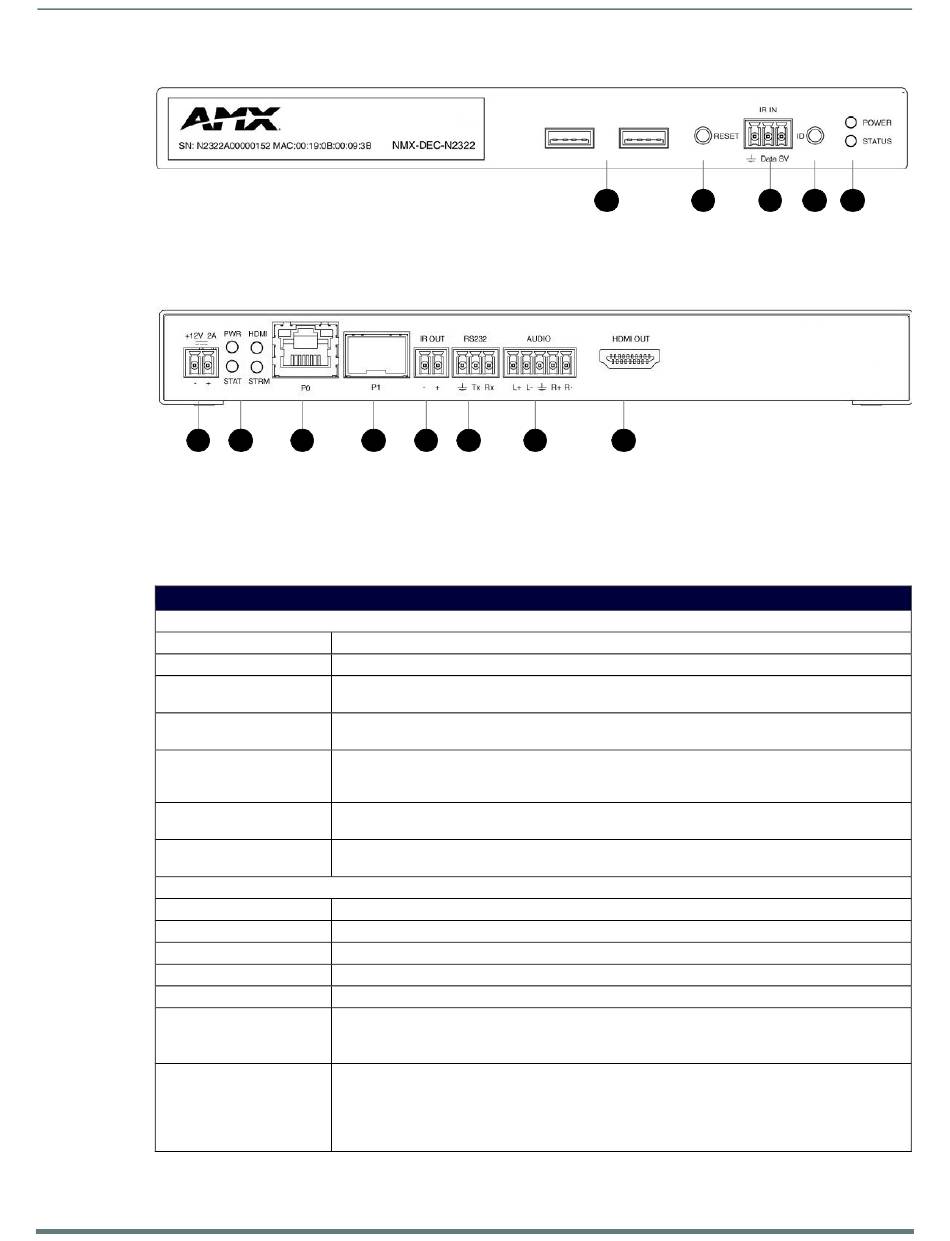

FIG. 3
N2322 Decoder Front Panel
1
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet Switch Port — PoE
4) RJ45 Auto-Sensing Gigabit Ethernet Switch Port
FIG. 4
N2322 Decoder Rear Panel
Front and Rear Panel Descriptions
Front Panel
USB Mini-B port
USB Standard-A port (x2)
RESET button
IR In port
ID button
POWER LED
STATUS LED
Rear Panel
+12V 2A
PWR LED
HDMI LED
STAT LED
STRM LED
P0 POE
P1
N2312/N2322 User Manual
2 3 4
For KVM support. Connects the Encoder to the computer to be controlled.
For KVM support. Connects the Decoder to keyboard and/or mouse.
Recessed pushbutton. Press to initiate a "warm restart" which causes the processor to reset, but not lose
power. A reset does NOT affect the current settings.
3-pin terminal Phoenix connector. Provides infrared (IR) input only and passes signal back to the
connected Encoder/Decoder (33-60 kHz; typically, 39 kHz). IR receiver required (not included).
Recessed pushbutton. Press to send notification out on the network to identify the unit (the notification
causes a pop-up dialog in N-Able and N-Command). Press and hold for 30 seconds to initiate a factory
restore.
On solid (green) when operating power is supplied (via PoE or local power supply). This activity is also
shown by the PWR LED on the rear panel.
On flashing (green) when there is software activity. This activity is also shown by the STAT LED on the rear
panel.
12 Volt DC power input.
Same as POWER LED described above.
On (green) when an HDMI connection exists.
Same as STATUS LED described above.
On (green) when the unit is streaming video.
8-wire RJ45 female.
10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port.
Provides both the network connection and the power to the Encoders and Decoders.
8-wire RJ45 female.
10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port.
OR
1G SFP port which accepts compatible fiber transceivers or direct attach cables (copper or fiber).
Modules sold separately.
4) Device ID Discovery Button
5) Power/Status Indicators
5 6 7
5) IR Emitter Output Connection
6) RS232 Connection
7) Analog Audio Output
8) HDMI Video Output
Introducing Your New N2300 Series Devices
1 2 3
8
4 5
7
