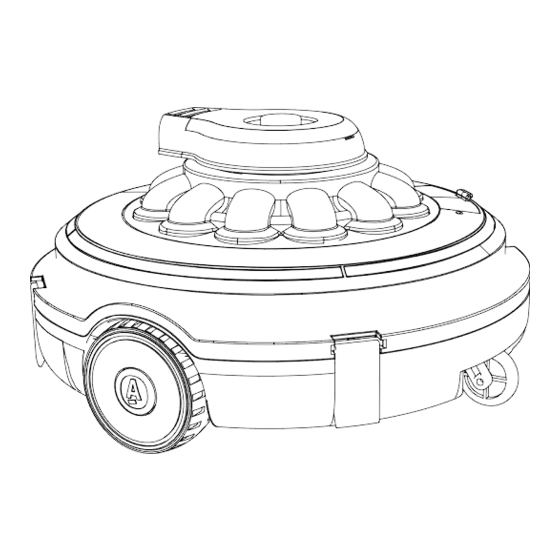

- Page 1 ProJet Free Plus-650 Battery- Operated Robotic Pool Cleaner for Aboveground Pools INSTRUCTION MANUAL Motor voltage: 7.4V DC Battery: 7.4V /5200mAh Waterproof grade: IPX8 Charging power: 8.4V DC, 1.5A...
-
Page 2: Safety Warning
SAFETY WARNING When installing and using this electrical equipment, you should always follow the basic safety precautions. Please read the following carefully Warning! This cleaner is not a toy and should be operated by people older than 8 years of age. Anyone who operates this cleaner, has to read the manual carefully before using it. -
Page 3: Battery Disposal
Do not handle the cleaner or charger with wet hands and or bare feet while charging the cleaner. Disconnect the charger from its power source when not in use. If the wire is damaged, replace the entire charger to avoid danger. Make sure the cleaner and charger are totally dry before charging. -
Page 4: Assembly And Operation
Assembly A: Floater B: Upper cover B-1: Jet head C: Cartridge filter D: Filter E: Bottom base F: Charger G: Hook The jet head (B1) rotates 180 degrees as the water flows through the bottom base (E), the filters (C & D) and the upper cover (B). The water flow passing through the jet head propels the robot across the pool floor. - Page 5 Power on Pipe air out 1. Turn on the switch, the indicator lights up， loosen the rope on the float, put the robot 2. Adjust the length of the rope to ensure that horizontally into the pool, and wait for the the length of the rope is at the same height as robot to sink freely down to the pool bottom, the water level.
-
Page 6: Maintenance And Storage
Maintenance and storage 1. The battery continues to discharge during storage. Make sure the robot is fully charged before storing it. 2. When not in use, you must recharge the battery at least once every three months. 3. Keep the charging adapter and cable separate from the robot while storing. 4. - Page 7 Battery assembly and replacement Warning! Do not treat electrical appliances as unclassified municipal waste, use separate collection facilities. For information on available collection systems, contact your local government. Do not remove the lithium battery without authorization. When removing the lithium battery from the vacuum device, please remove all metals such as rings, bracelets, necklaces, and watches.
-
Page 8: Troubleshooting
Trouble shooting If you have problems with your cleaner, follow the troubleshooting steps below to restore performance. Note: turn off the power before making any repairs. Problem Possible causes Solution The battery is low. Charge the robot. Turn off the power supply of the robot and visually check whether the impeller rotates. - Page 9 The baffle at the suction cup is like a door The valve of the suction The debris escaped from the to prevent debris from escaping from the nozzle (bottom of the robot. debris chamber. Contact your dealer for cleaner) is broken. further instructions.
- Page 10 ProJet Free Plus-650 PARTS LIST Reference INO Item No. Description 300051 Tether Cord Assembly INO 600-2 Rotating Head Cover INO 600-3 Interior Head Assembly INO 650-4 Upper Body INO 650-5 Body Clip 3000566 Standard Filter 150 µm INO 600-8 Impeller...
