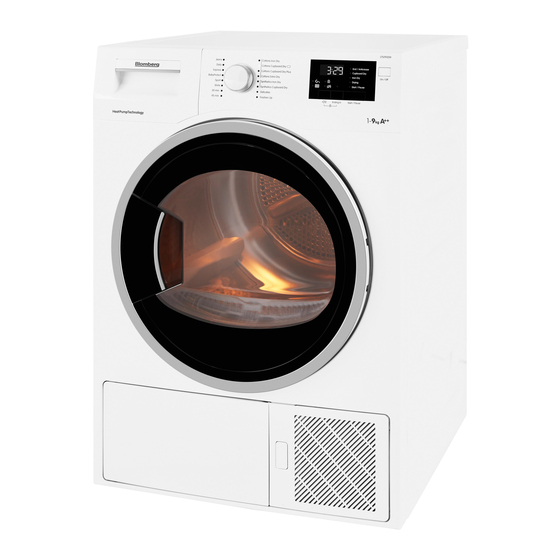

- Page 1 Dryer User Manual LTS2932W...
- Page 2 Please read this user manual first! Dear Customer, Thank you for prefering a Blomberg product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 6 Operating th product 1 Important safety and environmental instructions 6.1 Control panel ........20 1.1 General safety ........4 6.2 Screen symbols .........20 6.3 Preparing the machine ......21 1.1.1 Electrical safety ......5 6.4 Programme selection......21 1.1.2 Product safety........6 1.2 Mounting over a washing machine ..8 6.5 Main Programmes ......21 6.6 Extra Programmes ......21... -
Page 4: General Safety
mportant safety and environmental Important safety and environmental instructions instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are... -
Page 5: Important Safety And Environmental Instructions
mportant safety and environmental instructions 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility. -
Page 6: Product Safety
mportant safety and environmental instructions If the dryer is faulty, it must not be operated unless it is repaired by an authorised service agent! There is the risk of electric shock! 1.1.2 Product safety • Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion... - Page 7 mportant safety and environmental instructions Below specified laundry or items must not be dried in the dryer due to the fire hazard: • Garments or pillows bolstered with rubber foam (latex foam), shower caps, water resistant textiles, materials with rubber reinforcement and rubber foam pads.
-
Page 8: Mounting Over A Washing Machine
mportant safety and environmental instructions • Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. -
Page 9: Intended Use
mportant safety and environmental instructions Installation Table for Washing Machine and Dryer Washing Machine Depth Dryer Depth 62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm Can be 54 cm Can be stacked stacked Cannot be stacked Cannot be 60 cm... -
Page 10: Compliance With The Weee Regulation And Disposing Of The Waste Product
mportant safety and environmental instructions 1.5 Compliance with the WEEE regulation and disposing of the waste product This product does not contain the harmful and prohibited substances which are specified in the “Control of the Waste Electrical and Electronic Equipment” as published by Republic of Turkey Ministry of Environment and Urbanization. -
Page 11: Technical Specifications
mportant safety and environmental instructions 1.8 Technical Specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,5 cm Depth 60,9 cm Capacity (max.) 9 kg** Net weight (plastic front door usage) 48,5 kg Net weight (glass front door usage) 51 kg Voltage Rated power input... -
Page 12: Your Dryer
2.1 Overview 1. Top panel 2. Control panel 3. Loading door 4. Kick plate opening button 5. Ventilation grids 6. Adjustable legs 7. Kick plate 8. Type label 9. Lint filter 10. Water tank drawer 11. Power cord 12 / EN Dryer / User Manual... -
Page 13: Package Contents
Your Dryer 2.2 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 13 / EN... -
Page 14: Installation
Installation Before the calling the nearest Authorized • The rear surface of the tumble dryer shall Service for the installation of the dryer, en- be placed against a wall. sure that electrical installation and water on the Do not place the dryer drain is appropriate referring to the user's power cable. -
Page 15: Adjusting The Feet
Installation 3.4 Adjusting the feet Connecting the water drain hose • In order to ensure that the dryer operates Pull hose at the behind of the dryer more silently and vibration-free, it must by hand in order to disconnect it from stand level and balanced on its feet. -
Page 16: Warnings About Sounds
Installation 3.7 Warnings about sounds It is normal to hear a metallic noise from the compressor sometimes during operation. Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process. 3.8 Changing the illumination lamp In case an illumination lamp is used in your laundry dryer.To change the Bulb/LED used... -
Page 17: Electrical Connection
Electrical Connection Make sure that you have an earthed power Do not operate without the top outlet socket rated at 13 amps (minimum). cover fitted. Risk of injury. 4.1 Attention! When installed, the socket must be reachable Important after installation, or a separate switch (which can disconnect the two poles) must be used in the installation. -
Page 18: Preparation
Preparation 5.1 Laundry suitable for drying in the dryer Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. -
Page 19: Correct Load Capacity
Preparation • Clean the lint filter before or after each Following weights are given as examples. drying cycle. (See 7.1 Cleaning Lint Approximate Filter / Loading Door Inner Surface) Laundry weights (g)* • Clean the filter periodically when there Cotton quit covers is visible air collection on it or when the 1500 (double) -
Page 20: Operating Th Product
Operating the product 6.1 Control panel Programme selection knob Remaining duration indicator On/Off button Start/pause button End duration button Sound warning button 6.2 Screen symbols Tank Volume Mute Anti Child-proof Filter full Creasing lock cleaning 20 / EN Dryer / User Manual... -
Page 21: Preparing The Machine
Operating the product 6.5 Main programmes 6.3 Preparing the machine The main programmes are given below Plug in the machine based on fabric type. Place laundry inside the machine. • Cotton Press the On/Off button. When your machine turns on for the Dry durable laundry with this programme. - Page 22 Operating the product Very little dampness might remain on the shirts after the programme. It is recommended that you do not leave the shirts in the drying machine. • Delicates You can dry your delicates suitable for drying or laundry that is recommended to hand wash (silk blouses, thin underwear etc.) in low temperature.
-
Page 23: Programme Selection And Consumption Table
Operating the product 6.7 Programme selection and consumption table Capacity Spin speed in washing Approximate amount of Drying time Programs (kg) machine (rpm) remaining humidity (minutes) Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 9 / 4,5 1000 % 60 209 / 119 Iron dry... -
Page 24: Auxiliary Function
Operating the product 6.8 Auxiliary functions Loading door open Start/Pause led blinks when the loading door Sound warning cancel of the drying machine is open. Drying machine makes sound warnings when 6.10 End duration the programme is completed. If you don’t want sound notifications, press the “Sound You can delay the end duration of the Notification”... -
Page 25: Starting The Programme
Operating the product 6.13 Changing the programme Canceling the end duration function If you want to cancel the end duration setting after it is started countdown and start the programme right After the machine starts running, you can away: change the programme you selected to dry 1. -
Page 26: Cancelling The Programme
Operating the product 6.15 Programme end Do not contact the inner surface When the programme ends, the Final/Wrinkle of the drum when adding or Prevention, Fiber Filter Cleaning and Water removing laundry during a Tank Warning leds on the programme follow continuing programme. -
Page 27: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequently • A layer can build up on the filter pores experienced problems will be reduced if it is that can cause clogging of the filter after cleaned at regular intervals. using the dryer for a while. -
Page 28: Cleaning The Sensor
Maintenance and cleaning 7.2 Cleaning the sensor Start / Pause button to resume the drying cycle. There are dampness sensors in the dryer that To drain the water tank: detect whether the laundry is dry or not. Pull the drawer and remove the water tank To clean the sensors: carefully. -
Page 29: Cleaning The Filter Drawer
Maintenance and cleaning 7.4 Cleaning the filter drawer • Open the filter drawer by pressing the red button. Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Clean the filter periodi- cally when there is visible air collection on it or when the symbol lights up, if there is a... -
Page 30: Cleaning The Evaporator
Maintenance and cleaning Drying without the filter drawer sponge in place will damage the machine! A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption. 7.5 Cleaning the evaporator Clean the lint accumulated on the fins of the •... -
Page 31: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids. •... - Page 32 Troubleshooting End/Anti-creasing symbol is on. • Anti-creasing programme is activated in order to prevent laundry that has remained in the machine from creasing. >>> Turn off the dryer and take out the laundry. End symbol is on. • Programme is over. Turn off the dryer and take out the laundry. Lint Filter Cleaning symbol is on.
- Page 33 Repairs necessary as a direct or indirect result of: Accidental damage, misuse or abuse of a product. An attempted repair of a product by anyone other than a Blomberg Approved Engineer (the “Engineer”). Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet.
- Page 34 Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Blomberg offer replacements? This is a repair-only guarantee. On occasion the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model, but when this is not possible, a model of similar specification will be provided.
- Page 35 Will there be any charge for the repairs? It is your responsibility to provide evidence to the Engineer that your product is covered by this guarantee with a proof of purchase. The Manufacturer reserves the right to charge for the reasonable cost of any service call if: ...
- Page 36 Should you experience any difficulty in obtaining service contact the Blomberg Customer Helpline on Tel: 0333 207 9870 or e-mail: customerservice@support.Blomberguk.com...
- Page 37 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Blomberg Supplier name or trademark LTS2932W Model name Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) Automatic Type of Control Non-automatic Energy consumption of the standard cotton programme at full load (kWh)
- Page 40 www.blomberginternational.com info@blomberginternational.com 2960311543_EN/120717.1432...
