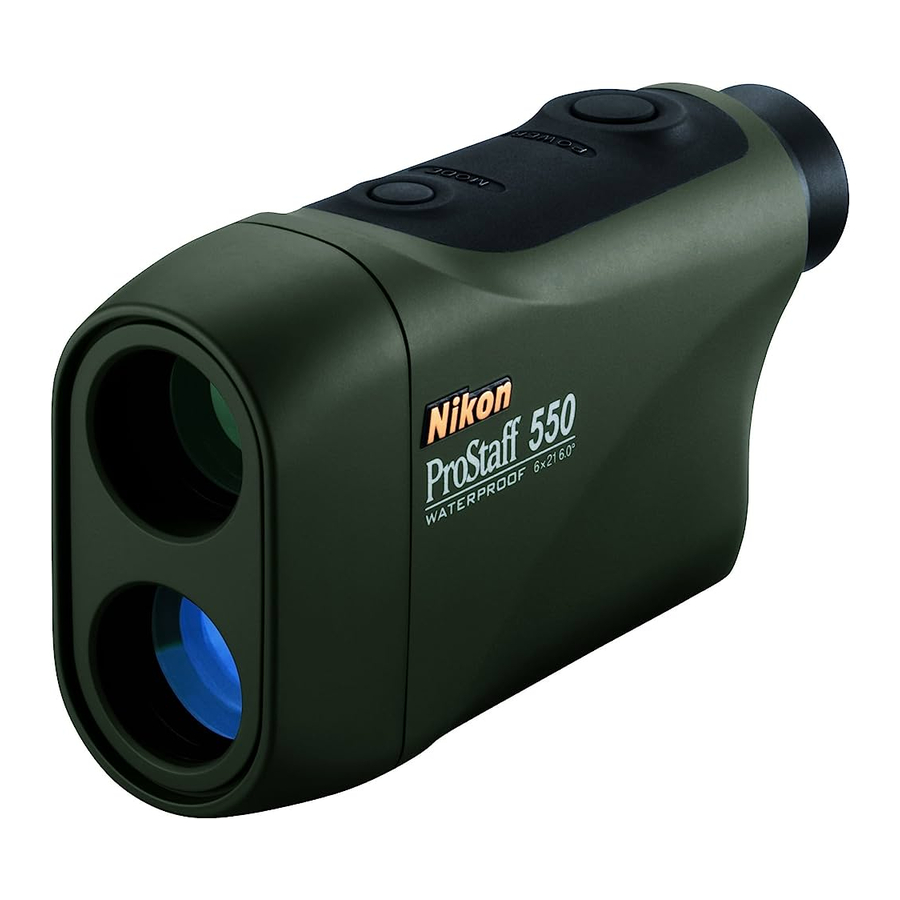

Nikon Laser 550, ProStaff 550, Team REALTREE 550 Manual

Introduction

Thank you for purchasing the Nikon Laser 550.
This high-spec laser rangefinder supports the measuring accuracy of existing Nikon Laser Rangefinders in order to be used for sports, leisure and other outdoor situations.

Please observe the following guidelines strictly so you can use the equipment properly and avoid potentially hazardous problems. Before using this product, read thoroughly the "SAFETY PRECAUTIONS" and instructions on correct usage accompanying the product.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
Keep this manual within reach for easy reference.

• Specifications and design are subject to change without notice.
• No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON VISION CO., LTD.

Key Features

• Linear distance measurement range: 10-500 meters/11-550 yards
• Distance measurement display step:

0.5 meter/yard (measurement distance is less than 100 meters/yards)
1.0 meter/yard (measurement distance is 100 meters/yards or farther)

• Easy-to-aim 6x optical observation system
• The results are displayed on an internal LCD panel.
• Measured and displayed in Distant Target Priority.
• Waterproof design (NOT designed for underwater usage)
• Invisible/Eyesafe IEC Class 1M Laser
• 8-second results display
• Compact, lightweight, ergonomic design
• Automatic shut-off (after approx. 8 sec. unattended)
• Default to "Last Use" settings
• Single or 20-second continuous measuring function.

The Nikon Laser 550 emits invisible, eyesafe, infrared energy pulses that reflect off the selected target back to its optical receiver. Sophisticated precision charge circuitry is used to instantaneously calculate distances, by measuring the time it takes for each pulse to travel from the rangefinder to the target and back. Laser reflectivity and measurement results may vary according to climatic and environmental conditions, the colour, surface finish, size, shape and other characteristics of the target.

The following factors ensure best range and accuracy:

• Nighttime use
• Cloudy weather
• Bright-coloured targets
• Targets with highly reflective surfaces
• Targets with shiny exteriors
• Large-size targets
• Shooting targets facing at 90 degrees

Measurement may result in inaccuracy or failure in the following cases:

• Slender or small target
• Target has diffusing reflective surface
• Target does not reflect the laser beam (glass, a mirror, etc.)
• Black target
• Target has varing depths
• In snow, rain or fog
• Target measured through glass
• Reflective surface measured from diagonal direction
• Moving target
• Obstacle moving in front of the target
• When targeting the surface of water

Composition

Body: 1
Soft case (CCN: Laser 550/ CCR: ProStaff/Team REALTREE): 1
Neckstrap: 1
Lithium battery (CR2): 1

Nomenclature

1. Monocular objective lens/ Laser emission aperture
2. Laser detector aperture
3. MODE button
4. POWER button
5. 6x monocular eyepiece
6. Eyecup/dioptre adjustment ring
7. Diopter index
8. Strap eyelet
9. Battery chamber cover
10. Battery chamber cover "Open/Close" indication
11. Product number/explanatory label

12. Laser warning label


NIKON VISION CO., LTD. Customer Service Department
3-25, Futaba 1-chome, Shinagawa-ku, Tokyo 142-0043, Japan
Tel: +81-3-3788-7699 Fax: +81-3-3788-7698

Internal Display

1. - Target focusing/Laser irradiate system
   - Aim at the target. Position the target at the center of the reticle.
   - Appears while the laser is being used for a measurement. (Remains present during single measurement and continuous measurements.)

   Do not look into the objective lenses when this mark is shown.

2. : Distance/measurement status display

   Digitally indicates measured distance in meters/yards. Also indicates measuring status such as "Measurement in progress", "Measurement unsuccessful" or "Unable to measure."
   <Examples of measurement results>

   (Distance)
   Display of results: (≧100m/yards)	e.g. 234 meters =
   Display of results: (	e.g. 76.5 yards =

   - Now measuring
   - Failure to measure or unable to measure distance

3. - Display Units
   - Indicates distance being measured in meters.
   - Indicates distance being measured in yards.
4. - Indicates battery condition. (See "Changing Batteries")

Although the LCD was produced using the most advanced technology, it is impossible to eliminate dust completely. When using this product, the LCD is magnified by high magnification of the eyepiece lens and dust may appear as a defect. It will not, however, affect measurement accuracy.

Changing Batteries

• Type of battery: 3V CR2 lithium battery
• Battery condition indicators

Battery has enough charge for use.
Battery charge is getting low.
flashing: Battery charge is low and battery should be replaced.
disappears: Battery is exhausted and should be replaced.

flashing in the LCD indicates that the battery should be replaced.

1. Open the battery chamber cover
   Using the ball of the thumb or a coin in the recessed part of the battery chamber cover, rotate the cover following the Open/Close arrow indicator.
   It may not open easily due to its rubber packing for water resistance.

2. Replace the old battery with a new one
   Install new battery with the [+] and [-] correctly positioned following the "Battery installation" indication seal in the battery chamber. (Insert battery positioning the [+] pole towards the inside of the chamber.) [The Nikon
   Laser 550 will not operate if the battery is installed incorrectly.]

3. Close the battery chamber cover
   Align the Open/Close indicator with the white dot and insert the battery chamber cover. Using the ball of the thumb or a coin, turn the cover in the opposite direction to the arrow indicator. It may not close easily due to the rubber packing for water resistance, but continue to turn it all the way until it stops. Confirm that the cover is securely closed.

Battery life
Continuous operation: Approx. 10,000 times (at 20°C)
Target focusing, measurement, and automatic power off are included in a single cycle. This figure may differ according to temperature, and other factors such as target shape, colour, etc.

* The Nikon Laser 550 come with a 3V CR2 lithium battery. However, due to natural electric discharge, the life of the battery will likely be shorter than that noted above. Replace battery if the Nikon Laser 550 is ever submerged in water or if water enters in the battery chamber.

Operational Summary

use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure

1. Install a battery in the battery chamber. (See "ChangingBatteries")
2. Rubber eyepiece cup
   Eyeglass wearers: Roll up the rubber eyepiece cup and use.
   Non-eyeglass wearers: No need to roll up the rubber eyepiece cup for use.
3. Diopter adjustment
   Adjust diopter to obtain a clear image in the LCD.
   First, rotate the diopter adjustment ring counterclockwise until it comes to a complete stop. Next, turn on the power to activate the LCD when you look through the Nikon Laser 550. Rotate the diopter adjustment ring clockwise until the display comes into focus.
   If the diopter is not adjusted to correspond to your eyesight, you may not be able to clearly focus your subject.
4. Measuring
   Note: Depressing and holding down the POWER button causes all symbols to be displayed in the LCD panel. After you remove your finger from the POWER button, the last-used setting is displayed. (If you briefly press the POWER button then remove your finger, the LCD panel may display the last-used setting without displaying all of the symbols. This is not a malfunction or other problem.)

   Before measuring, be sure to confirm unit setting.

Power turns off 8 seconds after the last operation.
[Continuous measurement mode]
Depressing the POWER button allows you to perform continuous measurement for 20 seconds.
Appears while performing measurements.

5. Selecting display unit (default setting is yards.)

   1. Confirm the internal LCD panel is on.
   2. Press and hold the button (more than two seconds.)
   3. When display unit has switched, release the button.
   4. Repeat steps 2 and 3 until your desired mode is displayed.
   5. When you have completed setting, results will be converted and displayed in the your selected measurement unit.
6. Distance Display System

Nikon Laser 550 is Distant Target Priority/Distance Display System. When obtaining different results from a single measuring operation, the Nikon Laser 550 will display the distance to the farthest target on the LCD panel.

ex.) When measuring a tree standing in front of a house;

"128m" (distance to the house) will be displayed.
This mode has applications for hunting in heavy wooded areas.

7. Low battery indication

Flashing indicates that the battery charge is low and battery should be replaced. (See "Changing Battery")

Specifications

Laser

* Waterproof models
The Nikon Laser 550 is waterproof, and will suffer no damage to the optical system if submerged or dropped in water to a maximum depth of 1 meter for up to 10 minutes.

The Nikon Laser 550 offers the following advantages:

• Can be used in conditions of high humidity, dust and rain without risk of damage.
• Nitrogen-filled design makes it resistant to condensation and mold.

Observe the following when using the Nikon Laser 550:

• As the unit does not have a perfectly sealed structure, it should not be operated nor held in running water.
• Any moisture should be wiped off before adjusting movable parts (focusing knob, eyepiece, etc.) of the Nikon Laser 550 to prevent damage and for safety reasons.

To keep your Nikon Laser 550 in excellent condition, Nikon Vision recommends regular servicing by an authorized dealer.

** The battery chamber is water resistant, not waterproof. Water may enter the device if the Nikon Laser 550 is submerged in water. If water enters the battery chamber, wipe out any moisture and allow time for the chamber to dry.

Troubleshooting/Repair

If your Nikon Laser 550 should require repair, please contact your local dealer for details regarding where to send it. Before doing so, you are advised to consult the Troubleshooting Table below.

Symptom	Check Points
Unit does not turn on — LCD fails to illuminate	Depress POWER button. Check and replace batteries if necessary.
Target range cannot be obtained	Be sure that nothing, such as your hand or finger, isblocking the laser emission aperture and laser detector. Be sure that the laser emission aperture and laserdetector are clean. Clean them if necessary. Be sure that the target shape and condition isappropriate to reflect the laser beam. Replace battery.
("Cannot measure") appears	Be sure to hold the unit steady while depressing the POWER button. Be sure the target is within measuring range (10 - 500m/11 - 550 yards)
Closer target cannot be measured	• Be sure that nothing, such as leaves or grass, is between the Nikon Laser 550 and the target.
Target beyond a certain distance cannot be measured	Be sure that nothing, such as leaves or grass, is between the Nikon Laser 550 and the target.
Measurement result is unstable	Replace battery. Be sure that the target shape and condition isappropriate to reflect the laser beam. Be sure to hold the unit steady while depressing the POWER button. Be sure that nothing, such as leaves or grass, isbetween the Nikon Laser 550 and the target.
Incorrect result is displayed	Replace battery. Be sure that the target shape and condition isappropriate to reflect the laser beam. Be sure that nothing, such as leaves or grass, isbetween the Nikon Laser 550 and the target.

If problems persist after consulting the Troubleshooting Table, please contact your local dealer to check/repair the Nikon Laser 550. Never let anyone than the official representative of the product manufacturer check or repair the Nikon Laser 550. Failure to follow this instruction could result in injury, or damage to the product.

CAUTIONS BEFORE USE

Please observe the following guidelines strictly so you can use the equipment properly and avoid potentially hazardous problems. Before using this product, read thoroughly the "SAFETY AND OPERATION PRECAUTIONS" and instructions on correct usage accompanying the product. Keep this manual within reach for easy reference.

This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential death or serious injury.

This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential injury or material loss.

SAFETY AND OPERATION PRECAUTIONS

• Never look directly at the laser beam or directly at the sun when using the Nikon Laser 550.
• Do not depress the POWER button while aiming with the eye or looking into the optics from the objective side.
• Do not operate the unit with other additional optical elements, such as lenses or binoculars. Using an optical instrument together with the Nikon Laser 550 increases the danger of damaging the eyes.
• Do not disassemble the Nikon Laser 550. A product that has been disassembled is not guaranteed by the manufacturer.
• When Nikon Laser 550's body cover is damaged, or if it emits a strange sound due to dropping or for some other cause, immediately remove the battery and stop using.

• When not using the Nikon Laser 550, do not push the POWER button.
• Do not leave the Nikon Laser 550 within the reach of small children.
• Rain, water, sand and mud should be removed from the rangefinder body surface as soon as possible, using a soft, clean, dry cloth.
• Although the Nikon Laser 550 is waterproof, it is not designed for use underwater.
• Do not swing the Nikon Laser 550 by its strap. It may hit someone and cause injury.
• Do not leave Nikon Laser 550 in an unstable place, as it may fall and cause injury, or damage the equipment.
• Do not look through the Nikon Laser 550 while walking. You may walk into something and get hurt.
• Do not leave the Nikon Laser 550 in a car on a hot or sunny day, or near heat-generating equipment. This may damage or negatively affect it.
• Do not leave the Nikon Laser 550 in direct sunlight. Ultraviolet rays and excessive heat may negatively affect or even damage the unit.
• When the Nikon Laser 550 is exposed to sudden changes in temperature, water condensation may occur on lens surfaces. Do not use the product until the condensation has evaporated.
• Do not use alcohol for cleaning the main body.
• Do not leave the polyethylene bag used for packaging within the reach of small children.
• Be careful that small children do not inadvertently swallow the eyecup. If it does happen, consult a doctor immediately.
• If you use the rubber eyecup for a long period of time, you may suffer skin inflammation. If you develop any symptoms, consult a doctor immediately.
• When carrying the Nikon Laser 550, store it in the soft case.
• If your Nikon Laser 550 should fail to operate correctly, discontinue use immediately and consult the Troubleshooting Table. If you are unable to fix the problem, contact your local dealer for instructions on where to send it for repair.

CARE AND MAINTENANCE

Lenses

• When removing dust on the lens surface, use a soft oil-free brush.
• When removing stains or smudges like fingerprints from the lens surface, wipe the lenses very gently with a soft clean cotton cloth or quality oil-free lens tissue.
  Use a small quantity of pure alcohol (not denatured) to wipe stubborn smudges. Do not use velvet cloth or ordinary tissue, as it may scratch the lens surface. Once the cloth has been used for cleaning the body, it should not be used again for the lens surface.

Main body

• Clean the body surface with a soft, clean cloth and a dry cloth. Do not use benzene, thinner, or other organic agents because they may cause discolouration or rubber degeneration.

Storage

• Water condensation or mould may occur on the lens surface because of high humidity. Therefore, store the Nikon Laser 550 in a cool, dry place.
  After use on a rainy day or at night, thoroughly dry it at room temperature, then store in a cool, dry place.

NOTES ON LITHIUM BATTERY

If handled incorrectly, batteries may rupture and leak, corroding equipment and staining clothing. Be sure to observe the following:

• Install batteries with the + and – poles positioned correctly.
• Batteries should be removed when exhausted or during extended periods of non-use.
• Always use the same brand of battery.
• If battery fluid contacts eyes or skin, rinse well with water. If swallowed, consult a doctor immediately.
• Do not short-circuit battery chamber terminals.
• Do not carry batteries together with keys or coins in a pocket or bag. This may overheat and short-circuit batteries.
• Do not put batteries in fire or water. Never disassemble batteries.
• Do not charge batteries.
• Do not subject stored batteries to extremes in temperature.
• Do not subject batteries to strong vibrations or shock.
