SLB Branch Offi ce Manager Quick Start Guide
WHAT'S
Accessories Included
Part Number
INSIDE
200.2066A
200.2067A
WHAT'S
Accessories Included
Power Cords Included
INSIDE
Part Number
Description
Included power cords vary for kit purchased. Please see www.lantronix.com for
200.2066A
Adapter: RJ45 to DB25M (DCE)
additional inlet power cords available.
for Sun with DB25 female
SLB Part #
Power Cord Part # Power Cord Description
Quantity
200.2067A
Adapter: RJ45 to DB25F (DCE)
100-120 VAC (50/60 Hz)
WHAT'S
INSIDE
200.2067A
200.2066A
Accessories Included
200.2069A
Part Number
Adapter: RJ45 to DB9M (DCE) for
some HP9000's
Adapter: RJ45 to DB25M (DCE)
Description
for Sun with DB25 male and
for Sun with DB25 female
Adapter: RJ45 to DB25F (DCE)
100-120V
Included power cords vary for kit purchased. Please see www.lantronix.com for
additional inlet power cords available.
AC Voltage
SLB882KIT-20P
SLB882KIT-15P
(50/60 Hz)
Kit
Power Cords
100-120V
Part Number
Inlet cord: IEC60320/C19
Inlet cord: IEC60320/C19
SLPP12410-01
Power Cord Description
SLPP12310-01
to NEMA 5-15P (15A)
for Sun with DB25 male and
SLB882KIT-15P
SLPP12310-01
IEC60320/C19 to NEMA 5-15P (15A)
2
Quick Start Guide
SLB
200.2070A
ADP010104-01 Adapter: RJ45 Rolled serial, 0.1m
200.0063
for HP9000, SGI Origin, IBM
(6.6 Ft.)
Cable: RJ45 to RJ45, Cat-5, 2m
SGI Onyx
(0.33 Ft.) for Cisco and Sun Netra
Linux servers
Adapter: RJ45 to DB9F (DCE)
RS6000,and PC-based Unix/
200-240V
SLB8824KIT-AP
200-240V
SLB8824KIT-EU
SLPP12810-01
to NEMA 5-20P (20A)
to Schuko (EU)
GB (CN)
SLPP12910-01
3112 (AU/NZ)
IEC60320/C19 to AS/NZS
SLPP12A08-01
to BS1363 (UK)
Inlet cord: IEC60320/C19
Inlet cord: IEC60320/C19
IEC60320/C19 to CHINA/
SLPP12C08-01
some HP9000's
1 HARDWARE REVIEW
110-120V AC
LCD
Keypad
Device ports 1-8
500-153
Front View
USB Port
Cable:RJ45 Loopback
Console Port
LCD
200-240V AC
Front View
Keypad
Console Port
Device ports 1-8
USB Port
SLB882KIT-20P
SLPP12410-01
IEC60320/C19 to NEMA 5-20P (20A)
2
10/100
Dual Ethernet
ports
Power outlets 1-8
Secondary AC Inlet
Back View
Primary AC Inlet
Modem
10/100
Dual Ethernet
ports
Power outlets 1-8
Secondary AC Inlet
Primary AC Inlet
Back View
Modem
200.2069A
Adapter: RJ45 to DB9M (DCE) for
used in the SLB, dial-in access is possible in the event that the IP
(HTTPS/SSL), Secure Shell (SSH), or Telnet session. If a modem is
of a space saving 19" 1RU design.
a remote user connects to the SLB using a secure web browser

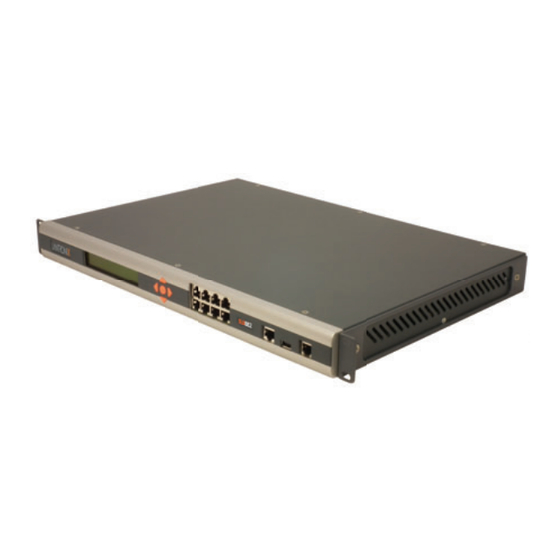

The SLB is a hybrid console manager and power manager in the form
an IP network or the Internet. Once installed on the IP network,
The SLB connects between a server or a piece of IT equipment and
need the female DB9 adapter (Part #200.2070A) and a standard
Cat-5 cable, both of which are supplied with the SLB.
For example, to connect a PC to the device port of the SLB, you only
SGI Onyx
200-240 VAC (50/60 Hz)
or PC with terminal emulation software to locally access manage-
the server or IT equipment's command line interface (CLI) via the
network is unavailable. Once connected, the user has access to
The front LCD panel and keypad allows for quick and easy network
configuration. The front panel console port allows a dumb terminal
equipment is connected to one of the SLB power outlets, then
console port to perform maintenance or management tasks. If the
(on/off/reboot) power control is possible.
The default communication parameters for the device ports and the
console port are:
SLB8824KIT-EU SLPP12810-01
IEC60320/C19 to Schuko (EU)
2
ports allow simple connections to serial devices using adapters and
a standard Cat-5 cable. Connect one end of the Cat-5 cable to the
device port, and the other end to an adapter that attaches to the
serial console of the target system.
ment functions and connected serial console devices. The device
The power outlets allow your equipment to use the SLB as its power
state of each outlet (on/off/reboot).
source. Once connected you can remotely and securely control the
200.2070A
Adapter: RJ45 to DB9F (DCE)
Quick Start Guide
for HP9000, SGI Origin, IBM
SLPP12910-01
EC60320/C19 to BS1363 (UK)
2
RS6000,and PC-based Unix/
SLB8824KIT-AP
SLPP12A08-01
IEC60320/C19 to AS/NZS 3112 (AU/NZ) 2
Linux servers
SLPP12C08-01
IEC60320/C19 to CHINA/GB (CN)
2
ADP010104-01 Adapter: RJ45 Rolled serial, 0.1m
SLB8824KIT-WW SLPP12810-01
IEC60320/C19 to Schuko (EU)
1
(0.33 Ft.) for Cisco and Sun Netra
SLPP12910-01
EC60320/C19 to BS1363 (UK)
1
200.0063
Cable: RJ45 to RJ45, Cat-5, 2m
SLPP12A08-01
IEC60320/C19 to AS/NZS 3112 (AU/NZ) 1
(6.6 Ft.)
SLB
SLPP12C08-01
IEC60320/C19 to CHINA/GB (CN)
1
500-153
Cable:RJ45 Loopback
1 HARDWARE REVIEW
100-120V AC
200-240V AC
Front View
Front View
Device ports 1-8
Device ports 1-8
LCD
Keypad
Console Port
LCD
Keypad
Console Port
USB Port
USB Port
Modem
Modem
200.2069A
10/100
10/100
Dual Ethernet
Power outlets 1-8
Primary AC Inlet
Dual Ethernet
Power outlets 1-8
Primary AC Inlet
ports
Back View
Secondary AC Inlet
ports
Back View
Secondary AC Inlet
The SLB is a hybrid console manager and power manager in the form
For example, to connect a PC to the device port of the SLB, you only
of a space saving 19" 1RU design.
need the female DB9 adapter (Part #200.2070A) and a standard
Cat-5 cable, both of which are supplied with the SLB.
The SLB connects between a server or a piece of IT equipment and
an IP network or the Internet. Once installed on the IP network,
a remote user connects to the SLB using a secure web browser
(HTTPS/SSL), Secure Shell (SSH), or Telnet session. If a modem is
used in the SLB, dial-in access is possible in the event that the IP
network is unavailable. Once connected, the user has access to
the server or IT equipment's command line interface (CLI) via the
console port to perform maintenance or management tasks. If the
equipment is connected to one of the SLB power outlets, then
(on/off/reboot) power control is possible.
The front LCD panel and keypad allows for quick and easy network
configuration. The front panel console port allows a dumb terminal
The default communication parameters for the device ports and the
or PC with terminal emulation software to locally access manage-
console port are:
200.2070A
ment functions and connected serial console devices. The device
ports allow simple connections to serial devices using adapters and
a standard Cat-5 cable. Connect one end of the Cat-5 cable to the
The power outlets allow your equipment to use the SLB as its power
device port, and the other end to an adapter that attaches to the
source. Once connected you can remotely and securely control the
serial console of the target system.
state of each outlet (on/off/reboot).
Quick Start Guide
ADP010104-01 Adapter: RJ45 Rolled serial, 0.1m
200.0063
500-153
SLB
1 HARDWARE REVIEW
100-120V AC
Front View
LCD
10/100
Power outlets 1-8
Dual Ethernet
ports
Back View
The SLB is a hybrid console manager and power manager in the
form of a space saving 19" 1RU design.
The SLB connects between a server or a piece of IT equipment
and an IP network or the Internet. Once installed on the IP network,
a remote user connects to the SLB using a secure web browser
(HTTPS/SSL), Secure Shell (SSH), or Telnet session. If a modem
is used in the SLB, dial-in access is possible in the event that the
IP network is unavailable. Once connected, the user has access
to the server or IT equipment's command line interface (CLI) via
the console port to perform maintenance or management tasks. If
the equipment is connected to one of the SLB power outlets, then
(on/off/reboot) power control is possible.
The front LCD panel and keypad allows for quick and easy network
configuration. The front panel console port allows a dumb terminal
or PC with terminal emulation software to locally access manage-
ment functions and connected serial console devices. The device
ports allow simple connections to serial devices using adapters
and a standard Cat-5 cable. Connect one end of the Cat-5 cable to
the device port, and the other end to an adapter that attaches to the
serial console of the target system.
Description
Adapter: RJ45 to DB25M (DCE) for
Sun with DB25 female
Adapter: RJ45 to DB25F (DCE) for
Sun with DB25 male and some
HP9000's
Adapter: RJ45 to DB9M (DCE) for
SGI Onyx
Adapter: RJ45 to DB9F (DCE)
for HP9000, SGI Origin, IBM
RS6000,and PC-based Unix/Linux
servers
(0.33 Ft.) for Cisco and Sun Netra
Cable: RJ45 to RJ45, Cat-5, 2m (6.6
Ft.)
Cable: RJ45 Loopback
Device ports 1-8
Keypad
Console Port
Primary AC Inlet
Secondary AC Inlet
Power Cords Included
Included power cords vary for kit purchased. Please see www.lantronix.com for additional
inlet power cords available.
SLB Part #
Power Cord Part #
100-120 VAC (50/60 Hz)
SLB882KIT-15P
SLPP12310-01
SLB882KIT-20P
SLPP12410-01
200-240 VAC (50/60 Hz)
SLB8824KIT-EU
SLPP12810-01
SLPP12910-01
SLB8824KIT-AP
SLPP12A08-01
SLPP12C08-01
SLB8824KIT-WW
SLPP12810-01
SLPP12910-01
SLPP12A08-01
SLPP12C08-01
200-240V AC
LCD
USB Port
Modem
m
10/100
Power outlets 1-8
Dual Ethernet
ports
For example, to connect a PC to the device port of the SLB, you only
need the female DB9 adapter (Part #200.2070A) and a standard
Cat-5 cable, both of which are supplied with the SLB.
The default communication parameters for the device ports and
the console port are:
• 9600 baud • 8 data bits • No parity • 1 stop bit • No flow control
The power outlets allow your equipment to use the SLB as its pow-
er source. Once connected you can remotely and securely control
the state of each outlet (on/off/reboot).
1
Power Cord Description
IEC60320/C19 to NEMA 5-15P (15A)
IEC60320/C19 to NEMA 5-20P (20A)
IEC60320/C19 to Schuko (EU)
IEC60320/C19 to BS1363 (UK)
IEC60320/C19 to AS/NZS 3112 (AU/NZ)
IEC60320/C19 to CHINA/GB (CN)
IEC60320/C19 to Schuko (EU)
IEC60320/C19 to BS1363 (UK)
IEC60320/C19 to AS/NZS 3112 (AU/NZ)
IEC60320/C19 to CHINA/GB (CN)
Front View
Device ports 1-8
Keypad
Console Port
Primary AC Inlet
Secondary AC Inlet
Back View
Quantity
2
2
2
2
2
2
1
1
1
1
USB Port
Modem

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLB and is the answer not in the manual?

Questions and answers

Summary of Contents for Lantronix SLB

  • Page 1 (HTTPS/SSL), Secure Shell (SSH), or Telnet session. If a modem is used in the SLB, dial-in access is possible in the event that the IP For example, to connect a PC to the device port of the SLB, you only need the female DB9 adapter (Part #200.2070A) and a standard Cat-5 cable, both of which are supplied with the SLB.
  • Page 2: Configuring Network (Ip) Settings

    3 IP ADDRESSING Both of the SLB network ports (Eth1 and Eth2) default to DHCP-assigned IP addresses. If you want to assign a different IP address, it must be within a valid range, unique to your network, and with the same subnet mask as your workstation.
  • Page 3: Logging Into The Command Line Interface

    © 2023 Lantronix, Inc. Lantronix and SLB are trademarks of Lantronix, Inc., registered in the U.S. and other countries. Specifications subject to change without notice. All other trademarks and trade names are the property of their respective holders. 900-670-R Rev J...
  • Page 4 (HTTPS/SSL), Secure Shell (SSH), or Telnet session. If a modem is used in the SLB, dial-in access is possible in the event that the IP For example, to connect a PC to the device port of the SLB, you only need the female DB9 adapter (Part #200.2070A) and a standard Cat-5 cable, both of which are supplied with the SLB.
  • Page 5 SLB分支机构设备管理器快速入门指南 电源分配器(带适配器功能) 2 安装SLB 1.如果需要的话,可以将设备安装在一个19英寸机架上。 4.要管理一台设备的电源,请将其电源线插入到八个电源输出插 警告:小心不要堵住设备两侧的散热孔。如果设备安装在一个 座中的任一个。 封闭的机架上,建议机架配备一个排风扇。 5.如果您使用调制解调器,请将其连接到电话线。 2.将SLB通过上方的以太网端口#1直接连接到网络上。 6.将电单相源线连接到主AC电源输入接口和副AC电源输入接口 3. 使用合适的电缆和适配器,最多可以将八台串行控制台设备连接 (可选),并接通电源。 到本设备前面板上带编号的设备端口。 7. 等待约一分半钟左右,直到启动过程结束。当启动过程结束时,每 个电源输出插座的状态将显示在LCD显示屏上。还可能显示检测 到的故障或过程消息。 3 IP寻址 SLB的两个网络端口(Eth1和Eth2)默认为由DHCP分配的IP地址。如果您要指定一个不同的IP地址,那么该地址必须在有效范围内,并且 在您的网络上是唯一的,使用与您的工作站相同的子网掩码。 要配置SLB,您需要以下信息: IP地址(若尚未分配):_______ . _______ . _______ . _______ 子网掩码(若尚未分配):_______ . _______ . _______ . _______ 网关:_______ . _______ . _______ . _______ 域名服务器:_______ .
  • Page 6 • 如需某个特定命令的帮助,请输入help,后面跟该命令,例如,help set network或 help admin firmware。 联系 技术支持 如需技术支持咨询,请访问http://www.lantronix.com/support 欧洲、中东、非洲地区 中国 亚洲/太平洋地区 日本 电话:+31 (0)20 77 14 424 电话:+852 3428-2338 电话:+86.021.6237.8868 电话:+81-3-6277-8802 电话:+31 (0)76 52 36 740 最新固件要下载最新固件,请访问http://www.lantronix.com/support/downloads 版权所有 © 2023 Lantronix公司。 Lantronix和SLB为Lantronix公司在美国和其他国家的注册商标。 规格如有变动, 恕不另行通知。 所有其他商标和商业名称属于各自拥有者 所有。 900-670-R 修订版J...

This manual is also suitable for:

Slb882kit-15pSlb882kit-20pSlb8824kit-euSlb8824kit-apSlb8824kit-ww
