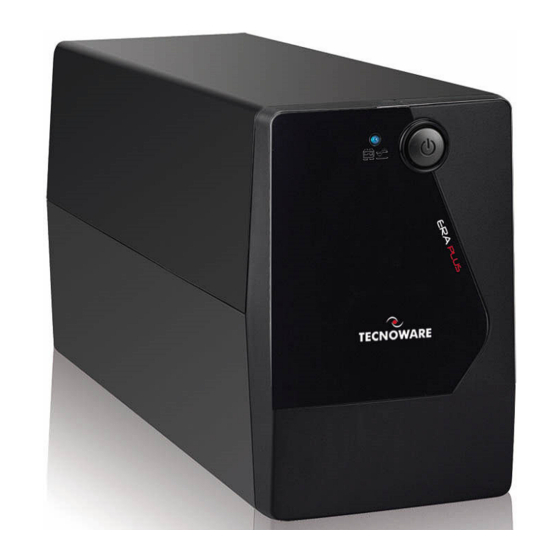

- Page 1 Uninterruptible Power Supply ERA PLUS 750 ERA PLUS 900 ERA PLUS 1.100 ERA PLUS 1.500 User’s manual...
-
Page 3: Table Of Contents
Edition: November 2018 – version: 1.4 No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS ERA PLUS 750-900-1.100-1.500... -
Page 4: Safety Warnings
Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE ERA PLUS Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used. -
Page 5: Introduction
ERA PLUS is constantly being developed and improved: consequently, your unit may differ somewhat from the description contained in this manual. This manual includes the following models: • ERA PLUS 750 (750 VA) • ERA PLUS 900 (900 VA) • ERA PLUS 1.100 (1.100 VA) •... -
Page 6: General Characteristics
• Do not keep liquids, flammable gases or corrosive substances near the unit. • Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat. • User’s manual UPS ERA PLUS 750-900-1.100-1.500... -
Page 7: External Description
The LINE/BATTERY led: this led (blue color) is always on during the functioning in Normal Mode, it flashes one time every 4 seconds in Battery mode and it flashes one time every second in Low Battery condition. Figure 1 – Front panel UPS ERA PLUS 750-900-1.100-1.500 User’s manual... -
Page 8: Rear Side
Computer Interface (USB connector): it is the communication USB port. (Only for UPS ERA Plus 1.100 and UPS ERA Plus 1.500) In case of anomaly to the AC line (black-out), the UPS Output receptacles (black colour, #3) continue supplying the correct power to all connected equipment. User’s manual UPS ERA PLUS 750-900-1.100-1.500... -
Page 9: Electrical Installation And First Start Up
There are no internal parts in the UPS that are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 10: Functioning
After a complete discharge, the UPS needs 4 hours to recharge completely the batteries. The UPS recharges batteries automatically if it works in Normal mode or if it is off and connected to the AC Input Line. User’s manual UPS ERA PLUS 750-900-1.100-1.500... -
Page 11: Load Control
The USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software TecnoManager, compatible with the most popular Operative Systems. -
Page 12: Technical Characteristics
2 UPS Output sockets (Schuko/Italian type) Dimension (W x H x D) 10,1 x 14,2 x 27,9 cm Net Weight 3.6 Kg 3.7 Kg 4,5 Kg 5 Kg Technical data may change without prior notice User’s manual UPS ERA PLUS 750-900-1.100-1.500... -
Page 13: Maintenance
Disconnect the battery wires and gently extract the battery from the case. The new battery must be exactly the same type as the original one. Put inside the new battery and connect it as the original one. Reassemble the case cover. UPS ERA PLUS 750-900-1.100-1.500 User’s manual... -
Page 14: Operator Safety
Battery replacement must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. When replacing batteries, replace with the same type and number. CAUTION: A battery can present a risk of electrical shock and high short circuit current. - Page 15 TECNOWARE declines any responsibility if this warning is disregarded. Warning to the technical personnel authorized for service: since internal components are connected to the batteries, they will remain powered, and therefore dangerous, even after the UPS has been disconnected from AC power mains. Before any repair or maintenance work, disconnect the batteries, by removing the positive cable (red colour) from the positive pole of the battery.
-
Page 16: Conformity To The European Directives
Conformity to the European Directives TECNOWARE S.r.l. confirms that ERA PLUS models comply with the requirements set out in: the Low Voltage Directive (Safety) 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments. WARNING - This is a category C2 UPS product. In a residential environmental, this product may cause radio interference, in which case the user may be required to take additional measures. - Page 19 TECNOWARE s.r.l. www.tecnoware.com...
