Hydraulic System
Maintenance
Hydraulic System Oil Specification
Oil Type: Toro HYPR-OIL® 500 or 20w-50 motor oil.
System Capacity: approximately 4.495 liter (152 oz) with a
filter change.
Checking the Hydraulic-Oil
Level
Service Interval: Every 25 hours
Check expansion reservoir and if necessary add the specified
oil to the Full Cold line.

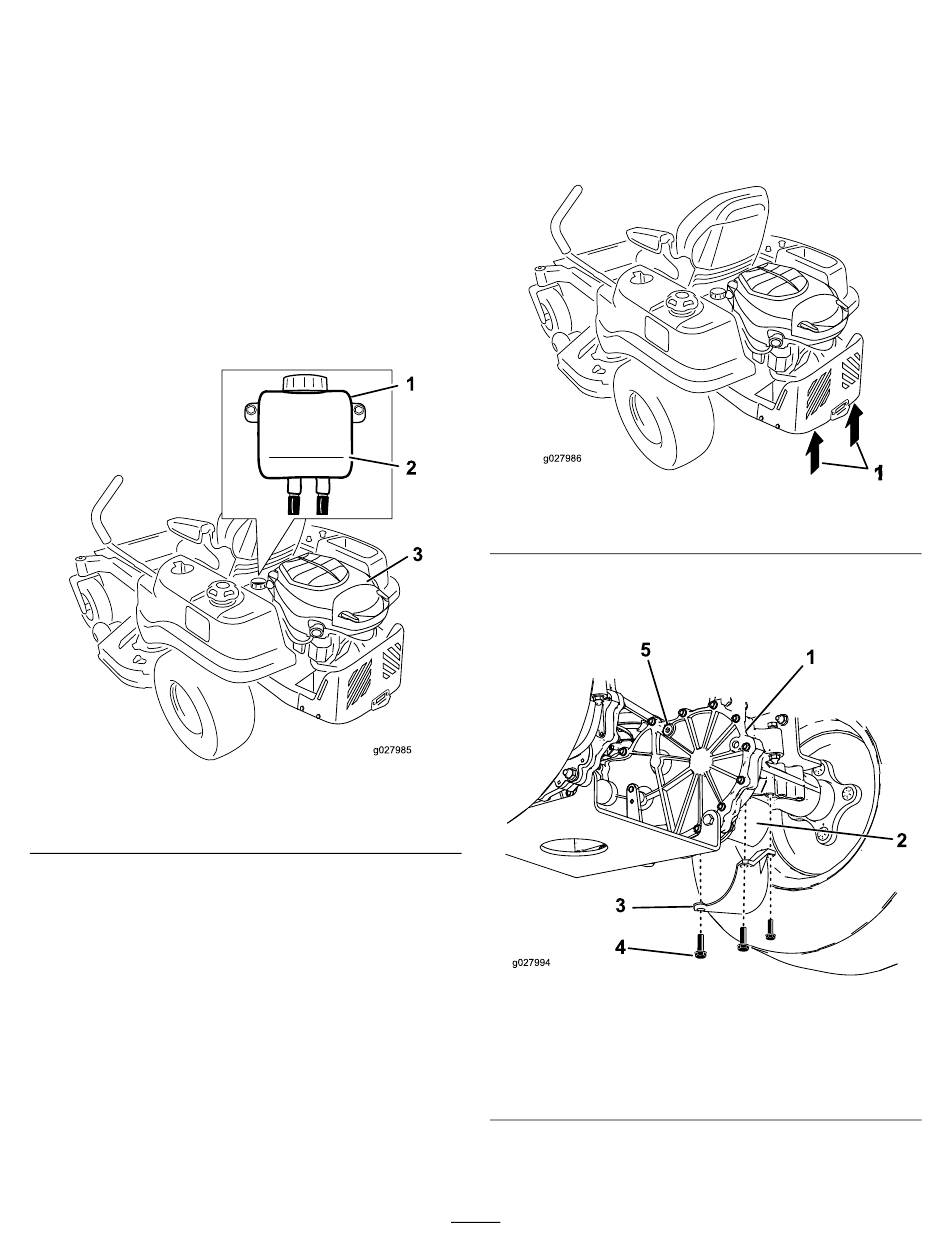

Figure 44
1. Expansion reservoir
2. Full Cold line
Changing the Hydraulic
System Oil and Filters
Service Interval: After the first 50 hours
Every 400 hours
Important: The bleeding process is repeated until the
oil remains at the Full Cold line in the reservoir after
purging. Failure to properly perform this procedure
can result in irreparable damage to the transaxle drive
system.
Note: The filter and oil are changed at the same time. Do
not reuse oil. Once the new filter is installed and oil is added
any air in the system must be purged.
3. Engine
Removing Hydraulic System Filters
1. Stop engine, wait for all moving parts to stop, and
allow engine to cool. Remove the key and engage the
parking brake.
2. Raise the rear of machine up and support with jack
stands (or equivalent support) just high enough to
allow drive wheels to turn freely.
1. Jacking points
3. Locate the filter and filter guards on each transaxle
drive system (Figure
the filter guard and guard.
Right side shown
1. Transaxle drive
2. Oil filter
3. Filter guard
4. Carefully clean area around filters. It is important that
no dirt or contamination enter hydraulic system.
37
Figure 45
46). Remove three screws securing
Figure 46
4. Screws
5. Vent plug
