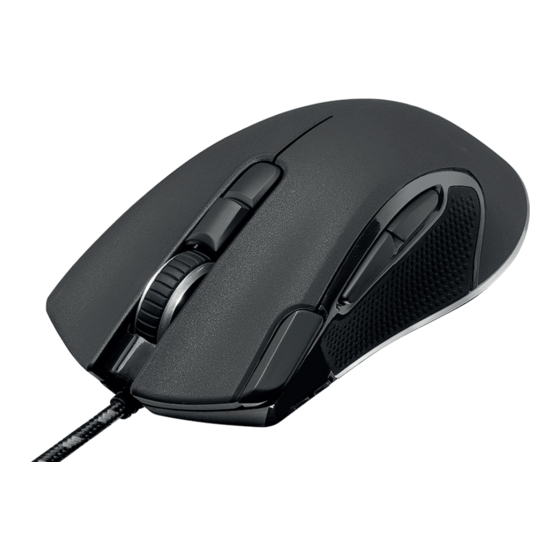

ADX FIREPOWER M04 Instruction Manual

Rgb gaming mouse
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FIREPOWER
M04
RGB GAMING MOUSE
INSTRUCTION MANUAL
ADXM0419

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIREPOWER M04 and is the answer not in the manual?

Questions and answers

Related Manuals for ADX FIREPOWER M04

Summary of Contents for ADX FIREPOWER M04

  • Page 1 FIREPOWER RGB GAMING MOUSE INSTRUCTION MANUAL ADXM0419...

  • Page 2: Table Of Contents

    Contents Safety Warnings ................. 3 Unpacking ..................4 Product Overview ................5 System Requirements ............... 6 Software Installation ................. 6 User Interface ..................6 Buttons Setting .................. 7 Customising the Buttons ..............8 Master Controls Setting ..............12 Macro Setting ................... 13 General Setting ................

  • Page 3: Safety Warnings

    Safety Warnings Never point the optical sensor towards the face, particularly the eyes, to avoid possible injury. • While the mouse is functioning, the optical light is visible to the naked eye. Avoid looking directly into the emitter hole while the mouse is active.

  • Page 4: Unpacking

    Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

  • Page 5: Product Overview

    Product Overview 1. Right Button 6. DPI Button Select different dpi. 2. Scroll Wheel 7. Forward/Backward 3. Left Button Buttons 4. Customised Button 5. Profile Button Select profile 1-5.

  • Page 6: System Requirements

    2. Download the latest gaming software from https://downloads.adxgaming.com 3. Run the software installer. 4. Follow the installation instruction to complete the installation. 5. Choose ADX Gaming.exe from the desktop to start the software. The software is not available for MAC OS. User Interface Choose ADX Gaming.exe from the desktop to start the software.

  • Page 7: Buttons Setting

    Buttons Setting Select BUTTONS from the user interface. BUTTONS MACRO EDITOR SETTINGS Profile 1 Profile 2 Profile 3 Profile 4 Profile 5 Left click Scroll up Right click No function Wheel click Forward Scroll down Back DPI loop 1. Profile You can save 5 different profiles with customising the buttons.

  • Page 8: Customising The Buttons

    Customising the Buttons Click on the mouse button you wish to customise, the options will be show as below. A chosen function icon will be highlighted then click SELECT to confirm. 1. Mouse Functions MOUSE FUNCTIONS KEYBOARD FUNCTIONS ADVANCED FUNCTIONS MACRO KEY CYCLE Left click...
  • Page 9 2. Keyboard Functions Customising mouse button can choose keypress from keyboard or other media functions as below. MOUSE FUNCTIONS KEYBOARD FUNCTIONS ADVANCED FUNCTIONS MACRO KEY CYCLE PrtSc SrcLk Pause Insert Home PgUp Delete PgDn Caps Lock Shift Shift Ctrl Ctrl [Right click] : Right click DEFAULT CANCEL...
  • Page 10 3. Advanced Functions MOUSE FUNCTIONS KEYBOARD FUNCTIONS ADVANCED FUNCTIONS MACRO KEY CYCLE Launch driver No function Adjust DPI Lock Y-axis Lock X-axis Sniper function Angle snapping menu on/off DPI Increase DPI Decrease DPI loop [Right click] : Right click DEFAULT CANCEL SELECT Customise function...
  • Page 11 4. Macro Functions MOUSE FUNCTIONS KEYBOARD FUNCTIONS ADVANCED FUNCTIONS MACRO KEY CYCLE Attack Mode Attack Mode SpecialAttack MACRO EDITOR DEFAULT CANCEL SELECT 1. Macro list 2. Macro Editor Click to enter MACRO Choose a macro and press SELECT to confirm. EDITOR section for editing.

  • Page 12: Master Controls Setting

    Master Controls Setting BUTTONS MACRO EDITOR SETTINGS Auto 1600 Auto 1600 3200 Auto 3200 7200 Auto 7200 X/Y axis independent Select DPI from the user interface. 1. DPI Setting Sensitivity (DPI) pertains to how much effort is needed to move the mouse pointer in any direction. The higher the DPI, the faster the mouse movement.

  • Page 13: Macro Setting

    Macro Setting By assigning a macro to a mouse button, you can execute complex combinations with ease. MACRO EDITOR Mouse memory (Free 7064 bytes) MACRO TYPE One-time mode Attack Mode 34 bytes Attack Mode 34 bytes SpecialAttack 34 bytes Create new macro Delete current item Record delays Select MACRO EDITOR from...

  • Page 14: General Setting

    General Setting BUTTONS MACRO EDITOR SETTINGS POLLING RATE 500Hz GENERAL OPTIONS Angle snapping Enable DPI/profile OSD Disable mouse acceleration (OS) INFORMATION Model: Dirver version: Firmware Version DIVER SETTINGS SAVE LOAD RESET Select SETTINGS from the user interface. 1. Polling Rate The higher the polling rate, the more often the computer receives information about the status of your mouse, thus increasing the mouse pointer’s reaction time.

  • Page 15: Hints And Tips

    Hints and Tips • Make sure the USB plug is fully plugged into a USB port and the computer is on or try to use a different USB port. • If the mouse is moving erratically, change the working surface which the mouse is operating on.
  • Page 16 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-ADXM0419-210218V2...
