6. Fit the transducer jumper cable connector down into the jumper cable
well and snap it into place. Insert the two #6-32 x 1/4" (6 mm) screws
included to secure the transducer jumper connector and tighten it
using a Phillips screwdriver. Hand tighten only!
7. Secure all cables to the base, using the included zip ties, at the mount
points shown in the illustration (see the illustration Tying Down the
Cables).
Zip Tie
Mounting
Point
Power Cable
Figure 37
8. Turn the base right side up and pull up gently on the battery tie-down
straps to remove the slack.
NOTE: You will need to perform more assembly procedures, as well as charge
the battery for 8 hours, before you install the battery into the portable case. See
Charge and Install the Battery for more information.

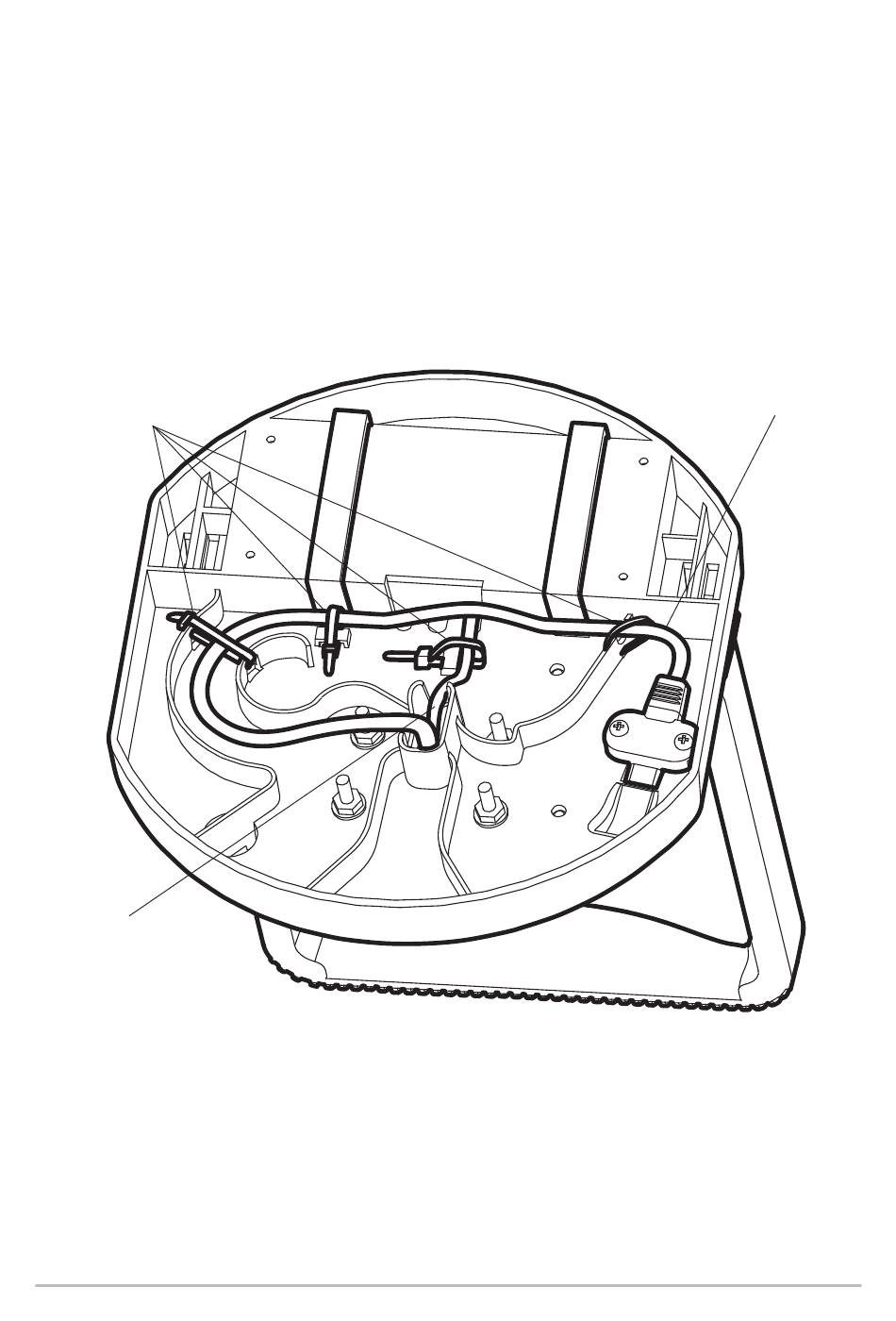

Tying Down the Cables
27
Transducer
Jumper Cable
Portable Case Assembly
