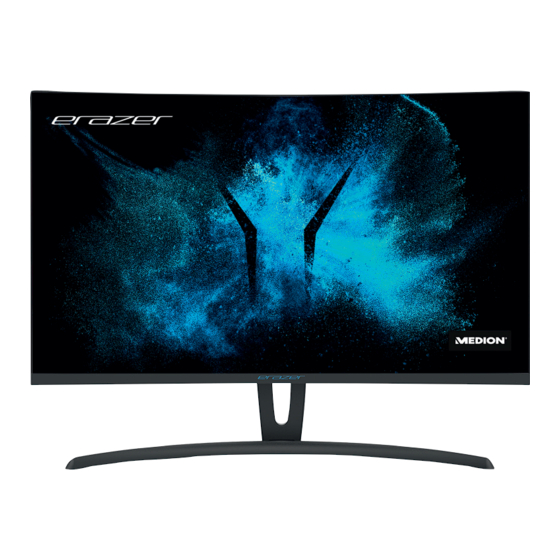

- Page 1 Operating instructions 68.6 cm (27“) Curved QHD Monitor MEDION ERAZER ® ® X52773 (MD 21473)
-
Page 2: Table Of Contents
Contents About these operating instructions ............5 1.1. Key to symbols ....................... 5 Proper use ....................6 Declaration of Conformity ................7 3.1. Trademark information ..................7 Safety information ..................8 4.1. Operating safety ....................8 4.2. Installation location ..................... 9 4.3. -
Page 3: About These Operating Instructions
1. About these operating instructions Read these operating instructions carefully and comply with the infor- mation provided in them. This will ensure that your device works reliably and has a long service life. Always keep these operating instructions close to the device. Keep these operating instructions in a safe place so they can be passed on to the new owner if you decide to sell the device. -
Page 4: Proper Use
2. Proper use The TFT monitor is used to play back video and audio signals from external devices, such as computers, that have connections and image resolutions matching the technical specifications of the TFT monitor given here. Any other use is considered to be improper. -
Page 5: Declaration Of Conformity
3. Declaration of Conformity Medion AG hereby declares that this device complies with the fundamental require- ments and the other relevant provisions of the following: • EMC Directive 2014/30/EU • Low Voltage Directive 2014/35/EU • Ecodesign Directive 2009/125/EC However, this device is not equipped with full functionality to minimise con- sumption according to the Ecodesign Directive. -
Page 6: Safety Information
4. Safety information 4.1. Operating safety • This device may be used by children over the age of 8 and by persons with limited physical, sensory or mental abilities or by those without experience and knowledge, if they are su- pervised or have been instructed in the safe use of the device and have understood the dangers that result from it. -
Page 7: Installation Location
4.2. Installation location • Keep your monitor and all connected devices away from moisture and avoid dust, heat, direct sunlight and naked flames (such as candles, for instance). Non-compliance with these instructions can lead to faults or damage to the moni- tor. -
Page 8: Repairs
4.3. Repairs • Contact customer services if: – the mains cable is burnt or damaged – liquid has penetrated the monitor – the monitor is not operating correctly – the monitor has fallen or the housing is damaged. • Repairs to your monitor should only be carried out by quali- fied specialists. -
Page 9: Power Supply
4.5. Power supply DANGER! Risk of electric shock! Even when the device is switched off, some compo- nents are live. In order to disconnect the power to your monitor or to completely isolate the device from voltage sourc- es remove the mains plug from the socket. •... -
Page 10: Mains Adapter
4.6. Mains adapter • Use only the mains adapter supplied. • If the housing of the mains adapter or the power cable is damaged, the mains adapter must be disposed of and re- placed with a new mains adapter of the same type. •... -
Page 11: Device Overview
6. Device overview 6.1. Front The operating LED displays the operating state Screen Monitor stand... -
Page 12: Rear
6.2. Rear DC IN 12V 5A HDMI DC IN 12V 5A HDMI Multifunctional button for operating the device Mounting plate Loudspeaker Opening for Kensington® lock Locking button for fixing the stand in place Mounting pole DC IN 12V 5A – connection for power supply DVI–... -
Page 13: Getting Started
7. Getting started 7.1. Before connecting the monitor It is possible that your existing monitor supports a physical resolution that is not supported by your new monitor. In this case, the image on your new monitor may not appear correctly once it has been connected. ... -
Page 14: Setup
7.3. Setup Avoid glare, reflections and extreme dark-light contrasts to protect your eyes. The monitor should never be placed close to windows, because this is where the workspace is illuminated the brightest by daylight. This brightness makes it more difficult for the eyes to adjust to the darker screen. Always position the monitor with the line of sight parallel to the window front. - Page 15 • General – change position frequently (around every 20 to 30 minutes) and take regular breaks to avoid fatigue. • Back – when sitting at your workstation, your back must be supported by your chair’s backrest, which must be upright or angled slightly back. •...
-
Page 16: Connection
7.4. Connection DC IN 12V 5A HDMI To avoid damage and malfunctions, only connect the connecting cable when the monitor and computer are switched off. 7.4.1. Connecting the signal cable Plug the signal cable into one of the connections on the monitor: –... -
Page 17: Switching On/Standby
7.5. Switching on /standby Press the multifunctional button to switch on the device. Press the button again to switch the device into standby mode. This monitor features sensor buttons, that do not contain a mechanical switch. The button function is triggered by briefly pressing the tactile dots beneath the button symbol. -
Page 18: Menu
8. Menu You can change various settings via the screen menu. Operation is via the multi- functional button on the rear of the device. Move the multifunctional button to the right to activate the OSD. Move the button up/down to select options from the menus. ... - Page 19 MODE Select a pre-configured colour profile. SIGNAL SOURCE Select the input source. ASPECT Select the picture format Switch dynamic contrast on or off. REDUCE BLUE Reduces the blue value of the light and LIGHT renders it more comfortable and warmer. Switch overdrive on or off.
-
Page 20: Energy-Saving Features
9. Energy-saving features This monitor switches to different energy-saving modes, which are specified by the respective computer/operating system. This complies with the current require- ments for reducing the energy consumption. The monitor supports the following types of energy-saving modes: Power consump- Colour of the Ready for oper- Status... -
Page 21: Cleaning
11. Cleaning • Always unplug the device and disconnect all cables before cleaning. • Do not use solvents, corrosive or gaseous cleaning agents. • Clean the display screen with a soft, lint-free cloth. • Take care to ensure that no water droplets remain on the display screen. Water can cause permanent discolouration. -
Page 22: Pixel Faults In Tft Monitors
11.1. Pixel faults in TFT monitors Despite the state-of-the-art production meth- 5 Pixel ods, in rare cases there may be individual or multiple pixel drop-outs (dead pixels) due to the highly complex technology. Rows For active matrix TFTs with a resolution of 2,560 1,440 pixels, which are each made up of three sub-pixels (red, green, blue), there are a Pixel... -
Page 23: Disposal
12. Disposal PACKAGING Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmen- tally friendly manner. DEVICE All old devices marked with the symbol illustrated must not be disposed of in normal household waste. -
Page 24: Technical Specifications
13. Technical specifi cations Device Model X52773 (MD21473) Standby: < 0.5 W Power consumption Operation: < 35 W (max.) Audio output 2 x 2 W max. via speaker Mains adapter Manufacturer FSP Group Inc. Model FSP060-DIBAN2 Input voltage 100-240 V ~ 50/60 Hz 1.5 A max. Output voltage 12 V 5.0 A... -
Page 25: Product Data Sheet
Environmental conditions In operation: 0 °C to +35 °C Temperatures Not in operation: -20 °C to +60 °C Humidity In operation: < 80 % (non-condensing) Not in operation: < 90 % Dimensions / weights Weight With stand: approx. 4.5 kg Dimensions (W x H x D) With stand: approx. -
Page 26: Service Information
In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at http://community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. -
Page 27: Legal Notice
These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the address above for returns. Please always con-... -
Page 28: Privacy Statement
16. Privacy statement Dear customer, We wish to inform you that we, MEDION AG, Am Zehnthof 77, 45307 Essen, Germa- ny process your personal data as a data controller. For matters regarding data protection, we are supported by our company data pro- tection officer who can be contacted at MEDION AG, Datenschutz, Am Zehnthof 77, D –...
