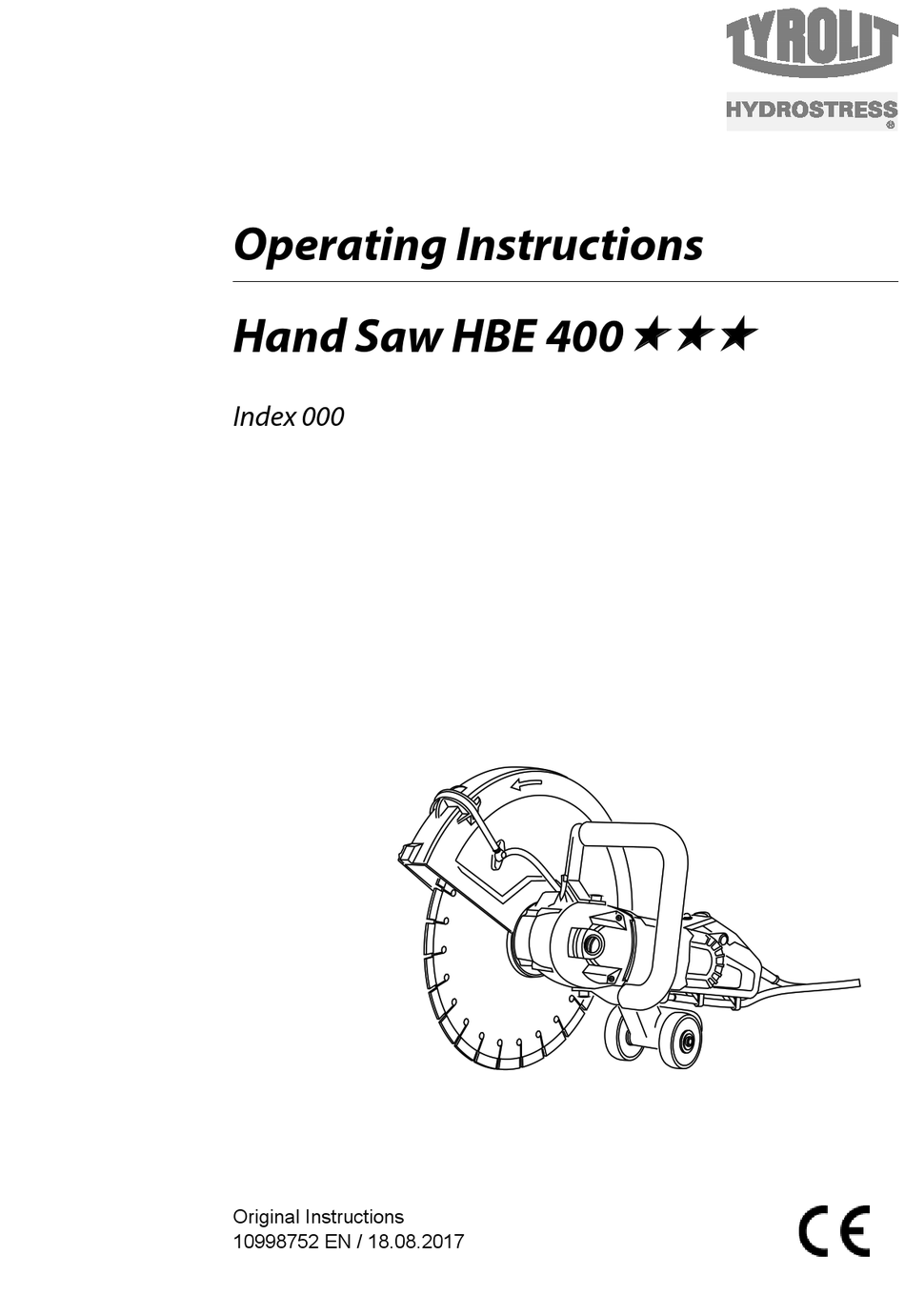

- Page 1 Operating Instructions Hand Saw HBE 400 Index 000 Original Instructions 10998752 EN / 18.08.2017...
- Page 2 SPECIFICATIONS 110-120V / 3000W Power Input North America: 20 A, Other Regions 220-240V / 3200W Voltage North America: 115V~60Hz, Other Regions: See Machine Nameplate Rated speed/ min n=3900 min Blade Diameter 405mm (16 in.) Arbor 25.4 (1 in.) Max. Cutting Depth 150mm (6 in.) Weight 9.6kg (21.1 Lbs) (10.kg (22.2 Lbs) with guide rollers) Release Button...
-
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Cut-Off Machine Safety Warnings
………..Rated speed ..Wear safety shoes …..revolutions or reciprocation per minute ..Protective earth ..Wear gloves ..Warning of general danger ..Wear a breathing mask ..Wear a helmet, goggles and hearing protection ..Work Clothes Type plate ..Read the instructions ..Before working on the equipment unplug mains ..DANGER! Keep hands away from cutting area and the blade. - Page 6 power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will normally break apart during this test time.
- Page 7 Never place your hand near the rotating accessory. Accessory may kickback over your hand. Do not position your body in line with the rotating wheel. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. Use special care when working corners, sharp edges etc.
-
Page 8: Grounding Instructions
GROUNDING INSTRUCTIONS All grounded, cord-connected tools: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. -
Page 9: Electrical Connection
ELECTRICAL CONNECTION The network voltage must conform to the voltage indicated on the tool name plate. Under no circumstances should the tool be used when the power supply cable is damaged. A damaged cable must be replaced immediately by an authorized Customer Service Center. Do not try to repair the damaged cable yourself. -
Page 10: Diamond Blades
DIAMOND BLADES Allowed Types Of Blades This machine may use diamond blades or abrasive wheels. • Only use either segmented or continuous rim diamond blades. • If the diamond blades are segmented, the maximum allowable peripheral gap between segments is 10mm and must be with a negative rake angle. -
Page 11: Sharpening A Glazed Blade
glazing and luckily the blade can be de-glazed (sharpened). If the blade seems to refuse to cut anymore, you know that it is glazed. ”Sharpening a Glazed Blade” See below: Never use a sharp motion or the blade will be damaged. Conversely, don’t feed too gently or the diamond segments will become glazed. -
Page 12: Adjusting The Blade Guard
Inspect the blade before use. It must not be cracked, warped or damaged in any way that would cause a hazard in operation. Loose diamond segments can be ejected at high speed, causing possible injury. Always check that the diamond segments are not under cut. If the diamond segments are thinner or nearly thinner than the blade core, the kerf will be too tight fitting and could easily lead to kickback. -
Page 13: Guide Roller Assembly
WARNING: Always use the PRCD (GFCI) when operating with water WARNING: Never allow water to enter the motor. It could lead to an electric shock. WARNING: Check all connections of the water feed system to ensure there are no leaks. Inspect hoses and other critical parts Open which could deteriorate. -
Page 14: Operation
the motor. Always run the machine at no load for a few minutes to return to a normal operating temperature before continuing. CAUTION: The motor will be damaged if it is repeatedly overloaded or overheated. Always cool the motor by running at no load for a few minutes whenever it stops from either overheat or overload. OPERATION How to hold the machine •... -
Page 15: Cutting Technique
Cutting Technique • Holding the machine with both hands to resist the start up torque, press the release button and then squeeze the trigger switch. • Allow the machine to reach full speed before contacting the workpiece. • Adjust the water flow as needed by turning the water feed valve. •... -
Page 16: Daily Maintenance
Compressed air should be blown through the machine’s cooling slots at the back of the machine while the motor is running. Daily Maintenance • Keep the machine clean • Check to ensure that the power supply cable is in good condition. •... - Page 17 WIRING...
-
Page 18: Exploded View
EXPLODED VIEW... -
Page 19: Parts List
PARTS LIST TYROLIT No. Name Parts Name Q'TY 10997102 Kabel 230V / PRCD/Stecker Powersup.cord/plug 10993795 PRCD-Schutzs.230V Inline PRCD 230V 10998724 Kabeltülle Cord armour 10993713 Kabelklemme Cord clip 10997069 PT-Schr K40x14 Lins. A2 PT-screw K40x14 lens A2 10998725 Schalter Switch 10997153 Schraube 4x16 Screw 4x16 10998726... - Page 20 PARTS LIST TYROLIT No. Name Parts Name Q'TY 10997112 Spindelarretierung Arbor lock 979472 Nadellager NK 12/12 Needlebearing NK 12/12 10997120 Kegelrad z37 Bevelgear 37T 10997109 Spindel Spindle 10997076 Wellenkeil 5x5x10 Shaftkey 5x5x10 972016 Seegering Bohr. Dm 62 Circlipboredia 62 10997078 Rillenkugellager 6206 ZZ Gr.
- Page 21 PARTS LIST TYROLIT No. Name Parts Name Q'TY 10997108 Halteblech Retaining plate 10996846 Senkkopfschraube M5x8 Countersunkscrew M5x8 10997115 Innenflansch 1" Innerflange 1" 10997114 Aussenflansch Outerflange 971731 Inbus-Schraube M8x16 Socket screw M8x16 10997095 Griff Front handle 980338 Ringgabelschl. SW 17 Combinationwrench SW 17 10997119 Feder Spring...
-
Page 23: Ce Declaration Of Conformity
2006/42/EG 17.05.2006 2012/19/EU 04.07.2012 2014/30/EU 26.02.2014 Standards applied: EN ISO 12100:2010 EN 60745-1:2009+A11:2010 EN 60745-2-22:2011 EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:1997+A1:2001+A2:2008 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2013 Manufacturer: TYROLIT Hydrostress AG Witzbergstrasse 18 CH-8330 Pfäffikon Switzerland Representative: Pascal Schmid Head of R&D Pfäffikon, 18.08.2017...
