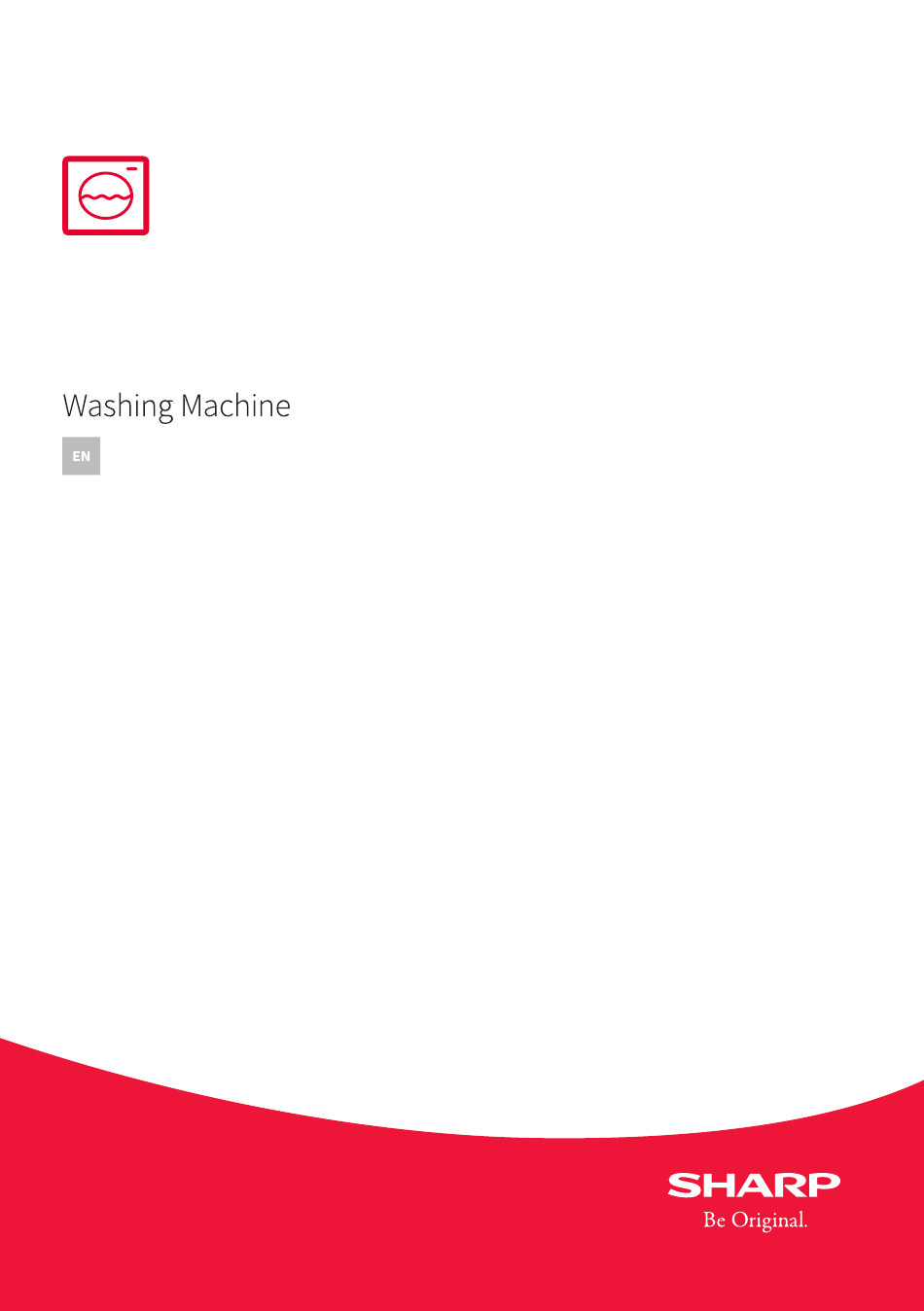

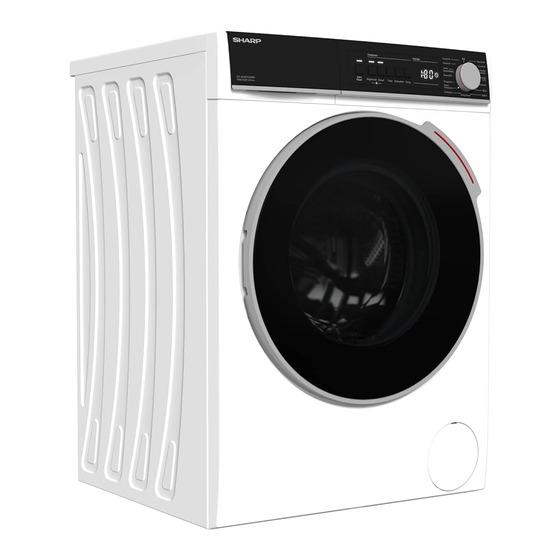

  • Page 1 Home Appliances ES-NFB814BWNA-CB User Manual...
  • Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................7 1.3 Packaging and Environment...................8 1.4 Savings Information ......................8 2. TECHNICAL SPECIFICATIONS ..................10 2.1 Technical Specifications ....................10 3. INSTALLATION ........................11 3.1 Removing the Transit Bolts...................11 3.2 Adjusting the Feet / Adjusting Adjustable Stays............

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS Operating voltage / frequency (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2100 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.

  • Page 5: General Safety Warnings

    Read this user manual carefully. Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled. This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.
  • Page 6 humidity inside the Washing Machine. • Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine. • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine. • Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately. • Use pre-wash programs only for very dirty laundry. Never open the detergent drawer while the machine is running. • In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent. • Do not exceed the maximum load for the washing programme you have chosen. Never force the door open when your Washing Machine is running. • Washing laundry containing flour may damage your machine. • Please follow the manufacturers’ instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine.
  • Page 7 Install your machine in a location that can be fully ventilated and preferably has constant air circulation. Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running.
  • Page 8 • Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole. Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. Risk of fire and explosion Risk of falling and injury • Do not climb on your Washing Machine. • Make sure hoses and cables do not cause a trip hazard.

  • Page 9: During Use

    during operation. The surface becomes extremely hot and may cause damage to skin. • Keep packaging material away from children. • Poisoning and irritation may occur if detergent and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children. 1.2 During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. • Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of...

  • Page 10: Packaging And Environment

    not removed they may cause heavy vibration, noise and malfunction of the machine and cause the guarantee to be void. • Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage. • Please do not throw away this user manual; keep it for future reference and pass it onto the next owner. NOTE: Specifications for the machine may vary depending on the product purchased. Replacement of drive belt, only by authorized service.
  • Page 11 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. EN - 8...

  • Page 12: Technical Specifications

    2. TECHNICAL SPECIFICATIONS 2.1 Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current Maximum: 1 Water pressure Minimum : 0.1 (Mpa) Total power 2100 Maximum dry laundry capacity (kg) Spinning revolution 1400 (rev / min) Programme number Dimensions General Appearance 1. Programme Dial (mm) 2. Electronic Display Height 3.

  • Page 13: Installation

    3. INSTALLATION 3.2 Adjusting the Feet / Adjusting Adjustable Stays 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. • You can level your machine using the adjustable feet. • Loosen the plastic locking nut. 1. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty.

  • Page 14: Water Inlet Hose Connection

    • The mains cord of your washing should be connected to cold water inlet machine is equipped with an earthed and red capped hose to the hot water plug. This plug should always be inlet (if applicable). inserted to an earthed socket of 10 • To prevent water leaks at the joints, amps. either 1 or 2 nuts (depending on your machine’s specifications) are supplied • If you do not have a suitable socket and in the packaging with the hose. Fit these fuse conforming with this, please ensure nuts to the end(s) of the water inlet hose the work is carried out by a qualified that connect to the water supply. electrician. 2. Connect new water inlet hoses to a ¾ ˝, • We do not take responsibility for threaded tap. damage that occurs due to the use of ungrounded equipment.

  • Page 15: Water Discharge Connection

    3.5 Water Discharge Connection 4.1 Detergent Drawer (*) • Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment. • Never attempt to extend the water drain hose. • Do not put the water drain hose from your machine into a container, bucket or bathtub. • Make sure that the water drain hose is not bent, buckled, crushed or extended. • The water drain hose must be installed at a maximum height of 100 cm from the ground. 4. CONTROL PANEL OVERVIEW 1. Detergent Drawer 2. Electronic Display 3.

  • Page 16: Sections

    4.2 Sections 4.3 Program Dial Main wash detergent compartment: This compartment is for liquid or powder • To select the desired programme, turn detergents or limescale remover. The fluid the programme dial either clockwise or detergent level plate will be supplied inside anti-clockwise until the marker on the your machine. (*) programme dial points to the chosen Fabric conditioner, starch, detergent programme. compartment: • Make sure that the programme dial is set exactly to the programme you want. 4.4 Electronic Display This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener.

  • Page 17: Using Your Washing Machine

    5. USING YOUR curtains or place them in a washing net or bag. WASHING MACHINE 6. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts. 5.1 Preparing Your Laundry 7. Wash socks, handkerchiefs and other small items in a washing net. Can be Normal Do not bleach bleached washing Maximum Maximum ironing ironing Do not iron temperature temperature 150°C 200°C Can be dry Dry flat No dry cleaned cleaning...

  • Page 18: Adding Detergent To The Machine

    weights of typical laundry items: • Put softener in the middle compartment of the detergent drawer. Do not exceed LAUNDRY TYPE WEIGHT (gr) the MAX level. Towel • Thick softeners may cause clogging of the drawer and should be diluted. Linen Bathrobe 1200 • It is possible to use fluid detergents in all programmes without a pre-wash. To Quilt cover do this, slide the fluid detergent level Pillow slip plate (*) into the guides in compartment II of the detergent drawer. Use the lines Underwear on the plate as a guide to fill the drawer Tablecloth to the required level. (*) Specifications may vary depending on • Load each item of laundry separately. the machine purchased. • Check that no items of laundry are 5.4 Operating Your Machine trapped between the rubber seal and...

  • Page 19: Additional Functions

    3. Delay Timer depending on the product purchased. 5.7 Additional Functions 1. Temperature Selection Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature. You can use this auxiliary function to delay the start time of the washing cycle for 1 to 23 hours . To use the delay function: • Press the delay key once. When you select a programme the • “01h”...
  • Page 20 4. Steam Assist(*) 7. Pre-Wash(*) Auxiliary function button 4 or 5 Steam Assist Auxiliary function button 4 or 5 Pre-Wash Owing to the steam system ironing has become quick and as easy. The steam used This additional function allows you to give dream washing penetrates and loosens the heavily soiled laundry a pre-wash before fibres, eliminates creases and leaves our the main washing programme takes place.

  • Page 21: Child Lock

    programme. To select this function, press the Rapid Start/Pause button wash button when the symbol is displayed. NOTE: If you put less than half the maximum load of laundry into your machine the half-load function will be automatically set, regardless of the programme you selected. This means that the selected programme will take less By pressing on the Start/Pause button, time to complete and will use less water you may start the programme you and energy. When your machine detects have selected or suspend a running half load, the symbol is displayed automatically. programme. If you switch your machine to the standby mode, the Start/Pause led on the electronic display will blink.

  • Page 22: Cancelling The Programme

    5.9 Cancelling the Programme To cancel a running programme at any time: 1. Turn the programme dial to the “STOP” position. 2. Your machine will stop the washing operation and the programme will be cancelled. 3. Turn the programme dial to any other programme to drain the machine. 4. Your machine will perform the necessary draining operation and cancel the programme. 5. You can now select and run a new programme. 5.10 Programme End Your machine will stop by itself as soon as the programme you have selected finishes.

  • Page 23: Programme Table

    6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. COTTON *60-90-80-70-40 (Underwear, linen, tablecloth, towel (maximum 4 kg), bedclothes, etc.) Dirty cotton and flax textiles. ECO 40-60 *40 - 60 (Underwear, linen, tablecloth, towel (maximum 4 kg), bedclothes, etc.) Dirty cotton and flax textiles. COTTON Pre- *60 - 50 - 40 - 30 - 1&2 (Underwear, linen, tablecloth, towel Wash “- -C” (maximum 4 kg), bedclothes, etc.) Less dirty, cotton and linen textiles.
  • Page 24 NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. (*) Washing water temperature of the programme is the factory default. (**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes.
  • Page 25 • The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. • Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings. • Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature.

  • Page 26: Important Informations

    6.1 Important Informations • Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. • We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme.

  • Page 27: Cleaning And Maintenance

    7. CLEANING AND 7.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months. Turn your mains power supply off and remove the plug from the socket • Unscrew the water inlet hose(s) from before carrying out the Washing Machine. maintenance and cleaning • To remove the water inlet filter from the water inlet valve, use a pair of long- of your machine. nosed pliers to gently pull on the plastic bar in the filter. Turn off the water • A second water inlet filter is located in supply before starting...

  • Page 28: Pump Filter

    7.3 Pump Filter meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased. 7.4 Detergent Drawer The use of detergent may cause residual build up in the detergent drawer over time. We recommend that you remove the drawer every 2 months to clean the accumulated residue. To remove the detergent drawer: • Pull the drawer forwards until it is fully extended. The pump filter system in your Washing Machine prolongs the life of the pump by preventing lint from entering your machine. We recommend that you clean the pump filter every 2 months.

  • Page 29: Body / Drum

    8. Body / Drum any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 1. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. 2. Drum Do not leave metallic objects such as needles, paper clips, coins etc. in your • Rinse with a brush and lots of water. machine. These objects lead to the • Collect the residues inside the formation of rust stains in the drum. To...

  • Page 30: Troubleshooting

    9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. • Turn off the water supply. FAULT POSSIBLE CAUSE TROUBLESHOOTING Machine not plugged in. Plug machine in. Fuses are faulty. Replace the fuses. No mains power supply. Check mains power. Your machine does not start. Start/Pause button not pressed. Press the Start/Pause button. Programme dial ‘stop’ position. Turn the programme dial to the desired position. The machine door is not Close the machine door. completely closed.

  • Page 31: Automatic Fault Warnings And What To Do

    FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. loaded with water, water low for the machine. (**) . discharges. No water appears in the No fault. Water is in the unseen ..... drum during washing.
  • Page 32 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 33 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 34 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 35 The minimum period which must supply the spare parts for the household washing machine is 10 years. www.sharphomeappliances.com...
  • Page 36 Service & Support Visit Our Website sharphomeappliances.com...
