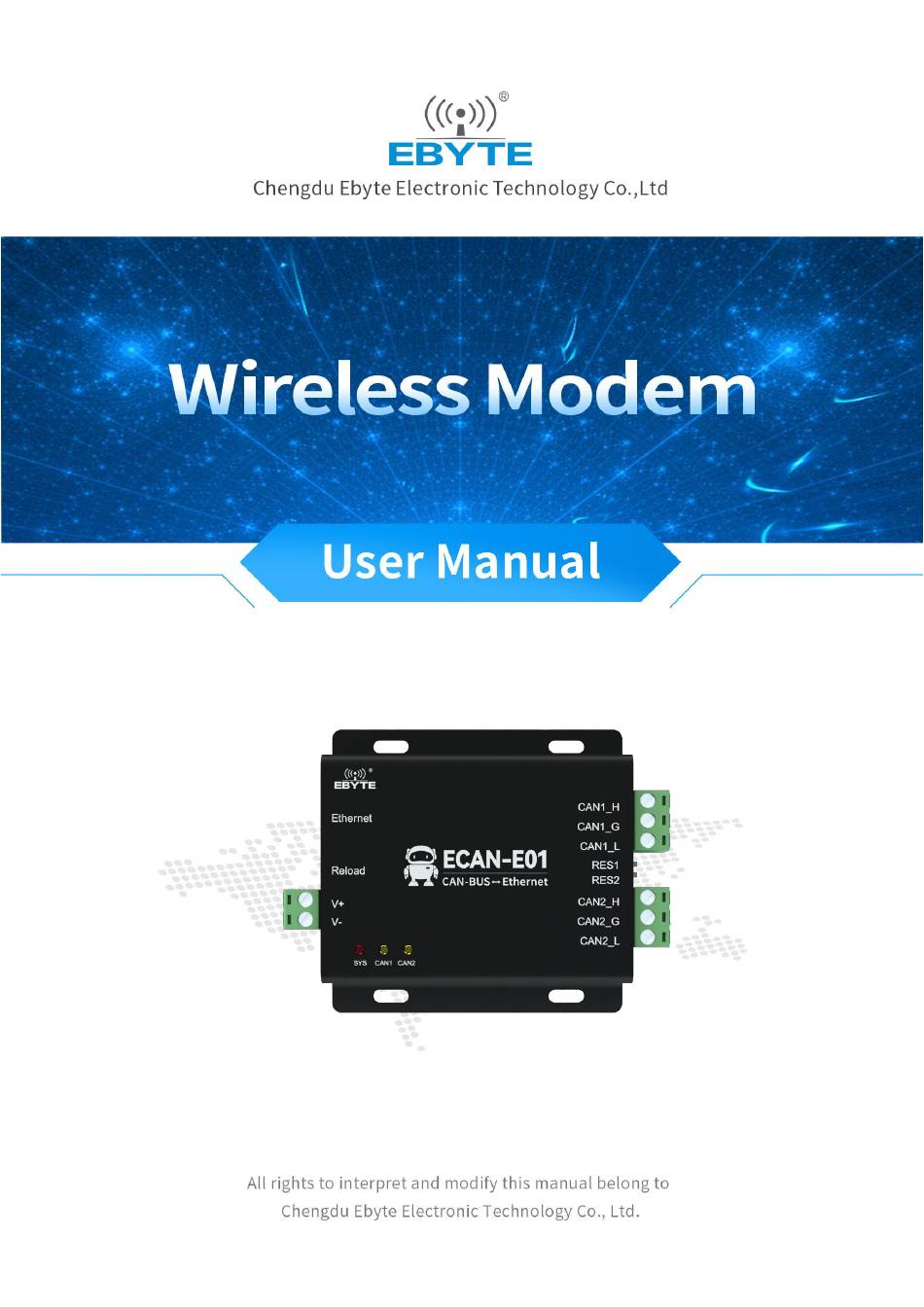

- Page 1 Chengdu Ebyte Electronic Technology Co.,Ltd. ECAN-E01 User Manual ECAN-E01 Chengdu Ebyte Electronic Technology Co.,Ltd. Copyright©2012–2022，...
-
Page 2: Table Of Contents
Chengdu Ebyte Electronic Technology Co.,Ltd. ECAN-E01 User Manual Catalog 1. Product Description ..............................3 1.1. Product introduction .............................3 1.2. Features ................................ 3 2. Quick start ................................4 3. Technical index .................................6 3.1. General Specifications ..........................6 3.2. Mechanical dimension drawing and pin definition ..................7 4. -
Page 3: Product Description
Complete the intercommunication between CAN-bus network and Ethernet network. ECAN-E01 has a built-in 120 ohm resistor, which can be enabled by dialing a code; it supports working in the temperature range of -40°C to 85°C. It has one 10M Ethernet interface, CAN interface with high protection and increased isolation;... -
Page 4: Quick Start
Open the computer's network debugging assistant, set it to TCP Client, set the remote host IP to 192.168.4.101, and set the remote host port number to 8881. Connect the CAN1 of the ECAN-E01 to the CAN analyzer. When the ECAN-E01 is connected to the CAN bus, you only need to connect CAN_H to CAN_H and CAN_L to CAN_L. - Page 5 Device-to-peripheral communication is possible using the Network Assistant.
-
Page 6: Technical Index
Chengdu Ebyte Electronic Technology Co.,Ltd. ECAN-E01 User Manual 3. Technical index 3.1. General Specifications Serial Index Specification Number 8V~28VDC, more than 28V may burn, recommend 12V or 24V Voltage power supply Network port Standard RJ45, support 10Mbps specifications Network protocol IP、... -
Page 7: Mechanical Dimension Drawing And Pin Definition
成都亿佰特电子科技有限公司 ECAN-E01 用户使用说明书 3.2. Mechanical dimension drawing and pin definition Copyright©2012–2022，成都亿佰特电子科技有限公司... -
Page 8: Product Function Introduction
成都亿佰特电子科技有限公司 ECAN-E01 用户使用说明书 Serial Identificatio Function Description Number n name Ethernet interface, standard RJ45 interface, connected with ETHERNET equipment or PC Reload Reload button, long press for more than 5s to restore factory Power supply positive interface, 5.08 phoenix head, (default 8-28V), recommended 12V/24V Power supply negative interface 5.08 Phoenix head... -
Page 9: Socket
It is usually used for data interaction between devices and servers, and is the most commonly used network communication method. (2) When ECAN-E01 tries to connect to the server in TCP Client mode and the local port is 0, it will initiate a connection with a random port every time. -
Page 10: Relay Enable
成都亿佰特电子科技有限公司 ECAN-E01 用户使用说明书 UDP Server (1) UDP Server means that the source IP address is not verified on the basis of ordinary UDP. After each UDP data packet is received, the destination IP is changed to the data source IP and port number. When sending data, it is sent to the most recent communication. -
Page 11: Can Protocol Conversion Format
成都亿佰特电子科技有限公司 ECAN-E01 用户使用说明书 to control the network utilization (if it is too high, data will be lost). 4.1.3. CAN protocol conversion format Copyright©2012–2022，成都亿佰特电子科技有限公司... -
Page 12: Can Function
成都亿佰特电子科技有限公司 ECAN-E01 用户使用说明书 4.1.4. CAN function Category Name Defaults Description There are 10 options from 5K to 1000K. Users can also fill CAN baud rate 1000K in any baud rate value by themselves. Normal: The CAN port can respond to the received CAN CAN working frame normally;... -
Page 13: Special Feature
Heartbeat packets can be sent to the network server. The main purpose of sending to the network is to maintain a connection with the server, and it only takes effect in TCP Client and UDP Client modes. ECAN-E01 module supports custom heartbeat packet content up to 128 bytes. Support custom heartbeat package. -
Page 14: Short Connection
The timeout restart (no data restart) function is mainly used to ensure the long-term stable operation of the ECAN-E01. When the network port cannot receive data for a long time, or the network has not received data for a long time, the ECAN-E01 will restart after the set time is exceeded. , so as to avoid the abnormal situation affecting the communication. -
Page 15: Clear Cache
When the TCP connection is not established, the data received by the DTU will be placed in the buffer area. The maximum receiving buffer of ECAN-E01 is 3900 bytes. When the TCP connection is established, the network cache data can be cleared according to customer requirements. - Page 16 成都亿佰特电子科技有限公司 ECAN-E01 用户使用说明书 Step 2: Select Device Upgrade Assistant and click Search Device Copyright©2012–2022，成都亿佰特电子科技有限公司...
- Page 17 成都亿佰特电子科技有限公司 ECAN-E01 用户使用说明书 Step 3: After selecting the firmware, click Upgrade to upgrade Copyright©2012–2022，成都亿佰特电子科技有限公司...
-
Page 18: Reset
5s. 5. Important Notice Ebyte reserves the right of final interpretation and modification of all contents in this manual. Due to the continuous improvement of the hardware and software of the product, this manual may be changed without prior notice, and the latest version of the manual shall prevail. -
Page 19: Revise History
Version Revise Date Revision Notes Maintainer 2022-06-10 First edition About us Sales Hotline: 4000-330-990 Company Tel: 028-61399028 Technical support: support@cdebyte.com Official website: www.ebyte.com Company Address: Building B5, No. 199, West District Avenue, High-tech West District, Chengdu City, Sichuan Province Copyright©2012–2022，成都亿佰特电子科技有限公司...
