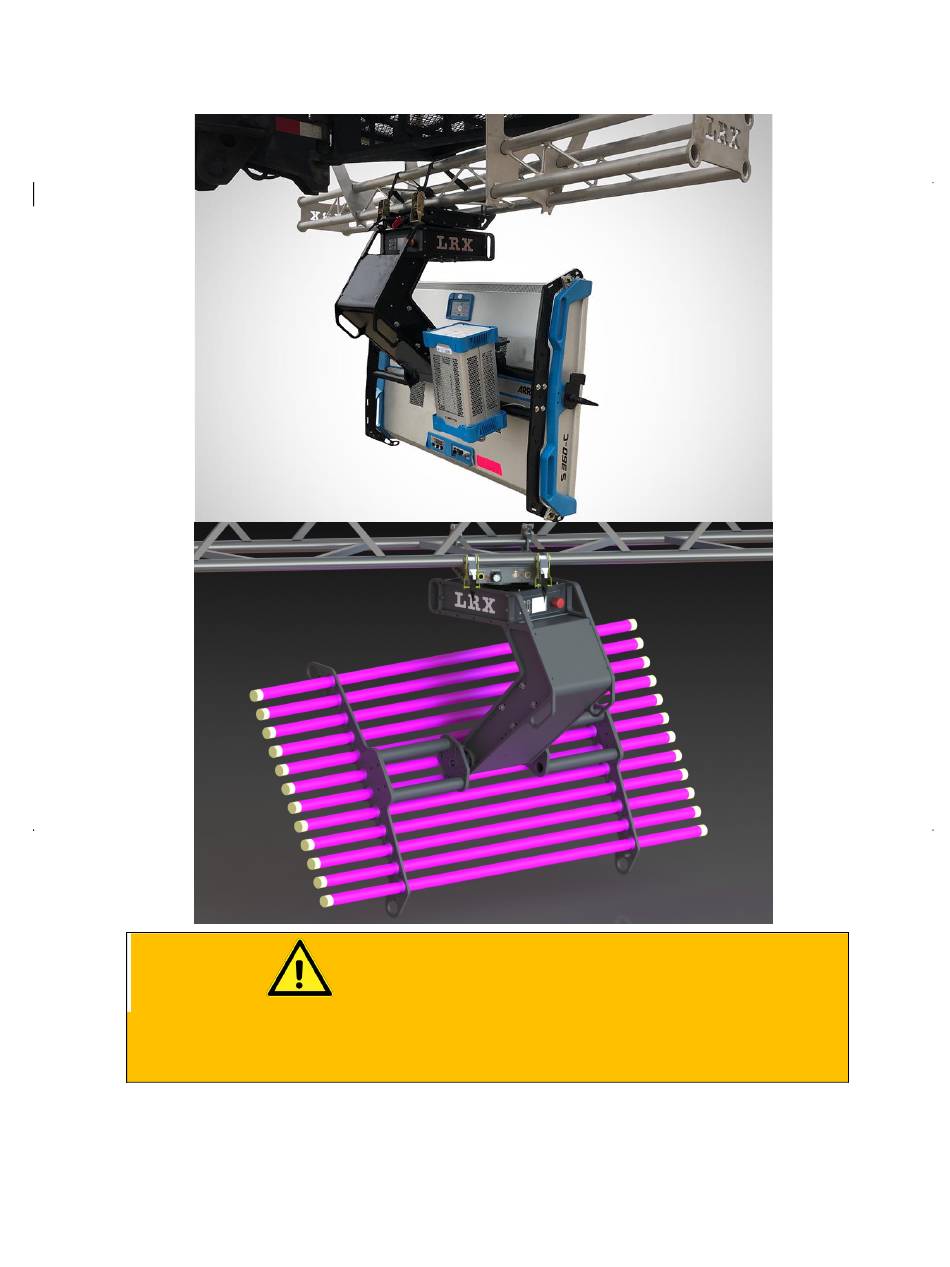

- Page 1 LRX VULTURE WARNING READ EQUIPMENT MANUFACTURES MANUAL BEFORE USING THIS PRODUCT Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 2: Safety Instructions
• In case of malfunction disconnect all power supplies, discontinue use, notify supplier. • Area under fixture must always be cordoned off and kept clear of all personnel. • If using a power trolley with this fixture, please refer to “LRX Power Trolley” manual. • THERE ARE NO USER SERVICEABLE PARTS. - Page 3 • Always use approved safety cables secured to a point capable of supporting the total weight of the load. • All power and data cables must have a strain relief attached. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 4: Emergency Stop
– or AC was lost, it will power up again when AC is restored. If the Vulture shuts off (battery), it may be turned back on until the battery is exhausted. This would be several hours of intermitant use. -
Page 5: Dmx Profile
Start UP – Press the “ON/OFF” key once. The system will check the encoders and prepare the unit for operation. The user does not have to press “OK or START” as the Vulture will pause for a short time, then continue running if no key is pressed. - Page 6 ESTOP The unit will not operate from AC power if the E-STOP is activated, periodic warnings will be displayed. AC POWER ABSENT – also caused by ESTOP The bottom left ICON dims and a flashing number appears indicating the remaining battery powered run time in seconds. AC Power ESTOP WARNING AC PRESENT...
- Page 7 When the channel has been chosen, a graphic is displayed outlining the controls; The graphic may be called up by pressing the Hand Control ICON on the screen (when in that mode). 2) Set Manually: Select the required channel number on the Vulture and press the green “Tick” to store. Selection...
- Page 8 To operate correctly, the last device in the DMX line should have a termination resistor. The Vulture has this option built in. Select “SET TERMINATION” if the unit is the last in the chain. If there are only a few units on a single DMX line, all terminations may be set.
- Page 9 SPEED: The speed of the Vulture can be controlled from the Hand Control, by using the focus keys. LIGHTING DESK MODE (Lighting Console) If a lighting console is used to operate the vulture, there are two possible modes: 1) Fader – DMX values 51- 102 move one direction and 153 – 204 move the other way.
- Page 10 Mate 360 light fixture to Vulture arms. Install four retaining pins. Torque hardware to 23 ft./lb. Install safety cables as required. Test range of motion to ensure light fixture does not contact Vulture or other structures. Please Note: Mounting options for other fixtures and linear tubes are available.
- Page 11 LRX VULTURE Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 14: Hand Controller
HAND CONTROLLER The hand controller will allow fixture selection, (up to 32 fixtures), provide control of tilt, pan, and flood/spot functions. All switches act as momentary type. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 15 • If cable rollers are required refer to “LRX Cable Roller” manual. • If LRX truss is to be installed, ensure that load is centered and evenly applied to basket. Maximum capacity for LRX truss is 500 pounds evenly distributed.
- Page 16 LRX VULTURE Hanger Tee Bolt 1.5 Wraps Minimum Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 17: Troubleshooting Guide
Note all five wires and pins are required to operate hand controller. • Check hanger display for proper addressing and mode. • It is important to note that the LRX fixture will not begin responding to a newly selected FIXTURE/DMX address until it has been stored. - Page 18 • If any of these conditions exist, suspend use of the product and call for service. • There are no user serviceable parts. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
