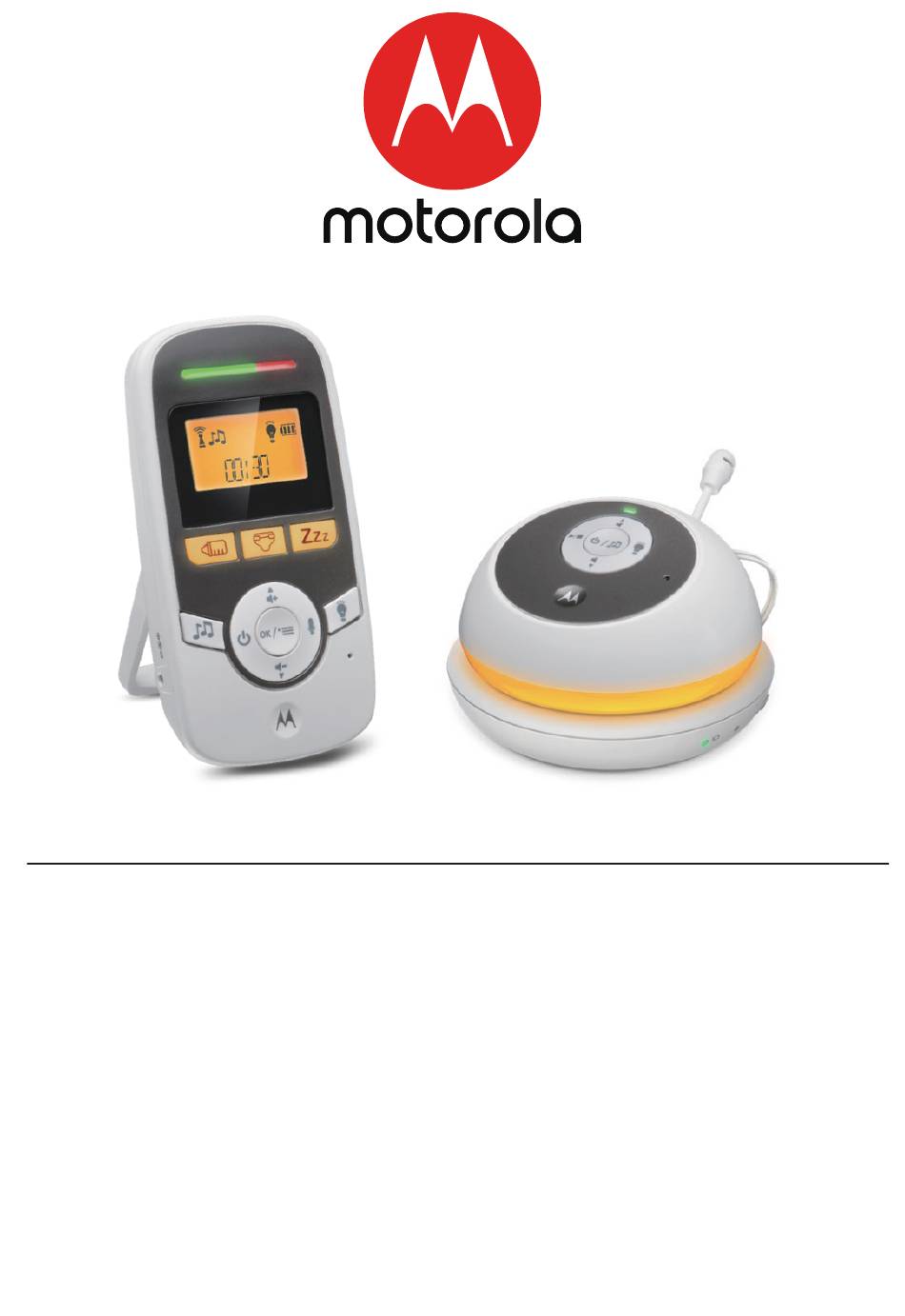

- Page 1 User’s Guide Portable Digital Audio Monitor with Baby Care Timer Models: MBP169, MBP169-2 The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of the Parent Unit Sound Level Indicator Microphone LCD Display Lullaby Timer Buttons Press to start or stop lullaby Control Key Panel playback. In timer setting: Press to reset UP / VOLUME+ timer to 00-00 Press to increase speaker volume.
- Page 4 Parent Unit display icons Connection status - Displays when the parent unit is linked to the baby unit. - Flashes when the link between the baby unit and the parent unit is lost or the parent unit is out of range of the baby unit.
- Page 5 Overview of the Baby Unit Temperature Sensor POWER/ LULLABY Speaker Press and hold to power the Power Jack baby unit on or off. Power/Link indicator In idle mode: Press to enter On steadily when the baby unit lullaby menu. is powered on and linked to the In lullaby menu: Press to play or parent unit.
-
Page 6: Table Of Contents
Table of contents Safety Instructions ................7 2. Getting Started ................10 2.1 Baby unit power supply ...............10 2.2 Parent unit battery installation and power supply ..... 11 2.3 Desktop stand on parent unit ............12 2.4 Powered by portable battery on baby unit ........12 3. -
Page 7: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1 metre away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions... - Page 8 BABY MONITOR SET UP & USE: Choose a location for the Digital Audio Baby Monitor that will provide the best audio reception of your baby in his/ her cot. Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Unit on a wall securely using the keyhole slots under the stand.
- Page 9 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Only insert a battery pack of the same type. • Do not touch the plug contacts with sharp or metal objects. •...
-
Page 10: Getting Started
2. Getting Started Baby unit power supply DC JACK 1. Insert the DC plug of the power adapter with the bigger DC plug into the DC jack on the back of the baby unit. 2. Connect the other end of the power adapter to a suitable mains power. -
Page 11: Parent Unit Battery Installation And Power Supply
Parent unit battery installation and power supply A rechargeable battery pack is supplied and should be fitted, so that the parent unit can be carried to another location without losing the link with the baby unit(s). Charge the parent unit before using it for the first time or when the parent unit indicates that battery is low. -
Page 12: Desktop Stand On Parent Unit
Desktop stand on parent unit The parent unit comes with a desktop stand attached to the back of the unit. To place the parent unit on a desk, simply pull out the stand as shown above. NOTE Place the parent unit on a flat, even surface. 2.4 Powered by portable battery on baby unit The Portable battery is assembled with a built-in rechargeable battery pack... -
Page 13: Using Your Digital Audio Baby Monitor
3. Using Your Digital Audio Baby Monitor Please read these instructions carefully, and be aware that this Digital Audio Baby Monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision. Power on or off 3.1.1 Power on or off the baby unit •... -
Page 14: Night Light
3.2.2 Adjust speaker volume of the parent unit You can adjust the speaker volume of the parent unit from Volume 1 Volume 3, or turn it off. • Press on the parent unit when it is not in use. The sound level indicator lights up when you adjust the speaker volume. - Page 15 3.4.1 Set feeding timer 1. Press on the parent unit. 2. Press - or + to adjust the timer. Each key press represents an interval of 30 minutes, up to an interval of 24 hours. If the next feeding time is 4 hours later, press - or + to adjust the 04-00 timer until is displayed.
- Page 16 3.4.3 Set diaper change timer 1. Press on the parent unit. 2. Press - or + to adjust the timer. Each key press represents an interval of 30 minutes, up to an interval of 24 hours. If the next diaper change time is 3 hours later, press - or + to adjust the timer until 03-00 is displayed.
- Page 17 3.4.5 Set sleep timer 1. Press on the parent unit. 2. Press - or + to adjust the timer. Each key press represents an interval of 30 minutes, up to an interval of 24 hours. If the next napping time is 2 hours later, press - or + to adjust 02-00 the timer until is displayed.
-
Page 18: Lullaby
3.5 Lullaby You can play lullaby to drown out disturbances so that your child can slumber peaceful and easily. 3.5.1 Select lullaby on the baby unit 1. Press 0 / on the baby unit to enter lullaby menu. 2. Press 0 / repeatedly to select your preferred lullaby. -
Page 19: Talk To The Baby Unit
3.8 Talk to the Baby Unit You can use the TALK function of the parent unit to talk to and comfort your baby. To talk to the baby unit: 1. Press and hold T on the parent unit. 2. Speak towards the microphone on the parent unit. Your voice will be broadcasted to the baby unit. -
Page 20: Disposal Of The Device (Environment)
4. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 21: Cleaning
5. Cleaning Clean your Digital Audio Baby Monitor with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Do not clean any part of the Digital Audio Baby Monitor with thinners or other solvents and chemicals - this may cause permanent damage to the product which is not covered by the warranty. -
Page 22: Troubleshooting
6. Troubleshooting Power/Link Indicator on the Parent Unit does not come on • Check whether the parent unit is powered on. • Check whether the supplied battery pack is correctly installed and that they are not drained. • Recharge the parent unit by connecting it to the mains power. Power/Link Indicator on the Baby Unit flashes •... - Page 23 The Digital Audio Baby Monitor system produces a high- pitched noise • The parent unit and the baby unit are too close to each other. Make sure that the parent unit and baby unit are at least 1 metre away from each other. •...
-
Page 24: General Information
+491805 938 802 in Europe Email: motorola-mbp@tdm.de Consumer Products and Accessories Limited Warranty (“War- ranty”) Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory... - Page 25 WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE...
- Page 26 MOTOROLA or BINATONE, are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.
- Page 27 MOTOROLA, BINATONE or its authorised service centres, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers;...
-
Page 28: Technical Specifications
8. Technical Specifications Baby Unit Frequency 1881.792 - 1897.344 MHz Channels Operating Temperature 5°C - 45°C Power Adapter RJ-AS060450E002 (Ruijing) or, S003IV0600045 (TenPao) Input: 100-240VAC, 50/60Hz, 150mA Output: DC6V, 450mA WARNING Use only with supplied power supply. Charging Pad Operating Temperature 5°C - 45°C Power Adapter RJ-AS060450E002 (Ruijing) - Page 29 Parent Unit Frequency 1881.792 - 1897.344 MHz Channels Operating Temperature 5°C - 45°C Power Adapter RJ-AS060450E002 (Ruijing) or, S003IV0600045 (TenPao) Input: 100-240VAC, 50/60Hz, 150mA Output: DC6V, 450mA WARNING Use only with supplied power supply. Battery Rating 2.4V 400mAh Ni-MH battery pack Specifications are subject to change without prior notice.
