Sealey LED1200E Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the
correct fuse - see fuse rating in these instructions.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a firm grip on the plug.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
8
qualified electrician.
1.1.4. This product is fitted with a BS1363/A 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Replace a damaged plug with a BS1363/A 3 pin plug. If in doubt contact a qualified electrician.
Class II products are wired with live (brown) and neutral (blue) only are marked with the
Class II symbol;
A) Connect the BROWN live wire to the live terminal 'L'.
B) Connect the BLUE neutral wire to the neutral terminal 'N'.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
DO NOT connect either wire to the earth terminal.
8
Sealey recommend that repairs are carried out by a qualified electrician.
1.2. GENERAL SAFETY
WARNING! Disconnect lamp from mains power before changing tubes or performing any maintenance.
‰
Replace or repair damaged parts. Use genuine Sealey parts only. Non-genuine parts may be dangerous and will invalidate the warranty.
9
Maintain the light in good condition. DO NOT use the light if damaged.
9
DO NOT use light close to paint fumes, solvents or other flammable liquids or flammable waste, such as wipes or cleaning rags.
8
WARNING! Ensure the light is correctly charged before initial use.
‰
DO NOT allow children to use the light.
8
DO NOT use if the battery or the lamp casing is damaged.
8
When not in use store the light in a safe, dry, childproof location.
9
1.3. BATTERY SAFETY INSTRUCTIONS
WARNING! Powered by a sealed lead-acid battery which can be dangerous if not handled with care.
‰
Charge battery prior to first use. The battery pack will have been shipped in a low charge state. Minimum initial charge time 20 hours.
9
DO NOT charge battery when room temperature is below 50°F (10°C) or above 104°F (40°C).
8
DO NOT attempt to recharge the battery by means of a generator or a DC power source.
8
DO NOT short-circuit the battery by linking both terminals with a metal object.
8
DO NOT store the light in locations where the temperature may exceed 104°F (40°C) such as outside sheds, above heaters, or metal
8
buildings in summer.
WARNING! Dispose of spent battery correctly and in accordance with local regulations as it contains acid.
‰
▲ DANGER! DO NOT attempt to dismantle the battery pack.
For safety and environmental reasons DO NOT discard in domestic waste or by burning. ONLY discard or recycle according to local waste
authority regulations.
WARNING! DO NOT allow a leaking battery to come into contact with skin. If contact with battery fluid occurs take immediate action:
‰
a) Skin contact: Wash immediately with soap and water.
© Jack Sealey Limited

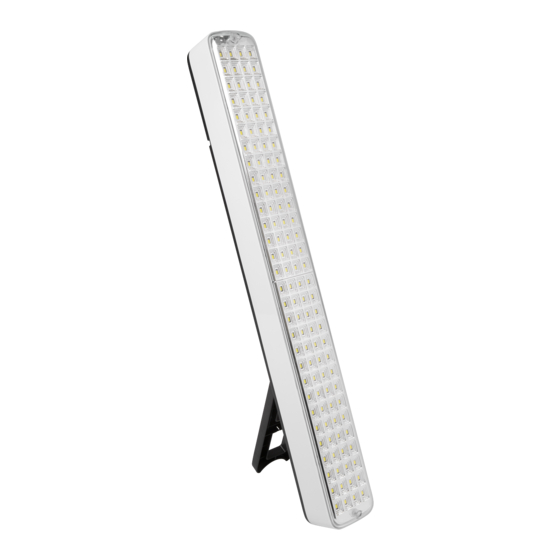

5W SMD LED RECHARGEABLE EMERGENCY
FLOODLIGHT
LED1200E
MODEL NO:
Original Language Version
:
Recommended
Fuse Rating 13 Amp
LED1200E Issue 2 24/01/23
