Sealey LED18WFL Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
1.1. ELECTRICAL SAFETY
USE ONLY THE SUPPLIED USB CABLE FOR CONNECTING FLOODLIGHT TO THE POWER SUPPLY.
WARNING! It is the user's responsibility to read, understand and comply with the following electrical instructions:
‰
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices. An RCCB (Residual Current
Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD (Residual Current Device) is
used with all electrical products, particularly portable equipment which is plugged into an electrical supply not protected by an RCCB.
You must also read and understand the following instructions concerning electrical safety.
The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
1.1.1.
electrician, using a Portable Appliance Tester (PAT).
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and
the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
Inspect the USB cable and connector for wear and damage to ensure items are safe before connecting to a power
supply. If worn or damaged DO NOT use.
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open, disassemble, modify or service the battery.
8
DO NOT expose to temperatures above 60°C (140°F).
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
1.3. GENERAL SAFETY
Ensure the floodlight is correctly charged before initial use.
9
DO NOT cover or block the lens during use.
8
DO NOT turn the floodlight on when it is being re-charged.
8
DO NOT shine directly into your, other person's or animal's eyes.
8
DO NOT allow children to use the floodlight.
8
DO NOT handle or move the floodlight whilst it is being charged.
8
DO NOT use the floodlight if you suspect that the battery or the spotlight casing is damaged.
8
DO NOT immerse the floodlight in water.
8
Ensure the floodlight is unplugged and allowed to cool before attempting any cleaning or storage.
9
When not in use, store the floodlight in a safe, dry, childproof location.
9
2. INTRODUCTION

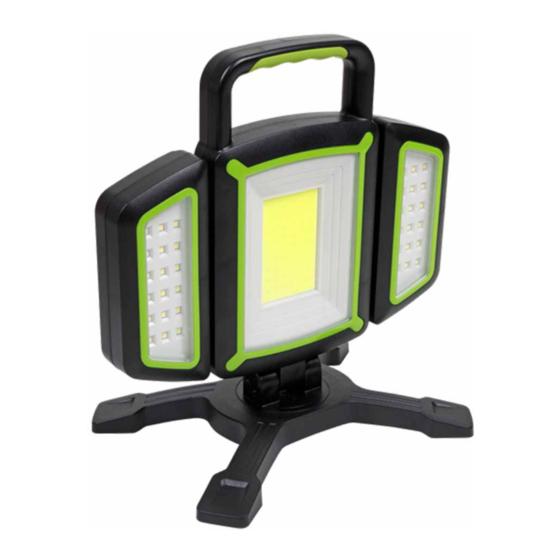

Rechargeable Flexible Floodlight with adjustable light angle with three light sources. Front 18W COB LED producing 1500 lumens.
Two adjustable 18W SMD LED side lights producing 600 lumens each. Five light modes with maximum run time of 9hrs. Light can
be rotated 360°, whilst the side lights can rotate 180° independently to light even larger area. Long beam distance of 20m to illuminate
a larger area. Other features include four freestanding magnetic feet, large carry handle, emergency power bank function and supplied
with screw adaptor to fit Sealey Tripod TRI01. Battery type: 3.7V 4400mAh Li-ion. Type-C charging port and 80cm USB cable included.
3. SPECIFICATION
Model No .......................................................LED18WFL
Battery ...........................................3.7V LI-ion 4400mAh
Charging time .............................................................9hr
Colour Temperature .............................................. 6500k
IP rating....................................................................IP20
LED Qty ............................................1 COB 2 x 18 SMD
LED type .............................................COB and 2x SMD
Lumen Output ....... COB - 1500 lumen SMD - 600 lumen
Operating Time ............ 3 hours high 9 hours SMD mode
Power .......................................................................18W
USB Output ........................................................... 5V-1A
© Jack Sealey Limited
18W COB & SMD LED RECHARGEABLE
FLEXIBLE FLOODLIGHT
LED18WFL
MODEL NO:
,
Original Language Version
LED18WFL Issue:1 25/01/23
