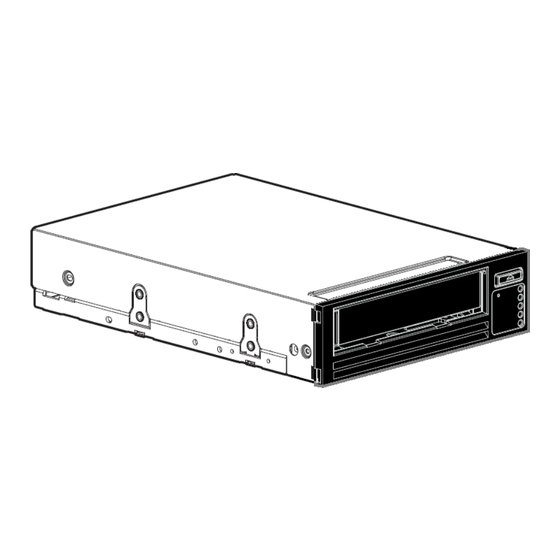

N8151-143 Internal LTO (LTO7) N8151-144 Internal LTO (LTO8) User’s Guide Note Before using the Internal LTO, read this User’s Guide carefully. Keep this User’s Guide at hand for quick reference at any time necessary.
Page 2
NEC would greatly appreciate it if our dealers are informed about it. (5) Please note that in no event shall NEC be liable for any damages whatever arising out of the use of this device, regardless of item (4) above.
Keep this User's Guide at hand for quick reference at any time necessary. Safety Considerations - Must Read - Follow the instructions given in this User's Guide for proper operations and safe use of the device. For the terms used in this User's Guide, please refer to “Part Name and Function” section of this document. Safety Indications This User's Guide describes the device components with possible danger, hazards that may be caused by ignoring warnings, and preventive actions against such hazards.
SYMBOLS USED IN THIS USER'S GUIDE AND WARNING LABELS Attention Indicates that improper use may Indicates that improper use may cause an electric shock. cause fumes or fire. Indicates that improper use may Indicates a non-particular notice or cause fingers to be caught. warning.
Safety Notes This section provides several precautions to enable you to use the product safely and correctly and to prevent injury and property damage. Read this section carefully to ensure proper and safe use of the product. For symbols, see "SAFETY INDICATIONS"...
Page 6
Attention to Power or Power Cord Do not hold the DC cable with a wet hand. Do not disconnect/connect the cable while your hands are wet. Failure to follow this warning may cause an electric shock. Do not install the device while the power is turned on. Unplug the AC power cord from the main power source when installing/uninstalling the device to/from server or connect it with the enclosure.
Page 7
Do not use the unspecified interface cables. Uses only the cable authorized by NEC and locate the device and connector before connection. Use of an unauthorized cable or displaced connection may cause a short circuit, resulting in a fire.
Page 8
Attention to Handling or Maintenance Do not disassemble, repair, or alter the Internal LTO. Never attempt to disassemble, repair, or alter the Internal LTO on any occasion other than described in this User's Guide. Failure to follow this instruction may cause an electric shock or a fire as well as malfunctions of the Internal LTO.
Page 9
Attention to Operation Do not insert your hands into the cartridge insertion slot. Do not insert your hands into the cartridge insertion slot. Otherwise, the fingers will be caught or pinched by the Internal LTO to cause an injury. Do not touch the Internal LTO when it thunders. If it starts thundering, do not touch any part of the Internal LTO.
For Proper Operation To operate the Internal LTO correctly, observe the following points. For considerations on handling the data cartridge, refer to the chapter "Data Cartridges". Do not turn off the server when the LED on the front of the Internal LTO is blinking. ...
About This Manual This manual is guidance for setting up and operating the N8151-143 Internal LTO. You can refer to the manual whenever you encounter a question or problem during setup and daily operation. How to use this Manual When the Internal LTO is being used for the first time, refer to the instruction manual in the following sequence to perform the setup after unpacking the Internal LTO.
To this end, we strongly recommend that you dispose of all backed up data through your backup software before transferring or selling the unit. For details about how to perform this operation, refer to your backup software documentation. NEC does not accept responsibility for information leaks to third parties.
Package Contents Many accessories are included in the package of the Internal LTO. Verify the packed contents according to the figures shown below and ensure that all the components and parts are present. Also, check that each item is undamaged. If a component or part is missing or damaged, contact your service representative. ...
Table of Contents Trademarks ..........................ii Safety Considerations - Must Read - ................. 3 Safety Indications ..........................3 SYMBOLS USED IN THIS USER'S GUIDE AND WARNING LABELS ..........4 Safety Notes ............................ 5 For Proper Operation ........................10 Introduction .......................... 25 About This Manual .........................
Internal LTO The Internal LTO can save or read data by using data cartridge compatibility listed in the table below. Internal LTO (LTO7) Data cartridge (model number) Storage capacity Remark LTO7 Data cartridge 6.0T bytes LTO7(WORM) Data cartridge 6.0T bytes LTO6 Data cartridge 2.5T bytes LTO6(WORM) Data cartridge...
Part Name and Function The Internal LTO has the following parts and functions. Eject button ① Ready LED ② Drive LED ③ Tape LED ④ Clean LED ⑤ Encryption LED ⑥ ①Eject Button • Press this button when ejecting a data cartridge. ②Ready —...
Setup The procedure to install the Internal LTO to the systems like Express5800 series is explained. Attach the latching rails Some servers require the latching rails to be used. For details on how to install the latching rails, refer to the server’s operating manual or device expansion unit’s user manual. (Example1) Attach the latching rails as shown in the figure below.
Connecting the Internal LTO to the Server ・Specified SAS cable is used for the Internal LTO connection. Turn off the power before installing or removing the Internal LTO from the server. Always be sure to turn off the main power and unplug the power cord from the AC outlet before installing/removing the Internal LTO or connecting any cables.
Page 33
Connect the SAS cable and DC cable to the Internal LTO as shown in the figure below. DC power cable from the system is connected to the DC connector of the SAS cable. After connecting the SAS cable, bundle the cables so that it does not interfere with the other devices or fan.
Log on as Administrator. Start the Device Manager and confirm that the internal LTO is displayed in [Other devices]. Internal LTO Description N8151-143 Internal LTO(LTO7) HP Ultrium 7-SCSI SCSI Sequential Device N8151-144 Internal LTO(LTO8) HP Ultrium 8-SCSI SCSI Sequential Device...
Page 35
Click [Close] button. The Internal LTO is displayed under [Tape drives] in the [Device Manager] dialog box. Internal LTO Description N8151-143 Internal LTO(LTO7) Hewlett Packard LTO Ultrium-7 drive N8151-144 Internal LTO(LTO8) Hewlett Packard LTO Ultrium-8 drive This completes installation of the tape device driver.
Uninstallation of Tape Device Driver Uninstall the tape device driver. Described of Uninstallation procedures for Windows Server 2012R2 operating system is described below. Uninstallation procedures for other operating system are basically the same. For Windows sever 2012R2 Log on as Administrator. Confirm the Tape drives on the Device Manager.
Handling The following explains how to handle the Internal LTO. Setting the Data Cartridge Make sure that proper data cartridge is used. While setting the data cartridge, do not turn off the server. This may cause a malfunction or the damage data. Make sure that LED is not blinking Confirm that the Write Protect Switch is correctly set.
Ejecting the Data Cartridge Confirm that the power for the Internal LTO is on. When the EJECT button is pressed, Internal LTO starts rewinding the tape. ( this may take a few minutes) In case of you turn off the power during the Internal LTO is running and turn on the power to the Internal LTO again, please wait until the Internal LTO will be in the Ready state, and then press the Eject Button and eject the cartridge.
Indication for the Status LED The Internal LTO status is notified by Status LED. For basic LED operation during normal operation, see “Part Name and Function”. Ready: green Drive: amber Tape: amber Clean: amber Encryption: blue The following table shows the meaning of different LED patterns to help troubleshooting. Table 1 LED troubleshooting LED Sequence Cause...
Page 40
Table 2 LED troubleshooting LED Sequence Cause Action required The drive has failed the Power cycle or reset the drive. If the error condition reappears, call for service. power-on self test (POST). • The cartridge case is intact and that it contains no splits, cracks or damage. •...
Page 41
Table 3 LED troubleshooting LED Sequence Cause Action required The drive is downloading None. firmware. Do not reset or power cycle the drive. Ready FLASHES fast. Firmware is being None. reprogrammed. Do not reset or power cycle the drive. Ready is OFF, others are The drive requires cleaning.
Page 42
Table 4 LED troubleshooting LED Sequence Cause Action required The drive believes the current Unload the tape cartridge. Verify that you are using the tape or the tape just ejected correct format cartridge; an Ultrium data cartridge or is write protected, Ultrium universal cleaning cartridge.
Reading/Writing Data To read/write the data from/to the data cartridge, see the instruction manual provided with the backup application. Cleaning To keep the drive is the best condition for securing the customer’s data, cleaning is required. Cleaning the Read/Write Head When the cleaning notice is indicated ( Clean LED flashes ), clean the Internal LTO internal read/write head.
Data Cartridge This section explained how to handle the data cartridge which is used for Internal LTO. For usable cartridge, please see the section “Usable cartridge”. Data Cartridge Part Name Write-protect switch Label It is recommended that you should affix a label to each cartridge to associate the data cartridge with backup data for easier identification as shown below.
Write-Protect Switch Writing of data in the tape is enabled or disabled by setting the write-protect switch. To protect the data from being erased, set the write-protect switch as shown in the figure below. Although position of the write-protect is all the same for tape cartridges, the switch is varied occasionally. Write-protect switch (Example)
Operation and Storage Requirements of Data Cartridge Operation requirement Temperature: 10 to 45ºC (gradient: 10ºC/hour) Humidity: 10 to 80% (no dew condensation allowed) Storage requirement(Short-term:Up to six months) Temperature: 16 to 35ºC (gradient: 10ºC/hour) Humidity: 20 to 80% (no dew condensation allowed) Storage requirement (Archive) ...
Cautions on Handling Operational Cautions Before Use If a data cartridge is damaged, deformed or bent, do not use it. If the data cartridge is exposed to an environment other than the operating or storage environment, expose it to the operating environment for a longer time than the period when it is exposed to other environment (for 8 hours at maximum) before use.
Usage Inhibition Standard If a data cartridge that you are using is in the case below, you must replace it. When the data cartridge is given a strong shock, for example, when falling, and damaged. When the recording surface is contaminated with liquid, such as soft drink, coffee and tea, detergent, ...
Storing Important Data When storing important data or programs, it is strongly recommended that you should prepare and store the master tape and copy (backup) tape just in case. Further, we recommend that you verify backup software when saving, and check saved data. For details on verification, refer to the instruction manual for the backup software you are using.
Power supply specification Voltage 12 V Current (stand by, Min.) 4.0A/4.0A 1.0A/1.2A Current (Max.) 4.5A/4.5A 3.5A/4.0A Note : each value(A) in this table means N8151-143/ N8151-144 Dimensions, weight Width 146mm (without bezel) Height 41mm (without bezel) 205mm (without bezel)
Customer's Application Sheet Use this sheet as a note in which the information required for maintenance and management of the Internal LTO is recorded. Item record Server model name Operating system (OS) (name, version, service pack/patch application) Backup software (name, version, service pack/patch application) Internal LTO installation environment (temperature, humidity, dust)
Troubleshooting Checklist If the Internal LTO fails to operate as expected, consult the following checklist and verify the Internal LTO before returning it for repairs. If the Internal LTO is exhibiting any of the symptoms listed, take the actions indicated. Symptom Action Does not power on...
Page 53
Cannot eject the data If a tape cartridge can not be ejected even after press the cartridge Internal LTO “Eject” button, then a lock mechanism by the backup software may be a cause. -> Shut down the backup software ->...
Page 54
CE / Australia and New Zealand Statement Warning : This equipment is compliant with Class A of EN55032. In a residential environment this equipment may cause radio interference. EU Contact : NEC Nederland B.V. Olympia 4, 1213 NT Hilversum, The Netherlands BSMI Statement 警告使用者:...
