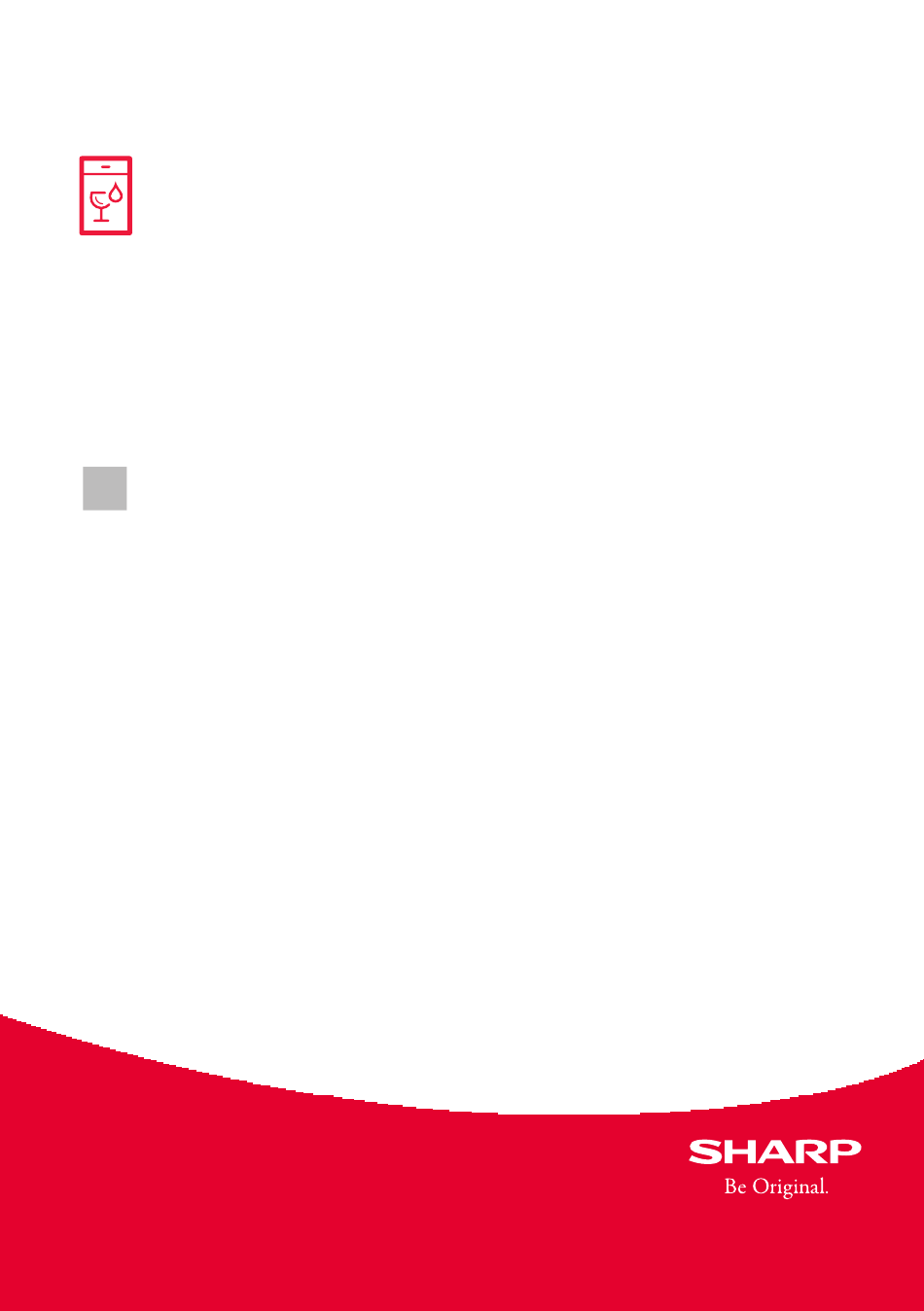

  • Page 1 Home Appliances QW-HD44UD-DE Dishwasher User Manual...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Electrical Connection ....................7 2.5. Fitting the Machine Undercounter .................7 3.TECHNICAL SPECIFICATIONS ..................
  • Page 4 8.CLEANING AND MAINTENANCE ................. 22 8.1. Filters ........................... 22 8.2. Spray Arms ........................22 8.3. Drain Pump ........................22 9.TROUBLESHOOTING ....................24...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

  • Page 7: During Use

    The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position. For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 10: Installation

    2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded.

  • Page 11: Electrical Connection

    2.4. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications"...

  • Page 12: Fitting The Machine Undercounter

    2.5. Fitting the Machine Undercounter 700X75 OPS.(+50)H=870-920 mm EN - 8...
  • Page 13 EN - 9...
  • Page 14 The following options are available. ops.(+50) H= 870-920 mm Option 1: Attach the furniture kickplate. Option 2: Attach the adjustable plinth group. Follow the instructions supplied with the adjustable plint group. EN - 10...

  • Page 15: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions 820-870/870- Height 920mm(mm) Width 598(mm) Depth 570(mm 51,700 kg Net weight Operating 220-240V 50 voltage / (Hz) frequency Total 10(A) current Total power 1900(W) 3.1. General appearance Maximum: 1. Upper basket with racks Water 1 (Mpa) 2.

  • Page 16: Before Using The Appliance

    4. BEFORE USING THE APPLIANCE 4.1. Preparing your dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. •...

  • Page 17: Test Strip

    4.4. Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 18: Filling The Detergent

    Do not fill detergent into the detergent rinse aid is automatically released during compartment more than required; otherwise the hot rinse phase. If rinse aid dosage you can see whitish streaks or bluish layers setting set too low, whitish stains remains on glass and dishes and may cause glass on dishes and dishes do not dry and corrosion.
  • Page 19 Level Brightener Dose Indicator Rinse-aid not r1 is shown on the dispensed display. 1 dose is r2 is shown on the dispensed display. 2 doses are r3 is shown on the dispensed display. 3 doses are r4 is shown on the dispensed display.

  • Page 20: Loading Your Dishwasher

    5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to...
  • Page 21 SOFT TOUCH Top basket Height Adjustable Rack These racks are designed to increase the capacity of the top basket. You can pla-ce your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks.
  • Page 22 Each section can be folded separately. The racks can be folded down or raised up, as shown in the images below. WARNING: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN - 18...

  • Page 23: Alternative Basket Loads

    5.2. Alternative basket loads Un chargement incorrect peut entraîner Lower basket de mauvaises performances de lavage et de séchage. Veuillez suivre les recommandations du fabricant pour obtenir un bon résultat. Note importante pour les laboratoires de test. Unsuitable items for dishwashing •...
  • Page 24 EN - 20...
  • Page 25 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

  • Page 26: The Control Panel

    7. THE CONTROL PANEL NOTE: If you want your dishes to be washed more quickly, select the Extra Fast option by pressing the Extra button until its lamp turns on. This option washes the dishes with more pressure therefore the cycle is completed more quickly, but water and energy use is increased.

  • Page 27: Changing A Programme

    7.2. Cancelling a programme NOTE: When more rinse-aid is If you would like to cancel a running. required, the, rinse aid lack warning indicator (9) turns on and you softening fill the rinse aid chamber. Press the Start/Pause button for 3 seconds. 7.1.
  • Page 28 NOTE: Do not open the door before the program ends. NOTE: At the end of the washing program, you can leave the door of your machine ajar to hasten the drying. NOTE: If the door of machine is opened or power is cut off during washing, the program will continue when the door is closed or the power is restored.

  • Page 29: Cleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.

  • Page 30: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 31: Troubleshooting

    9. TROUBLESHOOTING TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of the Insufficient water hose. Contact for service if the error continues. Continuous water input Close the tap and contact for service.
  • Page 32 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 33 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of the Insufficient water hose.
  • Page 34 10. PRACTICAL INFORMATION 1. When the machine isn’t in operation: • Disconnect the plug and close the tap. • Leave the door slightly open to prevent odour formation. 2. Select the dry option to remove water droplets. 3. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance.
  • Page 35 Service & Support Visit Our Website sharphomeappliances.com 52306969 R60...
