Chest Freezer المجمد الصندوقي Instruction of use تعليمات االستخدام HSA20521...
Page 3
Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. تكن لم إذا .الجهاز مع تمام ً ا تتطابق ال وقد بيانية رسومات هي هذا التعليمات دليل في الواردة ألشكال القطع...
Content Advice for recycling of the old appliance /1 Packing Recycling /2 Transport instructions /2 Warnings and special advice /2 Setting up /3 Electric connection /3 Switching off /4 Appliance description /4 Freezer operation /4 Advice for food conservation /5 Defrosting of the appliance /5 Cleaning of the appliance /6 Replacing the interior light bulb /6...
Page 6

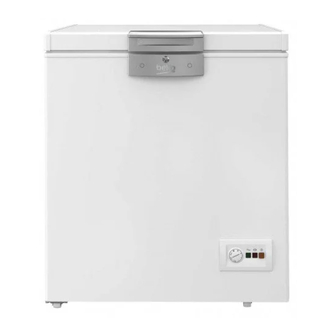

Instruction for use Congratulations for your choice! The chest freezer you have purchased is one in the BEKO products range and represents a harmonious joinng between the refrigeration technique with the aestetical outlook. It has a new and attractive design and is built according to the European and national standards which guarantee its operation and safety features.
Instruction for use Packing Recycling Warnings and general advice Do not plug in the appliance if you noticed WARNING! a failure. Do not allow children to play with the The repairs must be done only by qualified packing or with parts of it. There is the risk personel.
Instruction for use Ensure the free circulation of the air around Excess deposit of ice on the frame and the baskets should be removed regularly with the the appliance, by observing the distances plastic scraper provided. Do not use any shown in Item 2.
Instruction for use Switching off Freezer operation The switching off must be possible by taking Temperature adjustment the plug out of the socket or by means of a The temperature of the freezer is adjusted by mains two-poles switch placed before the means of the knob assembled on the socket.
Instruction for use Advice for food conservation Defrosting of the appliance We advise you to defrost the freezer at The freezer is intended to keep the frozen least twice a year or when the ice layer has an food for a long time, as well as to freeze fresh excessive thickness.
Instruction for use Inside cleaning Replacing the interior light bulb Before starting the cleaning, unplug the If the lamp burns out, disconnect the appliance from the mains. Take out the lamp trim. Make appliance from the mains. It is advisable to clean the appliance when sure the lamp is screwed correctly.
Page 12
Instruction for use Noises during operation The bubbling and gurgling noises coming from the refrigerant circulating in the pipes of the In order to keep the temperature at the value appliance, are normal operating noises. you have adjusted, the compressor of the appliance starts periodically.
Page 14
تعليمات االستخدام تهانينا الختيارك ويمثل الربط المجمد الصندوقي الذي قمت بشرائه هو أحد مجموعة منتجات BEKO فهو يمتع بتصميم جديد وجذاب كما أن بنيته المتناغم بين تقنية التبريد والمظهر الجمالي وفي الوقت تتوافق مع المعايير األوروبية والوطنية مما يضمن ميزات التشغيل والسالمة...
Page 15
تعليمات االستخدام التحذيرات ونصائح عامة إعادة تدوير مواد التغليف ال تقم بتوصيل الطاقة للجهاز في حالة مالحظة وجود عطل ت ح ذ ي ر يجب إجراء اإلصالحات بواسطة شخص مؤهل فقط فقد ال يسمح لألطفال باللعب بمواد التغليف أو بأجزاء منها يرجى...
Page 16
تعليمات االستخدام يجب إزالة كميات الثلج الزائدة على اإلطار والسالت بانتظام وصيل الكهربائي الت ال تستخدم أية باستخدام المكشطة البالستيكية المرفقة بالجهاز قطع معدنية إلزالة الثلج فولت هذا الجهاز معد للتشغيل بجهد أحادي المرحلة 220-240 حة فوجود هذا الثلج المتراكم يمنع قفل الباب بالطريقة الصحي قبل...
Page 17
تعليمات االستخدام تشغيل المجمد إيقاف التشغيل ضبط درجة الحرارة يجب أن يكون إيقاف التشغيل ممك ن ً ا عن طريق سحب القابس من المفتاح الرئيسي ثنائي القطب يتم تركيبه قبل المقبس أو عن طريق يتم ضبط درجة حرارة المجمد عن طريق المقبض الموجود على المقبس...
Page 18
تعليمات االستخدام إزالة الثلج عن الجهاز نصائح لحفظ األطعمة إننا ننصح بإزالة الثلج من المجمد مرتين سنو ي ًا على األقل يستخدم المجمد بغرض حفظ الطعام المجمد لفترة طويلة، باإلضافة عندما تكون طبقة الثلج سميكة ج د ً ا إلى...
Page 19
تعليمات االستخدام استبدال مصباح اإلضاءة الداخلي النظافة الداخلية لجهاز عن مصدر الطاقة الرئيسي قبل بدء التنظيف، افصل ا في حالة انفجار المصباح، يرجى فصل الجهاز عن يمكنك تنظيف الجهاز عند إزالة الثلج تأكد من انزع غطاء المصباح مصدر الطاقة الرئيسي ...
Page 20
تعليمات االستخدام ا أل ص و ا ت أ ث ن ا ء ا ل ت ش غ ي ل يب أصوات البقبقة والقرقرة الناشئة عن تدوير سائل التبريد في أناب للحفاظ على درجة الحرارة عند القيمة التي قمت بضبطها، فإن الجهاز،...
