Panasonic TH-P42VT30M Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Plasma TV
  5. TH-P42VT30M
  6. Service manual
Panasonic TH-P42VT30M Service Manual

Panasonic TH-P42VT30M Service Manual

Plasma television
Hide thumbs Also See for TH-P42VT30M:
Table of Contents

Advertisement

Quick Links

Download this manual
TH-P42VT30M
Model No.
TH-P42VT30P
TH-P42VT30S
TH-P42VT30V
GPF14D-A Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PAVCTH1106040CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-P42VT30M

Summary of Contents for Panasonic TH-P42VT30M

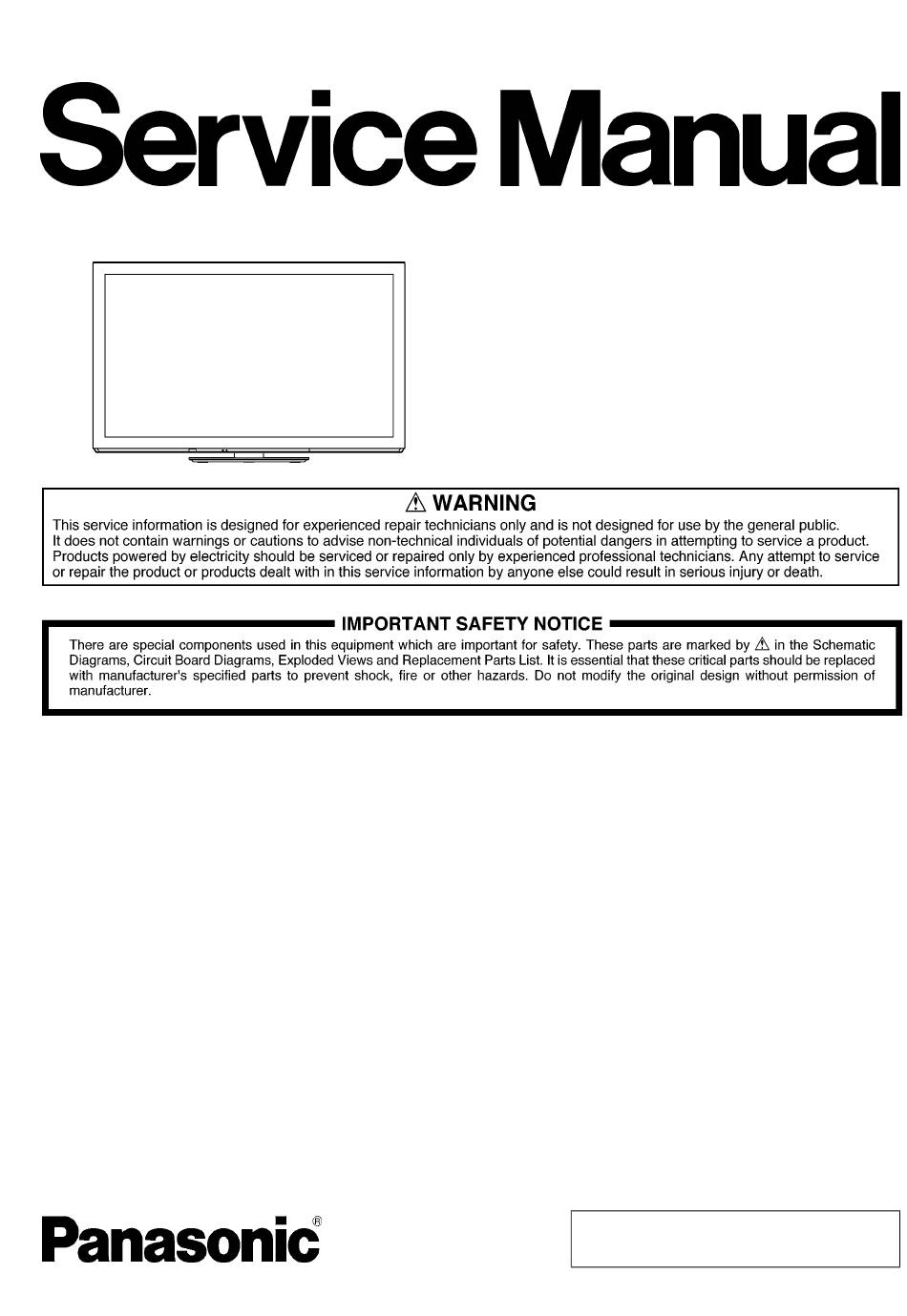

  • Page 1 ORDER NO.PAVCTH1106040CE Plasma Television TH-P42VT30M Model No. TH-P42VT30P TH-P42VT30S TH-P42VT30V GPF14D-A Chassis © Panasonic Corporation 2011. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 10.4. Block (3/4) Diagram ------------------------------------- 40 1.1. General Guidelines ----------------------------------------3 10.5. Block (4/4) Diagram ------------------------------------- 41 11 Wiring Connection Diagram -------------------------------- 43 1.2. Touch-Current Check--------------------------------------3 11.1. Caution statement. -------------------------------------- 43 2 Warning --------------------------------------------------------------4 2.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Main AV input, processing Data Driver (Lower Left) Remote receiver, Power LED, C.A.T.S. sensor Scan Drive Power switch Sustain Drive 3D Eyewear transmitter Sustain out (Lower)

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ), HDMI * Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p...

  • Page 8: Specifications

    4 Specifications Power Source AC 220 - 240 V, 50 / 60 Hz (Except P) AC 110 - 240 V, 50 / 60 Hz (P) Power Power Rating 325 W (Except P) 330 W (P) Standby condition 0.4 W Display panel Aspect Ratio 16:9 Visible screen size...
  • Page 9 Liquid Crystal Shutter 0 °C - 40 °C Usage temperature range Charging power supply DC 5 V (supplied by USB terminal of a Panasonic TV) Battery Lithium-ion polymer rechargeable battery DC 3.7 V, 70 mAh Operation time*1: Approx. 30 hours Charging time*1: Approx.

  • Page 10: Technical Descriptions

    How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK. 5.1.3. Model and Keys: Model No. Keys One-to-one WIDEVINE TH-P42VT30M/P/S/V...

  • Page 11: Service Mode

    6 Service Mode 6.1. How to enter into Service Mode 6.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [i] button of the remote control three times within 2 seconds. Note: Service Mode can not be entered when 3D signal input.
  • Page 12 6.1.4. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 13: Option - Mirror

    6.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 14: Hotel Mode

    6.4. Hotel mode 1. Purpose Restrict a function for hotels. Item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode On/Off In order to display the Hotel mode setup menu: Initial INPUT Select input signal modes. While pressing [VOLUME (-)] button of the main unit, Set the input, when each time power is switched press [AV] button of the remote control three times within...

  • Page 15: Data Copy By Sd Card

    6.5. Data Copy by SD Card 6.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 16 6.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 17 6.5.4. Data copy from SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 18: Troubleshooting Guide

    7 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 7.1. Check of the IIC bus lines 7.1.1. How to access 7.1.1.1. Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 19: Power Led Blinking Timing Chart

    7.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit. Blinking Times Contents Check point...

  • Page 20: No Picture

    7.4. No Picture...

  • Page 21: Local Screen Failure

    7.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 22: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Remove the Rear cover 8.4. Remove the Terminal covers and the shield metals 1. See PCB Layout (Section 3) 8.2. Remove the AC inlet 1. Remove the claw (×1 2. Remove the Side terminal cover. Caution: To remove P.C.B.

  • Page 23: Remove The A-Board

    8.5. Remove the A-Board 3. Remove the screw (×1 4. Remove the Side unit mount metal. 1. Remove the Terminal covers and the Shield metals. (See section 8.4.) 2. Unlock the cable clampers to free the cable. 3. Disconnect the connectors (A1, A6, A8, A11, A12 and A14).

  • Page 24: Remove The Ss-Board

    8.8. Remove the SS-Board 8.10. Remove the Fan 1. Disconnect the connector (SS11). 1. Unlock the cable clampers to free the cable. 2. Disconnect the flexible cable (SS33). 2. Remove the screws (×3 3. Disconnect the flexible cable (SS61). 3. Remove the Relay connector and remove the Fan. , ×3 4.

  • Page 25: Remove The Woofer

    8.12. Remove the Woofer 8.15. Remove the S-Board 1. Unlock the cable clampers to free the cable. 1. Remove the SP shield metal L. (See section 8.11.) 2. Disconnect the Relay connector. 2. Remove the screws (×2 3. Remove the screws (×3 ) and remove the Woofer.

  • Page 26: Remove The Plasma Panel Section From The Cabinet Assy

    8.18. Remove the Plasma panel sec- 8.19. Remove the Contact metals tion from the Cabinet assy 1. Remove the Cabinet assy. (See section 8.18.) 2. Remove the Tape from the Contact metals. 1. Remove the Plasma panel section from the servicing 3.

  • Page 27: Remove The C2-Board

    8.21. Remove the C2-Board 8.23. Replace the Plasma panel 1. Remove the Contact metal bottom. (See section 8.19.) Caution: Remove the Plasma panel section from the servicing 2. Disconnect the flexible cables (CB8, CB9, CB10, CB11, stand and lay on a flat surface such as a table (covered CB12, CB13, CB14 and CB15).

  • Page 28: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment 9.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.
  • Page 29 9.1.2. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator Steps Remarks Connect IIC cable (bus controller-cable) after banner OSD appear. Note: And after SRQ-L, begin an adjustment 2 seconds later. Sub-contrast adjustment is unadjusted for AV/ HD input.
  • Page 30 Steps Remarks Another procedure Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later. Adjustment of HD system 1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below. 2.
  • Page 31 9.1.3. THX white balance adjustment The adjusting method is different according to the PEAKS EEPROM version. [copy adjustment] : Peaks EEPROM ver.1.00- [Differential (Normal) + copy + WARM adjustment] : Peaks EEPROM ver.1.**- Name of measuring instrument Connection Remarks W/ B pattern Panel surface Color analyzer (Minolta CA-100 or equivalent)
  • Page 32 Steps Remarks 1. Enter the Service mode. METHOD=01 Please receive the Analog-RF. copy adjustments Or, please select CVBS/YUV/HDMI. (No inputting is possible.). (Forbid Analog-RF with no signal.) 2. A number key [1] or [2] are operated and [WB-ADJ] is displayed. Check that the color temp is [COOL].
  • Page 33 Steps Remarks [Differential (Normal) + copy + WARM adjustment] Adjustment of [COOL], [WARM] by data shift from [NORMAL] adjust. And only [WARM] is readjusted. Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB of HD (or PAL) copies the adjustment data from an adjusted format side.

  • Page 37: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram MAIN AV INPUT,PROCESSING HDMI1-4 (HDMI3) ETHERNET DATA TMDS DATA LAN CON I/F ETHERPHY ETHERNET HDMI I/F SIF_OUT SIF I/F SD CARD DATA S ONLY SD CARD I/F SD CARD IFD_OUT TUNER TUNER I/F USB I/F USB_1-3 PEAKS-LDA3...

  • Page 38: Block (1/4) Diagram

    10.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R WOOFER JK3007 DIGITAL JK8533 JK8532 JK8531 JK8301 JK8650 JK4600 JK4601 JK4603 AUDIO JK4602 TU4801 USB3 USB2 USB1 ETHERNET SD CARD ANT IN HDMI1 HDMI2 HDMI3 HDMI4 MAIN TUNER S ONLY IC8601 DMD_IIC0 ETHERPHY IC4901 IC4900 AUDIO AUDIO...

  • Page 39: Block (2/4) Diagram

    10.3. Block (2/4) Diagram MAIN IC9300 VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA H/V Sync Control VIDEO DATA Sub Filed Processor P+3.3V P+1.1V IC9860 P+3.3V P+3.3V F15V KEY1 IIC0 P+1.1V KEYSCAN 1.1V +1.1V DATA DRIVER CONTROL P+3.3V +3.3V 3.3V D_UHZ IC9820 SOS_DCC...

  • Page 40: Block (3/4) Diagram

    10.4. Block (3/4) Diagram POWER SUPPLY COLD COLD D105 L100 Q300-Q303 D106 F102 L100 Q600 T301 RESONANCE D601 D600 T300 Q100,01 IC600 VR600 CONTROL Q102,03 ERROR DET T302 IC100 DRIVER IC300 RESONANCE L300 CONTROL D700 Vsus SS11 Vsus Vsus Q307 IC700 VR251 P+15V...

  • Page 41: Block (4/4) Diagram

    10.5. Block (4/4) Diagram SCAN DRIVE SUSTAIN DRIVE TPVSUS Vsus TPVSUS D16618 Vsus Q16607 P+15V MAIN H CERS IC16684 IC16131 Q16001 Q16002 CPH1 BUFFER Q16600 BUFFER IC16784,85 PC16897 IC16501 TPSS1 Q16042 IPD CIRCUIT TPVAD IC16151 Q16601 T16471 Q16401 VAD GEN. BUFFER Q16402 SHUNT REG...

  • Page 43: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (1)

  • Page 44: Wiring (2)

    11.3. Wiring (2)

  • Page 45: Wiring (3)

    11.4. Wiring (3) 11.5. Wiring (4)

  • Page 46: Wiring (5)

    11.6. Wiring (5)
  • Page 47 Model No. : TH-P42VT30M/P/S/V Schematic Diagram Note...
  • Page 48 Model No. : TH-P42VT30M/P/S/V Replacement Parts List Note...
  • Page 49 Model No. : TH-P42VT30M/P/S/V P-Board (1/4)
  • Page 50 Model No. : TH-P42VT30M/P/S/V P-Board (2/4)
  • Page 51 Model No. : TH-P42VT30M/P/S/V P-Board (3/4)
  • Page 52 Model No. : TH-P42VT30M/P/S/V P-Board (4/4)
  • Page 53 Model No. : TH-P42VT30M/P/S/V A-Board (1/14)
  • Page 54 Model No. : TH-P42VT30M/P/S/V A-Board (2/14)
  • Page 55 Model No. : TH-P42VT30M/P/S/V A-Board (3/14)
  • Page 56 Model No. : TH-P42VT30M/P/S/V A-Board (4/14) S-10...
  • Page 57 Model No. : TH-P42VT30M/P/S/V A-Board (5/14) S-11...
  • Page 58 Model No. : TH-P42VT30M/P/S/V A-Board (6/14) S-12...
  • Page 59 Model No. : TH-P42VT30M/P/S/V A-Board (7/14) S-13...
  • Page 60 Model No. : TH-P42VT30M/P/S/V A-Board (8/14) S-14...
  • Page 61 Model No. : TH-P42VT30M/P/S/V A-Board (9/14) S-15...
  • Page 62 Model No. : TH-P42VT30M/P/S/V A-Board (10/14) S-16...
  • Page 63 Model No. : TH-P42VT30M/P/S/V A-Board (11/14) S-17...
  • Page 64 Model No. : TH-P42VT30M/P/S/V A-Board (12/14) S-18...
  • Page 65 Model No. : TH-P42VT30M/P/S/V A-Board (13/14) S-19...
  • Page 66 Model No. : TH-P42VT30M/P/S/V A-Board (14/14) S-20...
  • Page 67 Model No. : TH-P42VT30M/P/S/V K, S and V-Board S-21...
  • Page 68 Model No. : TH-P42VT30M/P/S/V C1-Board (1/2) S-22...
  • Page 69 Model No. : TH-P42VT30M/P/S/V C1-Board (2/2) S-23...
  • Page 70 Model No. : TH-P42VT30M/P/S/V C2-Board (1/2) S-24...
  • Page 71 Model No. : TH-P42VT30M/P/S/V C2-Board (2/2) S-25...
  • Page 72 Model No. : TH-P42VT30M/P/S/V SN-Board (1/6) S-26...
  • Page 73 Model No. : TH-P42VT30M/P/S/V SN-Board (2/6) S-27...
  • Page 74 Model No. : TH-P42VT30M/P/S/V SN-Board (3/6) S-28...
  • Page 75 Model No. : TH-P42VT30M/P/S/V SN-Board (4/6) S-29...
  • Page 76 Model No. : TH-P42VT30M/P/S/V SN-Board (5/6) S-30...
  • Page 77 Model No. : TH-P42VT30M/P/S/V SN-Board (6/6) S-31...
  • Page 78 Model No. : TH-P42VT30M/P/S/V SS-Board (1/2) S-32...
  • Page 79 Model No. : TH-P42VT30M/P/S/V SS-Board (2/2) and SS2-Board S-33...
  • Page 80 Model No. : TH-P42VT30M/P/S/V P-Board (Foil Side) S-34...
  • Page 81 Model No. : TH-P42VT30M/P/S/V P-Board (Component Side) S-35...
  • Page 82 Model No. : TH-P42VT30M/P/S/V A-Board (Foil Side) S-36...
  • Page 83 Model No. : TH-P42VT30M/P/S/V A-Board (Component Side) S-37...
  • Page 84 Model No. : TH-P42VT30M/P/S/V K, S and V-Board S-38...
  • Page 85 Model No. : TH-P42VT30M/P/S/V C1-Board S-39...
  • Page 86 Model No. : TH-P42VT30M/P/S/V C2-Board S-40...
  • Page 87 Model No. : TH-P42VT30M/P/S/V SN-Board (Foil Side) S-41...
  • Page 88 Model No. : TH-P42VT30M/P/S/V SN-Board (Component Side) S-42...
  • Page 89 Model No. : TH-P42VT30M/P/S/V SS-Board (Foil Side) S-43...
  • Page 90 Model No. : TH-P42VT30M/P/S/V SS-Board (Component Side) S-44...
  • Page 91 Model No. : TH-P42VT30M/P/S/V SS2-Board S-45...
  • Page 92 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TZTNP01MAUV A-PRINT COMPLETE 1 (V) (RTL)PAVCTH TZTNP01MKUM A-PRINT COMPLETE 1 (M) (RTL)PAVCTH TZTNP01MNUP A-PRINT COMPLETE 1 (P) (RTL)PAVCTH TZTNP01MPUS A-PRINT COMPLETE 1 (S) (RTL)PAVCTH...
  • Page 93 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C204 F2A1V470A092 C 47UF 35V C206 F1BAF221A088 C 220PF, 250V 1 PAVCTH C208 F2A1V470A092 C 47UF 35V C209 F2A1V470A092 C 47UF 35V C210 ECJ1VB1H103K C 0.01UF, 50V...
  • Page 94 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C522 F1J2E1020002 C 1000PF, 250V 1 PAVCTH C523 F2A1V470A092 C 47UF 35V C524 F2A1V470A092 C 47UF 35V C601 F1H1H3910006 C 390PF, 50V 1 PAVCTH...
  • Page 95 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C3301 F1J1A106A043 C 10UF, 10V C3302 F1J1A106A043 C 10UF, 10V C3303 F1J1A106A043 C 10UF, 10V C3750 F1G1C104A077 C 0.1UF 16V C4500 ECJ1VB1A105K C 1UF, 10V...
  • Page 96 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4962 F1J1E4740001 C 0.47UF, 25V C4963 F1J1E4740001 C 0.47UF, 25V C4968 F1H1H104A970 C 0.1UF, , 50V C4969 F1J1E105A231 C 1 UF 25V C4977 F1G1H1020008...
  • Page 97 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8014 F1G1C104A077 C 0.1UF 16V C8015 F1G1C104A077 C 0.1UF 16V C8016 F1G1C104A077 C 0.1UF 16V C8017 F1J1A106A087 C 10UF, 10V C8018 F1G1C104A077 C 0.1UF 16V...
  • Page 98 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8219 F1G1C104A077 C 0.1UF 16V C8222 F1G1C104A077 C 0.1UF 16V C8223 F1G1C104A077 C 0.1UF 16V C8224 F1G1C104A077 C 0.1UF 16V C8225 F1G1C104A077 C 0.1UF 16V...
  • Page 99 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8711 F1G1A333A032 C0.033UF, 10V C8712 F1G1H5610004 C 560 pF 50 V C8714 F1J1A475A087 C 4.7UF, 10V C8715 F1J1A106A043 C 10UF, 10V C8716 F1G1C104A077 C 0.1UF 16V...
  • Page 100 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9820 F1J1A106A087 C 10UF, 10V C9822 F1J1A106A087 C 10UF, 10V C9860 F1G1E472A086 C 4700pF 25V C9861 F1J1A475A087 C 4.7UF, 10V C9862 F1K1E106A136 C 10UF, 25V...
  • Page 101 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16061 F1E2J821A002 C 820PF, 630V C16073 F1E2J221A002 C 220PF, 630V C16074 F1E2J221A002 C 220PF, 630V C16101 F1L2J222A022 C 2200PF, 630V C16104 F1H1E470A130 C 47PF, 25V...
  • Page 102 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16603 F1K2J102A014 C 1000PF, 630V C16604 F1K2J102A014 C 1000PF, 630V C16631 F0C2E405A279 C 4.0 UF 250 V C16632 F0C2E405A279 C 4.0 UF 250 V...
  • Page 103 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C17150 ECJ1XC1H102J C 1000PF, J, 50V C17151 ECJ1XC1H102J C 1000PF, J, 50V C17152 ECJ1XC1H102J C 1000PF, J, 50V C17153 ECJ1XC1H102J C 1000PF, J, 50V...
  • Page 104 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D114 B0ACCJ000048 DIODE D115 ERZVGED621 VARISTOR 1 PAVCTH D201 B0AAMT000014 DIODE 1 PAVCTH D202 B0AAMT000014 DIODE 1 PAVCTH D203 DB2J41100L DIODE 1 PAVCTH D204...
  • Page 105 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D703 B0ACCJ000048 DIODE D2820 B3AGB0000065 D2850 B3EB00000056 D2851 B3EB00000056 D2852 B3EB00000056 D2853 B3EB00000056 D4500 B0JCCD000020 DIODE D4510 DZ2J056M0L ZENER DIODE D4671 DZ2J056M0L ZENER DIODE...
  • Page 106 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16401 B0FCCN000003 DIODE D16407 B0JCME000093 DIODE D16411 B0ADCJ000100 DIODE D16413 B0ACCJ000048 DIODE D16421 DA3CF30ACL ZENER DIODE D16430 B0ECKP000055 DIODE D16432 B0ECKP000055 DIODE D16433 B0ECKP000055...
  • Page 107 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16833 B0ECHR000004 DIODE D17101 B0ACCJ000048 DIODE D17102 B0ACCJ000048 DIODE D17103 B0JCCD000020 DIODE D17201 B0ACCJ000048 DIODE D17202 B0ACCJ000048 DIODE D17203 B0JCCD000020 DIODE F100 K5E802YY0002 FUSE...
  • Page 108 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC14603 AN16520A-VT IC14604 AN16520A-VT IC14605 AN16520A-VT IC14606 AN16520A-VT IC14801 AN16520A-VT IC14802 AN16520A-VT IC14803 AN16520A-VT IC14804 AN16520A-VT IC14805 AN16520A-VT IC14806 AN16520A-VT IC14901 C0JBAB000996 IC14902 C0JBAB000996...
  • Page 109 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks JA14 D0GDR00J0004 M 0 OHM, 1/8W JA15 D0GDR00J0004 M 0 OHM, 1/8W JA16 D0GDR00J0004 M 0 OHM, 1/8W JA17 D0GDR00J0004 M 0 OHM, 1/8W...
  • Page 110 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks L4804 G1CR39J00009 INDUCTION COIL 1 (S) L4805 J0JGC0000020 CHIP INDUCTOR 1 (S) L4810 J0JCC0000278 CHIP INDUCTOR L4900 G1C150MA0426 INDUCTION COIL L4901 G1C150MA0426 INDUCTION COIL...
  • Page 111 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks PC700 B3PAA0000363 PC14901 B3PBE0000059 PC14902 B3PBE0000059 PC14903 B3PBE0000050 PC16131 B3PBE0000058 PC16191 B3PBE0000060 PC16251 B3PBA0000498 PC16301 B3PBA0000498 PC16461 B3PBE0000058 PC16462 B3PBE0000060 PC16480 B3PBA0000498 PC16581 B3PBA0000498...
  • Page 112 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q416 DSC5001R0L TRANSISTOR Q417 B1CHND000004 Q418 B1CBGD000001 Q419 DSC5001R0L TRANSISTOR Q420 B1CHND000004 Q421 DSC5001R0L TRANSISTOR Q422 DSC5001R0L TRANSISTOR Q424 B1CBGD000001 Q425 B1CBGD000001 Q426 B1CBGD000001...
  • Page 113 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q16421 B1JBEN000004 TRANSISTOR Q16422 B1JBEN000004 TRANSISTOR Q16423 B1JBEN000004 TRANSISTOR Q16441 DG3C3020CL TRANSISTOR Q16451 DG3C3020CL TRANSISTOR Q16471 B1ABCE000015 TRANSISTOR Q16501 B1HFPFA00001 TRANSISTOR Q16521 B1HFPFA00001 TRANSISTOR...
  • Page 114 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R128 D0GB104JA065 M 100KOHM J 1/10W R129 D1BB1542A055 M15.4KOHM,J.1/10W R130 D1BB5102A055 M 51KOHM,J.1/10W R131 D0GB333JA065 M 33KOHM,J,1/10W R132 D0GB103JA065 M 10K OHM J 1/10W...
  • Page 115 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R301 D0GB103JA065 M 10K OHM J 1/10W R302 D0GZ181JA020 M 180 OHM,J,1/2W R303 D0GB103JA065 M 10K OHM J 1/10W R304 D0GD334JA052 M 330KOHM,J,1/8W 1 PAVCTH...
  • Page 116 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R455 D0GB204JA065 M 200KOHM J 1/10W 1 PAVCTH R456 D0GB103JA065 M 10K OHM J 1/10W R457 D1BB2202A055 M 22KOHM,J.1/10W R458 D1BB3302A055 M 33KOHM,J.1/10W R460 D0GF391JA048 M 390 OHM.
  • Page 117 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R701 D1BB4702A055 M 47KOHM,J.1/10W R702 D1BB4702A055 M 47KOHM,J.1/10W R703 D1BB4702A055 M 47KOHM,J.1/10W R704 D1BB4702A055 M 47KOHM,J.1/10W R705 D1BB2702A055 M 27KOHM,J.1/10W R706 D0GBR00J0004 M 0 OHM J 1/10W...
  • Page 118 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R2810 D0GB470JA065 M 47 OHM,J,1/10W R2811 D0GB104JA065 M 100KOHM J 1/10W R2812 D0GB224JA065 M 220KOHM,J,1/10W R2813 D0GB223JA065 M 22KOHM,J,1/10W R2814 D0GB103JA065 M 10K OHM J 1/10W...
  • Page 119 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R3204 D0GB393JA065 M 39K OHM J 1/10W R3208 D1BB75R0A055 M 75 OHM,J.1/10W R3215 D1BB75R0A055 M 75 OHM,J.1/10W R3216 D1BB75R0A055 M 75 OHM,J.1/10W R3217 D1BB75R0A055 M 75 OHM,J.1/10W...
  • Page 120 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4704 D0GA103JA015 M 10KOHM,J,1/16W R4705 D0GA473JA015 M 47KOHM, J,1/16W R4706 D0GA473JA015 M 47KOHM, J,1/16W R4707 D0GA680JA023 M 68 OHM, J,1/16W R4708 D0GA680JA023 M 68 OHM, J,1/16W...
  • Page 121 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R5648 D0GA103JA015 M 10KOHM,J,1/16W R5652 D1BB2101A087 M 2.1KOHM,J.1/10W R5653 D1BB2402A055 M 24KOHM,J.1/10W R5655 D1BB1001A055 M 1KOHM,J. 1/10W R5660 D0GA472JA023 M 4.7KOHM, J,1/16W R5661 D0GA472JA023 M 4.7KOHM, J,1/16W...
  • Page 122 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8227 EXB28V220J M 22 OHM 1/32 W R8228 EXB28V220J M 22 OHM 1/32 W R8229 EXB28V220J M 22 OHM 1/32 W R8230 D0GA220JA023 M22 OHM, J.1/16 W...
  • Page 123 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8658 D0GA560JA023 M 56 OHM, J,1/16W R8659 D0GA560JA023 M 56 OHM, J,1/16W R8660 D0GA560JA023 M 56 OHM, J,1/16W R8661 D0GA103JA015 M 10KOHM,J,1/16W R8663 D0GA103JA015...
  • Page 124 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8939 D0GA472JA023 M 4.7KOHM, J,1/16W R8940 EXB2HV470JV M 47 OHM 1/16 W R8942 D0GA101JA015 M 100 OHM, J,1/16W R8944 EXB28V560JX M 56 OHM 1/32 W...
  • Page 125 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R14604 D0GD220JA052 M 22 OHM,J,1/8W R14605 D0GB103JA065 M 10K OHM J 1/10W R14901 D0GD331JA052 M 330 OHM,J,1/8W R14902 D0GD331JA052 M 330 OHM,J,1/8W R14904 D0GD3R3JA052 M 3.3 OHM,J,1/8W...
  • Page 126 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16243 D0GB103JA065 M 10K OHM J 1/10W R16244 D0GB273JA065 M 27K OHM J 1/10W R16245 D0GB472JA065 M 4.7KOHM, J,1/10W R16246 D0GD222JA052 M 2.2KOHM,J,1/8W R16252 D0GF563JA048...
  • Page 127 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16512 D0GB473JA065 M 47KOHM J. 1/10W R16517 D0GB473JA065 M 47KOHM J. 1/10W R16522 D0GB101JA065 M 100 OHM,J,1/10W R16525 D0GB4R7JA065 M 4.7 OHM J 1/10W R16526 D0GB4R7JA065 M 4.7 OHM J 1/10W...
  • Page 128 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16661 D0GD100JA059 M 10 OHM,J,1/4W R16662 D1BB1002A087 M 10KOHM,J.1/10W R16663 D1BD9091A077 M 9.09KOHM,D.1/10W R16664 D0GF202JA047 M 2KOHM,J,1/3W R16665 D0GD222JA052 M 2.2KOHM,J,1/8W R16666 D1BB1003A087 M100KOHM,D 1/10W...
  • Page 129 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16898 D1BB1051A055 M1.05KOHM,J.1/10W R16899 D1BB1372A055 M13.7KOHM, 1/10W R16900 D1BB3831A055 M3.83KOHM,D 1/16W R16902 D0GB6R2JA065 M 6.2 OHM J 1/10W R16919 D1BB1582A055 M15.8KOHM, 1/10W R16920 D0GB101JA065...
  • Page 130 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17154 D1BB49R90002 M 49 OHM,J.1/10W R17196 D0GB102JA065 M 1KOHM,J,1/10W R17201 D0GB101JA065 M 100 OHM,J,1/10W R17202 D0GB101JA065 M 100 OHM,J,1/10W R17203 D0GB101JA065 M 100 OHM,J,1/10W...
  • Page 131 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks SN2810 B3JB00000078 SS11 K1KY03B00006 3P CONNECTOR SS33 K1MY20BA0345 20P CONNECTOR SS61 K1MY13BA0343 13P CONNECTOR SS66 K1MY13BA0443 13P CONNECTOR SW2890 K0F126A00003 SWITCH T200 G4DYA0000288 TRANS...
  • Page 132 Model No. : TH-P42VT30M/P/S/V Exploded View 1 S-86...
  • Page 133 Model No. : TH-P42VT30M/P/S/V Exploded View 2 S-87...
  • Page 134 Model No. : TH-P42VT30M/P/S/V Packing 1 S-88...
  • Page 135 Model No. : TH-P42VT30M/P/S/V Packing 2 S-89...
  • Page 136 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks J0KG00000011 FERRITE CORE K0RB00500040 SIDE UNIT ASSY K2AZYH000022 AC-INLET WITH CABLE 1 PAVCTH K2CN3YY00011 AC CORD 1 (V) PAVCTH K2CT3YY00035 AC CORD 1 (M) (S) PAVCTH...
  • Page 137 Model No. : TH-P42VT30M/P/S/V Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TPC4TA04705 CARTON BOX(WITH STAMP) 1 (V) PAVCTH TPC4TA04707 CARTON BOX(WITH STAMP) 1 (M) PAVCTH TPC4TA04708 CARTON BOX(WITH STAMP) 1 (P) PAVCTH TPD4TA0043 PEDESTAL CUSHION...

This manual is also suitable for:

Th-p42vt30pTh-p42vt30sTh-p42vt30v

Table of Contents
