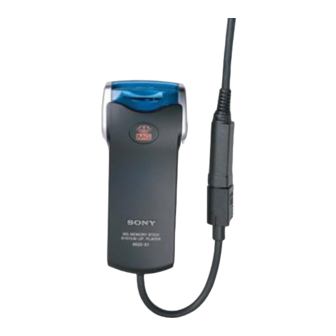

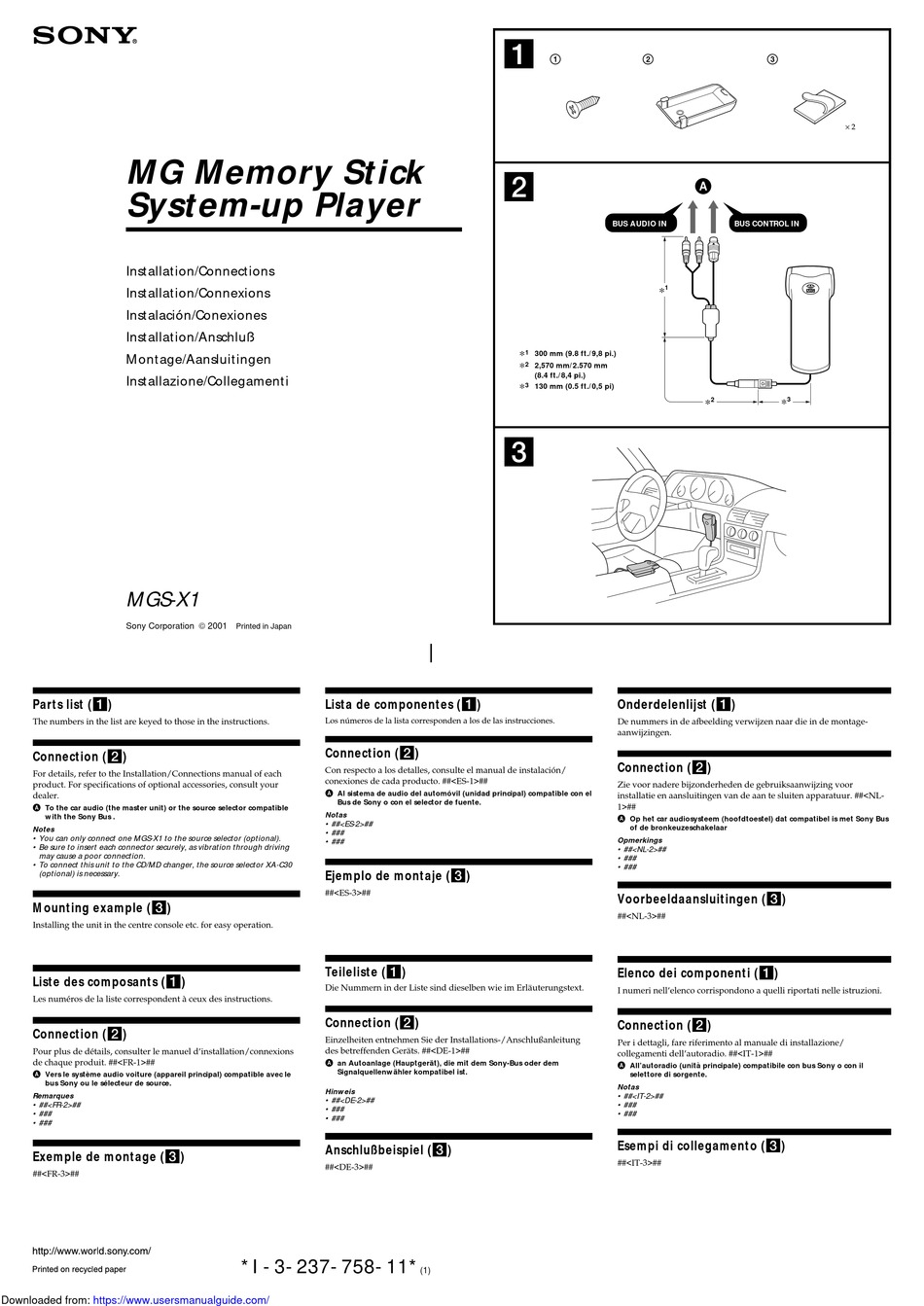

M G M emory St ick
Syst em-up Player
Inst allat ion/Connect ions
Inst allat ion/Connexions
Inst alación/Conexiones
Inst allat ion/Anschluß
M ont age/Aansluit ingen
Inst allazione/Collegament i
M GS-X1
Sony Corporation © 2001
Part s list (1)
The numbers in the list are keyed to those in the instructions.
Connect ion (2)
For details, refer to the Installation/Connections manual of each
product. For specifications of optional accessories, consult your
dealer.
A To the car audio (the master unit) or the source selector compatible
w ith the Sony Bus .
Notes
• You can only connect one M GS-X1 t o t he source select or (opt ional).
• Be sure t o insert each connect or securely, as vibrat ion t hrough driving
may cause a poor connect ion.
• To connect t his unit t o t he CD/M D changer, t he source select or XA-C30
(opt ional) is necessary.
M ount ing exam ple (3)
Installing the unit in the centre console etc. for easy operation.
List e des com posant s (1)
Les numéros de la liste correspondent à ceux des instructions.
Connect ion (2)
Pour plus de détails, consulter le manuel d'installation/connexions
de chaque produit. ##<FR-1>##
A Vers le système audio voiture (appareil principal) compatible avec le
bus Sony ou le sélecteur de source.
Remarques
• ##<FR-2>##
• ###
• ###
Exem ple de m ont age (3)
##<FR-3>##
