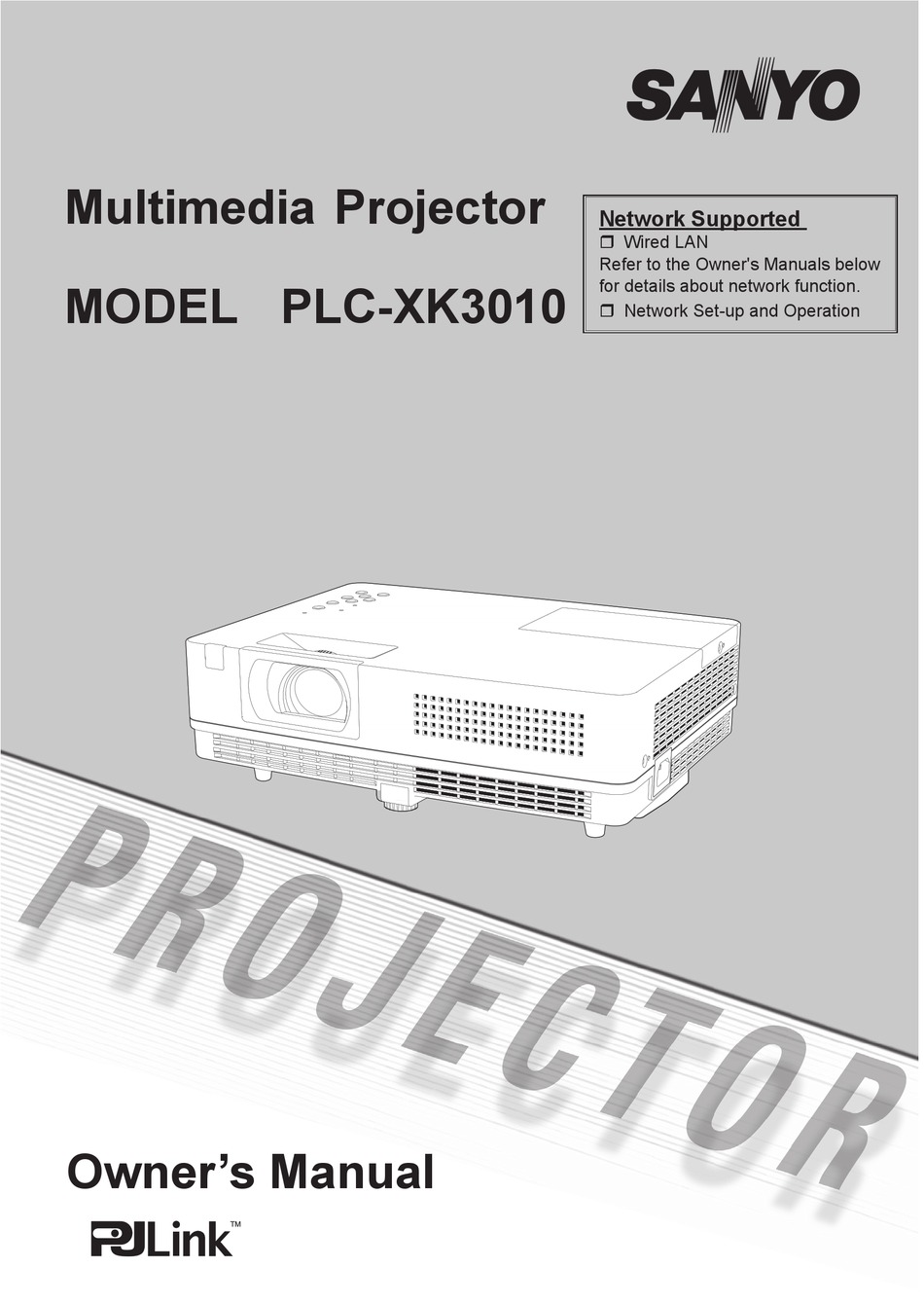

Multimedia Projector

MODEL PLC-XK3010

Owner's Manual

Network Supported

 Wired LAN

Refer to the Owner's Manuals below

for details about network function.

Network Set-up and Operation



Table of Contents

Summary of Contents for Sanyo PLC-XK3010

Page 1 Multimedia Projector MODEL PLC-XK3010 Owner’s Manual Network Supported  Wired LAN Refer to the Owner's Manuals below for details about network function. Network Set-up and Operation ...
Page 2: Features And Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ♦ Compact Design This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use. ♦ Simple Computer System Setting The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.8). Up to WUXGA resolution can be accepted. ♦ Useful Functions for Presentations - The digital zoom function allows you to focus on the crucial information during a presentation (p.35). - The MIC function and 10W audio output allows you to make a presentation without any external audio equipment (p.4). ♦ Lamp Control Brightness of the projection lamp can be selected (pp.5, 5). ♦ Direct OFF Function With the Direct OFF function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection (p.0). ♦ Logo Function The Logo function allows you to customize the screen logo (pp.46-48). You can capture an image for the screen logo and use it for the starting-up display or between presentations. ♦ Multilanguage Menu Display Operation menu is available in 0 languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish,...
Page 3: Table Of Contents
Features and Design . . . . . . . . . . . . . . 2 Table of Contents . . . . . . . . . . . . . . . . . 3 To the Owner .
Page 4: To The Owner
Before installing and operating this projector, read this manual thoroughly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section on pages 63-65 of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT. THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT. FOR EU USERS The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world. Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused. The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end- of-life, should be disposed of separately from your household waste.
Page 5: Safety Instructions
All the safety and operating instructions should be read before the product is operated. Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Follow all warnings and instructions marked on the projector. For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges. Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc... Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturers. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating. The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register. This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.
Page 6: Air Circulation
Safety Instructions Air Circulation Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. – Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes. – Keep the exhaust vent at least 3’ (1 m) away from any objects. – Do not touch a peripheral part of the exhaust vent, especially screws and metallic parts. These areas will become hot while the projector is being used. – Do not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat. – Make sure that there is no object under the projector to prevent from covering the bottom openings. Cooling fans are provided to cool down the projector. The fans’ running speed is changed according to the temperature inside the projector. Air Intake Vent (Filter) Air Intake Vent Exhaust Vent (Hot air exhaust) Installing the Projector in Proper Position Install the projector properly. Improper installation may reduce the lamp life and cause a fire hazard. Do not tilt the projector more than 0 20° degrees from side to side. 20°...
Page 7: Compliance
– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : PLC-XK3010 Trade Name : Sanyo Responsible party : SANYO NORTH AMERICA CORPORATION Address : 1605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-73 The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).
Page 8: Part Names And Functions
Front ① ② ③ ④ ⑤ ⑥ ⑦ Back ⑨ ⑫ ⑬ ⑬ Bottom ⑭ ⑮ Part Names and Functions ① Top controls and Indicators ② Zoom Ring ③ Focus Ring ④ Speaker ⑤ Infrared Remote Receiver ⑥ Projection Lens ⑦ Lens Cap (See page 60 for attaching.) CAUTION Do not turn on a projector with lens cap attached. High temperature from light beam may damage lens cap and result in fire hazard.
Page 9: Rear Terminal
① ① CONTROL PORT When the projector is controlled by a computer, connect to this jack with serial control cable. ② COMPUTER IN 1 /S-VIDEO IN / COMPONENT IN Connect output signal from a computer, component video output, RGB scart 1- pin video output or S-video output to this terminal. (pp.14-16). ③ COMPUTER IN 2 / MONITOR OUT – Connect analog RGB output signal from a computer to this terminal (p.14). – This terminal can be used to output the incoming analog RGB and Component signal from COMPUTER IN 1 /S-VIDEO IN /COMPONENT IN terminal to the other monitor (pp.14,16). ④ VIDEO IN Connect the composite video output signal to this jack (p.15). Part Names and Functions Rear Terminal ② ③ ⑤ LAN Connection Terminal Connect the LAN cable (refer to the owner’s manual of “Network Set-up and Operation”).
Page 10: Top Control
Part Names and Functions ① SELECT button – Execute the selected item (p.1). – Expand or compress the image in the Digital zoom mode (p.35). ② POINT ▲▼◄► (VOLUME +/–) buttons – Select an item or adjust the value in the On- Screen Menu (p.1). – Pan the image in the Digital zoom +/- mode (p.35). – Adjust the volume level (Point ◄►buttons) (p.4). ③ AUTO SETUP button Execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu. (pp.3, 45). ④ ON/STAND–BY button Turn the projector on or off (pp.18-0). Top Control ⑧ ⑦ ⑥ ⑤ POWER indicator – Lights red when the projector is in stand-by mode. – Lights green during operations. – Blinks green in the Power management mode (p.49). ⑥...
Page 11: Remote Control
② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ① ON/STAND-BY button Turn the projector on or off. (pp.18-0) ② AUTO SET button Execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu. (pp.3, 45) Note: To ensure safe operation, please observe the following precautions: – Do not bend, drop or expose the remote control to moisture or heat. – For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any chemical material. Part Names and Functions Remote Control ③ COMPUTER 1/2 buttons Select the COMPUTER 1 or COMPUTER input source. (pp.7, 37) ① ④ VIDEO button Select the VIDEO input source. (p.36) ⑤ S-VIDEO button Select the S-VIDEO input source. (p.36) ⑳...
Page 12: Remote Control Battery Installation
Part Names and Functions Remote Control Battery Installation Open the battery compartment lid. To ensure safe operation, please observe the following precautions : ● Use two (2) AAA or LR03 type alkaline batteries. ● Always replace batteries in sets. ● Do not use a new battery with a used battery. ● Avoid contact with water or liquid. ● Do not expose the remote control to moisture or heat. ● Do not drop the remote control. ● If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries. ● Risk of an explosion if battery is replaced by an incorrect type. ● Dispose of used batteries according to the instructions or your local disposal rule or guidelines. Point the remote control toward the projector (Infrared Remote Receiver) when pressing the buttons. Maximum operating range for the remote control is about 16.4'(5 m) and 60 degrees in front of the projector. The different remote control codes (Code 1–Code ) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See "Remote control" in the Setting Menu on page 5. Press and hold the MENU and IMAGE buttons for more than five seconds to switch between the Code 1 and Code 2. The initial code is set to Code 1. Install new batteries into the compartment. Two AAA size batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.
Page 13: Installation
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. Note: • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image. • All measurements are approximate and may vary from the actual sizes. A : B = 6:1 9.5'(2.9m) 3.6'(1.1m) 40" Screen Size 40” (W x H) mm 813 x 610 4 : 3 aspect ratio 3.6'(1.1m) Zoom (max) 4.5'(1.4m) Zoom (min) Projection angle can be adjusted up to 10.0 degrees with the adjustable foot.
Page 14: Connecting To A Computer
Installation Cables used for connection • VGA Cables (Mini D-sub 15 pin) *(Only one cable is supplied.) • Audio Cables (*One cable is supplied; other cables are not supplied with the projector.) Audio Output Audio cable (stereo) COMPUTER IN 1 / S-VIDEO IN /COMPONENT IN AUDIO IN (PC or MIC) Note: • When the MIC function is set to Off in the Sound menu, the MIC function is disabled. •When MIC is set to On in Sound Menu, AUDIO IN (PC/MIC) and AUDIO IN(L/R) terminals can be connected at the same time. At this time, AUDIO IN (PC/MIC) termianl as MIC input, AUDIO IN(L/R) terminal is as COMPUTER or VIDEO audio input. • I nput sound to the AUDIO IN terminal when using the COMPUTER IN 1/ S-VIDEO IN / COMPONENT IN and the COMPUTER IN /MONITOR OUT terminals as input. • W hen the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. •When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1 /S-VIDEO IN/ COMPONENT IN and not the COMPUTER IN /MONITOR OUT. Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Connecting to a Computer Monitor Input Monitor or Audio Output Output Monitor Output When using AUDIO IN(PC/MIC) terminal as MIC input, connect to this...
Page 15: Connecting To Video Equipment
Connecting to Video Equipment Cables used for connection • Video Cable • S-video Cable • S-video-VGA Cable • Audio Cables (Cables are not supplied with the projector. ) Audio output MIC S-video Output S-video cable Audio cable S-video- (stereo) VGA cable AUDIO IN COMPUTER IN 1 (PC or MIC) / S-VIDEO IN /COMPONENT IN Note: •When the MIC function is set to Off in the Sound menu, the MIC function is disabled. • W hen the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. • S ee page 7 for ordering optional cables. Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. output Audio Output Composite Video Audio Audio cable Video cable (stereo) cable (stereo)
Page 16: Connecting To Component Video And Rgb (Scart) Equipment
Installation Connecting to Component Video and RGB (Scart) Equipment Cables used for connection • Audio Cables • Scart-VGA Cable • Component Cable • Component-VGA Cable (Cables are not supplied with this projector.) Audio Output RGB Scart 1- pin Output Scart- Audio VGA cable cable (stereo) AUDIO IN COMPUTER IN 1/ S-VIDEO IN / COMPONENT IN Note: • W hen using MIC function, see page 14 for detail about connection. • W hen the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. • S ee page 7 for ordering optional cables. Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Component Video Output (Y, Pb/Cb, Pr/Cr) Component Audio Input cable Audio cable (stereo) Component- VGA cable AUDIO OUT...
Page 17: Connecting The Ac Power Cord
Connecting the AC Power Cord This projector uses nominal input voltages of 100-40 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service center. Connect the projector with all peripheral equipment before turning the projector on. CAUTION The AC outlet must be near this equipment and must be easily accessible. Note: Unplug the AC power cord when the projector is not in use. When this projector is connected to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power. NOTE ON THE POWER CORD AC power cord must meet requirement of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer. Projector side For the U.S.A. and Canada To power cord To the AC outlet. connector on your (120 V AC) projector. Connect the AC power cord (supplied) to the projector. AC outlet side For Continental Europe Ground  To the AC outlet.
Page 18: Basic Operation
Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red. Open the lens cap. Press the ON/STAND-BY button on the top control or on the remote control. The POWER indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the countdown starts. After the countdown, the input source that was selected the last time and the lamp control status icon (see page 5) appear on the screen. If there is no signal input when start on the projector, or the current signal is missed while operating the projector, the Video/PC selection window will be displayed on the screen, please move the pointer to input source desired by pressing the Point ▲▼ buttons and press the SELECT button. And then follow the input signal guidance window to correct the signal and connection. If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed on the next page. Note: • When the Logo select function is set to Off, the logo will not be shown on the screen (p.46).
Page 19 Enter a PIN code Use the Point ▲▼ buttons to enter a number. Press the Point ► button to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄ button to move the pointer to the number you want to correct, and then enter the correct number. Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to “Set”. Press the SELECT button so that you can start to operate the projector. If you entered an incorrect PIN code, PIN code and the number () will turn red for a moment. Enter the correct PIN code all over again. What is PIN code? PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector. A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 53-54 for locking operation of the projector with your PIN code. Note:  • If the PIN code number is not entered or wrong PIN code number is entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.
Page 20: Turning Off The Projector 0
Basic Operation Press the ON/STAND-BY button on the top control or on the remote control, and Power off? appears on the screen. Press the ON/STAND-BY button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of fans’ quietness and speed. See “Fan” on page 55.) At this time, you can unplug the AC power cord even if the fans are still running. When the projector has cooled down enough, the POWER indicator stops blinking and you can turn on the projector. TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROjECTOR ON, WAIT AT LEAST FIVE MINUTES BEFORE TURNING IT OFF . DO NOT OPERATE THE PROjECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROjECTOR AND LET STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS. Note: • When the Direct on function is set to On, the projector will be turned on automatically by connecting the AC power cord to an AC outlet (p.49).
Page 21: How To Operate The On-Screen Menu 1
How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual. Press the MENU button on the top control or the remote control to display the On-Screen Menu.
Page 22: Menu Bar
Basic Operation For detailed functions of each menu, see “Menu Tree” on pages 67-68. Main Menu ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① Input Used to select an input source from Computer 1, Computer 2 or Video (pp.7, 36-37). ② PC adjust Select Auto PC adj., Fine sync, Total dots, Horizontal, Vertical, Current mode, Clamp, Display area- H and Display area-V to adjust the parameters to match with the PC input signal format (pp.9-31). ③ Image select Used to select an image mode from among Dynamic, Standard, Real, Cinema, Blackboard(Green), Colorboard and Image 1-4. (pp.3, 39) ④ Image adjust For computer source, used to adjust computer image [Contrast, Brightness, Iris, Color temp ., White balance (R/G/B), Sharpness, Gamma, Reset and Store] (p.33). For Video source, used to adjust picture image [Contrast, Brightness, Color, Tint, Iris, Color temp ., White balance (R/G/B), Sharpness, Gamma, Noise reduction, Progressive, Reset and Store] (pp.40- 41). ⑤ Screen For computer source, used to adjust size of the image [ Normal, Full, Wide(16:9), Zoom, True, Custom, Custom adj., Digital zoom +/– , Keystone, Ceiling, Rear and Reset] (pp.34-35).
Page 23: Zoom And Focus Adjustment 3
Rotate the Zoom Ring to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu by just pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. Refer to page 45 for the setting of the Auto setup function. Note: • Auto Keystone corrects vertical distortion only; it does not correct horizontal distortion. • Auto Keystone cannot work when Ceiling feature is set to On in the Setting menu (pp.35,43). • Perfect correction of the image distortion cannot be ensured with the Auto setup function. If the distortion cannot be corrected properly by pressing the AUTO SETUP or AUTO SET button, adjust manually by pressing the KEYSTONE button on the remote control or selecting Keystone in the Screen menu (pp.35,43). • Fine sync, Total dots, Horizontal and Vertical position of some computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.30- 31). Keystone Correction If a projected picture still has keystone distortion after pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control, correct the image manually as follows: Press the KEYSTONE button on the remote control. The Keystone dialog box appears. Use the Point ▲▼ buttons to correct keystone distortion. The keystone adjustment can be stored (see pages 35,43). Reduce the upper width Reduce the lower width with the Point ▲ button. with the Point ▼ button. Zoom and Focus Adjustment Auto Setup Function Top Control...
Page 24: Sound Adjustment 4
Basic Operation Direct Operation Volume Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Mute Press the MUTE button on the remote control to select On to temporarily turn off the sound. To turn the sound back on, press the MUTE button again to select Off or press the VOLUME +/– buttons. The Mute function is also effective for the AUDIO OUT jack. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Sound. Press the Point ► or the SELECT button to access the submenu items. Use the Point ▲▼ buttons to select the desired submenu item and press the SELECT button to access the selected item. Volume Press the Point ► button to turn up the volume; Press the Point ◄ button to turn down the volume. Mute Press the SELECT button to switch the mute function On/ Off. When the sound is turned off, On is displayed. Press the VOLUME +/– buttons again or adjust MIC gain’s volume to turn the sound back on. Use the Point ▲▼ buttons to switch the MIC function On/Off, and then press the SELECT button. When On is selected, the synthesis volume (MIC and RCA) is output. MIC gain Press the Point ► button to turn up the MIC mixing gain; Press the Point ◄ button to turn down the MIC mixing gain. Standby MIC out When setting the Standby MIC out function to On and in Standby mode status, only MIC input volume can be output. Note: • When Off is selected in MIC function, the MIC gain and Standby MIC out functions are...
Page 25: Remote Control Operation 5
Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER 1/2, VIDEO, S-VIDEO and COMPONENT buttons Press the COMPUTER 1/, VIDEO, S-VIDEO and COMPONENT buttons on the remote control to select the input source. See pages 7, 36-37 for details. FREEZE button Press the FREEZE button on the remote control to freeze the picture on the screen, meanwhile, volume is muted. To cancel the Freeze function, press the FREEZE button again or press any other button. Fig.1 will appear on the screen while the Freeze function is working. Fig.1 INFO. button Display the input source information: Input, H-sync freq., V-sync freq., Screen, Language, Lamp status, Lamp counter, Power management, Key lock, PIN code lock, Remote control and SERIAL NO. (p.57). D.ZOOM buttons Press the D.ZOOM buttons on the remote control to enter to the Digital zoom +/– mode. See page 35 for details. LAMP button Press the LAMP button on the remote control to select the lamp mode for changing the brightness on the screen. High ... Brighter than the Normal mode. Normal .. Normal brightness Eco ... Lower brightness reduces the lamp power consumption and extends the lamp life.
Page 26 Basic Operation NO SHOW button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as User in the Logo selection (p. 46), the screen changes each time you press the NO SHOW button as follows. black out→ the captured image → normal → • • • • • Note: When use the MUTE button to release the No Show function, the mute function can not be operated at the same time. P-TIMER button Press the P-TIMER button on the remote control to operate the Count up/Count down function. Refer to p.50 for detail of Setting for the P-timer function. To stop the count time, press the P-TIMER button. To cancel the P-timer function, press and hold the P- TIMER button. IMAGE button Press the IMAGE button on the remote control to select a desired image mode of the screen. See pages 3, 39 for details. SCREEN button Select the screen size (See pages 34-35, 4-43 for details). Remote Control Note: See the previous page for the description of other buttons. No Show No show disappears after 4 seconds. P-Timer SCREEN button P-TIMER button NO SHOW button IMAGE button...
Page 27: Computer Input
Input Source Selection (RGB: Computer 1/Computer 2) Direct Operation Choose either Computer 1(RGB) or Computer 2(RGB) by pressing the COMPUTER 1 or COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below. Remote Control COMPUTER 1 button COMPUTER 2 button Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select Computer 1. Use the Point ▲▼ buttons to select Computer 2 and then press the SELECT button. When Computer 1 is selected, press the Point ► button to access the submenu items. Use the Point ▲▼ buttons to select the RGB input source and then press the SELECT button. Note: When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched automatically (p.45).
Page 28: Computer System Selection 8
Computer Input This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on page 70.) One of the following messages may appear when: When the projector cannot recognize Auto the connected signal conforming to the provided PC systems, Auto is displayed on the System Menu box and the Auto PC Adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required (pp. 30-31). There is no signal input from the ----- computer. Check the connection between your computer and the projector. (See “Troubleshooting” on p. 63.) The preset system is manually adjusted in Mode 1 the PC adjust Menu. The adjusted data can be stored in Mode 1–10 (pp. 30-31). PC Systems provided in this projector is SVGA 1 chosen. The projector chooses a proper system provided in the projector and displays it. *Mode 1 and SVGA 1 are examples. Selecting Computer System Manually PC system can also be selected manually. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select System and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired system and then press the SELECT button. Computer System Selection PC System Menu PC System Menu...
Page 29: Auto Pc Adjustment 9
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Menu Operation Auto PC adj. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select PC adjust and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select Auto PC adj. and then press the SELECT button. To store adjustment parameters The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–10) in the PC System Menu (see page 8). See also “Store” on page 31. Note:  • Fine sync, Total dots, Horizontal and Vertical position of some computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp. 30- 31).
Page 30: Manual Pc Adjustment
Computer Input Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select PC adjust and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value. Fine sync Use the Point ◄► buttons to adjust the value, eliminating a flicker from the image displayed (from 0 to 31). Total dots Use the Point ◄► buttons to adjust the number of total dots in one horizontal period to match your PC image. Horizontal Use the Point ◄► buttons to adjust the horizontal picture position. Vertical Use the Point ◄► buttons to adjust the vertical picture position. Current mode Press the SELECT button to show H-sync freq. and V- sync freq. of the connected computer. Clamp Use the Point ◄► buttons to adjust the clamp level. When the image has dark bars, try this adjustment. Display area H Use the Point ◄► buttons to adjust the horizontal area displayed by this projector.
Page 31 Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures. Mode free To clear the stored data, select Mode free and then press the Point ► or the SELECT button. Move the highlight to the Mode that you want to clear and then press the SELECT button. Store To store the adjusted data, select Store and then press the Point ► or the SELECT button. Move the highlight to one of the Modes 1 to 10 in which you want to store, and then press the SELECT button. Note:  • Display area (H/V) cannot be selected when 480i, 575i, 480p, 575p, 720p, 1035i or 1080i is selected in the PC System Menu (p.8). • When input computer signal to the projector, PC adjust will become available. Computer Input Mode free This Mode has stored...
Page 32: Image Mode Selection
Computer Input Direct Operation Select the desired image mode among Dynamic, Standard, Real, Cinema, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3 and Image 4 by pressing the IMAGE button on the remote control. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Real Picture mode with improved halftone for graphics. Cinema Picture mode adjusted with fine tone. Blackboard (Green) For the image projected on a blackboard. This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board. Colorboard At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors. Image 1–4 For viewing with the user preset image mode in the Image Adjust Menu (see page 33). Image Mode Selection Remote Control IMAGE button Image select Menu IMAGE button Dynamic Standard Real...
Page 33: Image Adjustment
Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value. Contrast Press the Point ◄ button to decrease the contrast; press the Point ►button to increase the contrast (from 0 to 63). Brightness Press the Point ◄ button to decrease the brightness; press the Point ►button to increase the brightness (from 0 to 63). Iris Press the Point ◄► buttons to select Off or On. Off ... Disabled. On ... The iris function is activated. Color temp . Use the Point ◄► buttons to select the desired Color temp. level (XLow, Low, Mid, or High). White balance (Red / Green / Blue) Press the Point ◄ button to lighten R/G/B tone; press the Point ► button to deepen R/G/B tone (from 0 to 63). Sharpness Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness of the image (from 0 to 15). Gamma Use the Point ◄► buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15). Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures. Store To store the adjusted data, select Store and press the Point ► or the SELECT button. Use the Point ▲▼...
Page 34: Screen Size Adjustment
Computer Input This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons select the desired item and then press the SELECT button . Normal Provide the image to fit the screen size. Full Provide the full screen image. Wide (16:9) Provide the image at the 16:9 wide screen ratio. Zoom Scale the image proportionally to fit the entire screen. Either side of image may go over the screen. True Provide the image in its original size. When the original image size is larger or smaller than the screen size (104 x 768), the projector enters to the panning mode automatically. Use the Point ▲▼◄► buttons to pan the image. When adjusted, the arrows will turn red.
Page 35 Digital zoom + Select Digital zoom +. The On-Screen Menu disappears and D. zoom + appears. Press the SELECT button to expand the image size. Use the Point ▲▼◄► buttons to pan the image. The Panning function can work only when the image is larger than the screen size. A projected image can be also expanded by pressing the D.ZOOM ▲ or the SELECT button on the remote control. Digital zoom – Select Digital zoom –. The On-Screen Menu disappears and D. zoom – appears. Press the SELECT button to compress image size. The projected image can be also compressed by pressing the D.ZOOM ▼ or the SELECT button on the remote control. To exit the Digital zoom +/– mode, press any button except the D.ZOOM ▲▼ buttons, SELECT and Point buttons. To return to the previous screen size, select a screen size from the Screen Size Adjustment Menu or select an input source from the Input Source Selection Menu (see page 7) again, or adjust the screen size with the D.ZOOM ▲▼ buttons. Keystone This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Keystone T o correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.3). Store or Reset T o store or reset the keystone correction, press the Point ► button. Store ... K eep the keystone correction even when the AC power cord is unplugged.
Page 36: Video Input
Input Source Selection (Video, S-video) Direct Operation Choose Video or S-video by pressing the VIDEO or the S-VIDEO button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select Video and then press the SELECT button. When video input signal is connected to the Video VIDEO jack, select Video. Use the Point ▲▼ buttons to select Computer 1. And then press the Point ► button to access the submenu items. Use the Point ▲▼ buttons to select the S-video and then press the SELECT button. When the input source is coming from video S-video equipment connected to the COMPUTER IN 1/S-VIDEO IN/COMPONENT IN terminal with a S-video-VGA cable, select S-video. Note:  When the Input Search function is set to On 1 or On 2 in the Auto setup function, the input signal will be searched automatically (p.45).
Page 37: Input Source Selection
Input Source Selection (Component, RGB Scart 21-pin) Direct Operation Choose Computer 1(Component) or Computer 1(Scart) by pressing the COMPONENT or the COMPUTER 1 button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below. Remote Control COMPUTER 1 button Computer 1(RGB) Computer 1(Scart) COMPONENT button Computer 1(Component) Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select Computer 1 and then press the Point ► button. Use the Point ▲▼ buttons to select Component or RGB(Scart) and then press the SELECT button. When the input source is coming Component from video equipment connected to the COMPUTER IN 1/S-VIDEO IN/COMPONENT IN terminal with a Component-VGA Cable, select Component. When the input source is coming RGB (Scart) from video equipment connected to the COMPUTER IN 1/S-VIDEO IN/COMPONENT IN terminal with a Scart-VGA Cable, select RGB (Scart). Note:  When the Input Search function is set to On 1 or On 2, the input signal will be searched automatically (p.45). Video Input Input Menu Press the Point ▲▼ buttons...
Page 38: Video System Selection
Video Input Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Select Video, Computer 1(S-video) or Computer 1(Component) input source. (See pages 36-37) Use the Point ▲▼ buttons to select System and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired system and then press the SELECT button. Video or S-video Auto The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select the system manually. PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4.43, PAL-M and PAL-N. Component Auto The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i. Note: The AV System Menu cannot be selected when selecting RGB (Scart). Video System Selection AV System Menu (Video or S-video) AV System Menu (Component)
Page 39: Image Mode Selection
Direct Operation Select the desired image mode among Dynamic, Standard, Real, Cinema, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3 and Image 4 by pressing the IMAGE button on the remote control. Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button. Dynamic For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. Real Picture mode with improved halftone for graphics. Cinema Picture mode adjusted with fine tone. Blackboard (Green) For the image projected on a blackboard. This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board. Colorboard At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors. Image 1–4 For viewing with the user preset image mode in the Image Adjust Menu (see page 41). Image Mode Selection Remote Control IMAGE button Image select Menu Video Input IMAGE button Dynamic Standard Real...
Page 40: Image Adjustment
Video Input Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value. Contrast Press the Point ◄ button to decrease the contrast; press the Point ► button to increase the contrast (from 0 to 63). Brightness Press the Point ◄ button to decrease the brightness; press the Point ► button to increase the brightness (from 0 to 63). Color Press the Point ◄ button decrease the intensity of the color; press the Point ► button increase the intensity of the color (from 0 to 63). Tint Press the Point ◄► buttons to adjust the tint value to get a proper color balance (from 0 to 63). Iris Press the Point ◄► buttons to select Off or On. Off ... Disabled. On ... The iris function is activated. Color temp . Use the Point ◄► buttons to select the desired Color temp. level (XLow, Low, Mid or High). White balance (Red / Green / Blue) Press the Point ◄ button to lighten R/G/B tone; press the Point ► button to deepen R/G/B tone (from 0 to 63). Sharpness Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness of the image (from 0 to 15). Gamma Use the Point ◄► buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15).
Page 41: Noise Reduction
Noise reduction Noise interference on the screen can be reduced. Select one of the following options to get smoother images. Off ... Disabled. L 1 ... Lower reduction L 2 ... Higher reduction Progressive An interlaced video signal can be displayed in progressive mode. Select one of the following options. Off ... Disabled. L 1 ... For an active picture. L 2 ... For a still picture. Film ... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality. Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures. Store To store the adjusted data, select Store and press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select one from Image 1 to 4 and press the SELECT button. A confirmation box appears and then select Yes. Stored data can be called up by selecting an Image (1–4) in the Image Mode Selection on page 39. Note:  Noise reduction and Progressive can not be selected when the input signal is 480p, 575p, 720p, 1035i or 1080i (p.38).
Page 42: Screen Size Adjustment
Video Input This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons select the desired item and then press the SELECT button. Normal Provide the image to fit the screen size while maintaining the aspect ratio of the input signal. Full Provide the full screen image. Wide (16:9) Provide the image at the 16:9 wide screen ratio. Zoom Pan the horizontal direction of the image and cut the vertical direction of the image to fit the screen size (16:9). Only for 4:3 video aspect ratio signals. Custom Provide the last stored aspect screen image. Custom adj . Adjust the screen scale and position manually with this function. Press the Point ► button at Custom adj . and the Custom adjustment menu is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust. Scale H/V ... Adjust the Horizontal/Vertical screen scale. H&V ... When set to On, the aspect ratio is fixed. The Scale V appears dimmed and becomes unavailable. Adjust Scale H, then the screen scale is automatically modified based on the aspect ratio.
Page 43 Keystone This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Keystone T o correct keystone distortion, press the SELECT button. Keystone appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p. 3). Store or Reset T o store or reset the keystone correction, press the Point ► button. Store ... K eep the keystone correction even when the AC power cord is unplugged. Reset .. R elease the keystone correction when the AC power cord is unplugged. Ceiling When this function is set to On, the picture will be top/ bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen. Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures. Video Input Keystone Ceiling...
Page 44: Setting
This projector has a Setting menu that allows you to set up the other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ buttons to select Setting and press the Point ► or the SELECT button to access the submenu items. Use the Point ▲▼ buttons to select the desired item and then press the Point ► or the SELECT button to access the selected item. Use the Point ▲▼ buttons select the desired item and then press the SELECT button. Language The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Turkish, Kazakh, Vietnamese, Chinese, Korean, Japanese and Thai. Menu position This function is used to change the position of the On- Screen Menu. Select Menu position and press SELECT button. The Menu position changes each time you press SELECT button as follows. the center → the bottom left → the bottom right → the top left → the top right→... Setting Setting Setting Menu Language the...
Page 45 Auto setup This function enables Input search, Auto Keystone correction and Auto PC adjustment by pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. Settings for those functions can be altered as follows: Input search This function detects the input signal automatically. When a signal is found, the search will stop. Use the Point ▲▼ buttons to select one of the following options. Off ... Input search does not work. On 1... Input search works under the following situation. – When pressing the AUTO SETUP button on the top control. – When pressing the AUTO SET button on the remote control. On 2... Input search works under the following situation. – When turning on the projector by pressing the ON/STAND-BY button on the top control or the remote control. – When pressing the AUTO SET button on the remote control. – When pressing the AUTO SETUP button on the top control.
Page 46 Setting Background Select the background screen for when no input signal is detected. Press the Point ▲▼ buttons to switch between each option. Blue . . . Project a blue background. User . . . Project an image captured in the Logo setting. Black . . Project a black background. Display This function decides whether to display On-Screen Displays. On... Show all the On-Screen displays. Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is in this option. Countdown Off... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough. Off ... Hide the On-Screen Displays except; ● On-Screen Menu. ● Power off? (p. 0) ● P-Timer display. (p. 6) ● No signal for Power management (p. 49) ● Please wait .
Page 47 Capture This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations. Select Capture and press the SELECT button. A confirmation box appears and select Yes to capture the projected image. After capturing the projected image, go to the Logo select function and set it to User. Then the captured image will be displayed the next time you turn on the projector or when you press the NO SHOW button. (see page 6) To cancel the capture function, select Yes in the "Quit?" confirmation box. Note: • Before capturing an image, select Standard in the Image select Menu to capture a proper image (pp. 3, 39). • A signal from a computer can be captured up to XGA (104 x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i. • When capturing the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction.
Page 48 Setting Enter a Logo PIN code Use the Point ▲▼ buttons to enter a number. Press the Point ◄► buttons to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄► buttons to move the pointer to the number you want to correct, and then enter the correct number. Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to Set. Press the SELECT button so that you can start to operate the projector. If you entered an incorrect Logo PIN code, Logo PIN code and the number () will turn red for a moment. Enter the correct Logo PIN code all over again. Change the Logo PIN code lock setting Use the Point ▲▼ buttons to switch On or Off, and then press the SELECT button to make a choice. Logo PIN code change Logo PIN code can be changed to your desired four- digit number. Press the SELECT button to select Logo PIN code change. Current logo PIN code dialog box appears, use the Point ▲▼buttons to enter the correct code. The New Logo PIN code input dialog box appears. Set a new Logo PIN code, confirmation box appears, choose Yes to set the new Logo PIN code. Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting. CAUTION: WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 75 , AND KEEP IT SECURELY. SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE LOGO PIN CODE SETTING CAN NO LONGER BE CHANGED. Enter a Logo PIN code Logo PIN code After a correct Logo PIN code is entered, the following dialog box appears.
Page 49: Power Management
Terminal The COMPUTER IN /MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 9) Select Computer 2 or Monitor Out with the Point ▲▼ buttons. Computer 2 . . computer input Monitor Out . . monitor out Terminal function is not available when selecting Computer 2 to the input source. Change the input source to the others (Computer 1, and so on) so that the Terminal function will be available. (pp.5, 36, 37) Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Select one of the following options: Ready .. When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control is pressed. Shut down ... When the lamp has been fully cooled down, the power will be turned off.
Page 50 Setting Standby mode This function is available when operating the projector via network. Network ... Supply the power to the network function even after turning off the projector by pressing the ON/STAND-BY button on the remote control. You can turn on/off the projector via network, modify network environment, and receive an e-mail about projector status while the projector is powered off. Eco ... Select Eco when you do not use the projector via network. The projector’s network function will stop when turning off the projector, you can not turn on the projector via network. Refer to the owner’s manual of “Network Set-up and Operation”. Note:  • When selecting Network, the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off. • When Eco mode is selected and the projector is in Stand-by, the communication of RS- 3C serial port is not available. P-timer This function allows you to change the setting of the P- timer and execute it. Select one of the following options: Count up .. The P-timer display 000:00 appears on the screen and the count starts (000:00–180:00) Count down .
Page 51 Closed Caption Closed Caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select buttons to select Off, CC1, CC2, CC3 or CC4. If the closed caption is not clear, you can change the f the closed caption is not clear, you can change the text from Color to White. Note:  The Closed Caption is available only under the situation below. . • When the input signal is Component (for adjustment only), Video or S-video, and the system is set to Auto, NTSC or 480i, the Closed caption is available.
Page 52 Setting Lamp control This function allows you to change brightness of the screen. High ... Brighter than the Normal mode. Normal .. Normal brightness Eco ... Lower brightness reduces the lamp power consumption and extends the lamp life. Note:  • Lamp mode can not be changed for a while after turning on the projector. Lamp needs some time to stabilize after the power is turned on. Stored lamp mode will be active after the lamp is stabilized. Remote control This projector provides two different remote control codes: the factory-set initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when operating several projectors or video equipment at the same time.
Page 53 Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock This function locks the top control and remote control buttons to prevent operation by unauthorized persons. Select Key lock and then press the SELECT button, and select the desired item by pressing the Point ▲▼ buttons.. Unlocked.. Lock the operation of the top control. To unlock, use the remote control.. Lock the operation of the remote control. To unlock, use the top control. If the top control accidentally becomes locked and you do not have the remote control nearby or there is something wrong with your remote control, contact the dealer where you purchased the projector or the service center. PIN code lock This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security. Off ... Unlocked. On 1... Enter the PIN code every time turning on the projector. On 2... Enter the PIN code to operate the projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without a PIN code.
Page 54 Setting Enter a PIN code Use the Point ▲▼ buttons to enter a number. Press the Point ◄ ► buttons to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄ ► buttons to move the pointer to the number you want to correct, and then enter the correct number. Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to Set. Press the SELECT button so that you can change the following PIN code lock setting. If you entered an incorrect PIN code, PIN code and the number () will turn red for a moment. Enter the correct PIN code all over again. Change the PIN code lock setting Use the Point ▲▼ buttons to select Off, On 1 or On 2, and then press the SELECT button to make a choice. Change the PIN code The PIN code can be changed to your desired four- digit number. Press the SELECT button to select PIN code change. Pin code dialog box appears, use the Point ▲▼ buttons to enter the correct code. The New PIN code input dialog box appears. Set a new PIN code. CAUTION: WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 75, AND KEEP IT SECURELY. IF YOU FORGET YOUR PIN CODE, THE PROjECTOR CAN NO LONGER BE STARTED. Enter a PIN code Change the PIN code Current PIN code...
Page 55: Fan Control
This function provides the following options in the cooling fans’ operation when the projector is turned off (p.0). L 1 ... Normal operation L 2 ... Slower, lower-sound and longish-time than the normal operation (L 1). Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector. Off... Normal speed. Set this function to Off when using the projector in non- high altitude environment. On 1... Faster than Off mode. Select this mode when using the projector in high altitudes (about 1,000 meters to ,000 meters above the sea level) where the fans have less cooling effect. On 2... Faster than On 1 mode. Select this mode when using the projector in higher altitudes (about ,000 meters to 3,000 meters above the sea level) where the fans have lesser cooling effect. Note: The fan noise becomes louder in On 1 and On 2.
Page 56: Filter Counter
Setting Filter counter This function is used to set a frequency for the filter cleaning. Use the Point ▲▼ buttons to select Filter counter and then press the Point ► or the SELECT button to access the submenu items. Filter counter...Show the total accumulated time of the filter use timer setting. Timer... To set a timer, when the projector reaches the time, the Filter warning icon (Fig.1) appears on the screen and the total accumulated time turns red, indicating that the filter replacement is necessary. Filter counter reset... After replacing the filter, be sure to reset the timer. The Filter warning icon will not turn off until the filter counter is reset. For details about resetting the timer, refer to “Resetting the Filter Counter” on page 59. Fig .1 Filter warning icon Filter warning icon appears on the screen at a set time (Off/2000H/3000H/4000H). Note: • This icon also appears at turning on. • The Filter warning icon (Fig.1) will not appear when the Display function is set to Off (p.46), during Freeze (p.5), or No show (p.6). Warning log This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.
Page 57: Information
Input Source Information Display The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. Direct Operation Press the INFO. button on the remote control to display the Information Menu. Menu Operation Press the Point ▲▼ buttons to select the Information. The Information Menu is displayed. See below for displayed information. Input The selected input source is displayed. H-sync freq. The horizontal frequency of the input signal is displayed in KHz, or - - - - KHz when no signal. V-sync freq. The vertical frequency of the input signal is displayed in Hz, or - - - - Hz when no signal. Numbers of Hz doubles when during Interlace. Screen The selected screen size is displayed. Language The selected language is displayed. Lamp status The selected lamp mode is displayed. Lamp counter The cumulative lamp operating time is displayed. Power management Off, Ready or Shut down, and Timer are displayed. Key lock The selected Key lock icon is displayed. PIN code lock Off or On1 or On2 is displayed. Remote control The selected remote code is displayed.
Page 58: Maintenance And Cleaning
The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red. When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the ON/STAND-BY button. Note: The WARNING indicator continues to blink even after the temperature inside the projector returns to normal. When the projector is turned on again, the WARNING indicator stops blinking. Then check the matters below: – Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if the air vents of the projector are not blocked. – Has the projector been installed near an Air- Conditioning/ Heating Duct or Vent? Move the installation of the projector away from the duct or vent. – Is the filter clean? Clean the filter periodically. The projector is shut down and the WARNING indicator lights red. When the projector detects an abnormal condition, it is automatically shut down to protect the inside of the projector and the WARNING indicator lights red. In this case, unplug the AC power cord and reconnect it, and then turn the projector on once again to verify operation. If the projector cannot be turned on and the WARNING indicator still lights red, unplug the AC power cord and contact the service center. CAUTION DO NOT LEAVE THE PROjECTOR WITH THE AC POWER CORD CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.
Page 59: Replacing The Filter
Filter prevents dust from accumulating on the optical elements inside the projector. Should the Filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, replace the Filter immediately. Replace the filter by following the steps below. Turn off the projector, and unplug the AC power cord from the AC outlet. Put you finger on the latch’s  mark, pull it the unlock position and remove. Put the new one back into the position. Put you finger on the latch’s  mark, pull it the lock position to lock. Connect the AC power cord to the projector and turn on the projector. Reset the filter counter. CAUTION - Do not operate the projector with the filters removed. Dust may accumulate on the optical elements degrading picture quality. - Do not put anything into the air vents. Doing so may result in malfunction of the projector. - Do not wash the filter with water or any other liquid Matter. Otherwise the filter may be damaged. RECOMMENDATION We recommend avoiding dusty/smoky environments when you operate the projector. Usage in these environments may cause poor image quality. When using the projector under dusty or smoky conditions, dust may accumulate on a lens, LCD panels, or optical elements inside the...
Page 60: Attaching The Lens Cap
Maintenance and Cleaning Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, replace the lens cap. Attach the lens cap according to the following procedures. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place. To pass the other end of the string into the hole on the bottom of the projector and pull at it. Cleaning the Projection Lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the lens. Cleaning the Projector Cabinet Unplug the AC power cord before cleaning. Gently wipe the projector body with a soft dry cleaning cloth. When the cabinet is heavily soiled, use a small amount of mild detergent and finish with a soft dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet. When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches. CAUTION Do not use any flammable solvents or air sprays on the projector and in its vicinity. The explosion or fire hazard may occur even after the AC power cord is unplugged because the temperature inside the projector is extremely high due to the lamps. In addition, there is a risk that the internal parts may be damaged not only by the flammable air spray but also by the cold air.
Page 61: Lamp Replacement
When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode. Note: • The Lamp replacement icon will not appear when the Display function is set to Off (p.46), during Freeze (p.5), or No show (p.6). CAUTION Allow a projector to cool for at least 45 minutes before you open the Lamp Cover. The inside of the projector can become very hot. CAUTION When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately. Follow these steps to replace the lamp. Unplug the AC power cord. Let the projector cool for at least 45 minutes. Loosen the screw and open the lamp cover. Loosen the three (3) screws that secure the lamp. Lift the lamp out of the projector by using the handles. Replace the lamp with a new one and secure the three (3) screws. Make sure that the lamp is set properly. Close the lamp cover and secure the screw. Connect the AC power cord to the projector and turn on the projector. Reset the lamp counter. See "Lamp Counter" on page 55. Maintenance and Cleaning Lamp Replacement Top Control Lamp replacement icon CAUTION For continued safety, replace with a lamp of the...
Page 62 Maintenance and Cleaning ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. ● Model No. of your projector : PLC-XK3010 ● Replacement Lamp Type No. : POA-LMP142 LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. ● Lamp life may differ from lamp to lamp and according to the environment of use. Lamp life may differ from lamp to lamp and according to the environment of use.
Page 63: Appendix
Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 14-16. – Make sure all equipment is connected to AC outlet and the power is turned on. – When the projector does not project an image from the connected computer, restart the computer. Problem: No power The initial display is not shown. – Make sure Off or Countdown off are not chosen at display The initial display is not same – Make sure User or Off are not chosen at Logo (select) as the default set. function. See page 46. Input signal switches automatically. – Make sure Input search function is adjusted properly. (or does not switch automatically) See page 45. When the projector is on and – That is the Filter warning icon. See page 56. you press the input source buttons, an icon other than the Lamp mode icon appears. An icon other than Input mode – That is the Lamp replacement icon or the Filter warning icon. or Lamp mode icon appears . Image is out of focus. Image is Left/Right reversed.
Page 64 Appendix No image monitor output when connecting to a projector. See your Press the NO SHOW button or any other button on the No sound speaker is not available. The color is strange. Some displays are not seen during the operation. Auto PC adjustment function does not work . work when 480p, 575p, 720p, 480i, 575i, 1035i or 1080i is The setting does not remain after turning off power. Power management does not work . Capture function does – Check the connection and the input signal to see if there is not work . Auto setup does not work properly. Auto keystone function does not – Make sure the Auto keystone function is not set to Manual. work even when the projector is Press the AUTO SETUP button on the top control. See tipped . – Check the connection between your computer or video equipment and the projector. See pages 14-16. – See if the input signal is correctly output from your computer.
Page 65 The image is distorted or runs off. PIN code dialog box appears at start-up . The Remote Control does not work . – Make sure the code of the remote control is conformed to the See page 53. Indicator blinks or lights. The exclamation mark appears on the screen. Top control does not work. – The top control is not available if the top control is locked at Key lock Unable to unlock the Logo PIN code lock, Security key lock or Security PIN code lock. appears on the screen – Check PC adjust menu or Screen menu and adjust them. See pages 30-31, 34-35. – PIN code lock is being set. Enter a PIN code (the “134” or numbers you have set). See pages 19, 53-54. – Check the batteries. – Make sure no obstruction is between the projector and remote control. – Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4'(5 m). projector’s code. See page 5. – Unlock the Key lock function for the remote control function. – Check the status of the projector with referring to "Indicators and projector Condition". See page 69. – Your operation is invalid. Operate correctly. under Security of SETTING section. See page 53. – Contact the dealer where you purchased the projector or the service center. – The projector detects an abnormal condition. Unplug the AC power cord and contact the dealer where you purchased the projector or the service center.
Page 66 Appendix WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet. If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service. The CE Mark is a Directive conformity mark of the European Community (EC). Licensed under USP5,717,4 USP6,816,141 Pixelworks ICs used. This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.
Page 67: Menu Tree
Input Computer 1 Computer Video Volume Sound Mute MIC gain Standby MIC out Image select Dynamic Standard Real Cinema Blackboard (Green) Colorboard Red/Blue/Yellow/Green Image 1 Image 4 Information Input Source Information Display Menu Tree Computer Input/Video Input Setting Language RGB Menu position Component RGB (Scart) Auto setup S-video Background Display Logo 0-63 On/Off On/Off 0-63 On/Off Terminal Power management Direct on Standby mode...
Page 68 Appendix Video Input System System Image Adjust Contrast Brightness Color Tint Iris Color temp. Green Blue Sharpness Gamma Noise reduction Progressive Reset Store Screen Normal Full Wide(16:9) Zoom Custom Custom adj. Keystone Ceiling Rear Reset Auto 1080i 1035i 70p * Systems displayed in the System Menu vary 575p depending on an input signal. 480p 575i 480i PC adjust Auto SECAM...
Page 69: Indicators And Projector Condition
Indicators and Projector Condition Check the indicators for projector condition. Indicators POWER LAMP WARNING REPLACE red/ green yellow        • • • green. • • • blinks green.  When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow, replace the projection lamp with a new one promptly. (pp. 55, 61) Projector Condition The projector is off. (The AC power cord is unplugged.) The projector is in stand-by mode. Press the ON/STAND-BY button to turn on the projector. The projector is operating normally. The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed and the POWER indicator stops blinking. The projector is in the Power management mode. The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator stops blinking and the projector can be turned on. (The WARNING indicator keeps blinking.) The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING indicator stops blinking.
Page 70: Compatible Computer Specifications
Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN RESOLUTION DISPLAY VGA 1 640 x 480 VGA 70 x 400 VGA 3 640 x 400 VGA 4 640 x 480 VGA 5 640 x 480 VGA 6 640 x 480 VGA 7 640 x 480 MAC LC13 640 x 480 MAC 13 640 x 480 480p 640 x 480 575p 768 x 575 480i 640 x 480 575i 768 x 576 SVGA 1 800 x 600 SVGA 800 x 600 SVGA 3 800 x 600 SVGA 4 800 x 600 SVGA 5...
Page 71: Technical Specifications
Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Foot Ad�ustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System SD/HD TV Signal Input Scanning Frequency Optical Information Projection Image Size (Diagonal) Throw Distance Projection Lens Projection Lamp Interface Video Input Jack Audio Input Jack Computer In 1/S-video In/Component In /Computer In /Monitor Out/MIC Audio Input Jack Computer In 1/S-video In /Component Input Jack Computer In / Monitor Out Terminal Control port Audio Output Jack LAN Connection Terminal Audio Internal Audio Amp Built-in Speaker Power Voltage and Power Consumption Operating Environment Operating Temperature Storage Temperature Remote Control Battery...
Page 72: Optional Parts
Appendix Accessories Owner’s Manual (CD-ROM) Quick Reference Guide AC Power Cord Remote Control and Batteries VGA Cable Lens Cap with String PIN Code Label Ferrite core Filter Cover for Ceiling Mount ● The specifications are sub�ect to change without notice. The specifications are subject to change without notice. ● LCD panels are manufactured to the highest possible standards. Even though 99.99�� of LCD panels are manufactured to the highest possible standards. Even though 99.99�� of the pixels are effective, a tiny fraction of the pixels (0.01�� or less) may be ineffective by the characteristics of the LCD panels. The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer. COMPONENT-VGA Cable S-video-VGA Cable SCART-VGA Cable...
Page 73: Pj Link Notice
This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1. For PJ Link password, see the owner’s manual of “Network Set-up and Operation.” Projector Input Computer 1 Component RGB (Scart) S-video Computer Video Video PJLink is a registered trademark of JBMIA and pending trademark in some countries. Attaching the Filter Cover to the Projector The supplied filter cover is designed for preventing dust accumulation on the filter when mounting the projector on the ceiling. Turn over the projector. Place the filter cover on the filter as the picture shown below. Attach the projector to the ceiling mount in accordance with the instruction manuals which come with the ceiling mount. Note:  To keep the filter cover in position, be sure to attach the drop-prevention wire by threading it through the hole of the filter cover. Pj Link Notice PJLink Input RGB RGB 3 RGB 5 RGB 4 RGB 1 VIDEO To Ceiling Mount Front feet Appendix Parameter Drop-prevention Wire (not supplied)
Page 74: Configurations Of Terminals
Appendix COMPUTER IN 1 / S-VIDEO IN/ COMPONENT IN Terminal: Analog RGB (Mini D-sub 15 pin) COMPUTER IN 2/MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) CONTROL PORT CONNECTOR (D-sub 9 pin) LAN TERMINAL Configurations of Terminals Red/Cr/S-C Input Green/Y/S-Y Input Blue/Cb/--- Input ----- Ground (Horiz.sync.) Ground (Red) Ground (Green) Ground (Blue) Red Input/Output Green Input/Output Blue Input/Output ----- Ground (Horiz.sync.) Ground (Red) Ground (Green) Ground (Blue) Serial ----- R X D T X D ----- TX + TX – RX + ----- +5V Power Ground (Vert.sync.) Ground DDC Data Horiz. sync. Input/Output (Composite H/V sync.) Vert. sync. DDC Clock ----- Ground (Vert.sync.) -----...
Page 75: Pin Code Number Memo
Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No. Logo PIN Code Lock No. While the projector is locked with the PIN code. Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code. PIN Code Number Memo Factory default set No: 1 2 3 4* Factory default set No: 4 3 2 1* *Should the four-digit number be changed, the factory set number will be invalid. Appendix...
Page 76: Dimensions
Appendix 247.0(9.72) 138.0(5.43) 4.6(0.18) 122.2(4.81) 80.2(3.16) 79.6(3.13) 46.2(1.82) 85.4(3.36) 83.8(3.30) Dimensions 114.0(4.49) Unit: mm(inch) Screw Holes for Ceiling Mount Screw: M4 Depth: 1.0(0.47) 2.9(0.11) 105.6(4.16) 24.0(0.94) 20.7(0.92) 98.1(3.86) 40.7(1.60) 122.3(4.48) 88.7(3.49) 126.3(4.97) 31.7(1.25) 64.6(2.54)
Page 77 KT8AE...
