Sealey PDM10B Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products.
ELECTRICAL SAFETY INFORMATION. It is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. IMPORTANT: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the
correct fuse - see fuse rating in these instructions.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a firm grip on the plug.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
8
qualified electrician.
1.1.4. This product is fitted with a BS1363 3 pin plug.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Replace a damaged plug with a BS1363 3 pin plug. If in doubt contact a qualified electrician.
Class II products are wired with live (brown) and neutral (blue) only and are marked with the
Class II symbol;
A) Connect the BROWN live wire to the live terminal 'L'.
B) Connect the BLUE neutral wire to the neutral terminal 'N'.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
DO NOT connect either wire to the earth terminal.
Sealey recommend that repairs are carried out by a qualified electrician.
If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is
preferred since any appliance plugged into it will be protected. The cable core section is important and
should be at least 1.5mm², but to be absolutely sure that the capacity of the reel is suitable for this product and for others which may
be used in the other output sockets, we recommend the use of 2.5mm² section cable. If extension reel is to be used outdoors, ensure it is
marked for outdoor use.
1.2. GENERAL SAFETY
Familiarise yourself with the applications, limitations and potential hazards of the drill.
9
Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture.
9
NOTE: It is not designed for heavy commercial use.
WARNING! Disconnect the drill from the mains power before changing accessories, servicing or performing any maintenance.
‰
The machine must only be serviced by a qualified person or service agent. Contact your Sealey stockist for information.
9
Select a work area suitable for the drill and keep the area clean, tidy and free from unrelated materials. Ensure that there is adequate
9
lighting.
Maintain the drill in good condition, check moving parts alignment regularly. Keep drill bits clean and sharp.
9
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
WARNING! Keep all guards and holding screws in place, tight and in good working order. Check regularly for damaged parts.
‰
A guard, or any other part, that is damaged should be repaired or replaced before the drill is next used. The safety guard is a mandatory
9
fitting where the drill is used in premises covered by the Health & Safety at Work Act.
Remove adjusting keys and wrenches from the machine and the vicinity before switching on.
9
Operators must be under the adequate supervision of a person who has a thorough knowledge and experience of the machine and the
9
appropriate regulations.
DO NOT operate the drill if any parts are damaged or missing as this may cause failure and/or personal injury.
8
DO NOT operate the drill when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
When not in use switch off the drill and unplug from the power supply.
9
WARNING! Wear approved safety eye protection, ear defenders and, if dust is generated, respiratory protection.
‰
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
9
© Jack Sealey Limited

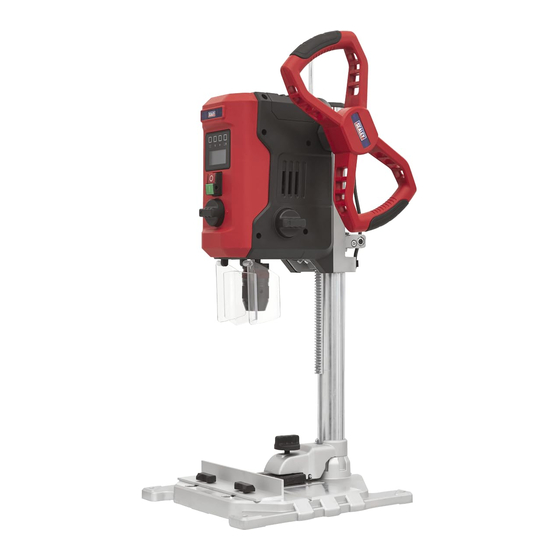

710W BENCH PILLAR DRILL WITH DIGITAL
DISPLAY & LASER GUIDE
PDM10B
MODEL NO:
Wear a mask
Wear ear
protection
Original Language Version
Warning!
Laser beam
,
RECOMMENDED FUSE
RATING: 13A
,
PDM10B Issue:2 (3) 06/03/23
