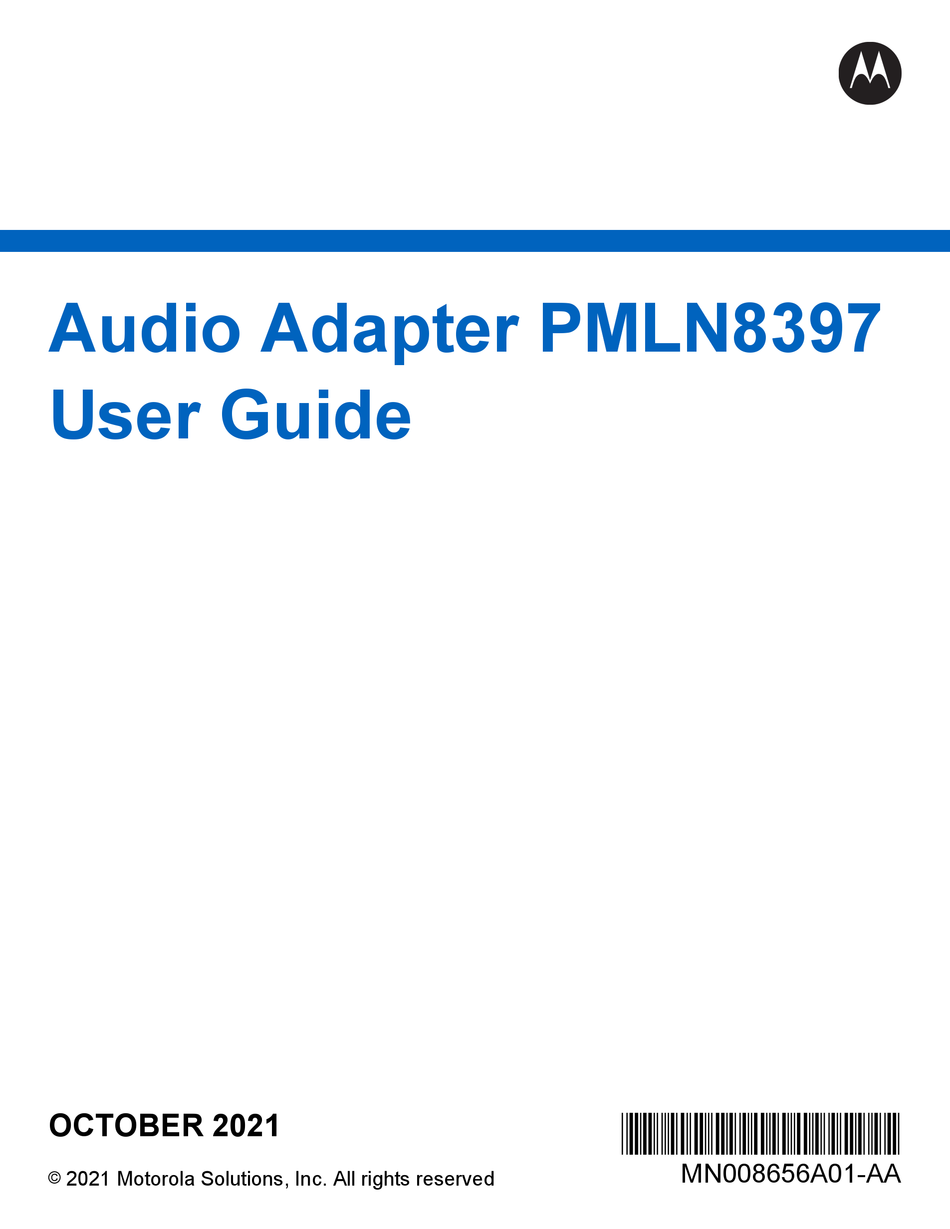

- Page 1 Audio Adapter PMLN8397 User Guide OCTOBER 2021 *MN008656A01* MN008656A01-AA © 2021 Motorola Solutions, Inc. All rights reserved...
-
Page 2: Table Of Contents
MN008656A01-AA Contents Contents Disclaimer........................3 Intellectual Property and Regulatory Notices............4 Icon Conventions......................5 Foreword........................6 Attention!............................6 Chapter 1: Product Overview...................7 1.1 Radio Operation with Adapter....................7 Chapter 2: Attaching the Adapter and Accessory..........8 Chapter 3: Removing the Adapter and Accessory..........10 Chapter 4: Service and Warranty................11... -
Page 3: Disclaimer
Furthermore, Motorola Solutions reserves the right to change any products to improve readability, function, or design. Motorola Solutions does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights, nor... -
Page 4: Intellectual Property And Regulatory Notices
License Rights The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. -
Page 5: Icon Conventions
MN008656A01-AA Icon Conventions Icon Conventions The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. DANGER: The signal word DANGER with the associated safety icon implies information that, if disregarded, will result in death or serious injury. -
Page 6: Foreword
Foreword Attention! This PMLN8397 GCAI-Mini Adapter is not intended for combination or use with ATEX/IECEx, TIA4950, or any other Hazardous Location accessories. Purchaser assumes all responsibility for the use, testing, certifications, and compliance with relevant regulatory requirements of this adapter, any accessories used with the adapter and the combination of the adapter with such accessories. -
Page 7: Chapter 1: Product Overview
Product Overview Chapter 1 Product Overview The PMLN8397 is an Audio Adapter (Passive). NOTE: Contact a Motorola Solutions representative for the following queries: • Identify the compatibility between your radio with the audio accessory adapter and applicable audio accessories. •... -
Page 8: Chapter 2: Attaching The Adapter And Accessory
MN008656A01-AA Chapter 2 : Attaching the Adapter and Accessory Chapter 2 Attaching the Adapter and Accessory Procedure: 1 To attach the audio accessory to the adapter, hook on the GCAI connector from the accessory to the adapter. Number Description Adapter Accessory GCAI Connector 2 Insert the GCAI connector and turn the screw clockwise. - Page 9 MN008656A01-AA Chapter 2 : Attaching the Adapter and Accessory 3 To attach the adapter to the radio, hook the Mini GCAI connector and turn the screw clockwise. 4 Turn on the radio.
-
Page 10: Chapter 3: Removing The Adapter And Accessory
MN008656A01-AA Chapter 3 : Removing the Adapter and Accessory Chapter 3 Removing the Adapter and Accessory Procedure: 1 Turn off the radio. 2 To remove the adapter from the radio, turn the screw anti-clockwise and detach the Mini GCAI connector. 3 To remove the audio accessory from the adapter, turn the screw anti-clockwise and detach the connector. -
Page 11: Chapter 4: Service And Warranty
Chapter 4 Service and Warranty The PMLN8397 Audio Adapter is not repairable. Order a replacement adapter as necessary. The audio adapter is covered under the standard Motorola Solutions one-year limited warranty. Refer to your Motorola Solutions dealer or point-of-purchase for detailed information on warranty...
