SMART-AVI LDX-2P RX User Manual

TECHNICAL SPECIFICATIONS
VIDEO
Format (2) DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (2) DVI-D 29-pin (Female)
Output Interface (RX) (2) DVI-D 29-pin (Female)
Resolution Up to 1920 x 1200 @ 60Hz
and
Up to 4K/2K (3840x2160)
@ 30Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 100 Ohm
Connector 3.5 mini jack, Female
USB
Signal Type USB 1.1
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
RS232
Input Interface DB9 (Female)
Output Interface DB9 (Male)
Control @ 115 Kbps
WHAT'S IN THE BOX?
PART NO. DESCRIPTION
LDX-2PS Dual DVI-D, USB, Dual RS-232, and
Audio Extender. Includes: [LDX-2P-TX,
LDX-2P-RX, 2x (PS5VDC3A)]
OTHER
Power External 100-240 VAC/5VDC3A
@15W
Dimensions 5.125 in W x 1 in H x 3.625 in D
Weight 1 lb.
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Max Resolution 245 ft. w/ CAT6 STP
Video Extension
Distance
TRANSMIT ON DB9 FEMALE
PIN Name Description
2
TxD Transmit Data on DB9 Female
3
Receive Data on DB9 Female
RxD
5
GND Ground
RECEIVE ON DB9 FEMALE
PIN Name Description
2
RxD Receive Data on DB9 Female
3
TxD Transmit Data on DB9 Female
5
GND Ground
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

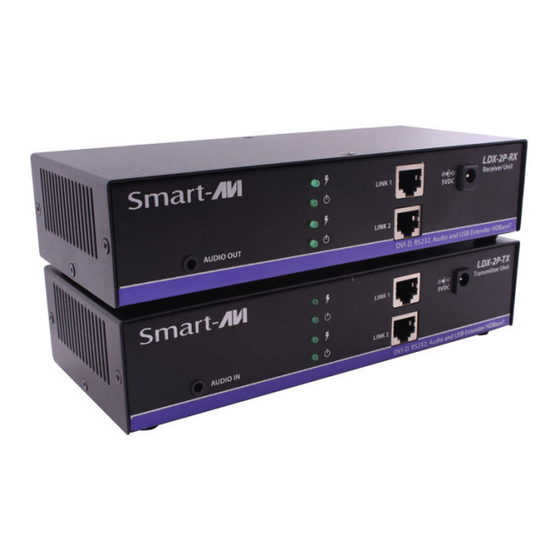

LDX-2P
Dual Head DVI-D, USB Keyboard, Mouse
and Audio Extender Over Cat5e/6
EXTEND DUAL DVI-D, DUAL RS232, USB KEY-
BOARD, MOUSE AND AUDIO UP TO 245 FEET OVER
DUAL CAT5/5E/6 CABLE
USER MANUAL
