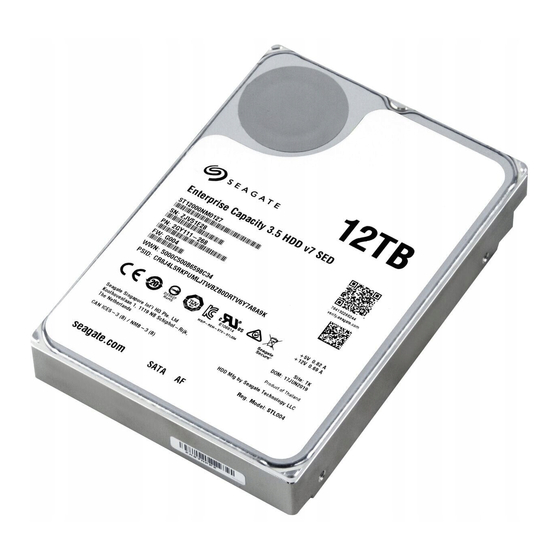

- Page 1 Enterprise Capacity 3.5 HDD v7 SATA Product Manual Standard 512E model ST12000NM0117 Self-Encryption 512E model ST12000NM0127 100816426, Rev. C February 2018...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Raid Rebuild and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.All other trademarks or registered trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 S.M.A.R.T. commands............. . 35 Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 6: Introduction
• Worldwide Name (WWN) capability uniquely identifies the drive. Seagate recommends validating the configuration with the selected HBA/RAID Note controller manufacturer to ensure use of full capacity is supported. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 7: About The Serial Ata Interface
Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downloaded from www.serialata.org. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 8: Drive Specifications
5–22 Hz: 0.25 Gs, Limited displacement Vibration, operating 22–350 Hz: 0.50 Gs 350–500 Hz: 0.25 Gs Operation Rotational vibration 20–1500Hz: 12.5 rads/s² Vibration, nonoperating 2–500 Hz: 2.27 Grms ref Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... - Page 9 *One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. **During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C...
-
Page 10: Formatted Capacity
I/O data-transfer rate (MB/s max) 600 (Ultra DMA mode 5) Start/stop times Power-on to Ready (sec) (typ/max) 20/30 Standby to Ready (sec) (typ/max) 20/30 Ready to spindle stop (sec) (max) Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 11: Power Specifications
Maximum DC (peak) 0.905 0.698 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 12: Conducted Noise
450 mV pp from 8 KHz to 20 KHz. 250 mV pp from 20 KHz to 5 MHz. 2.5.3 Voltage tolerance Voltage tolerance (including noise): 5V ± 5% 12V ± 10% Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 13: Extended Power Conditions - Powerchoicetm
• Saved enabled state, and timer value • Current enabled state, and timer value S.M.A.R.T. Read Data Reports • Attribute 192 - Emergency Retract Count • Attribute 193 - Load/Unload Cycle Count Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... - Page 14 Disable EPC Feature Set PowerChoice Supported Extended Power Condition Identifiers Power Condition Identifiers Power Condition Name Standby_z 01 - 80 Reserved Idle_a Idle_b Idle_c 84 - FE Reserved All EPC Power Conditions Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C...
-
Page 15: Environmental Limits
Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. Temperature Check Point Figure 2. -
Page 16: Shock
The maximum nonoperating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. 2–500 Hz 2.27 Grms ref Linear Random Freq (Hz) .001 .001 Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 17: Acoustics
Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 18: Reliability
From this page, click on the “Is my Drive under Warranty” link. The following are required to be pro- vided: the drive serial number, model number (or part number) and country of purchase.The system will display the warranty information for the drive. Preventive maintenance None required. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 19: Agency Certification
Seagate drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with all relevant regulatory requirements and standards for the drives, Seagate cannot guarantee that all system-level products into which the drives are installed comply with all regulatory requirements and standards applicable to the system-level products. The drive is designed for operation inside a properly designed system (e.g., enclosure designed for the drive), with properly shielded I/O cable (if... -
Page 20: Morocco Commodity Mark
2.13.5 Morocco Commodity Mark To satisfy our OEM customers, Seagate has added the Moroccan Commodity Mark to the drives provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user. -
Page 21: Environmental Protection
2.14.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. The RoHS2 restricts the use of certain hazardous substances such as Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ether (PBDE), BisBis(2-Ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP) in electrical and electronic equipment (EEE). -
Page 22: Taiwan Requirements - Taiwan Rohs
The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives. Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section. -
Page 23: Reference Documents
Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. -
Page 24: Configuring And Mounting The Drive
• The screws should be inserted no more than 0.140 in (3.56mm) into the bottom or side mounting holes. • Do not overtighten the mounting screws (maximum torque: 6 in-lb). Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 25: Mechanical Specifications
26.11MM .138±.015 2 2.000 C L OF DRIVE Figure 4. Mounting configuration dimensions The image is for mechanical dimension reference only and may not represent the actual drive. Note Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 26: About Self-Encrypting Drives
The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two ATA commands: •... -
Page 27: Random Number Generator (Rng)
In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: The download must be an SED file. -
Page 28: Power Requirements
The drive shall not support the OVERWRITE EXT and BLOCK ERASE EXT sub-commands. Support of the SANITIZE FREEZE LOCK EXT command shall be determined on a customer-specific basis. OEM drives shall support the command. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 29: Serial Ata (Sata) Interface
There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane config- uration. All used voltage pins (V ) must be terminated. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 30: Supported Ata Commands
Sanitize Device - Overwrite Ext / 0014 Sanitize Device - Freeze Lock Ext / 0020 Sanitize Device - Status Ext / 0000 Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... - Page 31 Write FPDMA Queued Write Log DMA Ext Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C...
-
Page 32: Identify Device Command
Advanced PIO modes supported (modes 3 and 4 supported) 0003 Minimum multiword DMA transfer cycle time per word (120 ns) 0078 Recommended multiword DMA transfer cycle time per word (120 ns) 0078 Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... - Page 33 Bits 7:2 indicate individual SCT feature support. 207-254 ATA-reserved 0000 Integrity word xxA5 See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C...
- Page 34 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C...
-
Page 35: Set Features Command
Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... -
Page 36: Commands
S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate Enterprise Capacity 3.5 HDD v7 SATA Product Manual, Rev. C... - Page 37 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100816426, Rev. C...
