WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. - Page 3 CONTENTS DAILY USE 5.1 Loading The Laundry ....................14 5.2 Using Detergent And Additives ..................14 5.3 Options Setting ......................15 5.4 Starting A Cycle ......................16 5.5 Interruption Of A Program .................... 16 5.6 Changing A Program ....................16 5.7 Changing The Options ....................
-
Page 4: Safety Information
SAFETY INFORMATION 1.1 Conditions Of Use This appliance is intended to be used in household and similar applications such as: Farm houses ● By clients in serviced apartments, holiday apartments ● and residential type environments. In the interest of your safety and to ensure the correct... -
Page 5: Child Safety Device (Door Block Button)
Make sure that children or pets do not climb into the ● drum. This machine is provided with child safety lock option ● ) to prevent children playing with the control panel. (see page 12) 1.3 Child Safety Device (Door Block Button) When you activate this device, you cannot close the door. -
Page 6: Installation
● Always unplug the appliance and turn May cause electric shock! if the off the water supply after use, clean machine is not connected to an and maintenance. earthed/ground system. DO NOT touch the wet clothes and metal ●... -
Page 7: Product Description
PRODUCT DESCRIPTION 2.1 Parts Worktop Detergent/Softener Dispenser For more information see page 15. Control Panel Door Door Handle Drain Pump Filter For more information see page 22. Level Adjustment Feet (Front) Drum Lifter Rating Label Child Safety Device For more information see page 5. -
Page 8: Accessories
To connect the drain hose on the edge of a This part available from your sink. authorized vendor. Only appropriate accessories approved by Electrolux ensure the safety standards of the appliance. Spanner ● If unapproved parts are used, any claims will be invalidated. -
Page 9: Control Panel

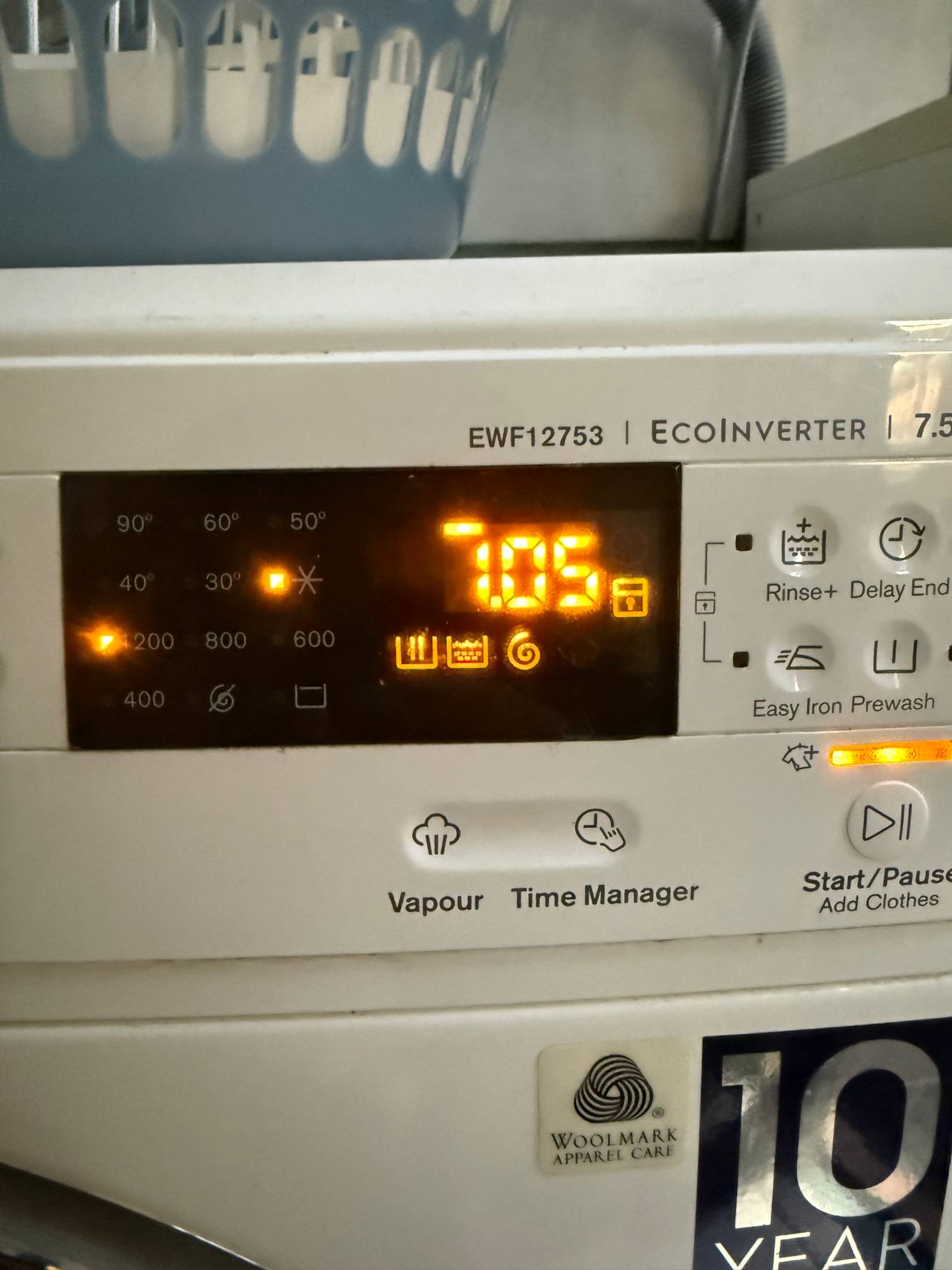

CONTROL PANEL 3.1 Control Panel Description Program Knob Easy Iron Touchpad Prewash Touchpad Spin Selection Touchpad Temperature Selection Touchpad Start/Pause, Add Clothes Touchpad Display Add Clothes Function Symbol Child Lock (see page 13) Time Manager Touchpad Vapour Touchpad Rinse Plus Touchpad Delay End Touchpad 3.2 Display Digital Number;... -
Page 10: Program Chart
(Dry Clothes) ; Program ; Max. Spin Speed Temperature Type of load and soil level Model range EWF12753 EWF12853 EWF12753E This position to reset program/switching off the machine. White and coloured cotton. (Adjust wash time Cottons ; 8.5 kg ;... -
Page 11: Program Options Compatibility
3.4 Program Options Compatibility Program Spin Option No Spin ( Rinse Hold ( Cottons Mixed Delicates Daily 60 ... -
Page 12: Settings
Vapour Touchpad ( “Delay End” Time : 6 hrs. Select this option to add approximately Countdown Working Cycle 30 minutes of tumbling in vapour during 2.40 hrs. 3.20 hrs. the wash cycle. Vapour helps open fabric fibers up to allow laundry additives to... -
Page 13: Start/Pause ( ) And Add Clothes ( ) Touchpad
Enabling/Disabling End-Of-Wash To interrupt a program which is Buzzer running, press this touchpad to pause the machine, the Start/Pause pilot light This setting permits you to either enable flashes. or disable the buzzer at the end of the To restart the program from the point at program. -
Page 14: Daily Use
DAILY USE 5.1 Loading The Laundry Using Detergent And Additives Turn the water tap on. IMPORTANT: Please read Connect the mains plug to the mains “Detergents Type and socket. Quantity of Detergent”on page Turn the knob to set a program. The 19 before use. -
Page 15: Options Setting
Depending on your model you Measure out the detergent and the may need to remove the fabric softener; dispenser drawer to change flap Pull out the dispenser drawer until position. it stops. Measure out the amount of remove dispenser detergent required, pour it into the drawer main wash compartment. -
Page 16: Starting A Cycle
5.5 Interruption Of A Program Press the option touchpads, if you want your laundry to be washed with To pause press Start/ Pause. The special functions. indicator will start flashing. Different functions can be Press the Start/Pause again. The combined which is dependent program will continue. -
Page 17: At The End Of The Program
5.9 At The End Of The Program When the program is completed and the door lock indicator “ ” The appliance stops automatically. goes off, you can open the door. The acoustic signal will operate. turn the program selector knob to The display will show “... -
Page 18: Washing Hints
WASHING HINTS 6.1 Sorting The Laundry Never wash whites and coloureds together. Whites may lose their Follow the wash code symbols on each “whiteness” in the wash. garment label and the manufacturer’s New coloured items may run in the first washing instructions. -
Page 19: Detergents Type And Quantity Of Detergent
Mould stains: treat with bleach, rinse The choice and quantity of detergent will well (whites and fast coloureds only). depend on ; Grass: soap lightly and treat with bleach type of fabric (delicates, woollens, (whites and fast coloureds only). cottons, etc.) ; the colour of clothes ;... -
Page 20: International Wash Code Symbols
INTERNATIONAL WASH CODE SYMBOLS These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic Max. wash Max. wash Max. wash Max. wash DO NOT temperature temperature temperature temperature Hand wash... -
Page 21: Maintenance Wash
8.4 Maintenance Wash To aid cleaning, the top part of the additive compartment should be With the use of low temperature washes removed. it is possible to get a build up of residues inside the drum. We recommend that a maintenance wash be performed on a regular basis. - Page 22 2. Do not remove the filter while the 3. Place a suitable water container appliance is operating. Do not clean below the recess of the drain pump the drain pump if the water in the to collect the water that flows out.
-
Page 23: Cleaning The Water Inlet Filter
5. Pull back the drainage duct and turn Clean the filter under the water tap. the filter counter-clockwise to remove it. Put the filter back in the pump into the special guides. Make sure that you correctly tighten the filter to prevent leakages. -
Page 24: Frost Precautions
8.9 Frost Precautions If the appliance is installed in an area where the temperature can be less than 0 °C, remove the remaining water from the inlet hose and the drain pump. Remove the inlet hose behind the Emergency Drain appliance. -
Page 25: Troubleshooting
TROUBLESHOOTING 9.1 Possible Failures Alarm Code: Certain problems are due to lack of simple The appliance does not fill with maintenance or oversights, which can be water properly. solved easily without calling out an engineer. The appliance does not drain Before contacting your local Service Centre, the water. - Page 26 Malfunction Possible cause => Solution The drain hose is squashed or kinked. (Error code: ) => Check the drain hose connection. The drain pump is clogged. (Error code: ) => Clean the drain The machine filter. does not empty and/or does The option “Rinse Hold”...
-
Page 27: Emergency Door Opening
Malfunction Possible cause => Solution The cycle is shorter than the The appliance calculated a new time according to the laundry load. time displayed. The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. -
Page 28: Technical Data
TECHNICAL DATA Model: EWF12853 85 X 60 X 66.9 cm Dimensions (Height / Width / Depth) Model: EWF12753, EWF12753E 85 X 60 X 58.5 cm Power supply (Voltage / Frequency) 220-240 V / 50 Hz Total power absorbed 2100 W... -
Page 29: Installation
INSTALLATION 11.1 Unpacking CAUTION! All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. Use gloves. Remove the external film. If necessary, use a cutter. -
Page 30: Positioning
11.2 Positioning It is important that your washing machine stands firm and leveled on the floor to ensure correct operation. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to avoid restricting the washing machine door. -
Page 31: Water Inlet
The inlet hose must not be When the washing machine is lengthened. If it is too short and levelled, try to rock it from corner to you do not wish to move the tap, corner. If it does rock, adjust the you will have to purchase a new, legs again until it is levelled and longer hose specially designed for... -
Page 32: Electrical Connection
11.5 Electrical Connection This machine is designed to operate on a 220-240 V, single-phase, 50 Hz supply. “An incorrect power supply may void your warranty.” For the correct functioning of the Check that your domestic electrical machine the drain hose must installation can take the maximum load required (2.1 kW), also taking... -
Page 33: Environment Concerns
ENVIRONMENT CONCERNS 12.1 Packaging Materials For more detailed information about recycling of this product, please contact The materials marked with the your local city office, your household symbol are recyclable. waste disposal service or the shop where you purchased the product. >PE<=polyethylene >PS<=polystyrene >PP<=polypropylene... - Page 34 NOTE...
-
Page 35: Warranty
Australia or New Zealand and are used in normal domestic applications. excluded under the ACL. You are entitled to a replacement or refund 3. During the Warranty Period Electrolux or its ASC will, at no extra charge for a major failure and for compensation for any other reasonably if your Appliance is readily accessible for service, without special foreseeable loss or damage. - Page 36 www.electrolux.com...
