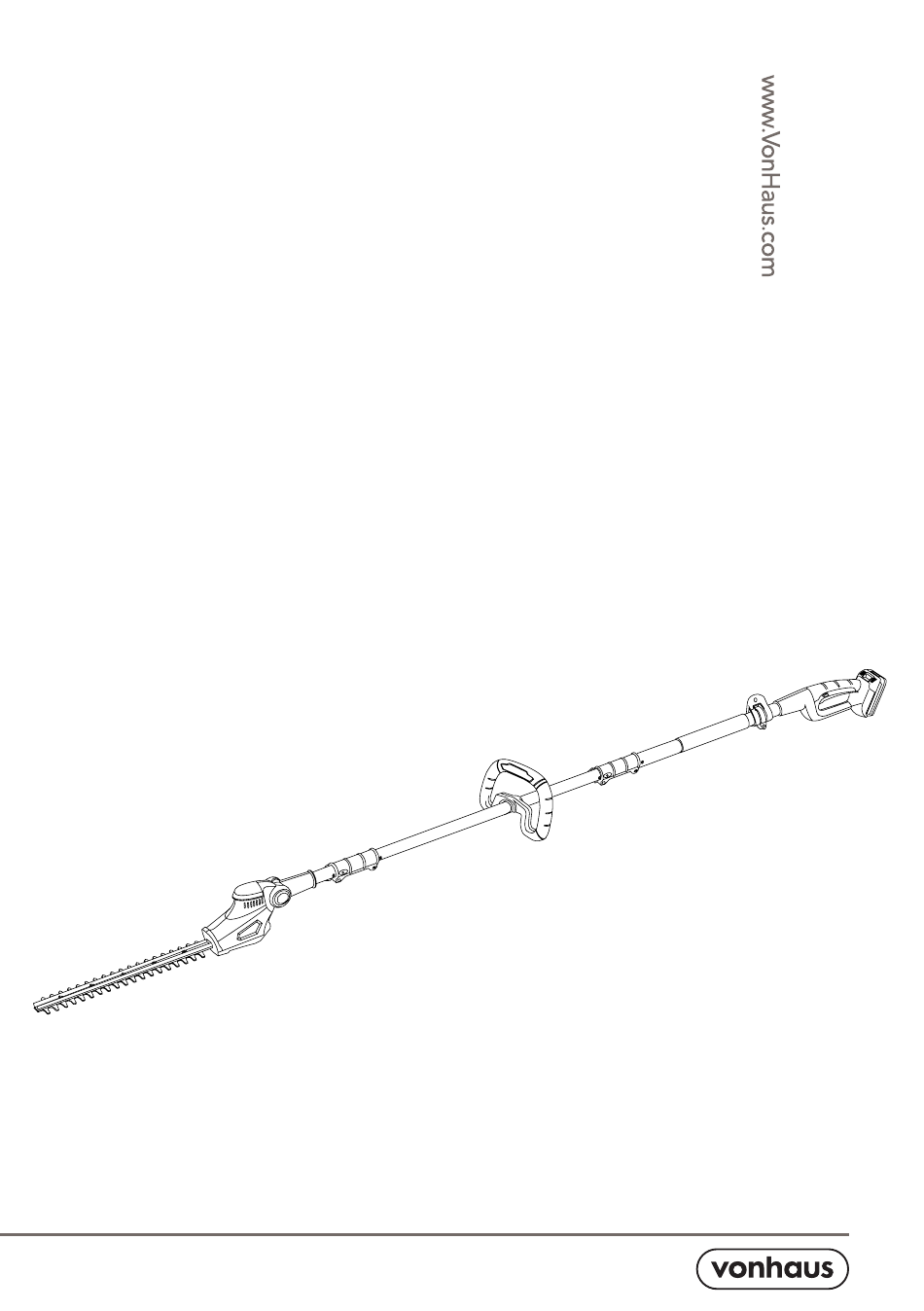

- Page 1 CORDLESS POLE HEDGE TRIMMER 2515200 Manufactured and sold under licence...
- Page 2 CONTENTS Safety Instructions Safety Instructions Safety Instructions Safety Symbols Technical Specification Short Trimmer Assembly, Handle Assembly...
- Page 3 Angle Adjustment Charging the Lithium-ion Battery Pack Thermal Protection Indication, Installing & Removing the Battery Working Position, Cleaning & Maintenance, Blade Maintenance Storage, Troubleshooting Also Available Disposal Information, Warranty...
- Page 4 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE GENERAL POWER TOOL SAFETY injury. INFORMATION. ELECTRICAL SAFETY. Read, and make sure you fully Power tool plugs must match the outlet. understand, all safety information before Never modify the plug in any way. Do using this tool.
- Page 5 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE Use the power tool, accessories and better control of the power tool in tool bits etc. in accordance with these unexpected situations. instructions, taking into account the If devices are provided for the connection working conditions and the work to be of dust extraction and collection facilities, performed.
- Page 6 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE Do not expose the battery to direct replacement parts only. This will ensure sunlight for long periods of time. that the safety of the power tool is maintained. Protect the battery and charger against water and moisture.
- Page 7 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING FOR 15-200US Your risk from exposure to these CUSTOMERS ONLY chemicals varies depending on how often you do this type of work. To reduce your WARNING! Some dust and debris exposure, work in a well-ventilated area created by the use of this tool could and with approved safety equipment...
- Page 8 TECHNICAL SPECIFICATION CUTTING CUTTING CUTTING CUTTING CHARGE CHARGE BATTERY LENGTH LENGTH WIDTH WIDTH TIME TIME Hours 1. Hedge Trimmer Blade 2. Motor 3. Blades Angle Adjustment Button 4. Extension Pole 5. Adjustable Handle 6. Strap Connector 7. Safety Switch 8. 20V Max Battery & Remove Clip 9.
- Page 9 SHORT TRIMMER ASSEMBLY Tighten To assemble the Hedge Trimmer, take the Extension Pole (4) i.e. the section without the large Adjustable Handle, and insert into the Motor (2). Push until the pin has clicked into place, then tighten the knob on the opposite side to secure.
- Page 10 ANGLE ADJUSTMENT The Hedge Trimmer is adjustable (up to 6 positions). To adjust the Trimmer, press both sides of the Blades Angle Adjustment Button (3), adjust the Hedge Trim- mer Blade (1) to the desired position and release until it clicks into place.
- Page 11 CHARGING THE LITHIUM-ION BATTERY PACK IMPORTANT CHARGING NOTES: Plug the Charger Adaptor Plug (12) into a mains power outlet. The green Charge Indicator Light DISCHARGING (11) on the Charger Adaptor Plug will illuminate to To protect the Battery against deep discharging when indicate that power is being supplied.
- Page 12 THERMAL PROTECTION INDICATION In the event that the thermal protection circuit has been activated, the Battery will cease to operate. This can happen when the tool has been used for extended periods. If the Battery is placed on the Charger, the LED Lights will give you the appearance that the Battery is fully charged.
- Page 13 WORKING POSITION Maintain proper footing and balance at all times and Always hold the Hedge Trimmer with one hand on the be careful not to overreach. Front Handle and one hand on the Rear Handle (9). If you are using without the Adjustable Handle section Always wear safety goggles, non-slip footwear and (5), hold the Extension Pole (4) with one hand on the rubber gloves when using the Hedge Trimmer.
- Page 14 STORAGE Store this tool carefully in a secure, dry place, out of the reach of children. TROUBLESHOOTING PROBLEM SOLUTION Check that the Battery is connected correctly. Check that the Battery is fully charged before use. TOOL DOES NOT POWER ON. Ensure that the Charger is charging correctly.
- Page 15 This does www.VonHaus.com/warranty not affect your statutory rights. Please retain a proof of purchase receipt or No rights are given under this warranty to a person statement as proof of the purchase date.
- Page 16 To which this declaration relates is in conformity with the following directives: 2014/30/EU, 2006/95/EC, 2006/42/EC, 2000/14/EC, 2011/65/EU. Thank you for purchasing the Cordless Pole Hedge Trimmer. VonHaus is a registered trademarks of DOMU Brands Ltd Made in China for DOMU Brands Ltd M24 2RW...
