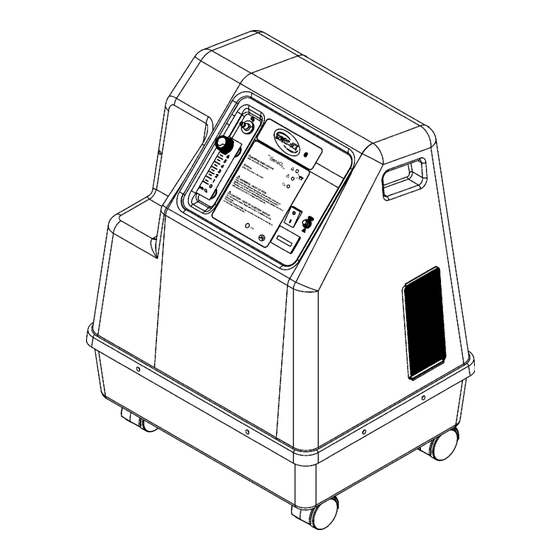

Invacare IRC5LXO2 Operator's Manual

Oxygen concentrators standard, with/senso2, telemetry and homefill ii
Hide thumbs Also See for IRC5LXO2:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL - ENGLISH
MANUAL DE INSTRUCCIONES -
DOMESTIC SPANISH
OXYGEN CONCENTRATORS STANDARD,
TELEMETRY AND HOMEFILL™ II
CONCENTRADORES DE OXIGENO
STANDARD,
STANDARD,
STANDARD,
STANDARD,
STANDARD,
Sens
with
con
Sens
DEALER: THIS MANUAL MUST BE GIVEN
TO THE END USER.
USER: BEFORE USING THIS
CONCENTRATOR,
READ THIS MANUAL AND SAVE FOR
FUTURE REFERENCE.
INVACARE 3
INVACARE 5
INVACARE 6
/SENSO
®,
WITH
2
/SENS
/SENS
/SENSO O O O O
® ® ® ® ®
TELEMETRIA Y
TELEMETRIA Y
TELEMETRIA Y
CON
CON
CON
/SENS
/SENS
TELEMETRIA Y
TELEMETRIA Y
CON
CON
2 2 2 2 2
, , , , ,
HOMEFILL™ II
HOMEFILL™ II
HOMEFILL™ II
HOMEFILL™ II
HOMEFILL™ II
2
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRC5LXO2 and is the answer not in the manual?

Questions and answers

Related Manuals for Invacare IRC5LXO2

Summary of Contents for Invacare IRC5LXO2

  • Page 1 OPERATOR'S MANUAL - ENGLISH MANUAL DE INSTRUCCIONES - DOMESTIC SPANISH INVACARE 3 INVACARE 5 INVACARE 6 OXYGEN CONCENTRATORS STANDARD, /SENSO ®, WITH TELEMETRY AND HOMEFILL™ II CONCENTRADORES DE OXIGENO STANDARD, STANDARD, STANDARD, /SENS /SENS /SENSO O O O O ® ® ® ® ®...
  • Page 2 WITHOUT FIRST READING AND UNDER- STANDING THIS MANUAL. IF YOU ARE UNABLE TO UNDERSTAND THE WARNINGS, CAUTIONS, AND INSTRUC- TIONS, CONTACT INVACARE TECHNICAL SERVICES BEFORE ATTEMPTING TO USE THIS EQUIPMENT - OTHERWISE INJURY OR DAMAGE MAY RESULT. SAVE THESE INSTRUCTIONS...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS Unpacking ..............12 Inspection ..............12 Storage ................. 12 Select a Location ............13 Recommended End-User Guidelines for Optimum Performance ........14 Plug in Power Cord ............. 14 Connect Humidifier (if so prescribed) ....14 Oxygen Tubing ..............
  • Page 4 SAFETY SUMMARY SAFETY SUMMARY CAUTION WARNING...
  • Page 5 SAFETY SUMMARY WARNING (CONTINUED) TO REDUCE THE RISK OF ELECTROCUTION. WARNING...
  • Page 6 SAFETY SUMMARY TO REDUCE THE RISK OF BURNS, ELECTROCU- TION, FIRE OR INJURY TO PERSONS. WARNING...
  • Page 7 SAFETY SUMMARY GROUNDING INSTRUCTIONS DANGER Adapter Metal Screw Grounding Tab for Grounded Grounded Grounding Screw Outlet Box Outlet...
  • Page 8 Refer to the HomeFill II owner's manual, part number 1100873, for connection and operating Power instructions. When not in use, the plug provided Outlet Cord with the concentrator should be inserted into the Fitting outlet fitting. For more information about the HomeFill II, contact your Invacare dealer.
  • Page 9 SPECIFICATIONS SPECIFICATIONS 120 VAC +10% (132 VAC/108 VAC), 60 Hz 4.0 A 52 dB Average 53 dB Average Up to 6,000 ft. (1828 meters) above sea level without degradation of performance. From 6,000 ft. (1828 meters) to 13,129 ft. (4000 meters) below 90% efficiency.
  • Page 10 1/2 - 6 L/min. 1/2 - 5 L/min. 1/2 - 3 L/min. For flowrates less than 1 L/min., we recommend the use of the Invacare Pediatric Flowmeter IRCPF16. 400W 460W 35 psi + 3.5 psi (241 kPa + 24.1 kPa) 0.7 L/m Cabinet, Outlet HEPA Filter and Com- pressor Inlet.
  • Page 11 SPECIFICATIONS SPECIFICATIONS (CONTINUED) Current overload or line surge shutdown. High temperature compressor shutdown. High Pressure Alarm w/compressor shutdown. Low Pressure Alarm w/compressor shutdown. Battery Free Power Loss Alarm. SensO ® Oxygen System 18-inches (45.7 cm). 23.75-inches (60.3 cm). 14-inches (35.6 cm). 54 lbs.

  • Page 12: Unpacking

    The shipping container has been designed to assure maximum protection of the concentrator. If the concentrator is to be reshipped by common carrier, additional cartons are available from Invacare. UNPACKING 1. Check for any obvious damage to the carton or its contents. If damage is evident, notify the Carrier, or your local dealer.

  • Page 13: Select A Location

    HANDLING HANDLING (CONTINUED) INTRODUCTION Your Oxygen Concentrator is intended for use in the home. It is an electronically operated device that separates oxygen from room air. It provides high concentration of oxygen directly to you through a nasal cannula or mask. Clinical studies have documented that oxygen concentrators are therapeutically equivalent to other types of oxygen delivery systems.

  • Page 14: Recommended End-User Guidelines For Optimum Performance

    HANDLING HANDLING (CONTINUED) For flow rates less than 1 L/min., use the Pediatric Flowmeter. 20 Minutes NOTE: Ensure that your concentrator is at least three (3) inches away from walls, draperies or furniture to assure sufficient air flow. Avoid deep pile carpets and heaters, radiators or hot air registers.

  • Page 15: Oxygen Tubing

    OPERATION / MAINTENANCE 3. Attach the humidifier adapter by turning the wing nut on the humidi- fier bottle counterclockwise until it is securely fastened. Humidifier Bottle Adapter FIGURE 3 - ATTACHING THE HUMIDIFIER ADAPTER 4. If using the Remote Humidifier/Flowmeter Accessory, refer to the Operating Instructions which accompany the accessory.

  • Page 16: Power Switch

    OPERATION / MAINTENANCE POWER SWITCH 1. Press power switch to the position. The power light (I/O), located on the control panel, will illuminate a light. The alarm will "beep" three (3) times indicating that the system is functioning properly. FLOWRATE 1.

  • Page 17: Initial Startup Of The Concentrator

    OPERATION / MAINTENANCE INITIAL STARTUP OF THE CONCENTRATOR NOTE: Concentrator may be used during initial warm-up time (approximately 30 min.) while waiting for the GREEN light to illuminate. When the unit is initially turned on, the GREEN power LED (I/O) will illumi- nate.

  • Page 18: Cleaning The Cabinet Filters

    OPERATION / MAINTENANCE MAINTENANCE CLEANING THE CABINET FILTERS Cabinet Filter Cabinet Filter FIGURE 7 - CABINET FILTER LOCATION NOTE: All concentrator Models have two (2) cabinet filters located on each side of the cabinet (FIGURE 7). 1. Remove each filter and depending on environmental conditions ( 2.

  • Page 19: Cabinet

    OPERATION / MAINTENANCE CABINET WARNING 1. Clean the cabinet with a mild household cleaner and non-abrasive cloth or sponge. HUMIDIFIER NOTE: To clean the oxygen humidifier, follow the instructions provided by the manufacturer. If none are provided, follow these steps: 1.
  • Page 20 TROUBLESHOOTING TROUBLESHOOTING GUIDE Alarm: Call Dealer for Service. Alarm: CONTINUOUS Power Switch ON, Concentrator NOT OPERATING. Beeeeeeeep..Call Dealer for Service. YELLOW or RED LIGHT Illuminated. Call Dealer for Service. GREEN LIGHT with Call Dealer for Service. YELLOW Light Flashing.
