Summary of Contents for Panasonic AW-E350

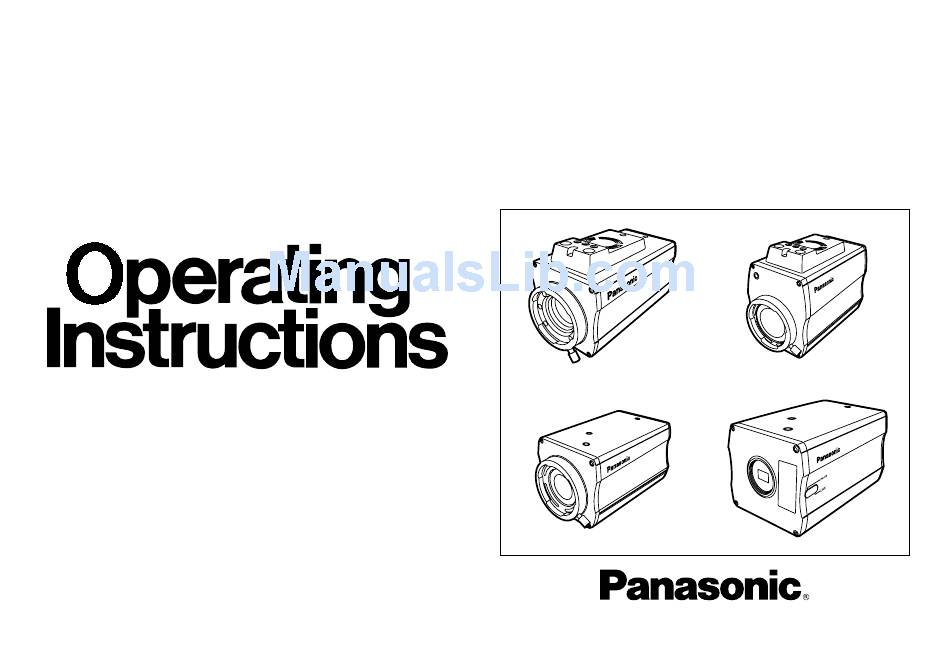

- Page 1 Convertible Camera AW-E750 AW-E655 AW-E650 AW-E350 AW-E750 AW-E650 Before attempting to connect, operate or adjust this product, please read these instructions completely. AW-E655 AW-E350...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Table Of Contents
CONTENTS PREFACE ... 4 FEATURES ... 5 SPECIAL NOTES ON OPERATION ... 6 PRECAUTIONS ... 7 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ... 9 MOUNTING ... 13 FLANGE BACK ADJUSTMENT (FOR ZOOM LENS) ... 15 IRIS GAIN CONTROL IN A LENS ... 17 CONNECTIONS ... -
Page 4: Preface
PREFACE • The Panasonic AW-E750, AW-E655, AW-E650 and AW-E350 are digital signal processing color video cameras that incorporates three CCDs; 2/3" 3CCD (AW-E750) 1/2" 3CCD (AW-E655, AW-E650) 1/3" 3CCD (AW-E350) A digital video signal processing system is packed in a compact, lightweight body while assuring high picture quality, high reliability and high performance. -
Page 5: Features
2. Resolution: 850 lines (HIGH BAND DTL: ON) S/N ratio: 67dB (DNR ON) (AW-E750, AW-E655, AW-E650) 66dB (DNR ON) (AW-E350) 3. Minimum illumination: 0.00005 lx (AW-E750, AW-E655, AW-E650) 0.00015 lx (AW-E350) 4. The built-in CCD storage function and digital gain up function provide an even higher degree of high sensitivity. -
Page 6: Special Notes On Operation
SPECIAL NOTES ON OPERATION • Turn power off before connecting or disconnecting cables. • Connection or disconnection of any studio cable, RCB cable or other cable to any unit of equipment must be performed while power is off. • While the camera is in automatic mode; Shooting of bright objects in ELC operation mode may result in a smeared picture unique to the CCD. -
Page 7: Precautions
PRECAUTIONS DON'TS • Do not attempt to disassemble the camera, Remote Control Unit (RCU) or other units. In order to pre- vent electric shock, do not remove screws or cov- ers. There are no user-serviceable parts inside. • Do not abuse the camera. Avoid striking, shaking, etc. - Page 8 • Refer any servicing to qualified service personnel. • Handle the camera with care. • Protect the precision made lens by placing the lens cap over when the camera is not in use. If the lens is not installed, protect the surface of the prism by placing the body cap into the lens mount hole.
-
Page 9: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS <Front View> <Top View> (model AW-E655 only) <Side View>... - Page 10 2/3" Standard bayonet type (B4 mount) lens (AW-E750) 1/2" Standard bayonet type (B4 mount) lens (AW-E655, AW-E650) 1/3" C mount lens (AW-E350) One of the lenses listed above or a microscope adaptor is installed on this mount. 2. Lens fixing ring knob Rotate the lens fixing ring knob counterclockwise and remove the lens mount cap.
- Page 11 When the camera is to be mounted on a Panasonic pan/tilt head (such as the AW-PH300A), do not use this connector — connect the remote cable of the lens to the LENS I/F connector on the pan/tilt head instead.
- Page 12 • AW-PH300A is connected through the optional pan/ tilt unit cable (AW-CA50T15/AW-CA50A15). • Use the camera/pan-tilt head connecting cable (AW-CA50T29/AW-CA50C29) AW-PH350 to the convertible camera. 15. Power Indicator Signal Red LED lamp lights to indicate that the specified Signal Control DC power is supplied to the camera.
-
Page 13: Mounting
Connect the camera cable to the IRIS connector on the back panel of the camera. (AW-E750, AW-E650, AW-E350) To Lens I/F Connector of Control Cable Camera Pan/tilt Unit... -
Page 14: Camera Mounting
Use the screws provided to attach the accessory mounting adaptor to the bottom panel of the camera. AW-E650 or AW-E350 models: Use the screws provided to attach the accessory mounting adaptor to the top or bottom panel of the camera. -
Page 15: Flange Back Adjustment (For Zoom Lens)
FLANGE BACK ADJUSTMENT (FOR ZOOM LENS) AW-E750, AW-E655, AW-E650 This adjustment will bring the subject into focus across the whole range from the maximum telephoto position to the widest angle position of the zoom lens. 1. Fully open the iris by shooting a dark object. (Iris selection switch should be set to M.) 2. - Page 16 AW-E350 This adjustment will bring the subject into focus across the whole range from the maximum telephoto position to the widest angle position of the zoom lens. Perform this adjustment when back focusing is not achieved with a fixed focus lens.
-
Page 17: Iris Gain Control In A Lens
IRIS GAIN CONTROL IN A LENS An iris gain control hole is usually provided in the front of the lens. Adjustment of the iris gain, with a screwdriv- er through the hole may be done as follows. (Shape and location of the hole may vary depending on the type of lens.) 1. -
Page 18: Connections
CONNECTIONS Caution: The connection and installation should be done by qualified service personnel or system installers. Refer any servicing to qualified service personnel. CONNECTION OF DEVICE WITH A COMPOSITE INPUT CONNECTOR • Connection to any device which has a composite input connector, such as a video monitor or a VTR, must be made through the VIDEO OUT Connector. - Page 19 CONNECTION OF A REMOTE CONTROL UNIT (RCU) Connection to the RCU (WV-RC700A, WV-RC550) is made through the optional RCU cable AW-CA50A26. 1. Turn RCU power off before connecting cables. 2. Set the cable selection switch of the RCU to MULTI (in case of using the WV-RC700A) 3.
- Page 20 CONNECTION OF A REMOTE CONTROL BOX (RCB) The RCB (WV-CB700A) and the camera must be con- nected with the optional RCB cable AW-CA50T10. 1. Turn RCB power off before connecting cables. 2. Connect the 50-pin connector of the RCB cable to I/F REMOTE connector of the camera.
- Page 21 CONNECTION WITH MULTIPLE CAMERAS (COLOR LOCK MODE) • An example of connection for VBS/BB input (Color lock mode). • One of the multiple cameras is used as the source of ref- erence signals. • Supply a synchronizing signal (BB) to the G/L Input Connectors of each cameras.
- Page 22 CONNECTION OF COMPUTER The AW-CA50T9 PC control cable is required to control the camera using a computer. Consult your dealer for details. The user is responsible for providing the software used to control the camera. VIDEO OUT Connector DC Power Cable AW-CA4T1 CONNECTION OF DEVICES WITH CAMERA PAN/TILT CONTROL SYSTEM •...
-
Page 23: Adjustment
ADJUSTMENT AUTOMATIC WHITE BALANCE CONTROL (AWC) There are two white balance memories, “AWC A” or “AWC B” for two different light sources color tempera- tures, with the automatic white balance setting. Then, when the two different light sources are encountered, you may operate the camera properly by simply change the white balance mode to either AWC A or AWC B. - Page 24 Notes: • For white balance setting aim the camera at a white object and try to position it in the center of the monitor screen. The object must appear in over 10 % of the total monitor screen area. Try to avoid overly bright objects in the scene.
- Page 25 Minimize the carrier wave using the red & blue gain controls Waveform for white balance set chart RESET TO 3 200K OR 5 600K WHITE BALANCE When the white balance setting is set to either “P SET 3 200K” or “P SET 5 600K” the white balance will be automatically set to the color temperature 3 200K or 5 600K, respectively.
- Page 26 TOTAL PEDESTAL LEVEL ADJUST- MENT (Use an oscilloscope or a waveform monitor for this adjustment.) This step is to adjust the black levels (pedestal levels) of two or more cameras to be the same. [ADJUSTMENT by CAMERA] 1. Close the lens. 2.
- Page 27 GEN-LOCK ADJUSTMENT Phase adjustments must be performed with the camera or the RCU (RCB) when external synchronizing signals are supplied to the system in cases where multiple cameras are used or peripheral devices are connected. HORIZONTAL PHASE CONTROL Observe the waveform of the external synchronizing input signal (black burst signal) and video output signal on a two-channel oscilloscope.
- Page 28 CAUTION: When horizontal phase adjustment is required using RCU (RCB) or Hybrid Control Panel, BAR/CAM switch should be set to BAR. Horizontal phase cannot be adjusted if the switch is in the CAM position. After adjustment set BAR/CAM switch back to CAM. COLOR PHASE ADJUSTMENT Supply the output signal (split color bar) from the color special effect generator to a color monitor or vec-...
-
Page 29: Use Mode Setting
USE MODE SETTING Use Mode Setting The camera has four use modes, and various functions for four use modes have been preset. Functions can be set as best suited to each use mode. • Halogen mode Suited to indoor shooting, such as at weddings, parties, lecture meetings, events, etc. - Page 30 SETTING BY RCU (RCB) OR HYBRID CONTROL PANEL An operation mode is selected depending on the posi- tion of the scene file switch. Scene File Switch Operation mode Position of RCU (RCB) Halogen Mode Fluorescent Mode Outdoor Mode USER SET User's Mode CAMERA MENU...
-
Page 31: Menu Item Setting
MENU ITEM SETTING MENU ITEM SETTING • Each of the four use modes of the camera has a main menu. (Shown at right) • Each item of the main menu has a submenu, which consists of several settings. • These settings have been preset to the optimum values to suit each use mode, and can be changed to suit actual shooting conditions. - Page 32 SETTING 1. From the camera alone: Keep the MENU switch depressed for 5 sec- onds or more. From RCU (RCB): Set the user set switch in the pocket to the ON position. The main menu appears on the monitor screen. 2.
- Page 33 SUB MENU (Halogen Mode, Fluorescent Mode, Outdoor Mode) Brightness Set Display **Brightness Set** 1 ------- Picture Level 2 ------- Light PEAK/AVG 3 ------- Light Area Top Cut 4 ------- Auto ND(ELC) (OFF) 5 ------- Auto Gain Up (OFF) 6 ---------- AGC Max Gain (---) 7 -------...
- Page 34 Setting and Changing of the Setting (Halogen Mode, Fluorescent Mode, Outdoor Mode) 1 Brightness Set Display 1. Video Level Adjustment [Picture Level: –50 to +50] Convergence level of AUTO IRIS/AUTO GAIN UP/ AUTO ND (ELC) can be adjusted. 2. Detecting Ratio Adjustment [Light PEAK/AVG: P50 to A50] The ratio of AUTO IRIS/AUTO GAIN UP/AUTO ND (ELC) detected peak to average can be adjusted...
- Page 35 [Manual Gain Up: 0 dB to 30 dB, N/Eye L, N/Eye H] (AW-E750, AW-E655, AW-E650) [Manual Gain Up: 0 dB to 30 dB, N/Eye] (AW-E350) Manual setting is possible only when the Auto Gain Up control (1-5) is in the OFF position.
- Page 36 Notes • Only 0 dB, 9 dB, or 18 dB can be selected in case of using the RCU (RCB). • 0 dB when the manual GAIN switch on the hybrid control panel is at LOW, 9 dB when it is at MID, or 18 dB when it is at HIGH.
- Page 37 10. Black Level Setting [Pedestal: –150 to +150] The black level (pedestal) of the luminance (Y) signal can be set. Used in adjusting the black levels of two or more cameras. 2 Color Set Display 1. Chroma Level Adjustment [Chroma Level: –3 to +3] Chroma Level can be decreased or increased to any of three levels each.
- Page 38 P SET 5 600K: The white balance is adjusted to 5 600K illumination. Note Neither P SET 3 200K nor P SET 5 600K can be set from the RCU (RCB) or the hybrid control panel. 4. ATW Speed Setting [ATW Speed: SLOW 2, SLOW 1, MID, FAST 1, FAST 2] ATW Speed can be set.
- Page 39 4 Sharpness (DTL) Set Display 1. Detail Select Setting [DTL Select: Sharpness, Super DTL] If contour correction is not sufficient at the Sharpness position when Detail Level setting is set to LOW or HIGH, select the Super DTL position. Note Neither Sharpness nor Super DTL is valid for contour correction if Detail Level setting is in the OFF position.
- Page 40 5 Other Set Display 1. Contrast Adjustment [Contrast (Gamma): LOW, MID, HIGH] The contrast can be adjusted to any of three levels. 2. Electronic Shutter Setting [Shutter Speed: OFF, 1/100 to 1/10 000, S/Scan, Auto ND] OFF: Electronic shutter is turned off. 1/100, 1/250, 1/500, 1/1 000, 1/2 000, 1/4 000, 1/10 000: Electronic shutter operates at one of these speeds as selected.
- Page 41 5. PC Control Access Speed Setting [Baud Rate: 1 200bps, 2 400bps, 4 800bps, 9 600bps] Select a communication speed in controlling the camera from the computer. Component Output Setting [Component: RGB, Y/Pr/Pb, Y/C] This enables RGB, Y/Pr/Pb or Y/C to be selected as the component signals which are to be output from the I/F REMOTE connector.
- Page 42 Sub Menu (User Mode) Iris, Shutter, Gain Set Display **Iris,Shutter,Gain Set** 1 ------- Picture Level 2 ------- Light PEAK/AVG 3 ------- Light Area Top Cut 4 ------- Auto Iris Adjust 5 ------- Shutter Mode (Step) 6 --------- Step/Synchro (OFF) 7 ------- Gain (0dB) 8 -------...
- Page 43 Color Matrix Set Display **Color Matrix Set 1** B_Mg Gain B_Mg Phase Gain Phase Mg_R Gain Mg_R Phase Gain Phase **Color Matrix Set 2** R_Yl Gain R_Yl Phase Gain Phase Yl_G Gain Yl_G Phase Gain Phase **Color Matrix Set 3** G_Cy Gain G_Cy Phase Gain...
- Page 44 Setting and Changing of the Setting Items (User Mode) 6 Iris, Shutter, Gain Set Display 1. Video Level Adjustment [Picture Level: –50 to +50] Convergence level of AUTO IRIS/AGC/ELC can be adjusted. 2. Detecting Ratio Adjustment [Light PEAK/AVG: P50 to A50] The ratio of AUTO IRIS/AGC/ELC detected peak to average can be adjusted within a range.
- Page 45 5. Electronic Shutter Mode Setting [Shutter Mode: Step, ELC, S/Scan] Step: Electronic shutter operates at the speed selected by the Electronic Shutter Step/Synchro Scan Setting (6-6). ELC: Electronic shutter is controlled to automatically adjust the luminance. S/Scan (Synchro Scan): Electronic shutter operates at the speed selected in Electronic Shutter Step/Synchro Scan Setting (6-6).
- Page 46 [Gain: Auto, 0 dB to 30 dB, N/Eye L, N/Eye H] (models AW-E750, AW-E655, AW-E650) [Gain: Auto 0 dB to 30 dB, N/Eye] (model AW-E350) When “Auto” has been selected as the CCD storage time setting (6-10), the setting is kept to “Auto”...
- Page 47 [AGC Max Gain: 6dB, 12dB, 18dB, 24dB, N/Eye L, N/Eye H] (AW-E750, AW-E655, AW-E650) [AGC Max Gain: 6dB, 12dB, 18dB, 24dB, N/Eye] (AW-E350) This is used to set the maximum gain up when “Auto” has been selected as the gain setting (6-7).
- Page 48 7 Color Set Display 1. Chroma Level Adjustment [Chroma Level: –3 to +3] Chroma Level can be decreased or increased to three levels. 2. White Balance Setting [White Bal: ATW, AWC A, AWC B, P SET 3 200K, P SET 5 600K] ATW: The white balance is automatically adjusted to the optimum position.
- Page 49 6. Negative/Positive Selection [Nega/Posi: Posi, Nega] Posi: Normal image Nega: Image is shown reversed in darkness and color. 8 G/L Adjustment Set Display 1. Horizontal Phase Adjustment [H Phase: –206 to +49] Horizontal phase can be adjusted when a genlock signal is supplied.
- Page 50 7. Noise Suppress Compensation Level Setting [Noise Suppress: 1 to 10] Screen noise can be reduced with the Detail Level Setting (9-1) at HIGH or LOW. If the noise suppress compensation level is set too high, a fine object will be reproduced less sharply.
- Page 51 : Color Matrix Set Display B_Mg Gain: Increases or decreases the intermedi- ate color between blue and magenta. B_Mg Phase: Varies the hue of the intermediate color between blue and magenta. Gain: Increases or decreases the magenta. Phase: Varies the hue of the magenta. Mg_R Gain: Increases or decreases the intermedi- ate color between magenta and red.
- Page 52 ; Other Set Display 1. Gamma Correction Level Setting [Gamma: 0.35 to 0.55] Gamma correction level can be set. 2. Knee Compensation Level Setting [Knee Point: 88% to 98%, Dynamic] 88% to 98%: The level of video signals subject to knee compensation (knee point) can be set.
- Page 53 11. Component Output Setting [Component: RGB, Y/Pr/Pb, Y/C] This enables RGB, Y/Pr/Pb or Y/C to be selected as the component signals which are to be output from the I/F REMOTE connector. 12. Digital Extender Setting [Digital Extender: OFF, ON] OFF: Under normal circumstances, this setting is used.
-
Page 54: Setting And Changing The Optional Cards
SETTING AND CHANGING THE OPTIONAL CARDS < Optional Card Setting Sub Menu This sub menu appears when a studio card (AW-PB506 or AW-PB305) has been inserted into the optional card slot. **Option Card Set** 1 ------- Zebra Indicator 2 --------- Level 3 ------- Safety Zone... - Page 55 2. Zebra Level Setting [Level: 70% to 110%] This enables the zebra pattern to be displayed so that it will provide as a general guideline for the lumi- nance level. It can be set when “ON” has been selected as the zebra indicator setting (<-1).
-
Page 56: Setting To Initial Set
SETTING TO INITIAL SET Setting to initial set In case of the wrong setting in any use mode, take the following steps to return to the initial settings. (1) Select [Initialize Data] on the main menu screen of each Use Mode. (See page 29.) Press the YES/ABC switch, then [Initialize Data] screen shown for about 10 seconds. - Page 57 SC Fine Bar Set Color Bar Set DTL Select Level Noise Suppress Sharpness Clean DNR (DTL) Set 3D-DNR DTL Flesh Tone *1: AW-E750, AW-E655, AW-E650 *2: AW-E350 Halogen mode Fluorescent mode ±0 ±0 Top cut Top cut ±0 ±0 ±0 ±0 ±0...
-
Page 58: User Mode
Halogen, Fluorescent, Outdoor Mode Item Contrast (Gamma) Shutter Speed Synchro Scan V Resolution Baud Rate Other Set Component Digital Extender Auto Focus Filter User Mode Item Picture Level Light PEAK/AVG Light Area Auto Iris Adjust Shutter Mode Iris, Shutter, Step/Synchro Gain Set Gain Digital Gain Up... - Page 59 User Mode Item Detail H Detail Level H V Detail Level H H Detail Level L V Detail Level L Detail Set 1 Detail Band Noise Suppress Level Dependent Dark Detail Chroma Detail Flesh DTL Level Detail Set 2 Corner Detail Precision Detail B_Mg Gain...
-
Page 60: Appearance
(AW-E750) 3-5/16" (84) 15/32" (12) OPTION CARD MENU ITEM / AWC YES / ABC NO / BAR Convertible Camera AW- 6-11/16" (170) 25/64" (10) -60- Unit: inch (mm) Unit: inch (mm) VIDEO OUT I / F REMOTE G / LIN... - Page 61 (AW-E655) ZOOM / FOCUS OPTION CARD VIDEO OUT I / F REMOTE MENU G / LIN ITEM / AWC YES / ABC IRIS NO / BAR DC12V IN Convertible Camera AW- 3-5/16" (84) 15/32" (12) 6-5/16" (160) 25/64" (10) -61-...
- Page 62 Unit: inch (mm) (AW-E650) OPTION CARD VIDEO OUT I / F REMOTE MENU G / LIN ITEM / AWC YES / ABC IRIS NO / BAR DC12V IN Convertible Camera AW- 3-5/16" (84) 15/32" (12) 6-1/8" (155) 25/64" (10) -62-...
- Page 63 (AW-E350) 3-5/16" (84) 3/64" (1) MENU ITEM / AWC FOCUS YES / ABC NO / BAR LOCK Convertible Camera AW- 5-11/16" (145) 25/64" (10) -63- Unit: inch (mm) OPTION CARD VIDEO OUT I / F REMOTE G / LIN IRIS...
-
Page 64: Specifications
SPECIFICATIONS $ AW-E750, AW-E655 Source Voltage: DC 12 V Power consumption: 12.6 W (AW-E750), 12.0 W (AW-E655) Optical system Pick up device Number of valid pixels Total number of pixels Scanning system Synchronizing system Video output Standard illumination, color temperature Minimum illumination S/N ratio Horizontal resolution... - Page 65 AW-E750 AW-E655 Electronic shutter speeds 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000; ELC, synchro scanner (60.34 Hz to 15.75 kHz) CCD readout selection Field, frame1, frame2 Color bars SMPTE Lens mount 2/3" bayonet mount 1/2" bayonet mount Lens diaphragm Auto, Manual (but only with remote control), adjust ON, OFF Internal filters –––...
- Page 66 $ AW-E650, AW-E350 Source Voltage: DC 12 V Power consumption: 11.8 W (AW-E650), 11.3 W (AW-E350) Optical system Pick up device Number of valid pixels Total number of pixels Scanning system Synchronizing system Video output Standard illumination, color temperature Minimum illumination...
- Page 67 For storage: 20% to 90% For operation: 20% to 90% 84 x 77 x 177 mm) 2.0 lbs ( 0.92 kg) -67- AW-E350 1/3" C mount ––– 3-5/16"x3-1/32"x6-1/8" ( 84 x 77 x 156 mm) 1.7 lbs ( 0.77 kg)
-
Page 68: Standard Accessories
STANDARD ACCESSORIES Rubber Sheet ... 1 Mounting Spacer Mounting Adaptor ... 1 (models AW-E750, AW-E655 only) ... 1 Screw ... 2 -68-... - Page 72 PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY UNIT COMPANY OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA Executive Office: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000 EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621 Southeast Region: 1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024 (770) 338-6835...
