Summary of Contents for Panasonic Grid-EYE AMG88 Series
Page 1

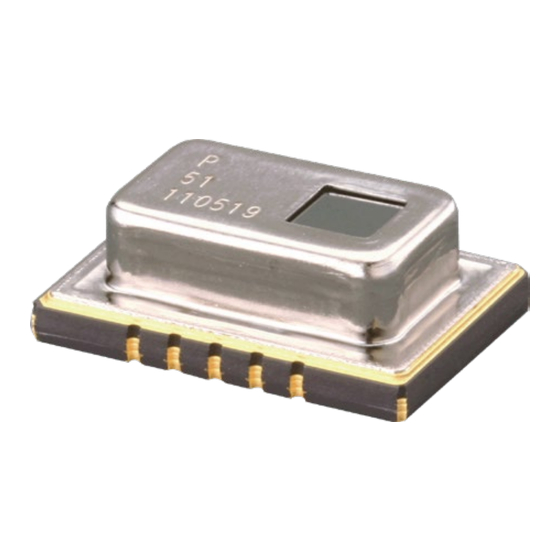

Infrared Array Sensor Grid-EYE Surface Mount Type AMG88xx(High performance type) High precision infrared array sensor based on advanced MEMS technology Feature ● Temperature detection of two-dimensional area: 8 × 8 (64 pixels) ● Digital output (capability of temperature value output) ●...
AMG88xx(High performance type) External circuit (1) In case of setting I2C slave address of the sensor 1101000 ※ Connect terminal 5 (AD_SELECT) to GND. ②SDA ⑬VPP To microcomputer etc. ③SCL ⑫DVDD-PC To microcomputer etc. ④INT To microcomputer etc. ⑩AVDD-PC ⑤AD SELECT ⑥GND ⑨VDD 10 μF±20%...
Page 5
AMG88xx(High performance type) Carton packing A reel which is taping pacaged Tape Lavel Carton Dampproof bag 1. The number packed by 1 reel is up to 1000 pcs. 2. The end of the carrier tape are fixed by tape. 3. Inside the dampproof bag is not deaerated Design and specifications are each subject to change without notice.
Page 6
Guidelines and precautions regarding the technical information and use of our products described in this online catalog. ■ If you want to use our products described in this online catalog for applications requiring special qualities or reliability, or for applications where the failure or malfunction of the products may directly jeopardize human life or potentially cause personal injury (e.g.
Page 7
Infrared Array Sensor Grid-EYE Application Guidelines (AMG88) 1. Safety precautions Head the following precautions to prevent injury or accidents. (1) We take no responsibility for troubles caused by the product usage that is not specified in this specification. Using the sensors in any way which causes their specifications to be exceeded may generate abnormally high levels of heat, emit smoke, etc., resulting in damage to the circuitry and possibly causing an accident.
Page 8
Infrared Array Sensor Grid-EYE (AMG88) (9) The sensor can continuously operate within the range of using ambient temperature (using ambient humidity). However, ensure that humidity is within the range described in the following page as humidity varies according to temperature. Avoid the continuous operation near the operational limit.
Infrared Array Sensor Grid-EYE (AMG88) 5.5 Dividing of PCB When you cut, fold, or fix with screw the PCB after mounting the sensor, not to stress to the sensor and the soldered parts. 5.6 Structure of sensor terminals The sensor terminals are designed to be exposed, so contact of the terminals with metal shards and the like will cause output errors.
Infrared Array Sensor Grid-EYE (AMG88) (4) Do not use this product which has been disassembled or remodeled. (5) Do not reuse this sensor after it has been removed from the printed circuit board. 10. Special remarks We will do our utmost to control the quality of this product, but please be aware of the following: (1) This product is designed to use in general applications at general electric equipment (Household electric appliances, AV products, office equipment, information and equipment, etc.).
