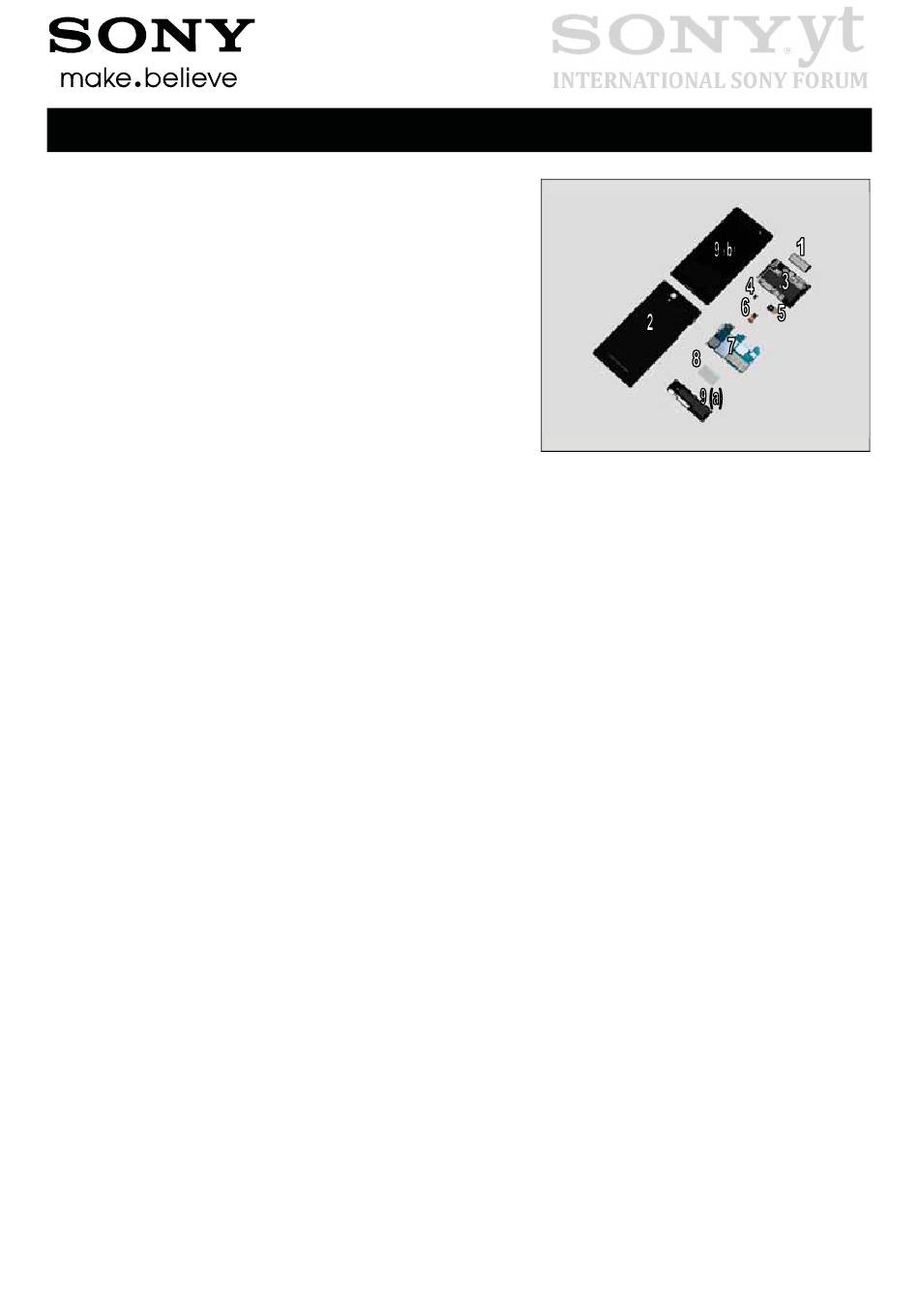

Disassembly
The S55t/S55u/D2533/D2502 disassembly is done in the
following order:
1. SIM Tray
2. Back Cover Assy
3. Ant Top Frame Assy
4. 2nd Mic Rubber
5. Main Camera
6. Chat Camera
7. Main PBA
8. Core Unit label Tray
9. Ant Speaker Bottom Frame Assy (a) and Display Frame
Assy (b)
