CGX A Cognionics Company
Quick-20m
This manual includes operating instructions, maintenance instructions, and
general information for use of the CGX Quick-20m.
Carefully read this manual to familiarize yourself with the headset, software, and
accessories before use.
Caution: Federal law restricts this device to sale by or on the order of a physician.
Description

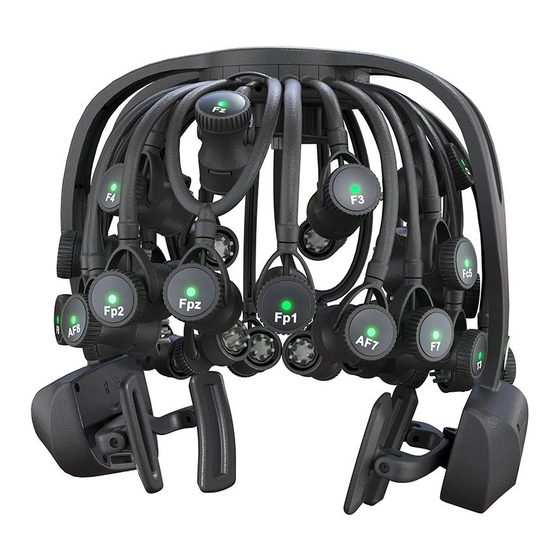

The Quick-20m is a wireless, battery-
operated 10-20 montage EEG headset
utilizing dry sensor technology. The
headset provides an integrated
approach to the wireless acquisition of
EEG signals. A seated patient is free to
exhibit natural movements while real-
time data is collected.
The Quick-20m includes advanced
amplification and shielding to reject
ambient electrical noise.
The headset obtains high-quality
EEG with minimal scalp preparation.
Patented mechanisms and a range
of replaceable dry sensors align
to various head shapes and sizes,
maintaining sensor positions in a
standard 10-20 layout. EEG channels
are digitized with 24 bits of resolution
at 500 Hz. The Quick-20m is suitable
for general-purpose EEG.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CGX Quick-20m and is the answer not in the manual?

Questions and answers

Related Manuals for Cognionics CGX Quick-20m

Summary of Contents for Cognionics CGX Quick-20m

  • Page 1 CGX A Cognionics Company Quick-20m This manual includes operating instructions, maintenance instructions, and general information for use of the CGX Quick-20m. Carefully read this manual to familiarize yourself with the headset, software, and accessories before use. Caution: Federal law restricts this device to sale by or on the order of a physician.
  • Page 2 Warnings The Quick-20m is intended to be used to acquire the electroenchephalogram (EEG) and transmit it wirelessly to a computer. The Quick-20m headset is not a diagnostic tool. Any medical diagnosis related to the EEG should be derived by a certified physician. This Device Is Not Intended For The Following Uses: monitoring of patients in a clinical environment •...

  • Page 3: Disposable Sensors

    Warnings NOTE: The EMISSIONS Disposable Sensors characteristics of this Store clean sensors in the provided jars. • equipment make it suitable Clean sensors after each session following instructions on • for use in industrial areas and Page 16. hospitals (CISPR 11 class A).

  • Page 4: Performance Degradation

    Warnings Cybersecurity The Quick-20m is MR Unsafe. The Quick-20m does not pose an inherent cybersecurity Keep it outside the MRI risk. The wireless bluetooth system relies on a built-in scanner room. security encryption method utilizing 128-bit AES encryption. Performance Warnings The Quick-20m is designed for use in a professional healthcare facility by a trained healthcare professional.
  • Page 5 Warnings Symbol Title Of Standard Title Of Standard Description Of Symbol Symbol Prescription 21 CFR 801.15(c)(1)(i)(F) Labeling - Medical device; Requires a prescription Only prominence of required in the United States of 21 CFR 801.109 label statements. America. Labeling - Prescription Caution: In the United devices.

  • Page 6: Device Overview

    Device Overview Quick-20m Overview The Quick-20m meets the mechanical, electrical, and EEG is the measurement — through the use of sensors and sensor needs required to amplifiers — of scalp surface electrical potentials arising make an effective dry EEG from activity in the cortex. system.
  • Page 7 Device Overview The Package Contains The 10 Drypad Ear Sensors 4 Rechargeable AAA Batteries Following Items A1 Earclip Battery Charger A2 Earclip Carrying Case Quick-20m Headset 3 Active Lead Wires Manual Bluetooth Dongle 2 Passive Lead Wires 20 Drypad Sensors 30 Skintact Sensors 40 Flex Sensors 5 Alcohol Wipes...
  • Page 8 Device Overview Amplifier Bluetooth Dongle Wireless amplifier High-speed receiver collects signals dongle plugs into and transmits to your computer’s Bluetooth Dongle. USB port. Drypad Sensor Flex Sensor Drypad sensors Flex sensors slide make direct through hair for skin contact for high-quality scalp ECG and EEG contact.
  • Page 9 Preparation 1. Select Sensors Choose the appropriate sensor for your application. Drypad Sensors Use Drypad sensors in positions where the patient has no hair (forehead and bald areas). Drypad Ear A1 Earclip Sensor Flex Sensors Use Flex sensors to penetrate hair. On most patients, these are all the positions except Fp1, Fp2, F7 and F8.
  • Page 10 Preparation 5. Charge And Insert The Batteries Use fresh alkaline batteries, or if using NiMH batteries, fully charge before using. Open the battery door on the A1 handle. • Place the batteries in the correct configuration following • the markings inside the battery housing. 6.
  • Page 11 Donning Sensor names and positions...
  • Page 12 Donning Headset Placement For Accurate 10-20 Recordings Crown (Cz channel position) sitting directly on top of head Headset not tilted too far towards the back of the head Fp1 and Fp2 sensor pods resting 1cm above the eyebrows No legs or pods are tilted or misaligned Earpads resting securely around...
  • Page 13 Donning 8. Place The Quick-20m On The Patient’s Head Positioning The Headset Grasp both handles and gently pull them apart to open • the headset. Slide the headset over the patient’s head. • Adjust the position of the headset so the earpads fit •...
  • Page 14 Donning 9. Optimize Sensor Contact After properly positioning the headset on the patient, obtain direct contact on all sensors before recording. The range of impedances with dry sensors may be higher than what you are accustomed to when working with conventional wet sensor amplifiers.

  • Page 15: Sensor Performance

    Recording 12. Record An EEG After you have acceptable impedance levels, record the EEG on the third-party EEG analysis software. 13. End The Session Remove the batteries from the headset. The headset should be placed either upside down, with the top of the headset resting on a table top, or on its side resting on a handle.

  • Page 16: Cleaning Sensors

    Preventative Care To Maintain Safety And Effectiveness Cleaning Sensors Clean Sensors Between Patients Use either of these two methods to clean sensors. The Quick-20m system Immersion Method includes 2 full sets of sensors. 1. Remove sensors from headset. Remove sensors after use 2.
  • Page 17 Preventative Care To Maintain Safety And Effectiveness Follow These Advisories To Keep Your Quick-20m In Good Working Order Do not immerse the headset in liquid. • Do not expose headset to direct sunlight or heat source, • moisture, vibration, mechanical shock, excessive dust, or humidity.

  • Page 18: Specifications

    Specifications Specifications Effective Radiated System 7 mW Power Number Of EEG RF Radiated Group 1 Class B Emissions, CISPR 11 Physiological Acquisition Channels Device uses RF energy for internal functions. Low RF emissions are not likely to cause any interference in Number Of EEG nearby electronic equipment.
  • Page 19 Specifications Notes: Weight 596g in use 1. At 80 MHz, the higher frequency range applies. 52-62 cm Fits Heads Sized 2. These guidelines may not apply in all situations Dimensions (LWH) 20 x 18 x 19 cm 3. Electromagnetic propagation is affected by absorption and reflection from structures, objects Certifications and people.

  • Page 20: System Support

    Ship all returns with an RA number to: Attn: Service 8445 Camino Santa Fe, #213 San Diego, CA 92121 Covered by Patents issued and/or pending under CGX A Cognionics Company license from Cognionics, Inc. 8445 Camino Santa Fe, #213 San Diego, CA 92121 US9314183B2, US9615761B2, US9935726B2, 858-864-9400 US8798710B2, and International patents.
