4000 PSI Surface Cleaners
Owner's Manual
#49429
#49430
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Items #49429 & #49430
SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Summary of Contents for NorthStar 49429
- Page 1 Owner’s Manual #49429 #49430 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Items #49429 & #49430 SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing a NorthStar™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
After Each Use ............................8 Maintenance ............................9 #49429 Parts Diagram ......................... 11 #49429 Parts List ..........................12 #49429 Swivel Parts Diagram ......................13 #49429 Swivel Parts List........................14 #49430 Parts Diagram ......................... 15 #49430 Parts List ..........................16 #49430 Swivel Parts Diagram ......................17 #49430 Swivel Parts List........................ -
Page 4: Intended Use

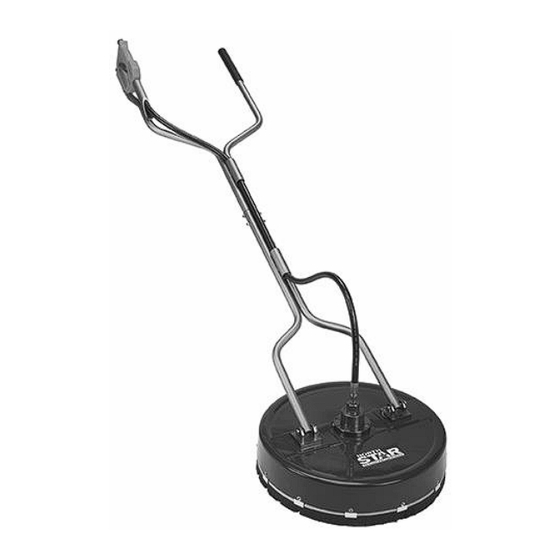

Intended Use The NorthStar 4000 PSI Surface Cleaners are used for the high-pressure cleaning needs of driveways, concrete floors, parking lots, roofs, warehouses, boat ramps, garage floors, boat decks, and other flat surfaces. The benefits of using these products are clear: effective, shorter working times, enormous energy savings and a long useful life due to the high industrial quality. -
Page 5: Important Safety Information
Important Safety Information Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage. The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense and caution when using this surface cleaner. Always be aware of the environment and ensure that the surface cleaner is used in a safe and responsible manner. -
Page 6: Specific Operation Warnings
PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the surface cleaner. Do not use the surface cleaner while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the surface cleaner may result in serious personal injury. -
Page 7: Assembly
STOP using the machine and replace the spray bar. Continued operation could result in serious injury or damage to the machine. 1. Connect the inlet filter (D40014 on cleaner #49429; D40015 on #49430) to the FSC gun inlet. 2. Connect the cleaner to a non-operating pressure washer. -
Page 8: After Each Use
3. Turn the water on and open the valve. Open the trigger gun for flow of water through the nozzles. The nozzles must have flowing spray. If not, remove the tips, clean them, and reassemble the nozzles making sure that the groove of the nozzle is parallel to the spray bar. Use thread sealant when reinstalling the nozzles. -
Page 9: Maintenance
Maintenance The surface cleaner does not require maintenance. Replacing the nozzles: Disconnect the FSC from the pump. Turn the FSC deck upside down and use a 9/16” combination wrench to unscrew the nozzles. Do not let any debris fall into the open nozzle ports. - Page 10 The swivel can drop out of the bottom of the FSC deck. Remove the rotating arm using two wrenches. If a vice is handy, hold the rotating arm while turning the hex on the swivel outlet. Installing the new swivel in the FSC is the reverse process of removing the old one. Use only identical replacement parts with the cleaner.
-
Page 11: 49429 Parts Diagram
#49429 Parts Diagram Page 11 of 21... -
Page 12: 49429 Parts List
#49429 Parts List Item No. Part No. Description Qty. 2103221 Swivel 2660312 Deck, GP, 20" 2530009 Arm, Rotary, Assy, 20" 2630010 Plate, Retaining 2540023 Collar, Split 2200055 SHCS, M8 X 30 2200054 SHCS 2540021 Handle, Lower 2540037 Handle, FSC, Upper... -
Page 13: 49429 Swivel Parts Diagram
#49429 Swivel Parts Diagram Page 13 of 21... -
Page 14: 49429 Swivel Parts List
#49429 Swivel Parts List Item No. Part No. Description Qty. 2500011 Housing 2520030 Retainer, Bearing 2520029 Retainer, Bearing 2520027 Spacer, Bearing 2640015 Bearing 2701012 O-Ring 2701011 O-Ring 2701010 O-Ring 2720007 Spring 2530008 2530007 Stem, Small 2520029 Snap Ring 2710000 Back-up Ring... -
Page 15: 49430 Parts Diagram
#49430 Parts Diagram Page 15 of 21... -
Page 16: 49430 Parts List
#49430 Parts List Item No. Part No. Description Qty. 2630010 Plate, Retaining 2103226 Swivel 2500017 Collar, Split 2660047 Grip, Handle 2200055 SHCS, M8 X 30 2200053 Nut, M8 X 1.25, SS 2203406 Washer, M6 2202010 Pin, 55MM, W / Ring, SS 2200058 HHCS, M6 X 60 2200026... -
Page 17: 49430 Swivel Parts Diagram
#49430 Swivel Parts Diagram Page 17 of 21... -
Page 18: 49430 Swivel Parts List
#49430 Swivel Parts List Item No. Part No. Description Qty. 250014 Housing 2520030 Retainer, Bearing 2520028 Retainer, Bearing 2520027 Spacer, Bearing 2640004 Bearing 3701012 O-Ring 2701011 O-Ring 2701010 O-Ring 2720007 Spring 2530008 2530007 Stem, Small 2520029 Snap Ring 2710000 Back-up Ring 2520113 Stem 2200092... -
Page 19: Troubleshooting
Troubleshooting Do not turn the cleaner over when it is pressurized by connection to an operating pressure washer to avoid high-pressure spraying water that could cause serious personal injury. If the surface cleaner’s rotating arm is not spinning, ensure that the cleaner is not pressurized then tilt it upward so you can see the underside of the deck. -
Page 20: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only ("You'' or “Your”) that the NorthStar product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of 2 years from date of purchase. - Page 21 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 21 of 21...
