Doro 1361 - Mobile Phone Quick Start Guide

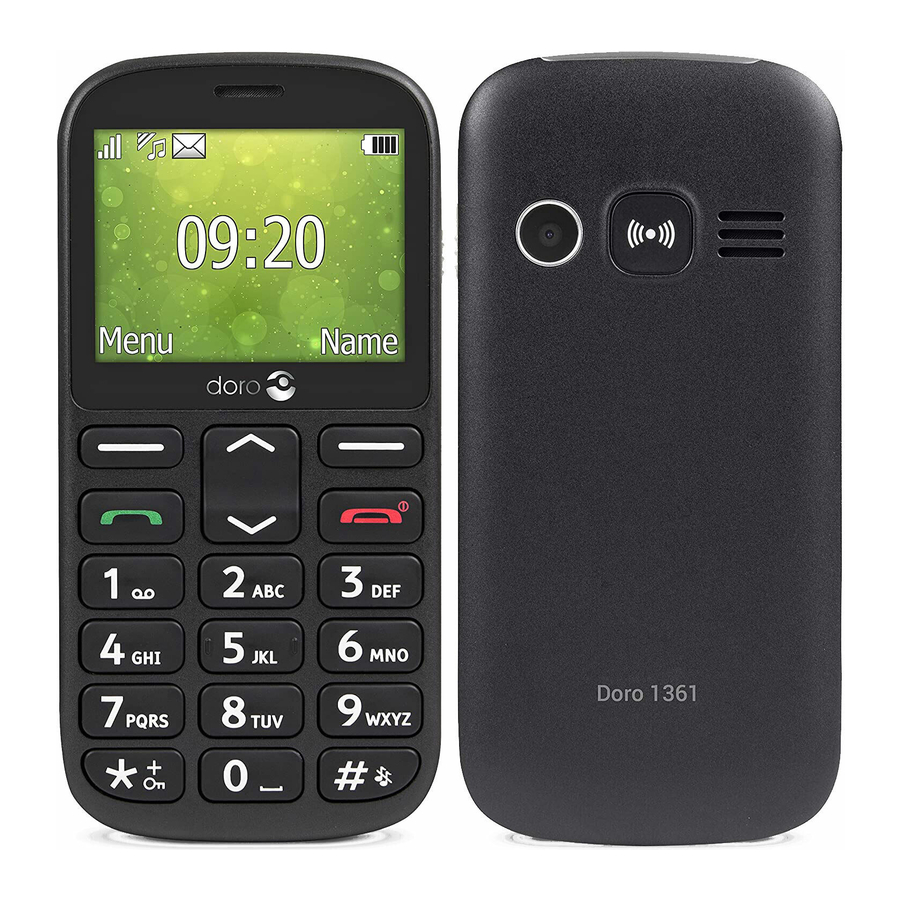

DEVICE OVERVIEW

1. Speaker
2. Left selection button
3. Call button
4. Voicemail
5. Keypad lock and International prefix/ symbols
6. Silent / Input method
7. Scroll buttons
8. End call / Power on/off
9. Right selection button
10. Torch button
11. Torch
12. Headset socket
13. Camera
14. Assistance button
15. Loudspeaker
16. Microphone
17. Charging cradle connectors
18. Charging socket

Note! All illustrations are for illustrative purposes only and may not accurately depict the actual device. The items supplied with your phone might vary depending on the software and accessories available in your region or offered by your service provider. You can obtain additional accessories from your local Doro dealer. The supplied accessories provide the best performance with your phone.

GET STARTED

SIM card, memory card and battery

Remove the battery cover

Be careful not to damage your fingernails when you remove the battery cover. Do not bend or twist the battery cover excessively as it may be damaged.

Insert SIM card (required)

Remove the battery if it is already installed. There are two SIM card slots, SIM1 and SIM2. If you are to use only one SIM card, we recommend to use SIM1 slot.
Slide the card under the metal part, with the goldcoloured circuit board facing down.
The cut-off corner of the card helps to you place the card, correct placement is indicated in the compartment.

Insert SD card (optional)

Press the card's lid carefully towards the assistance button until it "clicks". Lift the lid to an upright position. Make sure the card's contacts are facing downwards. Fold down the lid and carefully push it down, sliding it back in place.

Note! The circuit boards (metal part) on the cards must not be scratched or bent. Try not to touch the circuits with your fingers.

Insert the battery

Insert the battery by sliding it into the battery compartment with the circuits facing down to the right. Replace the battery cover.

Charge the phone

Only use batteries, charger and accessories that have been approved for use with this particular model. Connecting other accessories may be dangerous and may invalidate the phone's type approval and guarantee.

When the battery is running low, is displayed and a warning signal is heard.

• Connect the mains adapter to the wall socket and to the charging socket .

Tip: Don't forget to remove the protective plastic film from the display.

GET TO KNOW YOUR PHONE

Turn the phone on and off

1. Press and hold the red button on the phone to turn it on/off. Confirm with Yes to power off.
2. If the SIM card is valid but protected with a PIN code (Personal Identification Number), Input SIM1 PIN is displayed. Enter the PIN code and press OK. Delete with Clear.

Note! If PIN and PUK codes were not provided with your SIM card, please contact your service provider.

Trials remain: shows the number of PIN attempts left. When no more attempts remain,
PIN blocked is displayed. The SIM card must now be unlocked with the PUK code (Personal Unblocking Key).

1. Enter the PUK code and confirm with OK.
2. Enter a new PIN code and confirm with OK.
3. Re-enter the new PIN code and confirm with OK.

Start-up wizard

When starting the telephone for the first time, you can use the start-up wizard to set some basic settings.

Tip: You can run the start-up wizard later if you want.

Step-by-step instructions

In this document the arrow () indicates next action in the step-by-step instructions.
To confirm an action in the phone, press OK. To select an item, scroll or highlight the item using and then press OK.

Enter text

• Press a numerical key repeatedly until the desired character is shown. Wait a few seconds before entering the next character.
• Press for a list of special characters.
• Select the desired character with and press OK to enter it.
• Useto move the cursor within the text.
• Press to cycle upper case, lower case and numerals.
• Press and hold to change writing language.

Change language, time and date

The default language is determined by the SIM card.

Calls

Make a call

1. Enter the phone number. Delete with Clear.
2. Press to dial. Press Abort to cancel the call.
3. Press to end the call.

Note! For international calls, always use + before the country code for best operation. Press twice for the international prefix +.

Call from the phonebook

1. Press Name to open the phonebook.
2. Useto scroll through the phonebook, or quick search by pressing the key corresponding to the first letter of the name.
3. Press Options Call, alternatively, press to dial the selected entry, or press Back to return to standby.

Receive a call

1. Press to answer, or press Silent to switch off the ring signal and then Reject (busy signal).
   Alternately, press to reject the call directly.
2. Press to end the call.

Volume control

Use to adjust the sound volume during a call. The volume level is indicated on the display.

Silent
Silent is a fixed profile with keypad tone, message tone and ring tone disabled, while vibration, tasks and alarm are unchanged.

• Press and hold to activate and to deactivate silent.

Call options

During a call the soft keys () give access to additional functions.

Speed dial

Use and – to speed dial an entry from standby.

• Press and hold the corresponding button to dial.

Add speed dial numbers

1. Press Menu Settings Phonebook Speed dial.
2. Selec Add and select an entry from the phonebook.
3. Press OK to confirm.
4. Repeat to add speed dial entries for buttons – .

SOS calls

As long as the phone is switched on, it is always possible to place an SOS call by entering the main local emergency number for your present location followed by .

Call log

Received, missed, and dialled calls are saved in a combined call log. 20 calls of each type can be stored in the log. For multiple calls related to the same number, only the most recent call is saved.

1. Press .
2. Useto scroll through the call log.
   = Received call
   = Dialled call
   = Missed call
3. Pressto dial, or Options.

PHONEBOOK

The Phonebook can store 100 entries with 3 phone numbers in each entry.

Add a contact:

1. Press Menu Phonebook New contact Add.
2. Enter a Name for the contact, see Enter text. Delete with Clear.
3. Use to select Mobile,
   Home or Office, and enter the phone number(s) including the area code.
4. When done, press Save.

ICE (In Case of Emergency)

In the event of a trauma, it is critical to have this information as early as possible to increase the chances of survival. Add ICE contact to improve your own safety. First responders can access additional information such as medication and next of kin from your phone in case of an emergency. All fields are optional, but the more information provided the better.

Press Menu Phonebook ICE.

5. Use to scroll the list of entries.
6. Press Edit to add or edit information in each entry. Delete with Clear.
7. Press Save when done.

ASSISTANCE BUTTON

The assistance button allows easy access to contact your predefined help numbers should you need help. Make sure that the assistance function is activated before use and make all necessary configurations. Test the application thoroughly.

Make an assistance call

1. When help is needed, press and hold the assistance button for 3 seconds, or press it twice within 1 second.
   The assistance call begins after a delay of 5 seconds. In this time you can prevent a possible false alarm by pressing .
2. An assistance text message (SMS) is sent to all recipients. The first recipient in the list is dialled. If the call is not answered within 25 seconds, the next number is dialled. Dialling is repeated 3 times or until the call is answered, or until is pressed.

When an assistance call is activated the phone is pre-set to handsfree mode. Do not hold the device near your ear when the handsfree mode is in use, because the volume may be extremely loud.

Settings

• Press Menu Settings Assistance.

MESSAGES

Create and send text messages

1. Press Menu Messages Create new SMS.
2. Write your message, see Enter text, then press To.
3. Select a recipient from Add from Phonebook.
   Alternatively, select Enter number to add recipient manually and press OK.
4. You can modify the recipients by selecting one and press Options Edit/Delete/ Delete all.
5. When done, press Options Send.

Create and send picture messages

Both you and the recipient must have subscriptions that support picture message. The settings for picture message are supplied by your service provider and can be sent to you automatically via text message.

1. Press Menu â Messages Create new MMS.
2. Write your message, see Enter text.
3. Press Options Add picture:
   • My picturesto select a file.
   • Take pictureto use the camera to take a picture.

Note! To keep best picture quality, send only one picture per message.

You can also Add sound, Add video, and Preview MMS using the Options menu.

4. Press Options Add subject and enter your subject, then press Options Done.
   Press Options To and select recipient from Add from Phonebook.
   Alternatively, select Enter recipient to add recipient manually and press Options Done.
5. Press Add to add more recipients.
6. Press Options Send to send.

Settings

• Press Menu Settings Messages.

CAMERA (TAKE PHOTOS)

1. Press Menu Camera.
2. Press OK to take the photo.
3. Press Options or press Back to take a new photo (if you do not make any selection the picture is saved).

Settings

• Press Menu Settings Camera.

BLUETOOTH^®

You can connect wirelesses to other Bluetooth^® compatible devices such as headsets or other phones.

When you are not using Bluetooth^® connectivity, turn off Activate or Visibility. Do not pair with an unknown device.

Activate Bluetooth®

1. Press Menu Settings Bluetooth Activation On.
2. Press OK to confirm.

Search device

1. Press Menu Settings Bluetooth Search device.
2. Select a device from the list and press Bond to connect. If Bluetooth^® is not enabled, press Yes to activate.
3. Press OK to confirm.

SOUND & DISPLAY

Tone setup

1. Press Menu Settings SoundTone setup SIM1 incoming call.
2. Use to select one of the available melodies, the melody will be played.
3. Press OK to confirm or Back to discard changes.

Text size

You can customise the text size for the menu and messages.

1. Press Menu Settings DisplayText size:
   • Normal or Large.
2. Press OK to confirm.

Brightness

You can customise the brightness settings. The higher value, the better contrast.

1. Press Menu Settings Display Brightness:
   • Level 1-3.
2. Press OK to confirm.

ADDITIONAL FUNCTIONS

Alarm

1. Press Menu Alarm On.
2. Enter the alarm time using the keypad and press OK to confirm.
   • Single, for a single occurrence,
   • Repeated, for a repeated alarm. Scroll through the list of days and press On or Off to enable or to disable for each day.
3. When done, press Save.
4. When the alarm goes off a signal will sound. Press Stop to turn off the alarm or press Snooze to repeat the alarm after 9 minutes.

Note! The alarm works even when the phone is switched off. Do not power on if wireless phone use is prohibited or when it may cause interference or danger.

Torch

Slide up to turn on the torch. Slide down to turn off.

Reset settings

1. Press Menu Settings Security.
2. Select Reset settings to reset the phone settings. All the changes that you have made to the phone settings will be reset to default settings.
3. Enter the phone code and press OK to reset.

Tip: The default phone code is 1234.

Reset all

1. Press Menu Settings Security.
2. Select Reset all to delete phone settings and content such as contacts, number lists and messages (SIM memory is not affected). 3. Enter the phone code and press OK to reset.

Tip: The default phone code is 1234.

TROUBLESHOOTING

Phone cannot be switched on

Battery charge low	Connect the power adapter and charge the battery.
Battery incorrectly installed	Check the installation of the battery.

Failure to charge the battery

Battery or charger damaged	Check the battery and charger.
Battery recharged in temperatures < 0°C or > 40°C	Improve the charging environment.
Charger incorrectly connected to phone or power socket	Check the charger connections.

PIN code not accepted

Wrong PIN code entered too many times

Enter the PUK code to change the PIN code, or contact the service provider.

SIM card error

SIM card damaged	Check the condition of the SIM card. If it is damaged, contact the service provider.
SIM card incorrectly installed	Check the installation of the SIM card. Remove the card and reinstall it.
SIM card dirty or damp	Wipe the contact surfaces of the SIM card with a clean cloth.

Failure to connect to network

SIM card invalid	Contact the service provider.
No coverage of GSM service	Contact the service provider.

Failure to add a contact

Phonebook memory full

Delete contacts to free up memory.

Failure to set a function

Function not supported or subscribed from network

Contact the service provider.

SAFETY INSTRUCTIONS

The unit and the accessories can contain small parts. Keep all of the equipment out of the reach of small children.
The mains adapter is the disconnect device between the product and mains power. The mains socket outlet must be close to the equipment and easily accessible.

Network services and costs

Your device is approved for use on the GSM 850/900/1800/1900 MHz networks. To use the device, you need a subscription with a service provider.
Using network services may result in traffic costs. Some product features require support from the network, and you may need to subscribe to them.

Operating environment

Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is prohibited or can cause interference or hazards. Only use the unit in its normal user position. Parts of the unit are magnetic. The unit can attract metal objects. Do not keep credit cards or other magnetic media near the unit. There is a risk that information stored on them can be erased.

Medical units

The use of equipment that transmits radio signals, for example, mobile phones, can interfere with insufficiently protected medical equipment. Consult a doctor or the manufacturer of the equipment to determine if it has adequate protection against external radio signals, or if you have any questions. If notices have been put up at health care facilities instructing you to turn off the unit while you are there, you should comply. Hospitals and other health care facilities sometimes use equipment that can be sensitive to external radio signals.

Implanted medical devices

To avoid potential interference, manufacturers of implanted medical devices recommend a minimum separation of 15 cm between a wireless device and the medical device. Persons who have such devices should:

• Always keep the wireless device more than 15 cm from the medical device.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device.

If you have any reason to suspect that interference is taking place, turn the phone off immediately. If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.

Areas with explosion risk

Always turn off the unit when you are in an area where there is a risk of explosion. Follow all signs and instructions. There is a risk of explosion in places that include areas where you are normally requested to turn off your car engine. In these areas, sparks can cause explosion or fire which can lead to personal injury or even death.
Turn off the unit at filling stations, and any other place that has fuel pumps and auto repair facilities.
Follow the restrictions that apply to the use of radio equipment near places where fuel is stored and sold, chemical factories and places where blasting is in progress. Areas with risk for explosion are often – but not always – clearly marked. This also applies to below decks on ships; the transport or storage of chemicals; vehicles that use liquid fuel (such as propane or butane); areas where the air contains chemicals or particles, such as grain, dust or metal powder.

Li-ion battery

This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled improperly.

Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60°C (140°F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.

TECHNICAL DATA

Specifications

Network bands (MHz) [maximum radio-frequency power/dBm]: 2G GSM	850 [33], 900 [33], 1800 [30], 1900 [30]
Bluetooth (MHz) [maximum radio-frequency power/dBm]:	3.0 (2402 - 2480) [10]
Dimensions:	126 mm x 62 mm x 13 mm
Weight:	96 g (including battery)
Battery:	5V/800 mAh Li-ion battery
Operating ambient temperature:	Min: 0°C (32°F) Max: 40°C (104°F)
Charging ambient temperature:	Min: 0°C (32°F) Max: 40°C (104°F)
Storage temperature:	Min: -20°C (-4°F) Max: 60°C (140°F)

www.doro.com

Documents / Resources

References

• Home page

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Doro 1361 - Mobile Phone Quick Start Guide
