Optoma EP729 Manual
Optoma ep729: user guide
Hide thumbs
Also See for EP729:
- Specifications (2 pages) ,
- Quick start card (2 pages) ,
- Datasheet (1 page)
Table of Contents
Advertisement
Table of Contents ....................................................................................... 1
Usage Notice .............................................................................................. 2
Precautions ......................................................................................................... 2
Introduction ............................................................................................... 4
Product Features ................................................................................................. 4
Package Overview ............................................................................................... 5
Product Overview ................................................................................................ 6
Main Unit ......................................................................................................................... 6
Control Panel .................................................................................................................. 7
Connection Ports ............................................................................................................ 8
Remote Control with Mouse Function & Laser Pointer .................................................... 9
Installation ................................................................................................ 10
Connecting the Projector ................................................................................... 10
Powering On/Off the Projector ............................................................................. 11
Powering On the Projector ............................................................................................ 11
Powering Off the projector ............................................................................................ 12
Warning Indicator ......................................................................................................... 12
Adjusting the Projected Image ........................................................................... 13
Adjusting the Projector Image Height ........................................................................... 13
Adjusting the Projector Zoom / Focus .......................................................................... 14
Adjusting Projected Image Size ................................................................................... 14
User Controls .......................................................................................... 15
On-Screen Display Menus ................................................................................ 17
How to operate .............................................................................................................. 17
Menu Tree ..................................................................................................................... 18
Language ...................................................................................................................... 19
Colour Setting ............................................................................................................... 19
Image-I ......................................................................................................................... 20
Image-II ........................................................................................................................ 22
Management ................................................................................................................. 23
Lamp Setting ................................................................................................................ 25
Appendices ............................................................................................... 26
Troubleshooting ................................................................................................. 26
Replacing the lamp ............................................................................................ 30
Compatibility Modes .......................................................................................... 31
Table of Contents
1
Advertisement
Table of Contents
Related Manuals for Optoma EP729
Summary of Contents for Optoma EP729
-
Page 1: Table Of Contents
Warning Indicator ... 12 Adjusting the Projected Image ... 13 Adjusting the Projector Image Height ... 13 Adjusting the Projector Zoom / Focus ... 14 Adjusting Projected Image Size ... 14 User Controls ... 15 Control Panel & Remote Control ... 15 On-Screen Display Menus ... -
Page 2: Usage Notice
English ... Warning- Do not look into the projector’s lens when the lamp is on. The bright light may hurt your eyes. Warning- To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. - Page 3 Turn off the product before cleaning. Use a soft cloth moistened with mild detergent to clean the display housing. Disconnect the power plug from AC outlet if the product is not being used for a long period of time. Don’t: Block the slots and openings on the unit provided for ventilation.
-
Page 4: Introduction
Full function remote with mouse control and laser pointer User friendly multilingual on screen display menu Advanced digital keystone correction and high quality full screen image re-scaling User friendly control panel SXGA+, SXGA compression and VGA, SVGA re-sizing Mac compatible projector. -
Page 5: Package Overview
Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. Projector with lens cap Composite Video Cable 1.8m Due to the differ- ence in applica-... -
Page 6: Product Overview

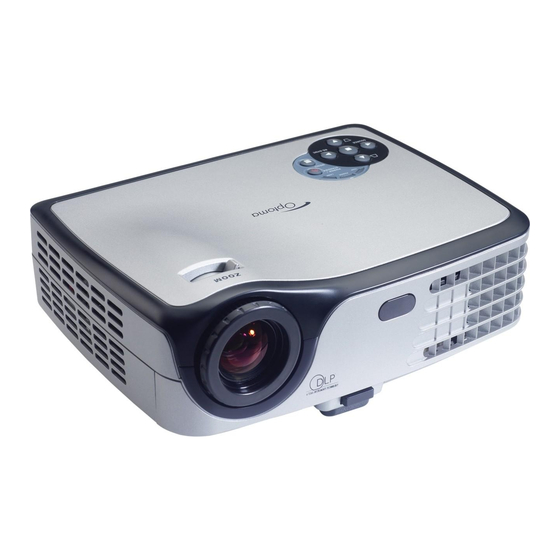

Introduction Product Overview Main Unit 1. Control Panel 2. Zoom Lever 3. Focus Ring 4. Zoom Lens 5. Lens Cap 6. Elevator Foot 7. Elevator Button 8. IR Receivers 9. Connection Ports 10. Power Socket English ... -
Page 7: Control Panel
Control Panel 1. Temp Indicator LED 2. Power Indicator LED 3. Lamp Indicator LED 4. Power/Standby 5. Menu (On/Off) 6. Re-Sync 7. Keystone Correction 8. Four Directional Select Keys 9. Source 10. Enter Introduction ... English... -
Page 8: Connection Ports
Introduction Connection Ports 1. IR Receiver 2. Power Socket 3. PC Analog signal/SCART RGB/HDTV/Component Video Input Connector 4. Composite Video Input Connector 5. S-Video Input Connector 6. USB Input Connector 7. Kensington Lock Port English ... -
Page 9: Remote Control With Mouse Function & Laser Pointer
Remote Control with Mouse Function & Laser Pointer Introduction IR LED Laser Pointer Laser Indicator LED Laser Button Auto Image Enter Freeze Power Source 10. Menu 11. Four Directional Select Keys 12. Keystone Correction 13. Mouse Right Click 14. Mouse Left Click 15. -
Page 10: Installation
6..USB Cable (Optional Accessory) 7..D-15 to RCA Adapter for YPbPr (Optional Accessory) To ensure the projector works well with your computer, please set the display mode of your graphic card less than or equal to 1024 X 768 resolution. Make sure the timing of the display mode is compatible with the projector. -
Page 11: Powering On/Off The Projector
Power LED will turn green. 4. Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically. If you connect multiple sources at the same time, use the “Source” button on the control panel or remote control to switch. -
Page 12: Powering Off The Projector
When the light stops flashing, the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press “Power/Standby”... -
Page 13: Adjusting The Projected Image
Adjusting the Projected Image Adjusting the Projector Image Height The projector is equipped with an elevator foot for adjusting the image height. To raise the image: 1. Press the elevator button 2. Raise the image to the desired height angle the button to lock the elevator foot into position. -
Page 14: Adjusting The Projector Zoom / Focus
4.9 to 32.8 feet (1.5 to 10.0 meters). Zoom Lever Focus Ring Screen (Diagonal) Screen Size This graph is for user’s reference only. English ... Adjusting the Projector Zoom / Focus Adjusting Projection Image Size Diagonal (187.5cm) 36.9" (93.8cm) (160.9cm) 31.7" (80.5cm) 4.92'... -
Page 15: User Controls
There are two ways for you to control the functions: Remote Control and Control Panel. Control Panel Using the Control Panel Power/Standby Refer to the “Power On/Off the Projector” section on pages 11-12. Source Press “Source” to choose RGB, Component-p, Component-i, S-Video, Composite Video and HDTV sources. - Page 16 USB cable. Menu English ... Refer to the “Power On/Off the Projector” section on pages 11-12. Press “Source” to choose RGB, Component-p, Component-i, S-Video, Composite Video and HDTV sources. Automatically synchronizes the projector to the input source.
-
Page 17: On-Screen Display Menus
On Screen Display Menus The Projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. How to operate To open the OSD menu, press “Menu or Control Panel. -
Page 18: Menu Tree
User Controls Menu Tree English ... -
Page 19: Language
User Controls Language Choose the multilingual OSD menu . Use the your preferred language. Press “Enter” to finalize the selection. Colour Setting Adjust the Red, Green, Blue, Yellow, Cyan and Magenta colors for advanced adjustment of the individual colors. Language key to select Colour Setting ... -
Page 20: Image-I
User Controls Display Mode There are many factory presets optimized for various types of images. Brightness Adjust the brightness of the image. Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. - Page 21 Saturation Adjusts a video image from black and white to fully saturated color. “Saturation” function is not supported under Press the computer mode. Press the Sharpness Adjusts the sharpness of the image. Press the Press the User Controls to decrease the amount of color in the image. to increase the amount of color in the image.
-
Page 22: Image-Ii
User Controls Frequency “Frequency”changes the display data frequency to match the frequency of your computer’s graphic card. If you experience a vertical flickering bar, use this function to make an adjustment. Phase “Phase” synchronizes the signal timing of the display with the graphic card. -
Page 23: Management
Correct image distortion caused by tilting the projector vertically. Source Lock When this function is turned off, the projector will search for other signals if the current input signal is lost. When this function is turned on, it will search specified connection port. - Page 24 User Controls Translucence Choose the menu transparency on the display screen. Reset Return the adjustments and settings to the factory default values. English ... Execute: Returns the settings for all menus to factory default values. Cancel: Cancel the revised settings...
-
Page 25: Lamp Setting
The message will show up 30 hours before end of life. ECO Mode Choose “On” to dim the projector lamp which will lower power consumption and extend the lamp life by up to 130%. Choose ”Off” to return to normal mode. -
Page 26: Appendices
Check if the projection lamp has been securely installed. Please refer to the “Replacing the lamp” section. Make sure you have removed the lens cap and the projector is switched on. Ensure that the “Hide” feature is not turned on. - Page 27 IBM=> [Fn]+[F7] If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector. Problem: The screen of the Notebook or PowerBook com- puter is not displaying a presentation. If you are using a Notebook PC: Some Notebook PCs may deactivate their own screens when a second display device is in use.
- Page 28 Error (Lamp cover failed) English ... Adjusts the Focus Ring on the projector lens. Refer to page 14. Make sure the projection screen is between the required distance 4.9 to 32.8 feet (1.5 to 10.0 meters) from the projector. Please select 4:3 aspect ratio type on your DVD player if you are playing a 16:9 DVD.
- Page 29 Problem: Message Reminders Standby : Replacing the lamp : Appendices ... English...
-
Page 30: Replacing The Lamp
Appendices Replacing the lamp The projector will detect the lamp life itself. It will show you a warning message “Lamp life exceeded” When you see this message, change the lamp as soon as possible. minutes before changing the lamp. Warning: Lamp... -
Page 31: Compatibility Modes
Compatibility Modes VESA VGA VESA VGA VESA VGA VESA VGA VESA VGA VESA VGA VESA VGA VESA VGA VESA VGA VESA XGA VESA XGA VESA XGA VESA XGA * VESA SXGA * VESA SXGA * VESA SXGA * VESA SXGA * VESA SXGA * VESA SXGA+ MAC LC 13"...
