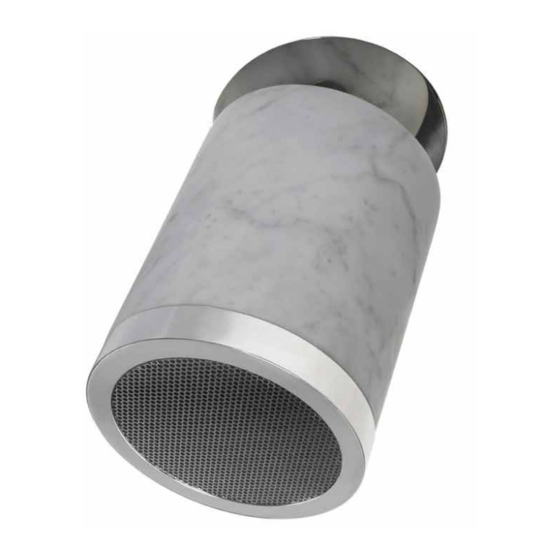

ARCHITETTURA SONORA ICARUS WALL Quick Start Manual

ICARUS_
WALL
10,9cm
4.30"
15,2cm
5.98"
11,9cm
4.68"

Unpacking:

to remove Icarus_wall from the shipping box carefully follow these steps
1.
Icarus_wall is shipped in a box
secured with packing foam; the
box has been designed to contain
up to two sound modules.
20,0cm
7.87"
4,8cm
1.88"
1,6cm
0.24"
2.
Remove the metal nishing
disc and the metal plate with
holes and set them aside.
SOUND OUTPUT
Speaker type
3,5" Wide Band
Nominal impedence
8
Crossover
DSP needed
Frequency range
100-20.000 Hz (-6dB)
Sensitivity (1W-1m)
11,9cm
86 dB/W/m
4.68"
50W (Class D)
3.
Remove the upper part of
the foam to release the
sound module.

Installation:

requires two people, especially during the cable
connection phase.
Align the central hole of the metal plate with the hole
in the wall where the audio cable comes out and
using the plate as a template mark the three holes
with a pencil. Proceed to drill the holes and insert into
them the expansion wall plugs you will need to
secure the metal plate in the wall.
Connect the sound module cable to the cable
coming out from the wall using a cable connector.
The part of the cable with the connector will then be
housed in the space provided behind the metal plate,
so that the connection remains hidden towards the
wall (see section next page).

SPECIFICATIONS

Material
concrete, marbles, travertine,
alternative stones.
Metal material
stainless steel, oxidized brass,
and painted steel
Dimensions
20 x 11,9 cm
(7,87 x 4.68 inches)
Weight
3 kg (6,6 pounds)
4.
Holding gently the module
pull it out of the box ready for
set-up and installation.
the installation of the Icarus_wall
