Summary of Contents for Panasonic CX-DP880U
Page 1

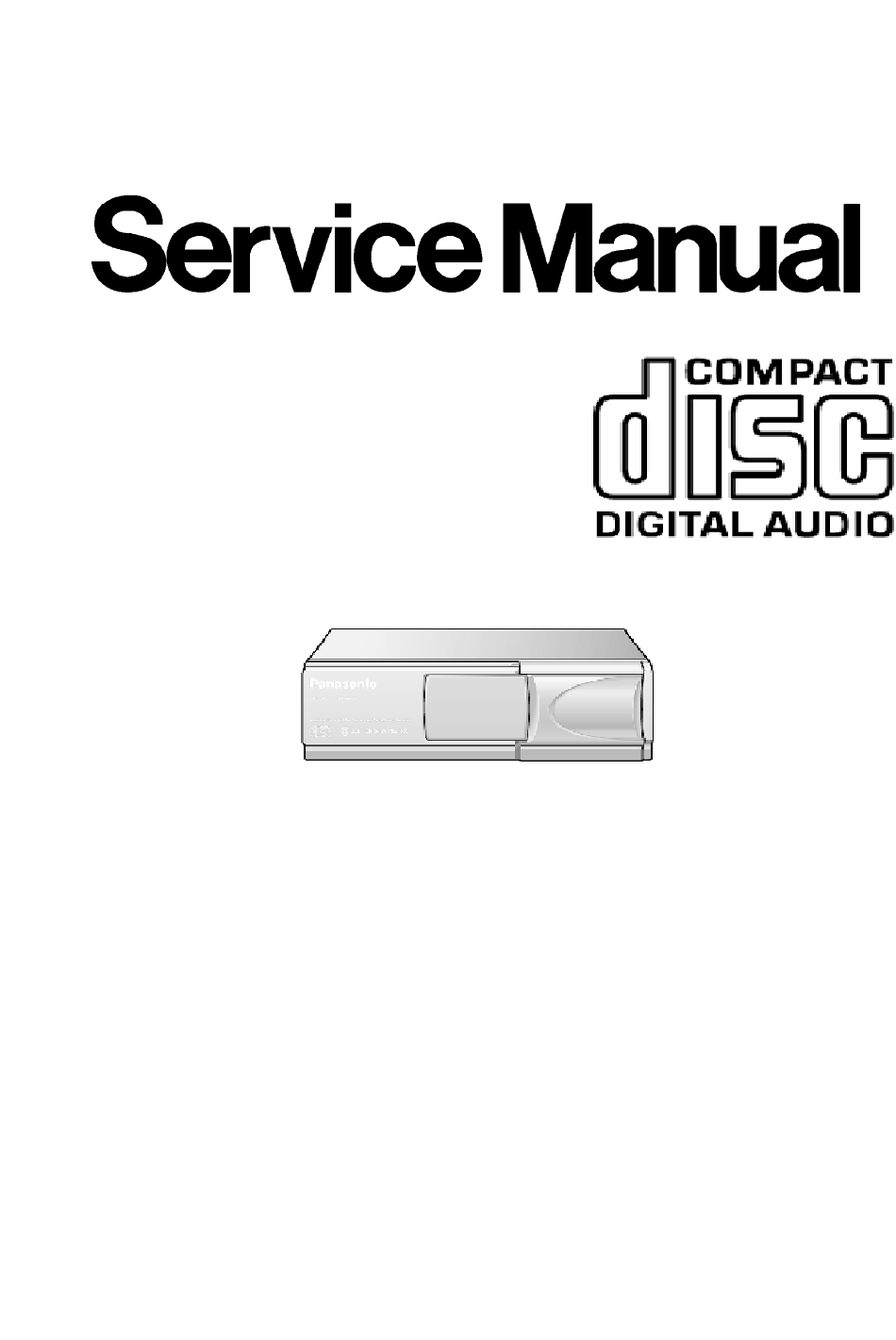

ORDER NO. ACED030349C7 AUTOMOTIVE AFTERMARKET CX-DP880U 8-disc CD Changer SPECIFICATIONS Specifications*...
Page 2
Signal to Noise Ratio 96dB Total Harmonic Distortion 0.006%(1,000Hz) Wow and Flutter Below measurable limits Sampling Frequency 8 Times Oversampling Correct System Panasonic Super Decoding Algorihm DA Converter NASH 1 bit Pick-Up Type Astigma 1-beam Light Source Semiconductor Laser Wavelength...
1. ABOUT LEAD FREE SOLDER (PbF) Distinction of PbF PCB: PCBs (manufactured) using lead free solder will have a PbF stamp on the PCB. Caution : - Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 700 ±...
10. TERMINALS DESCRIPTION 10.1. Main Block IC600 : C2BBGE000656...
Page 8
Port Description I/O (V) TEST EJ D.Ground 2,3 DIPSW D.Ground AVSS D.Ground D.Ground AVREF1 Pldaun in Ground by 100 kilohms CH DATA Data output CH CLK Clock output SUBQ Subcode data input D.Ground SQCK Subcode clock output CH STB Strob output 15-16 D.Ground Format switch (L: New...
Page 9
Port Description I/O (V) TEST STB Data MCLK Command clock output MDATA Command data output Command load output TEST Test input STAT Servo IC status input /SRST Servo IC reset output RESET SW +5V Power Supply TEST1 D.Ground TEST2 +5V Power Supply GCTRL Gain control (H:CD LM REV...
Port Description I/O (V) TEST D.Ground DDWN 10.2. CD Servo Block IC2 : MN6627482WB Port Description I/O (V) BCLK Serial Data Bit Clock LRCK Left Right signal output SR DATA Serial Data output DVDD1 Power supply (for digital) DVSS1 Ground (for degital) TX(NC) MCLK CPU Command Clock...
Page 11
Port Description I/O (V) 25 ECS Spindle Motor drive signal (Servo error signal output) 26 KICK Kick pulse output 27 TRD Tracking Drive output 28 FOD Focus Drive output 29 VREF Reference Voltage (for D/ A output block) 30 FBAL Focus Balance Adjustment output 31 TBAL...
Polyethylene Bag available Accessory Pad available Operating Instruction Kit available YEFM284015 Operating Instruction Warranty Card (1) Not available Panasonic Servicenter Directory (1) Not available RM-RYQ0206A Disc Magazine YEFM261081 Index Label YEP9BS1101 Bis Kit (Bolt with Double Washers, Nut) YEFG012448 Base Bracket...
Page 17
item. After the discontinuation of assembly in production, the item will continue to be available for a specific period of time. The retention period of availability is dependent on the type of assembly, and in accordance with the laws governing part and product retention.
Page 18
Ref. No. Part No. Part Name & Description Remarks C177 ECUV1C104KBN Ceramic, 0.1 F 16WV C201 ECJ2VB1H332K Ceramic, 3300PF 50WV C202 ECEA1CKA100I Electrolytic, 10 F 16WV C204 ECJ2VC1H221J Ceramic, 220PF 50WV C205 ECEA1CKA100I Electrolytic, 10 F 16WV C206 ECJ2VC1H222J Ceramic, 2200PF 50WV C207 ECJ2VC1H272J Ceramic, 2700PF 50WV...
Page 19
Ref. No. Part No. Part Name & Description Remarks C752 ECA1CHG471 Electrolytic, 470 F 16WV C753 ECA1CHG471 Electrolytic, 470 F 16WV RESISTORs J601 ERJ6GEY0R00V Chip, 0 1/10W J602 ERJ6GEY0R00V Chip, 0 1/10W J603 ERJ6GEY0R00V Chip, 0 1/10W J604 ERJ6GEY0R00V Chip, 0 1/10W J605 ERJ6GEY0R00V Chip, 0...
Page 23
Ref. No. Part No. Part Name & Description Remarks [VJB62122ZA] CD Servo Block IC's AND TRANSISTORs YESAM163 MN6627482WB C0GBE0000012 B1ADCF000001 Transistor CAPACITORs F3G0J336A001 Tantalum, 33 F 6.3WV F1H1C224A008 Ceramic, 0.22 F 16WV ECEA0JKS101I Electrolytic, 100 F 6.3WV ECJ1VC1H121J Ceramic, 120PF 50WV F1H1C104A042 Ceramic, 0.1 F 16WV...
Page 24
Ref. No. Part No. Part Name & Description Remarks F1H1C104A009 Ceramic, 0.1 F 16WV F1H1C104A009 Ceramic, 0.1 F 16WV F1H1C104A009 Ceramic, 0.1 F 16WV F1H1C104A009 Ceramic, 0.1 F 16WV F1H1C104A009 Ceramic, 0.1 F 16WV F1H1C104A009 Ceramic, 0.1 F 16WV F1J1C3340005 Ceramic, 0.33 F 16WV F1H1H102A009...
16. SCHEMATIC DIAGRAM 16.1. Main Block 16.2. CD Servo Block 17. SCHEMATIC DIAGRAM for Printing with Letter Size 17.1. Main Block (Left Side) 17.2. Main Block (Right Side) 17.3. CD Servo Block (Left Side) 17.4. CD Servo Block (Right Side)
