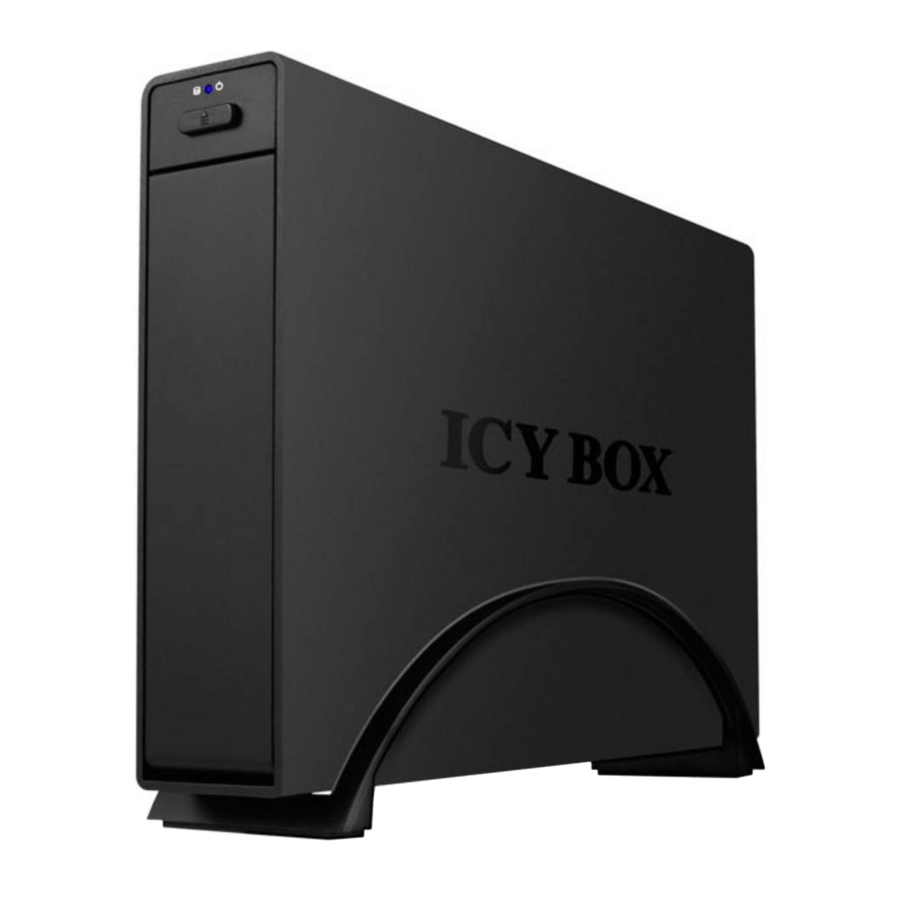

Icy Box IB-366StU3+B - External enclosure for 3.5" SATA HDD Manual

Table of Contents

Contents

1 Model – HDD – Interface – Colour
2 Package contents
3 Key Features
4 HDD Installation
5 Application − Using the external drive
6 LED-Function
7 Documents / Resources
- 7.1 Download manual

Model – HDD – Interface – Colour

Model	HDD	Interface	Colour
IB-366StU3+B	SATA	USB 3.0	black

Package contents

External case, power adapter and cord, USB cable, stand foot, manual

Key Features

Support SATA I - III (6 Gbit/s) HDD/SSD 4TB
USB 3.0 (5Gbit/s) host compatible with USB 2.0
Support Windows XP/Vista/7/8, Mac OS >10 and UASP by Windows 8 & Mac OS >10.8*
Easy Swap - HDD installation without screws
Vertical and horizontal settable
Plug & Play and Hot Swap *up to 400 MB/s with SATA -6G-SSD

HDD Installation

During the HDD assembly all cabling has to be disconnected from the computer.

Push the button and open the front door.
Put the case in the horizontal position like showed in the picture.
Slide the HDD with the controller board downsides into the case.
Close the door carefully till it is locked.

Application − Using the external drive

Mode

Power

Data

Description

1.External

Power adapter

Connect the device via the USB cable to the computer. Then connect the power adapter and switch the power button on.

USB

warning Attention: Some SATA controllers do not support Plug & Play (mostly due to incorrect driver implementations). In this case should only be connected to or disconnected from the computer while the computer is off. Otherwise a system crash or data loss can be caused.

warning Attention: A new HDD must first be initialised, partitioned and formatted by the operation system to be displayed by the system.

warning Attention: Please await end of read/write operations before disconnecting the HDD to avoid data lost.

If the hard disc isn't recognised instantly by the operating system please check:

If the driver software is installed
If the HDD is initialised, partitioned and formatted.

LED-Function

The LED shines blue for power and blinks purple for HDD Read/Write.

IB-366StU3+B is also working with computer/notebook with USB2.0/1.1 interfaces. The full transfer rate of USB3.0 can only be reached with USB3.0 connection. You can upgrade your computer/notebook with a USB3.0 PCI-card (eg ICY BOX IBAC604/605).
